The second Chevalier (DD-805) was commissioned January 9th 1945. She
was named in honor of the first Chevalier DD451 sunk after battling with
the Japanese Destroyer Yugumo off Vella Lavella in the Solomon Isles in
1943. The Chevalier was one of 24 Gearing class destroyers to be modified
into radar picket ships in anticipation of the Invasion of Japan. The DDR
conversions would give early warning of impending air attacks and allow
the fleet to react before the aircraft got in close. Chevalier's conversion
involved removing the torpedo mounts and adding a large tripod mast bristling
with radar and antenna. Arriving in the Pearl Harbor in July 45, she set
sail to bombard Wake Island on August 1st before joining Task Force 38
off of Honsho later that month. She was among the ships to enter Tokyo
Bay for the surrender signing.
Like the other brand new Gearing class ships, she remained active post
war. The Chevy as she was nicknamed spent the post war days patrolling
off the Philippines before finally returning home in April 1946. She underwent
a refit that stripped many of the light anti aircraft guns off and returned
to service in both oceans. In 1949 she was officially reclassified DDR-805.
She served in the Korean War and operated with the carrier task forces
launching raids on the North. Chevy was transferred to South Korea, in
July 1972 and remained in service as the ROKS Chung Buk until 2000 when
she was finally scrapped.
Chevalier received one battle star for World War II service, and nine
for Korean War service.
Like the real life DDR upgrade, this new kit is an upgrade of the Dragon
USS Gearing kit. The kit represents the Chevalier in 1945 as she would
have appeared in Tokyo Bay for the surrender signings. It is the second
project of a very talented designer, Darius Lipinski. Dragon Engineers
then turned the drawings into the final kit that we see here.
|
| Before you read this review, you should be aware that I had a hand
in the design of this kit. My opinions are a little biased, but I will
try to contain myself and let the pictures do the talking. |
|

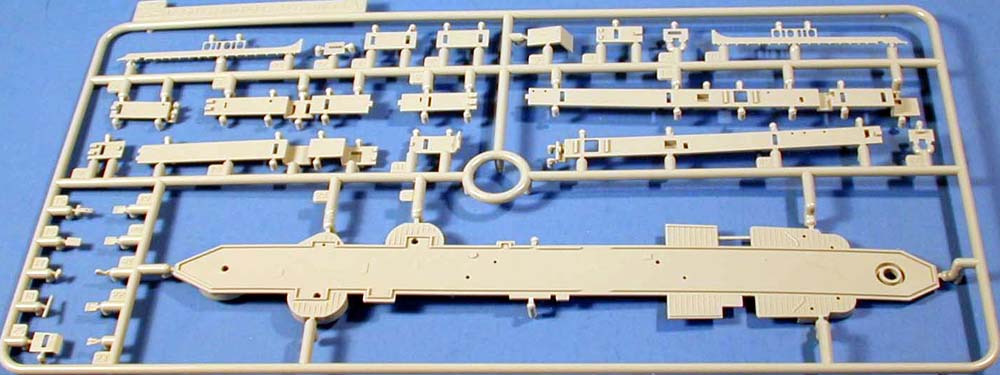

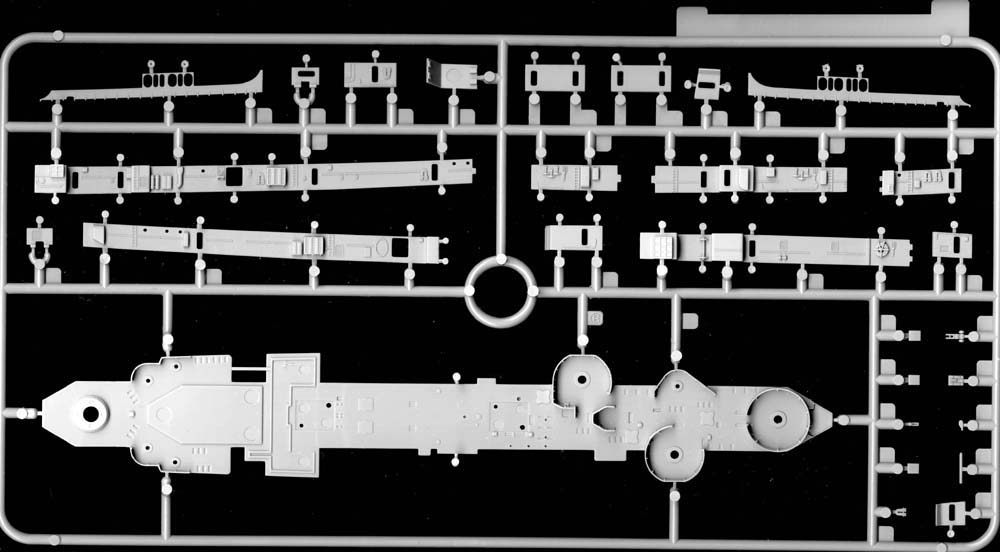

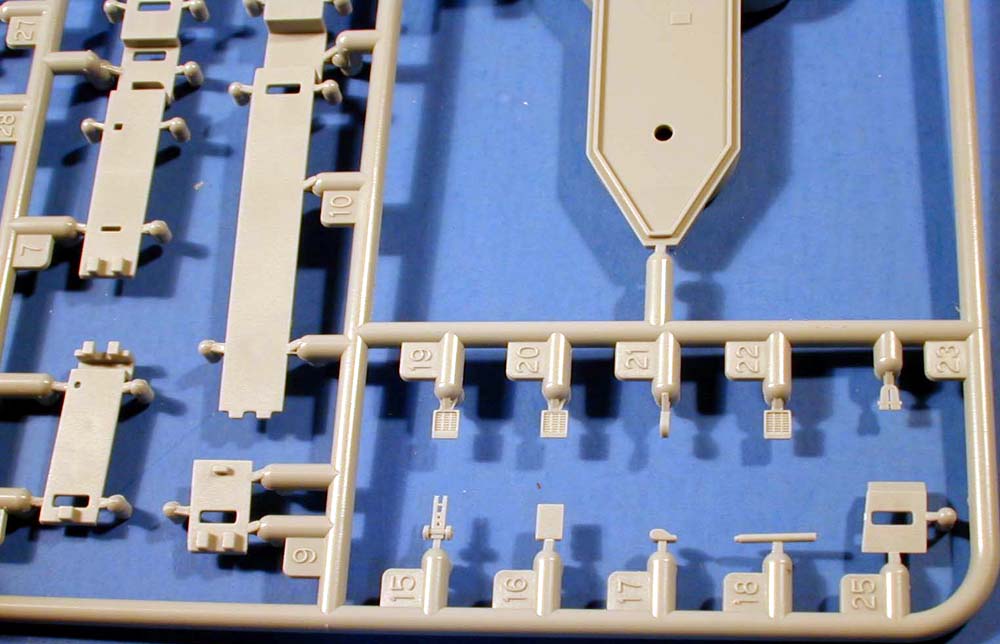

| SPRUE A |
|

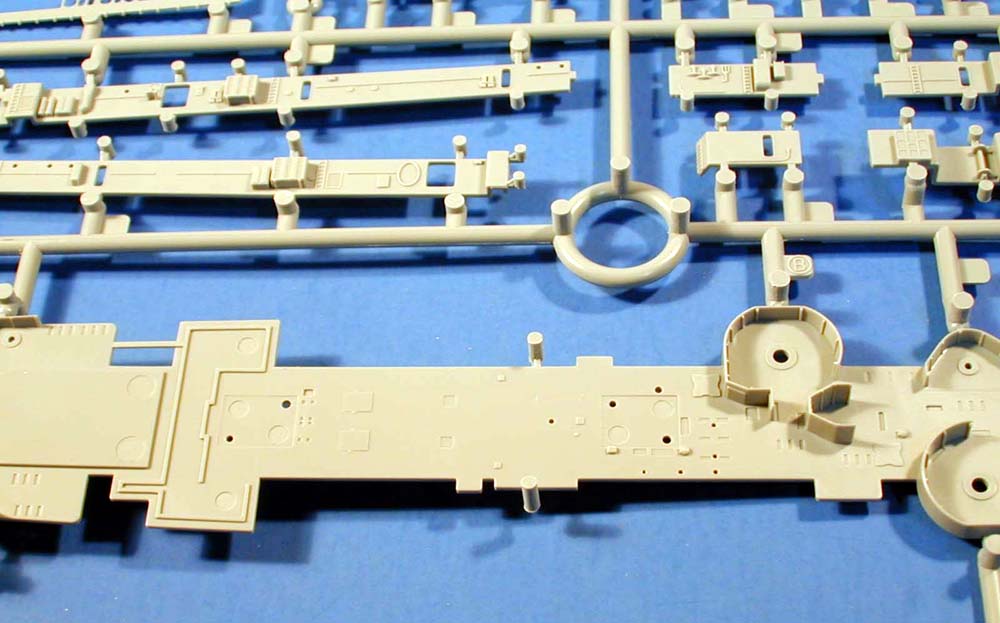

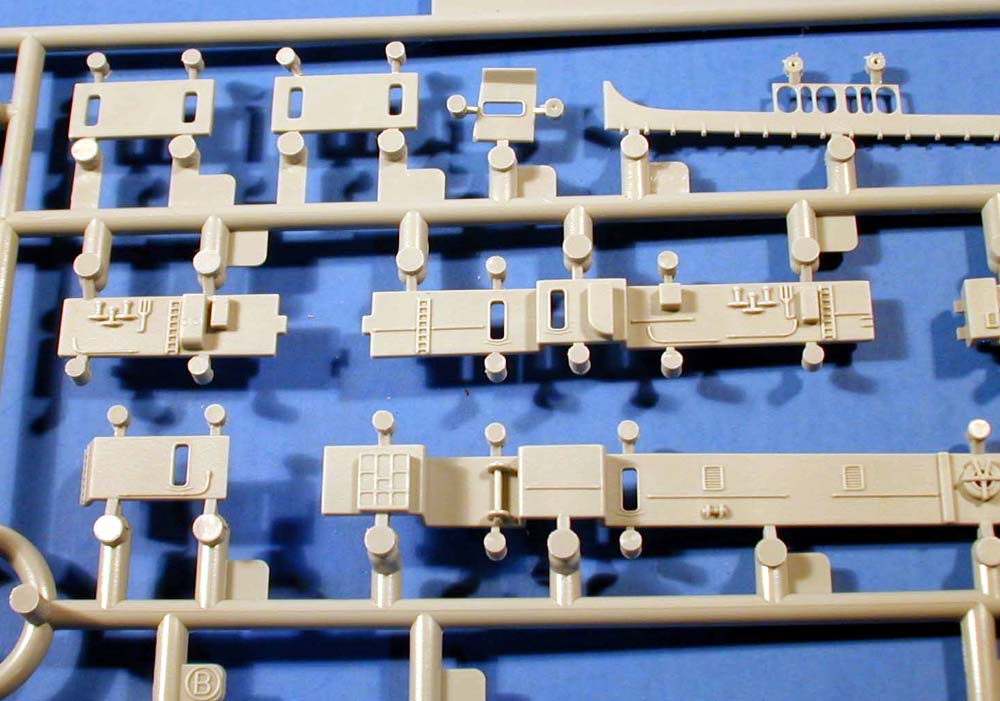

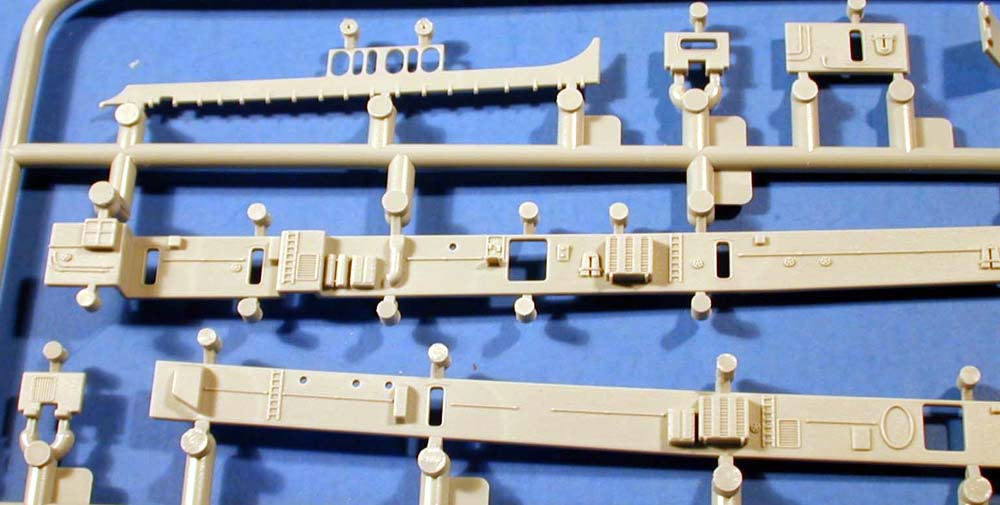

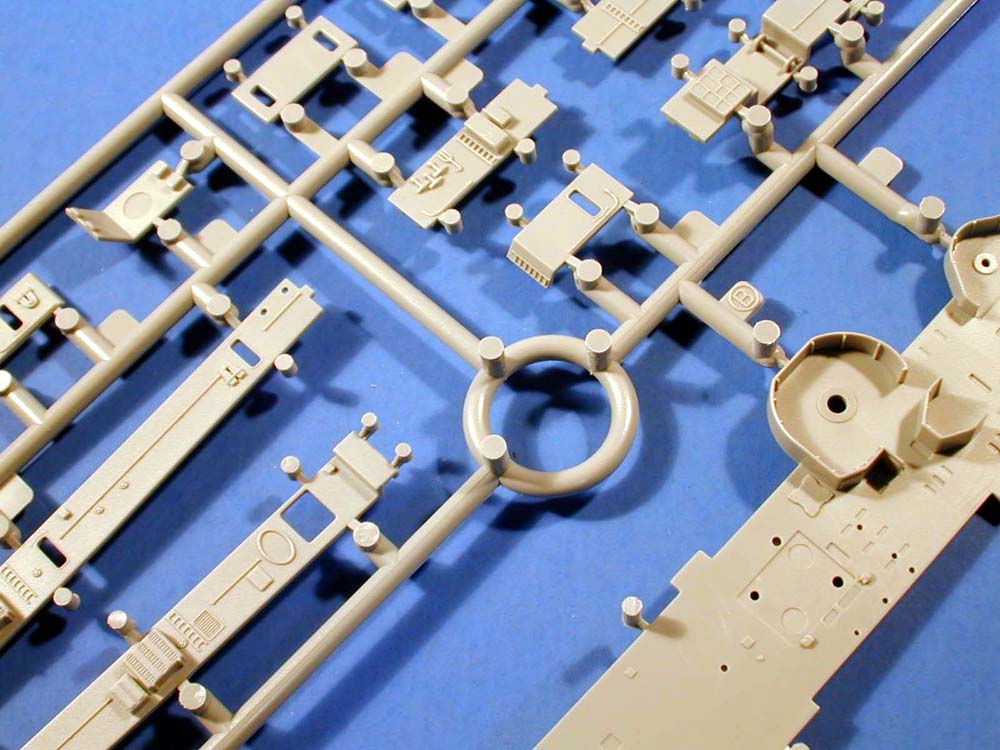

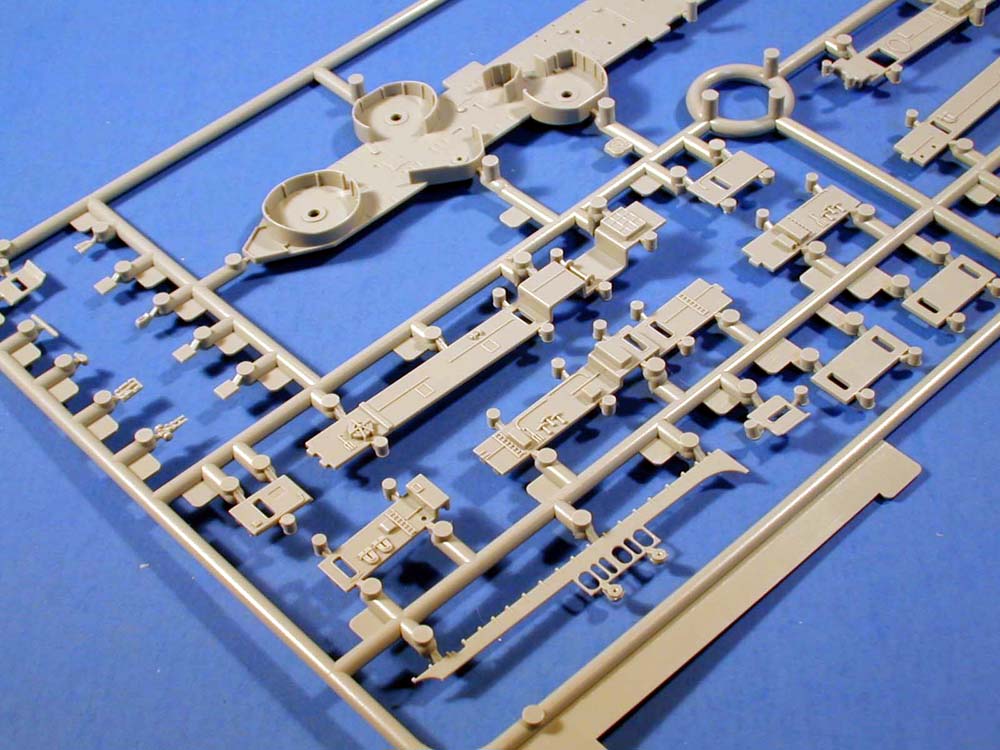

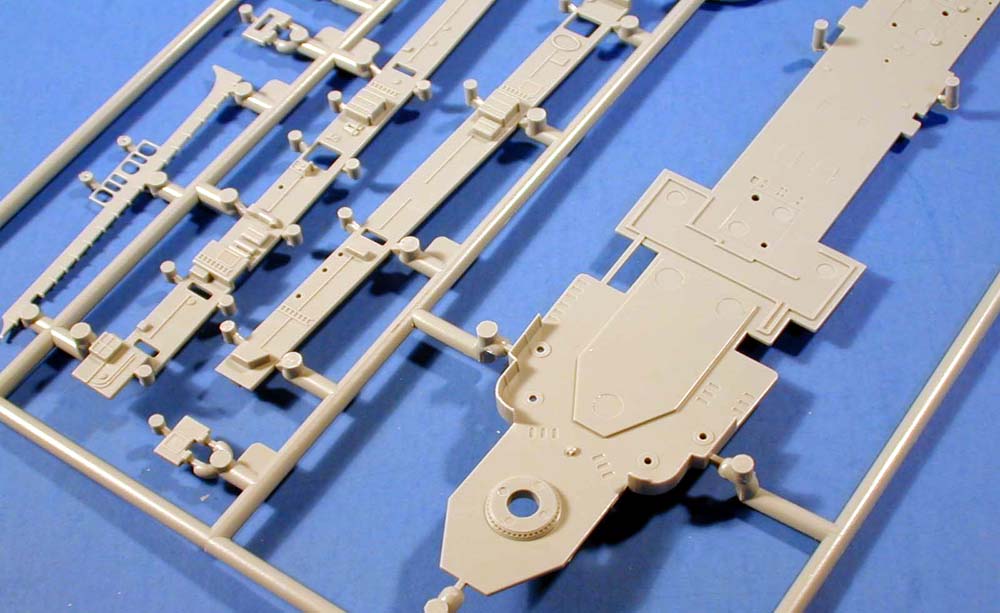

| The first sprue consists of the main deck and most of the
superstructure parts. This is a new sprue modified to fit the DDR conversion
of the Gearing class. In place of the forward torpedo launcher, are locator
spots for the large tripod mast that was fitted to these ships. Notice
the deck has a long graceful arc to it much like the real ship. There are
nice thin splinter shields that are not compromised by excessive taper.
Those that overhang also have underside bracing. The walls have extensive
detail molded on and include open doorways with nice raised lips and gutters
overhead. You will find an abundance of lockers and hose reels and many
other details molded on. Some of these details are also provided as separate
parts. I wish the ladders would have been left off, but they don't look
bad at all. |
Click
images
to enlarge |
 |
|
|
| SPRUE B |
|
| The second sprue includes the upper hull, bridge funnels, and other
parts. The hull includes nice hawse pipe detail, and lines that compare
nicely to the real ship. The bridge includes recessed position lights and
lots of detail on the inside of the wings. The funnels are slide molded
as single pieces with separate base and caps. A nice insert gives the funnel
fantastic detailing. The caps are nicely done and the separate piping and
vent grills will make these look awesome even without photo etch. |
 |
|
|

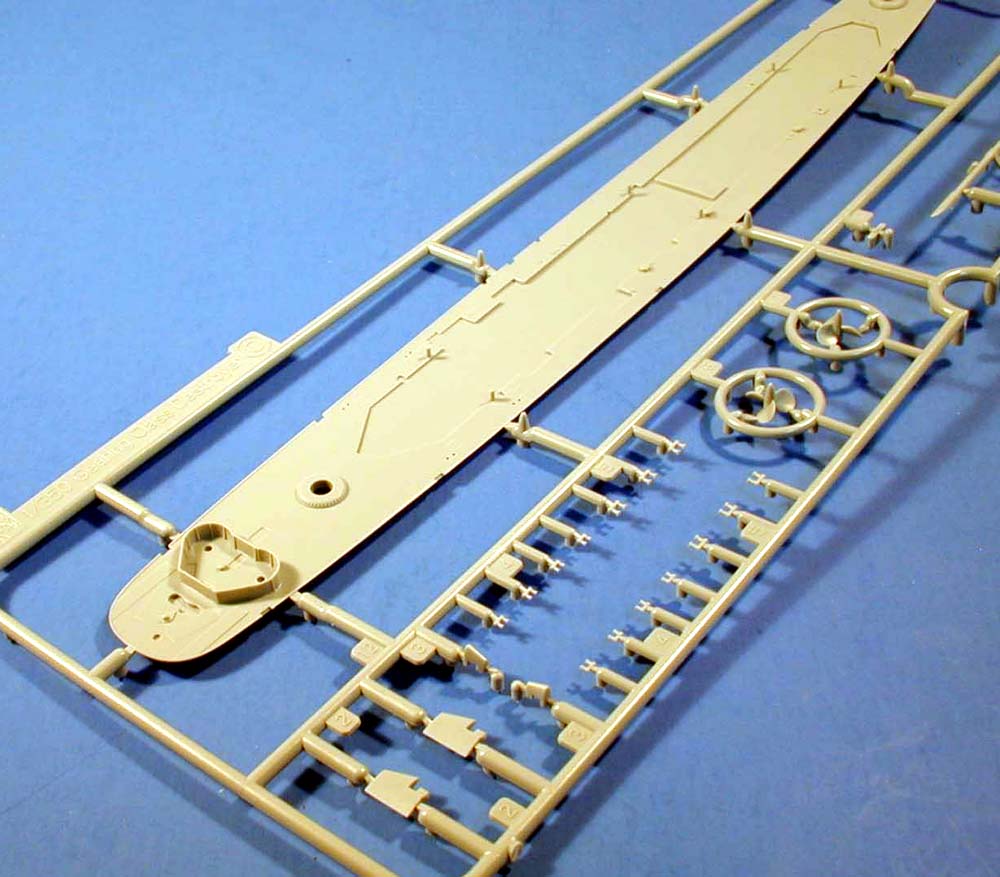

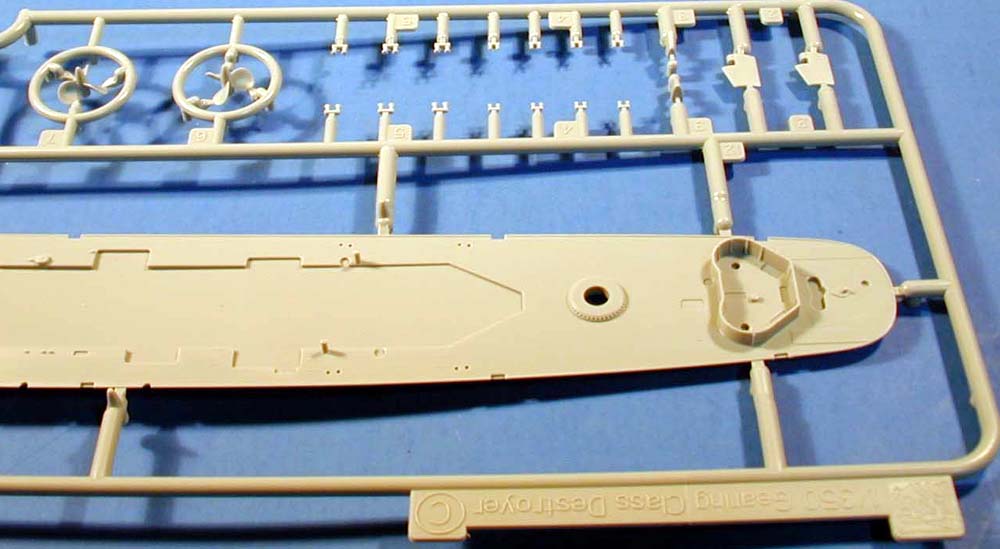

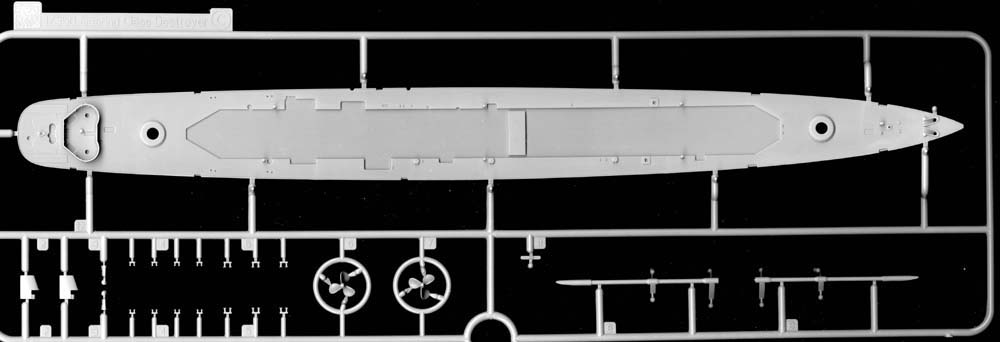

| SPRUE C |
|

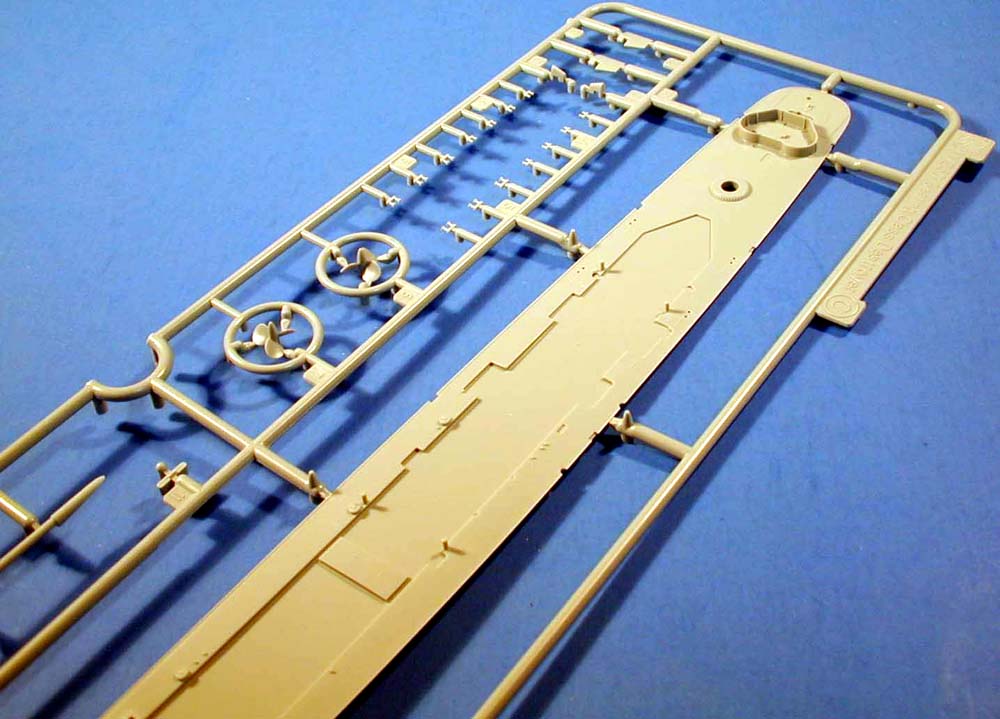

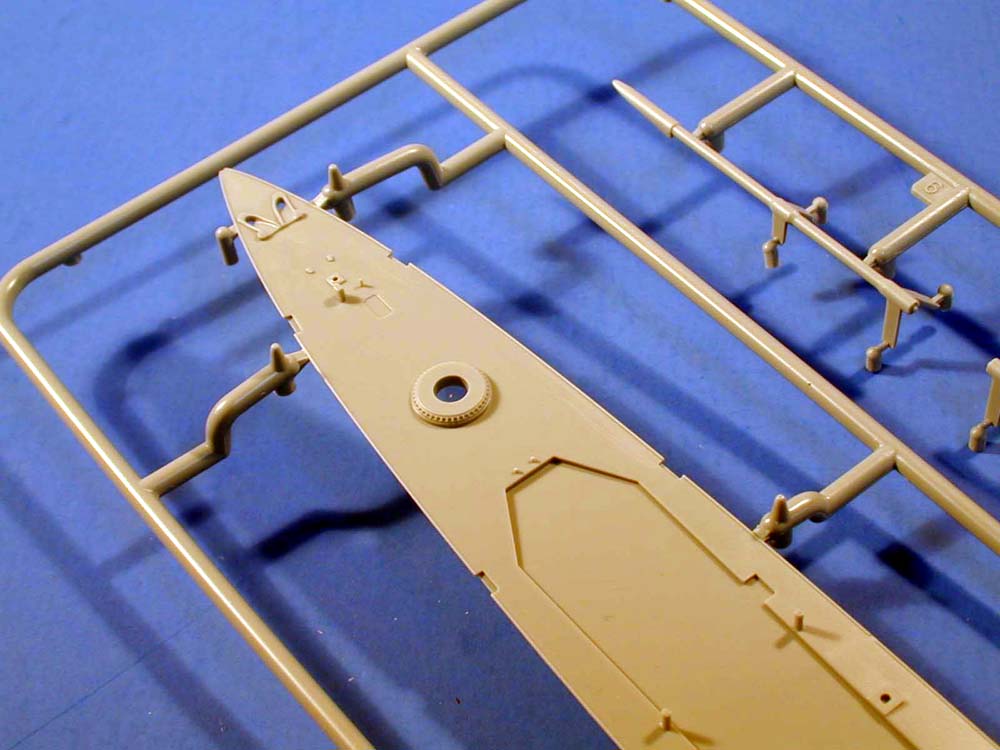

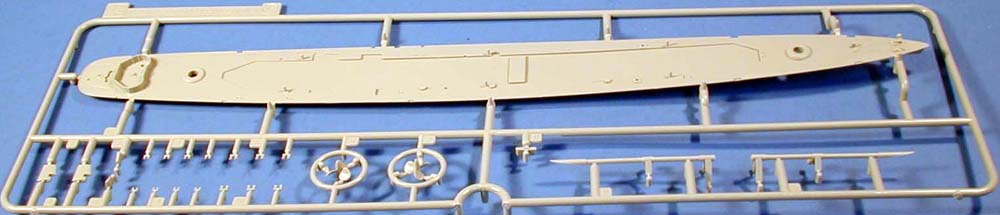

| This sprue features the deck propeller gear and lower hull and main
deck. The main deck has a cambered surface like a real ship and a nice
waterway molded all the way around the perimeter. Note, this comes in handy
if you add railings as they mount along the edge. The superstructures parts
are located by the recesses in the deck. This sprue has also been modified
for the DDR kit with a revised stern gun tub layout. |
 |
| Bits are included as separate parts that have really nice
detail for this small size.
The lower hull includes molded on bilge keels accomplished using slides
in the mold. The twin rudder setup is realistic and is molded in two parts.
The prop shafts and props are well done for those who like full hull models. |
| SPRUE D |
|
| This sprue is from the Buchanan
and provides the quintuple torpedo mounts and right hand practice loading
machine. The torpedo mount has fine detailing and a separate control stand.
The practice loading machine is done in three parts, a base, gun assembly,
and gear motor. All more detailed than anything else on the market in plastic. |
 |
| As a bonus you get a lot of parts that can be used to upgrade
other kits.
|
| SPRUE E |
|
| The sprue contains the radar and directors. It is the same as
the one in the Buchanan,
but without the Mk-37 director front. The parts that you will use on this
kit are the SC radar antenna, the Mk 12 antenna mounts, and the Mk-51
directors. The radar antenna are nice for plastic, but I would recommend
replacing them with photo etch. Dragon now includes an SC style photo etch
antenna in their kit and the instructions show how to modify the plastic
mount for the PE. |
 |
|
|
| SPRUE F |
|
| The strange looking parts on this sprue are actually forming tools.
Another smart feature of this kit. They are used to form the photo etch
life raft supports and the propeller guards. The latter is a great idea
as I'm sure I am not alone in having a hard time folding these to shape.
Use this tool to form near perfect shaped prop guards for your ship. Note,
the propeller guards are typical of those used on other USN destroyers,
so hold onto this tool it make come in handy for other projects. |
 |
|
|
| SPRUE G (x2) |
|
| Separate plastic doors are included on this sprue as well as some nice
300 lb.. depth racks. The latter include photo etch parts to finish the
assembly. Many of the deck fittings are included on this sprue such as
bents, anchor well covers, and chocks. The funnel piping and grills are
also include on this sprue and the molded on louvers are awesome. There
are even separate oxy/acetylene bottles for your damage control crews to
use. |
 |
|
|
| SPRUE J |
|
| This sprue contains two 36" searchlight lenses. Just the lenses so
if you don't like the brittle nature of clear parts, you will appreciate
that the main part of that searchlight is good old gray plastic as shown
below on the K sprue. The surface of the lenses even has the cross lines
of the real ones. |
 |
|
|
|
|
| SPRUE K |
|
| This is the fittings sprue from the Buchanan.
It includes a multitude of parts, many not used on this kit. The ones you
will use are the two piece deck winches, K-guns, davits, doors, pelorus,
and 12" searchlights. The others are a bonus for your other projects. |
 |
| Note to Carl M, this is the kit you need to stock
up on accurate closed chocks!
|
| SPRUE L x2 |
|
This sprue includes the 20 mm twin mounts. Molded similar to the 20
mm singles these also have separate ammo cans that you can leave off if
you find them too small to handle. The electric gun sights are also included
and if you examine them under a magnifying glass you will be impressed.
Plastic shields are included or you can use the photo etch ones provided
as an option. Notice that even on simple little parts like these, that
Dragon went to the extra expense to add a slide in the mold so that detail
could be included on three sides of the gun barrels. |
 |
|
|
|
|
| SPRUE M x2 |
|

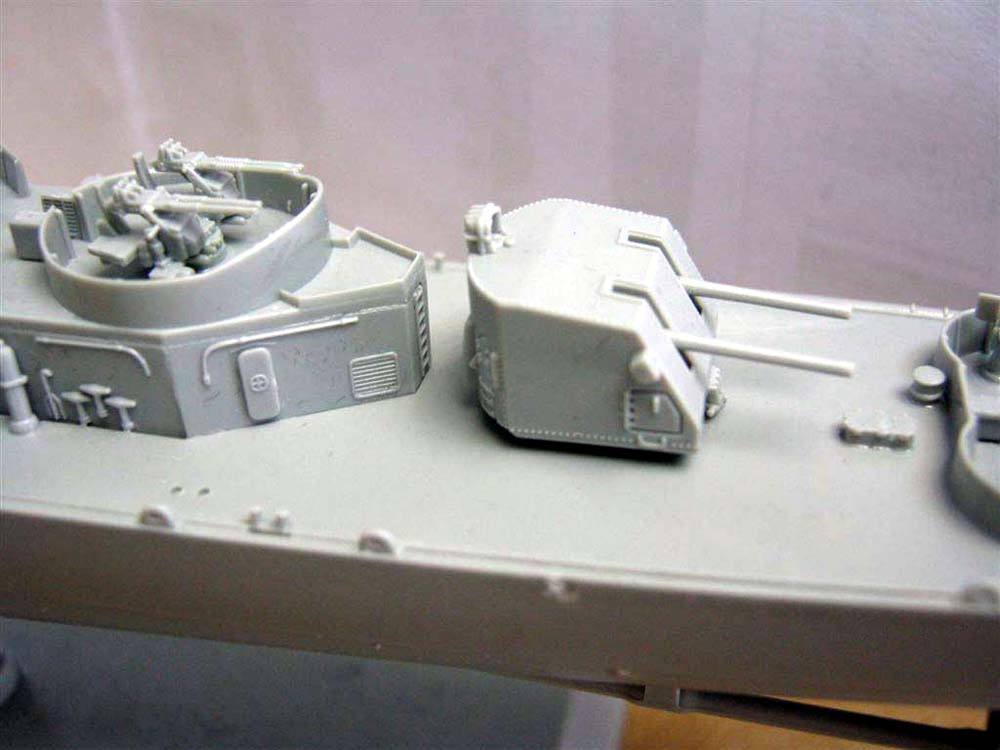

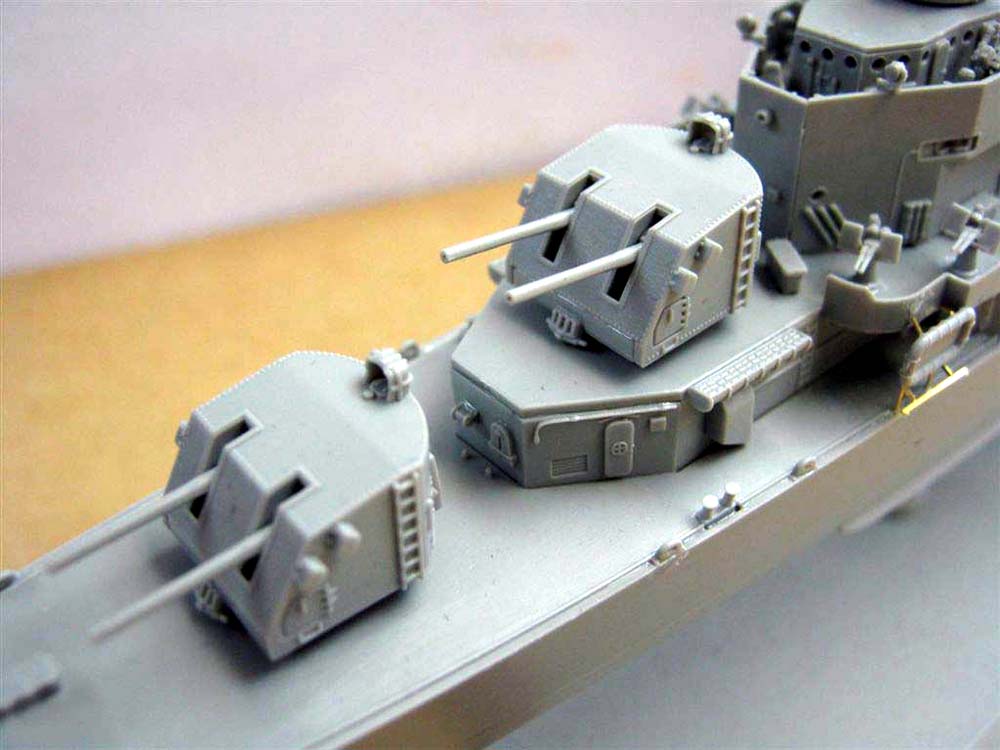

| Two sprues of 5" 38 cal twin mounts are included in the kit. These
are extremely detailed with raided rivets, and nice recessed hatch details.
Extensive use of slides in the mold allowed Dragon to preserve a lot of
the detail on this part. That not only allows a great looking parts, but
it results in fewer seems for the modeler to fill. |
 |
| These gun mounts have hollowed out gun barrels, separate
gun captain hoods that can be left off as many ships only used these
when there was another turret directly behind the mount. Traverse stops
on the front give it that extra fine detail look. Sighting hoods, and raised
lips around the gun slots are among the features that make this mount very
realistic.
|
| SPRUE N |
|
| This sprue includes the later Mk-37 mount with the open director captains
spot. A separate canvas cover is provided to close it up. Once again Dragon
used slide molding to allow maximum detailing to be included on each part.
More Mk-51's are included with separate base and sight details. |
 |
|
|
| SPRUE P x2 |
|
| Finally a detailed and accurate 40 mm quad mount in plastic. Dragon
has molded this one similar to the twin mount. It include separate twin
barrel assemblies with nice flared out ends that even have simulated hollow
ends and nice recoil springs. The base includes lots of detail with shell
extraction chutes and detailed yoke and even some underside detailing. |
 |
|
|
| SPRUE Q x2 |
|
| Several twin 40 mm mounts are included in this kit. Far more detailed
than any other plastic gun mount in this scale, it even outclassed all
but a couple of aftermarket resin versions. The mount includes a separate
base, yoke, and barrels. Dragon even went the extra mile and added a slide
in the mold to hollow out the ends of the barrels. The platform includes
the shell ejection chutes. Photo etch sights, seats and foot pedals are
included to give it that extra touch. The best thing about this mount is
that it can be elevated and shown at all the same angles of the real one. |
 |
 |
 |
 |
 |
 |
 |

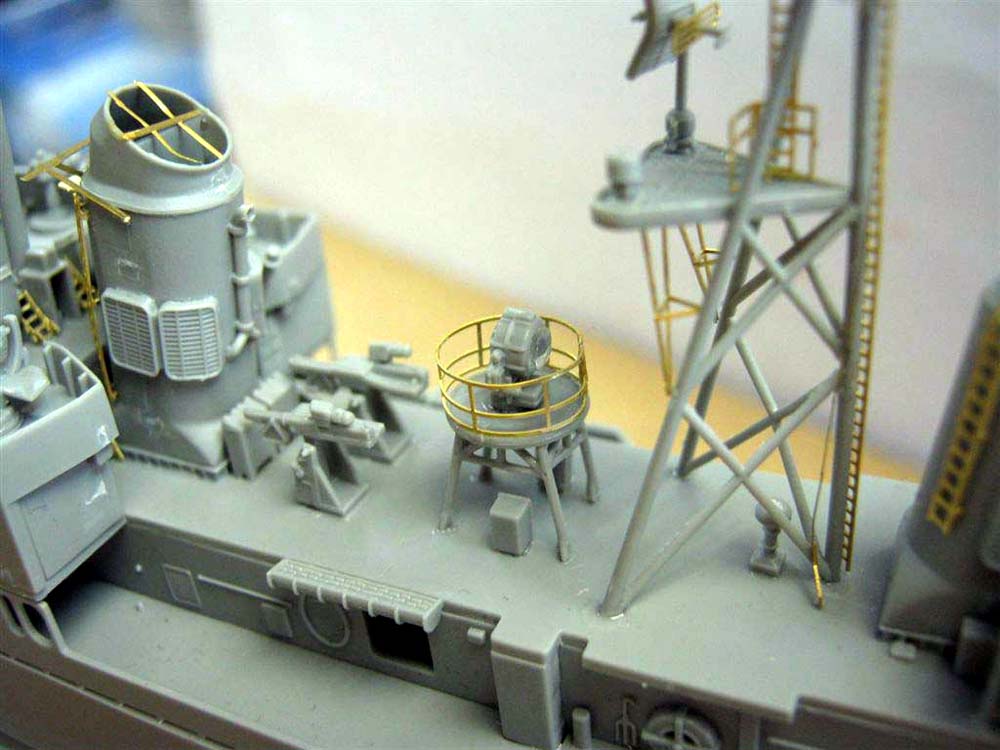

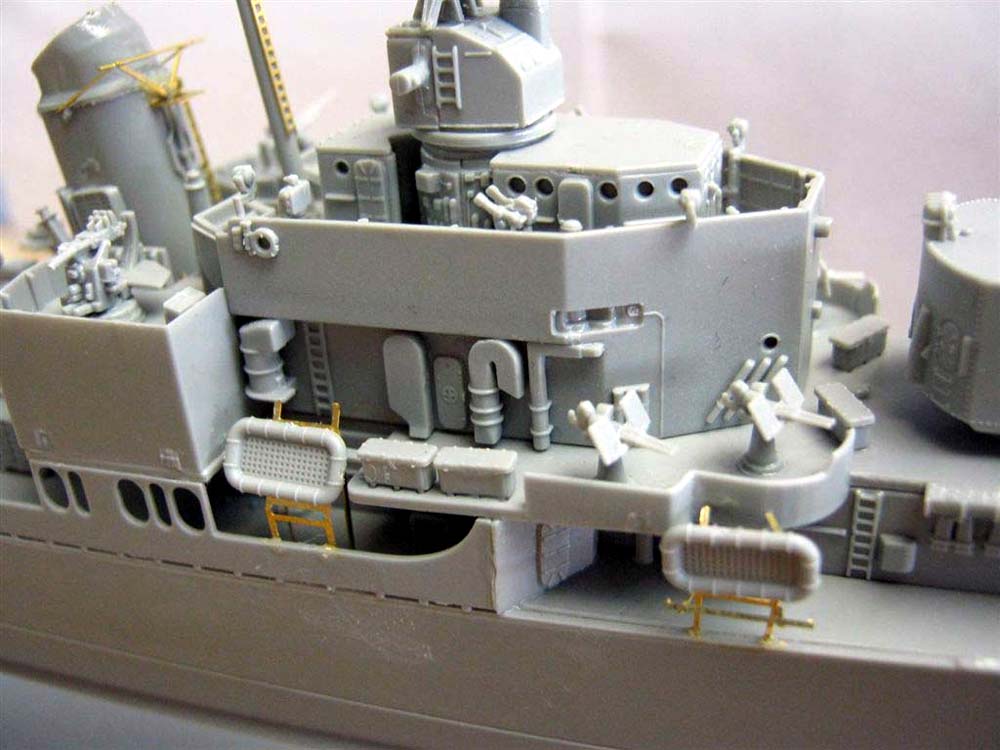

Photos of assembled test parts. |
|

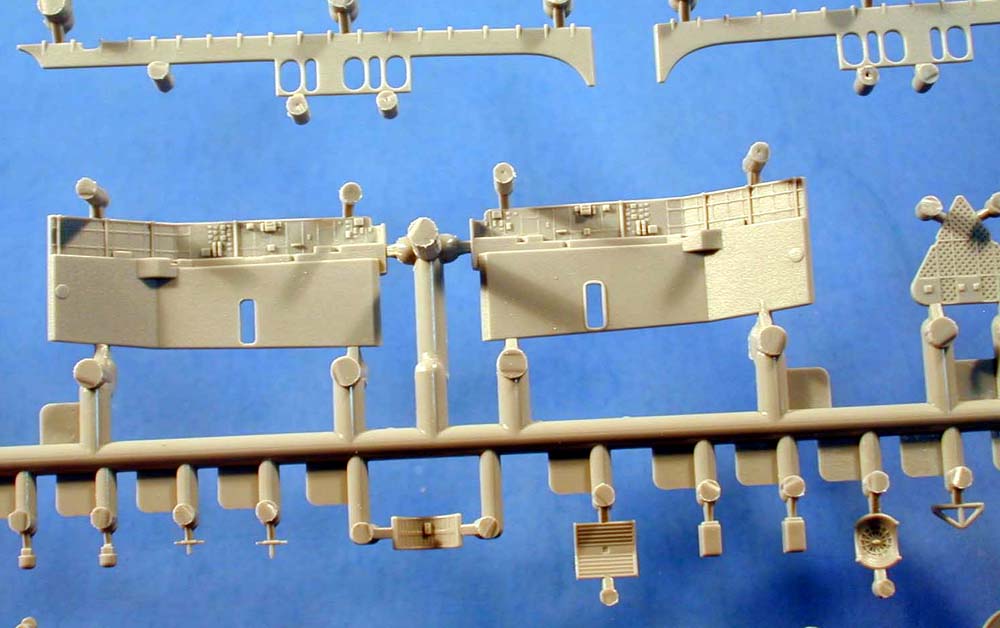

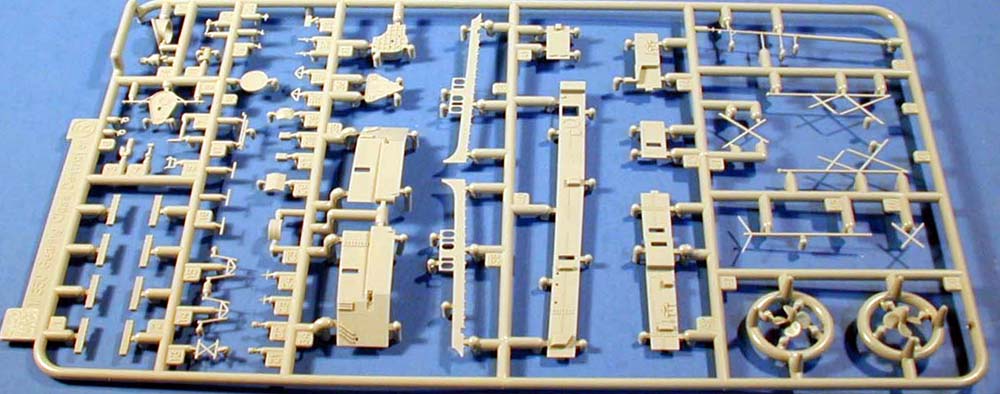

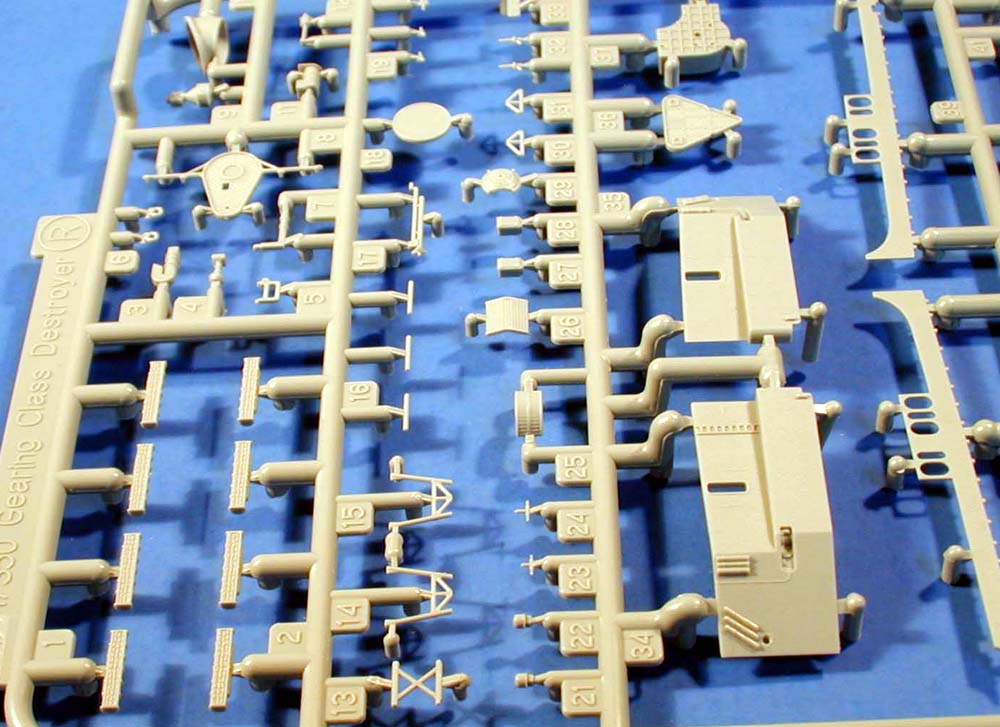

| SPRUE R |
|

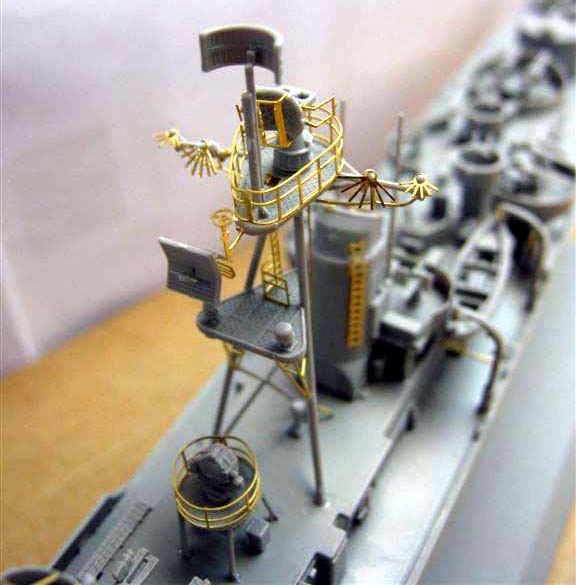

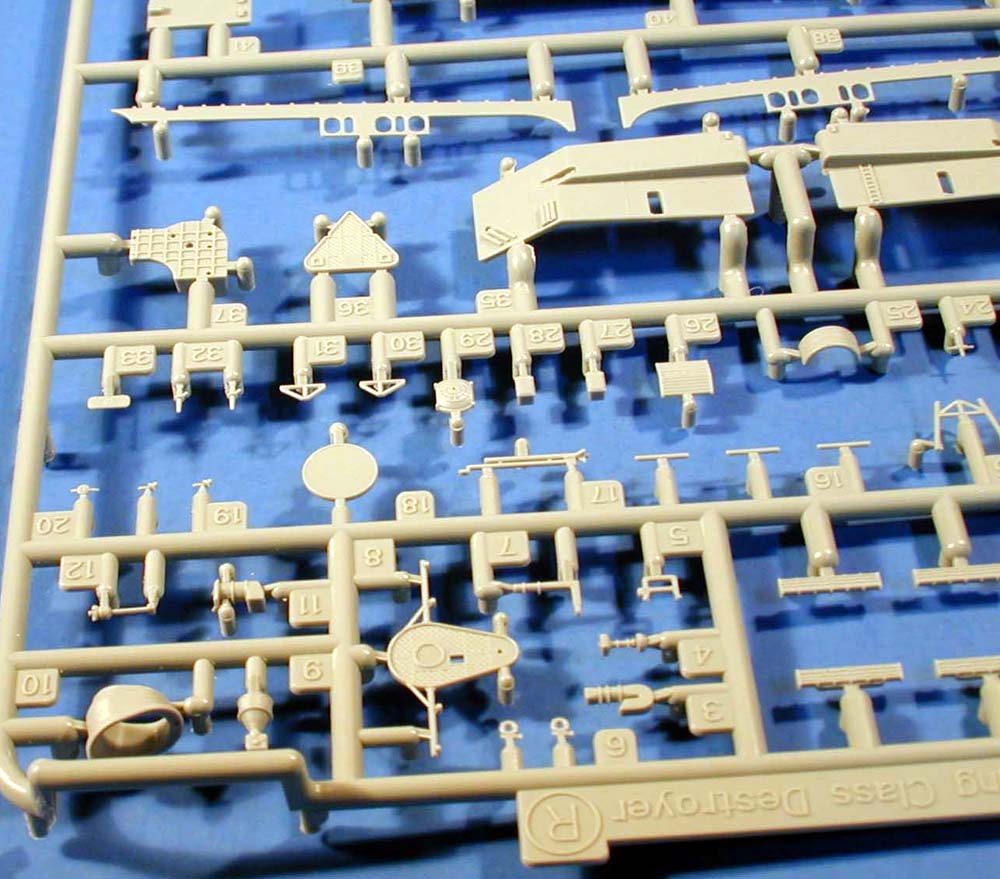

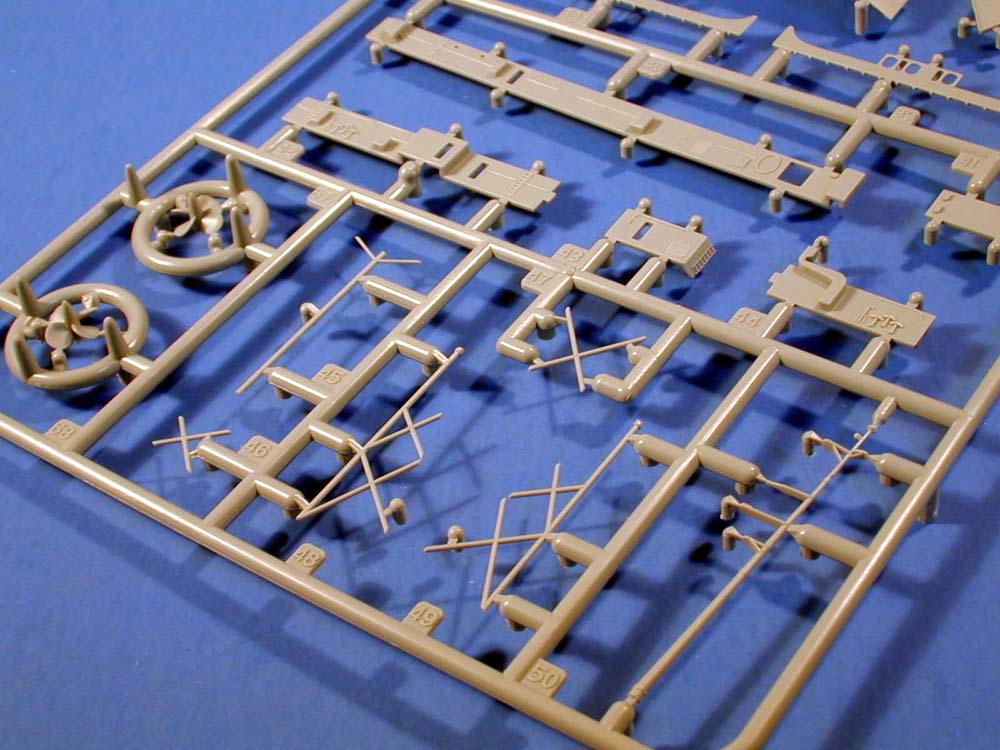

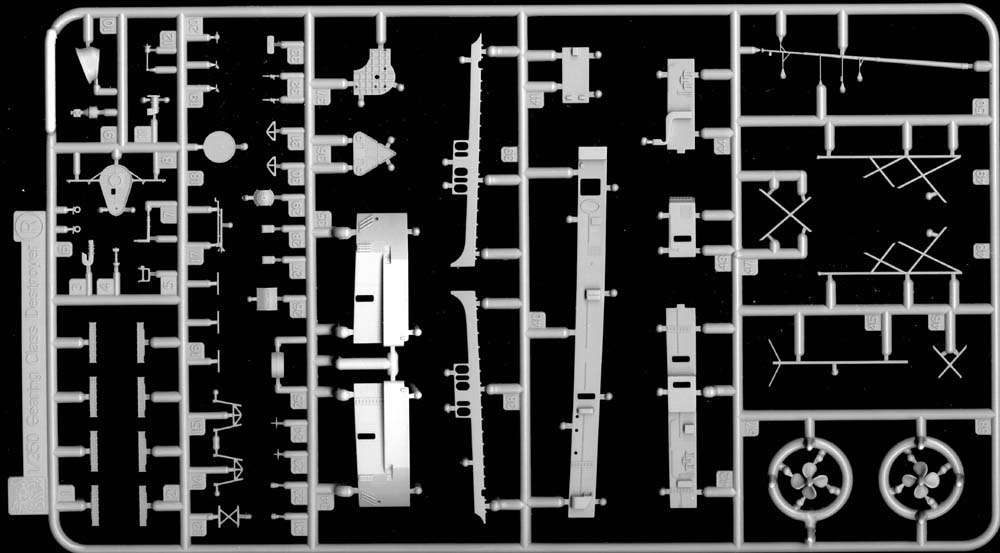

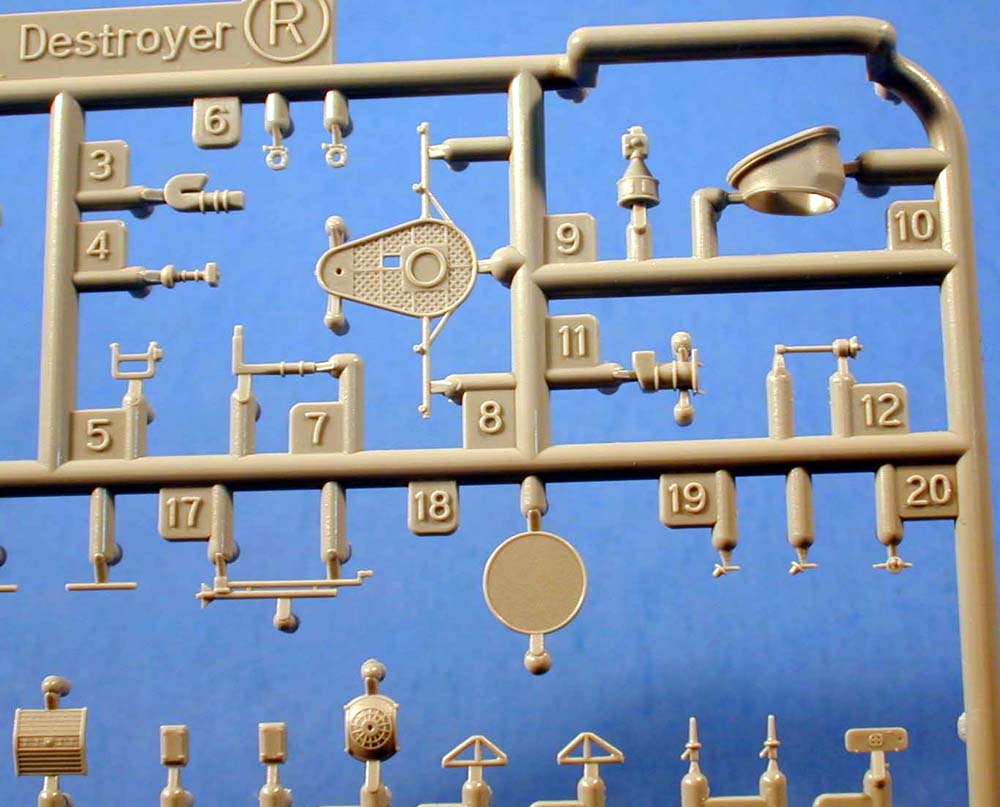

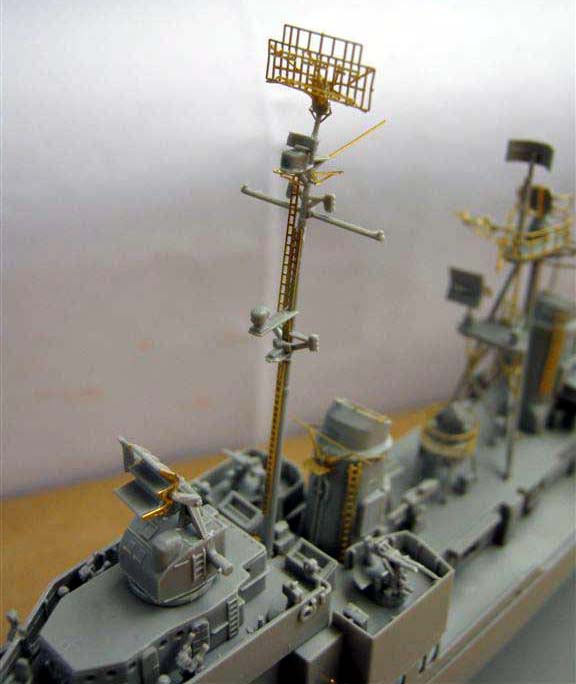

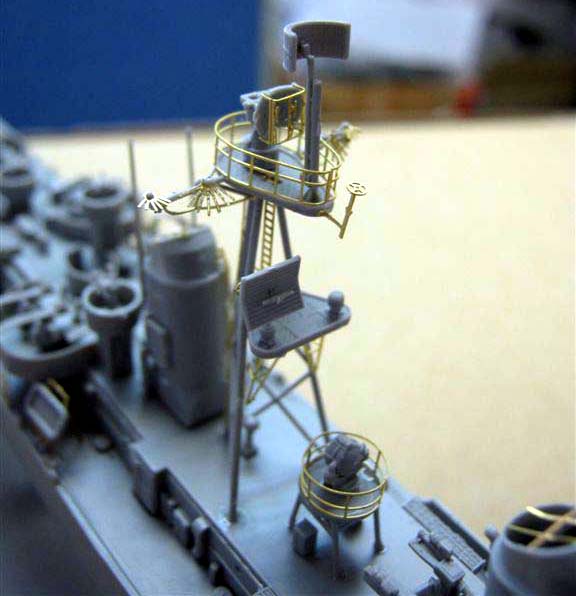

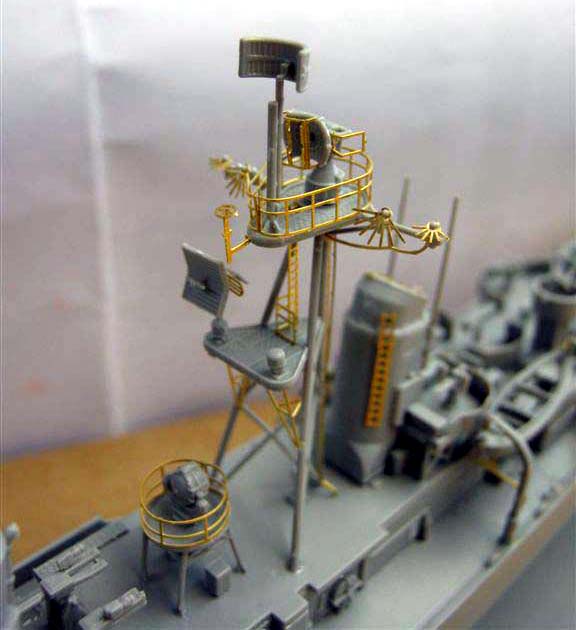

| This sprue is all new for this kit. It features new bridge parts with
the subtle changes of this ship as well as the tripod radar mast assembly
that distinguished the DDR upgrade these ships underwent. Those mast parts
are very nicely done with nice platforms featuring a mesh pattern. The
latter would look better as Photo etch upgrades, but we will leave that
to the aftermarket folks. |
 |

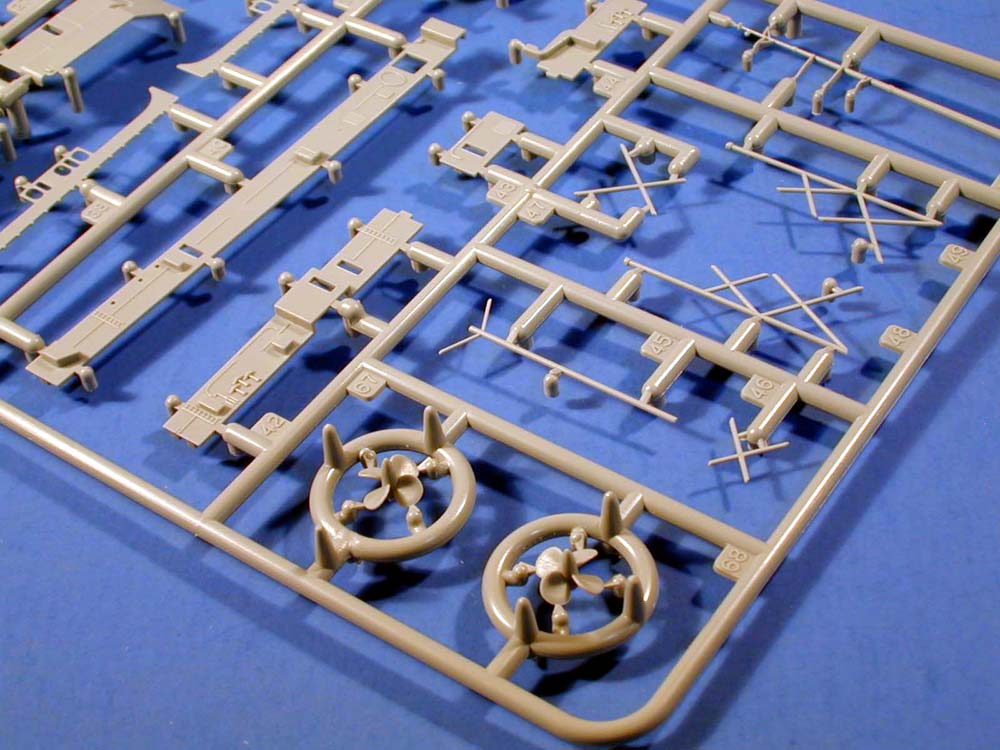

| Also new on this sprue is the 4 bladed props that many
Gearing class destroyers were updated to.
|
| PHOTOETCH |
|

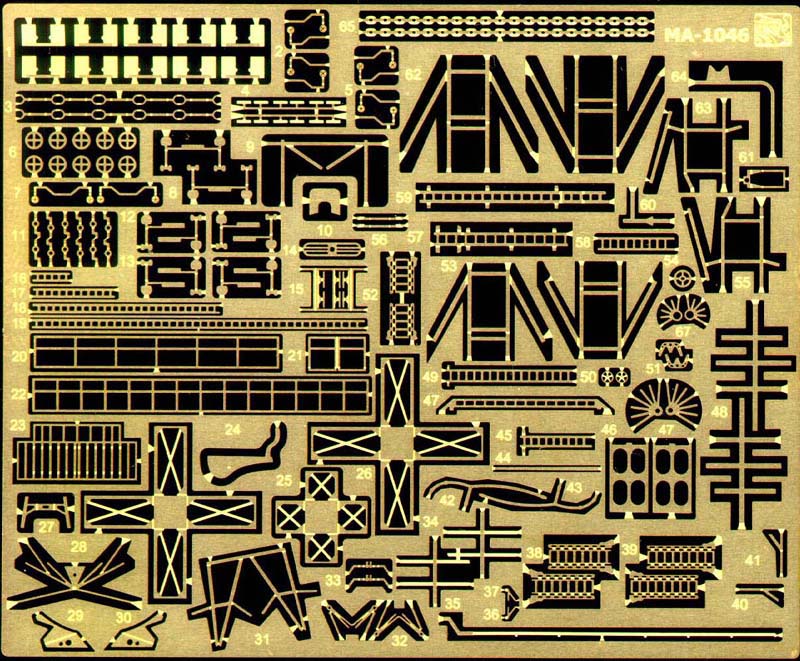

| Two brass photo etch frets are included with the finer details that
just can't be done in plastic. These include relief etching to make the
otherwise flat details stand out. SC radar antenna, ladders, chain, and
gun details are all included. Supports for the Mk-51 director tubs are
included in case you don't wish to use the plastic ones. This fret gives
the modeler a lot of choices. |
 |
| The second fret includes the optional doors. These are nice and are
relief etched on both sides. Four types are included in 60" 66" styles. |
 |
| A smaller fret is included for the sides of the director mounted radar. |
 |
|
|
| DECALS |
|

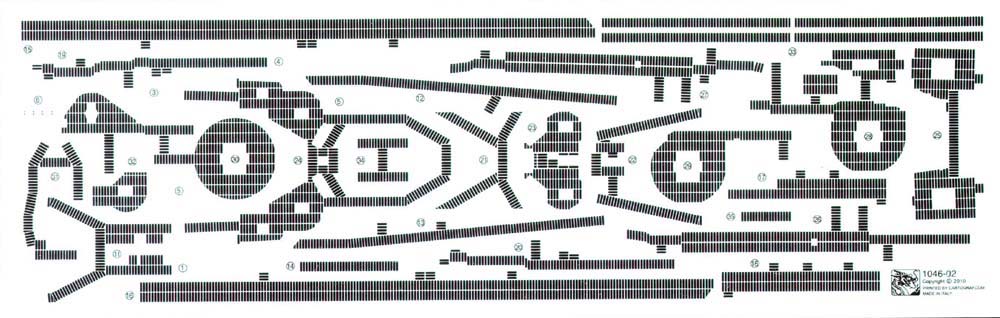

| New anti skid walkway decals are provided with a series of patterns
to fit around the ship. These are divided up into sections so you can use
them to do most any pattern that would fit on a Gearing class DD. |
 |
| A third decal sheet is provided for the flags printed on self adhesive
vinyl. These include the straight and wavy flags, and a token amount of
signal flags. |
 |
|
|

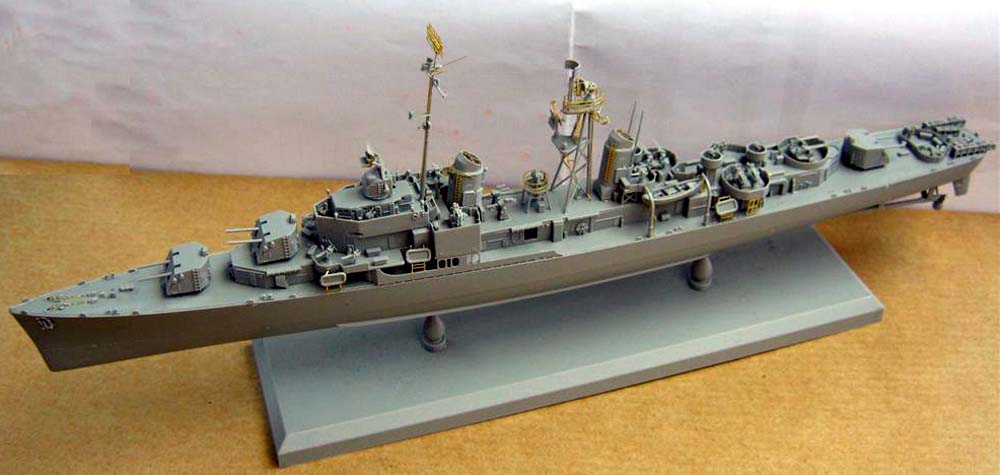

| SPRUE Z (Base) |
|
| A new base for this kit has been designed based on how most modelers
like to display their ships in full hull mode. The stands which resemble
lamp finales are even slide molded so they can be done without seams. |
 |
|
|

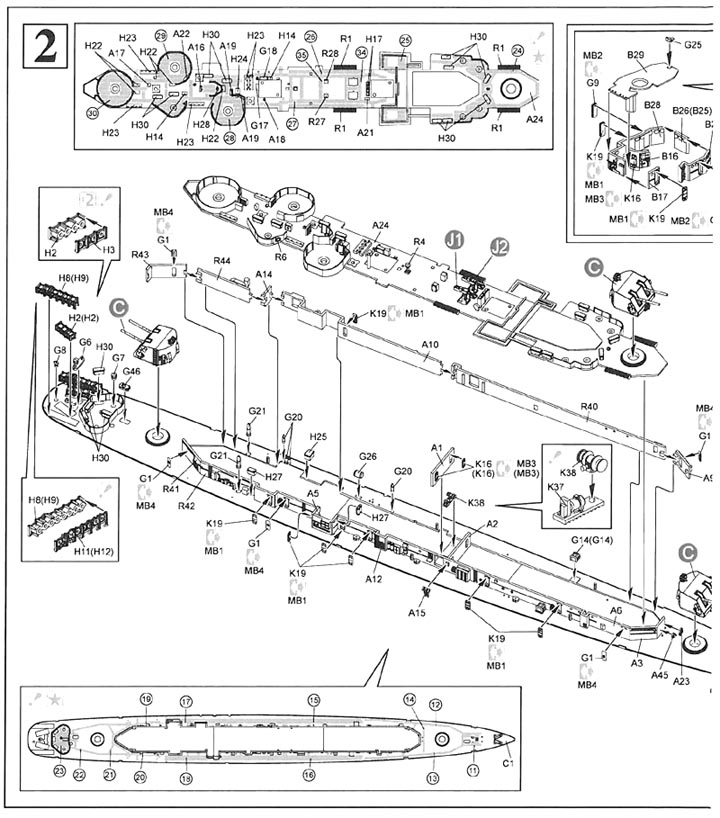

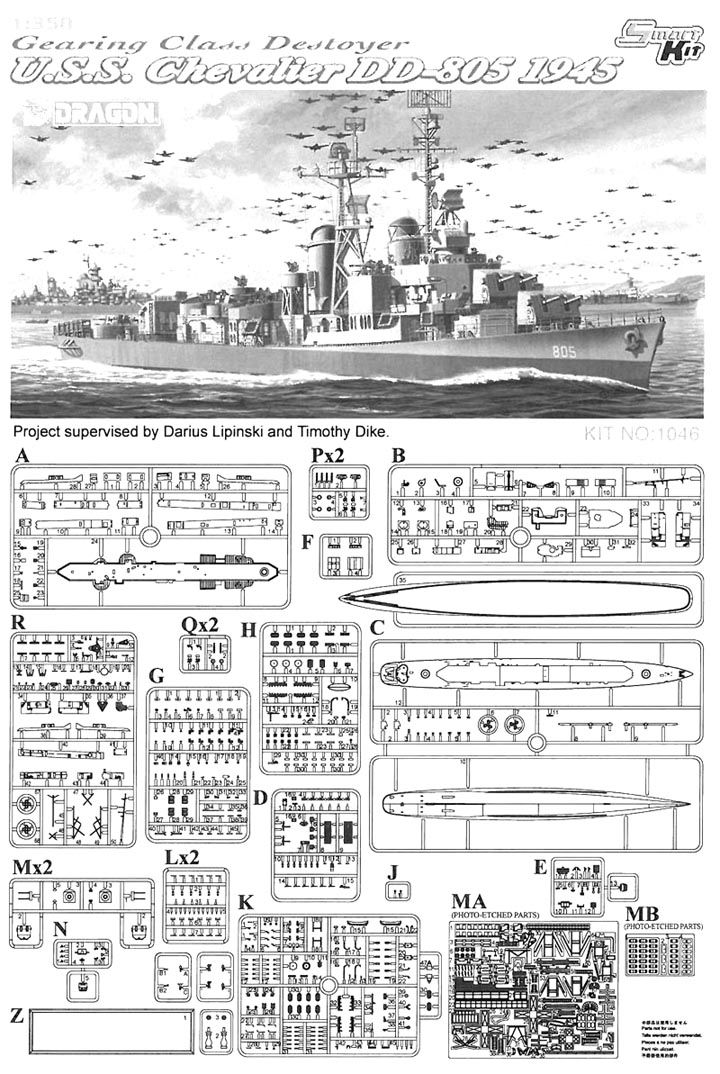

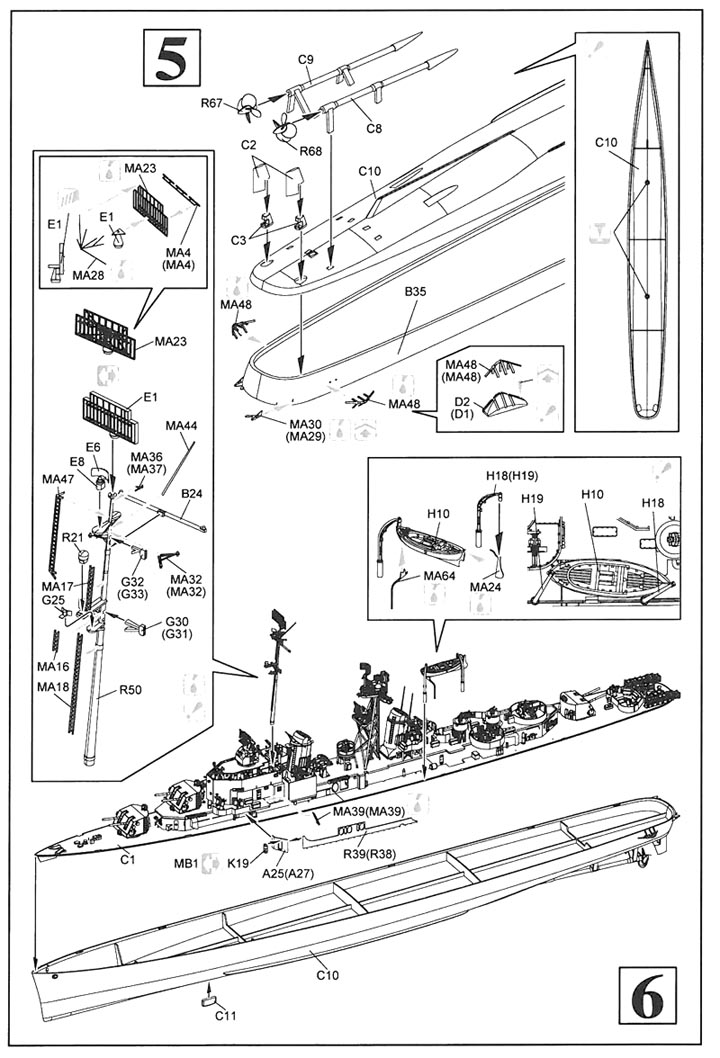

| INSTRUCTIONS |
|

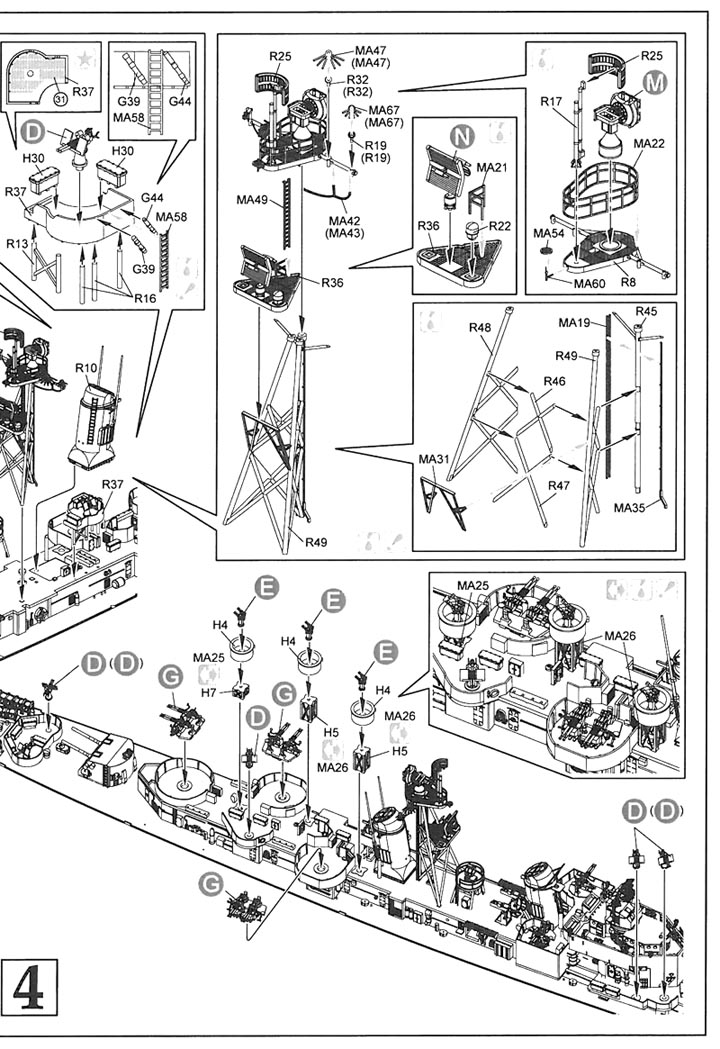

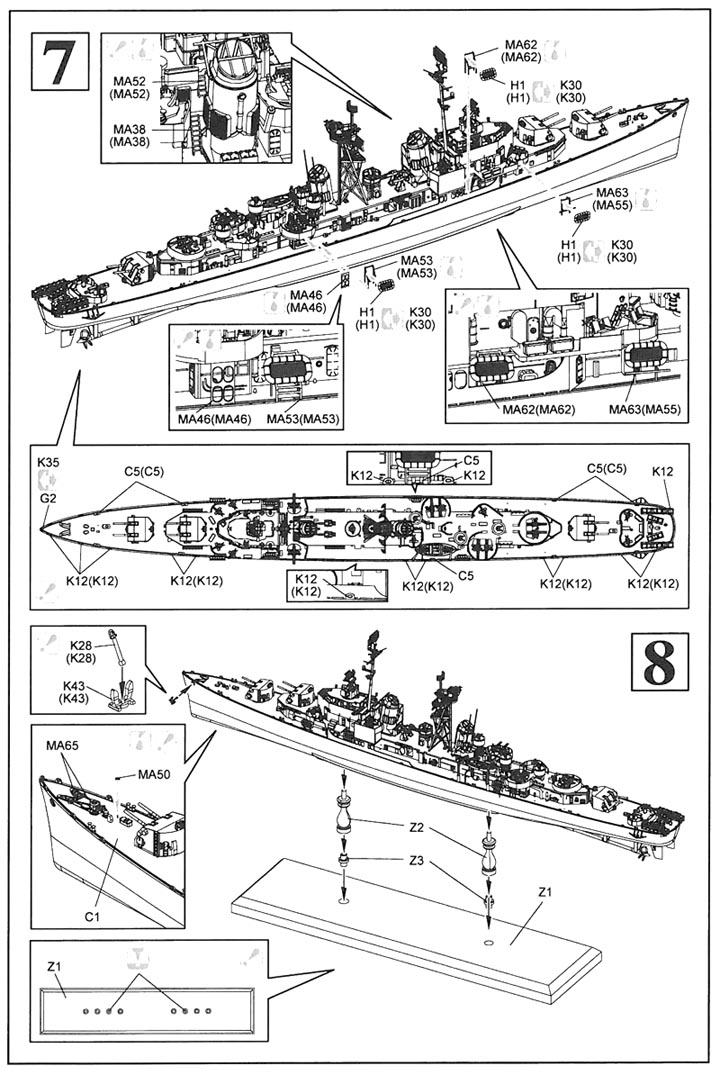

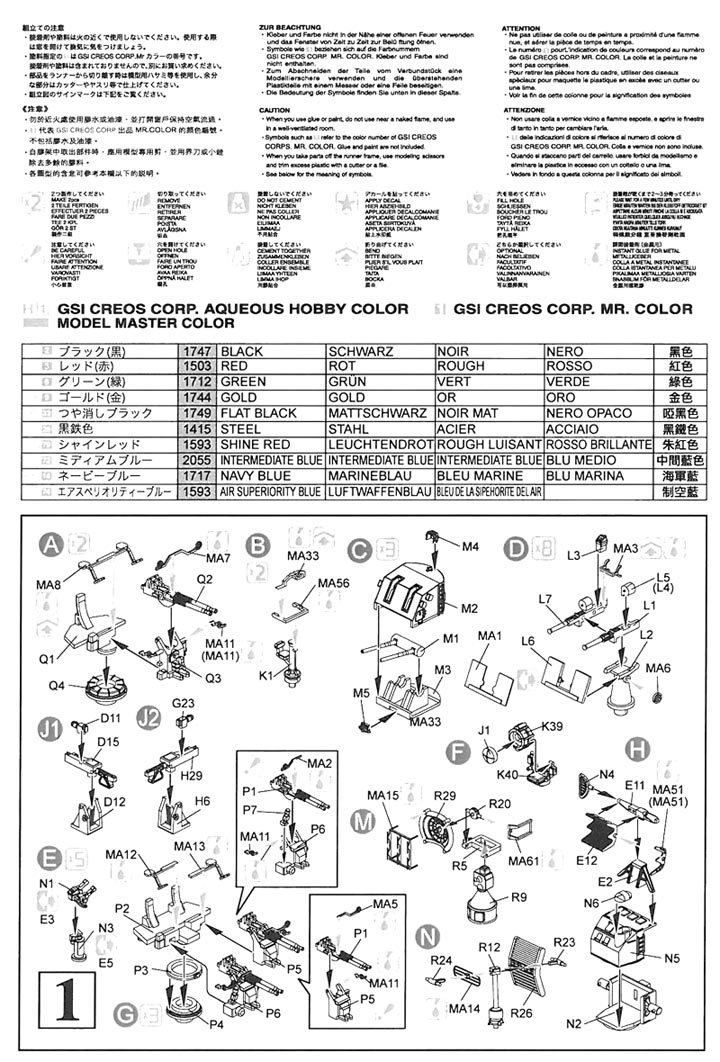

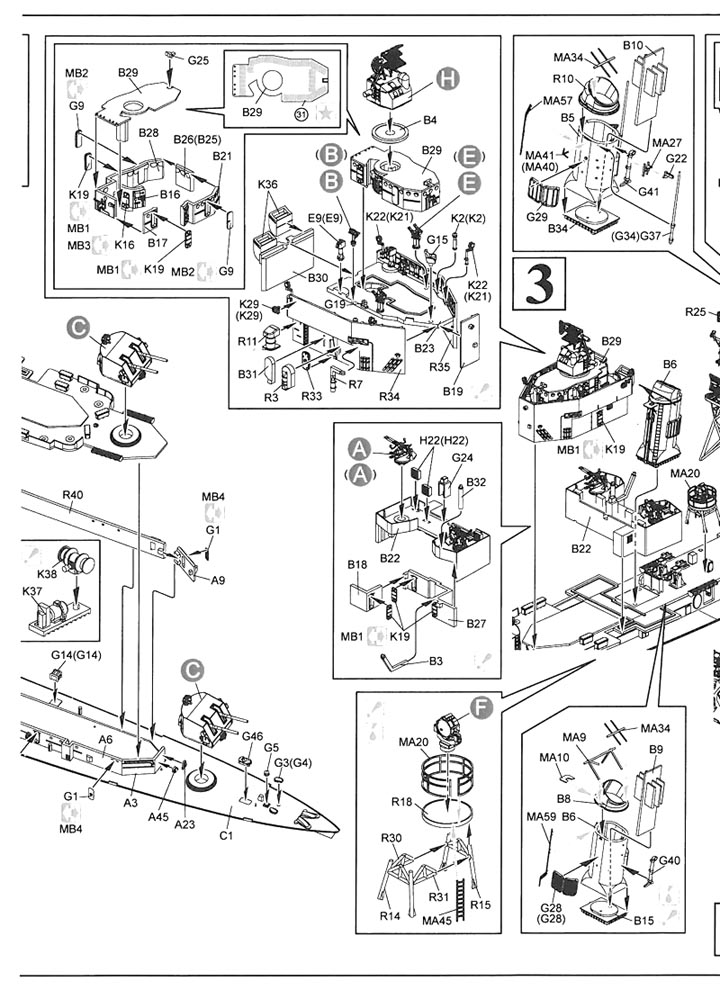

| The kit includes an eight page step by step instruction booklet. These
are broken down into subassembly views building up to the final assembly.
The last two pages show the Ms-22 camo and it's colors. |
 |
| Study the instructions carefully. You may find it easier
to assemble and paint the hull and deck before adding details.
|

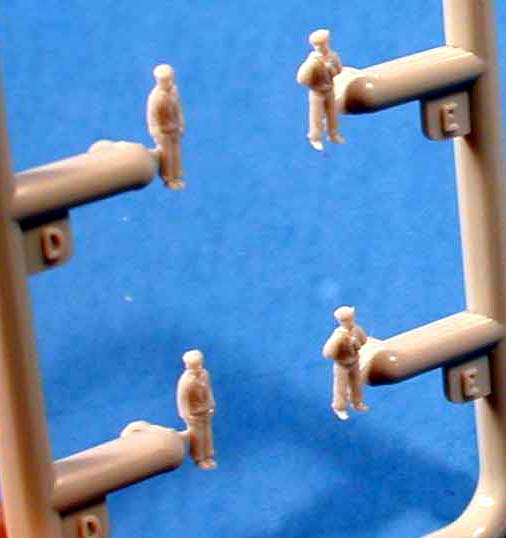

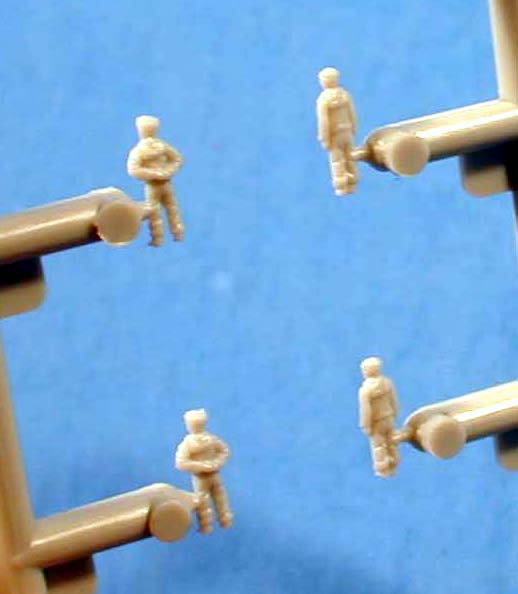

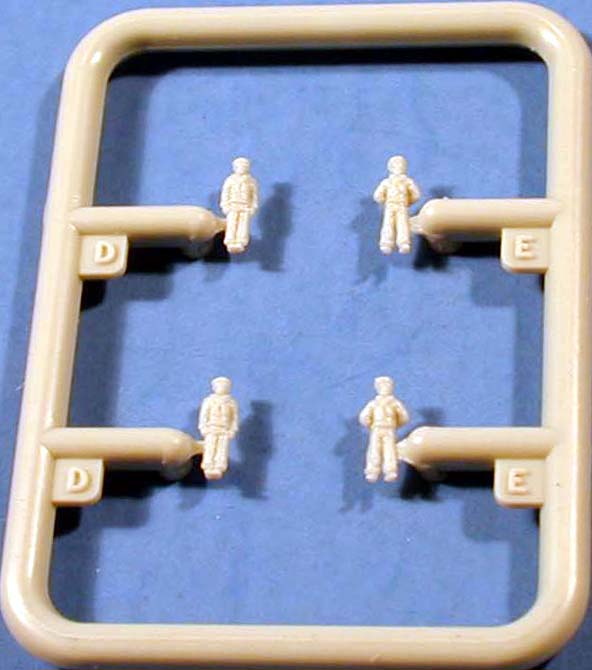

| BONUS CREW MEMBERS |
|

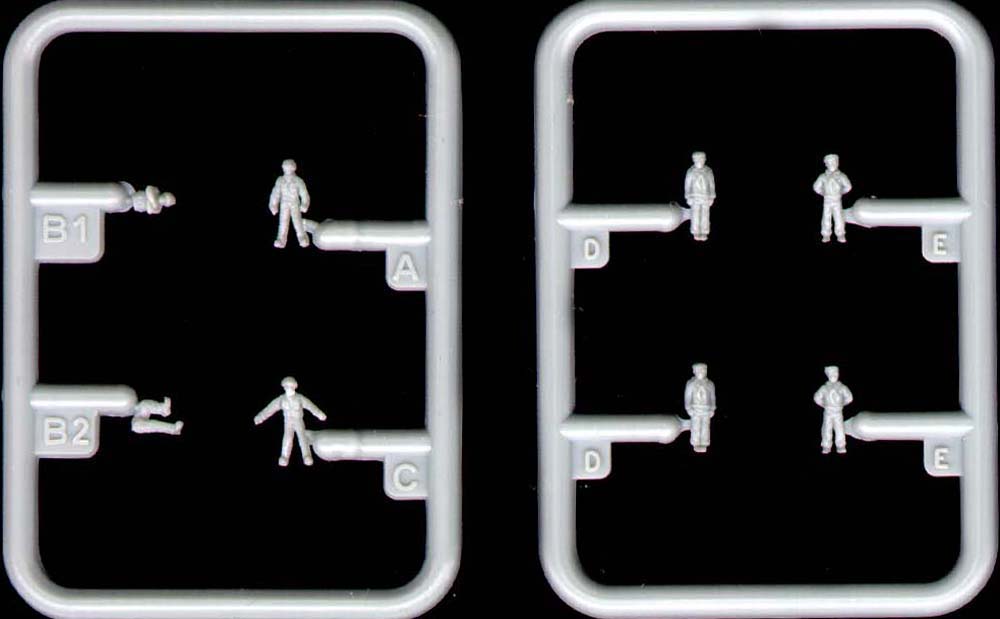

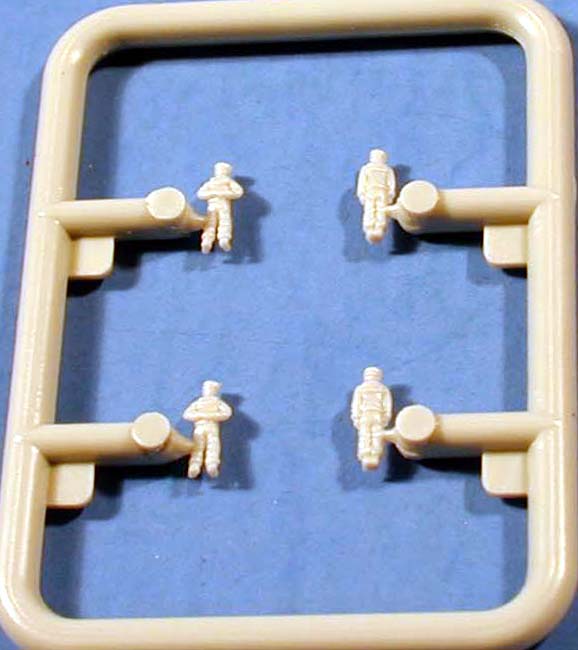

| Seven crew members are included with this kit. Three served on the
Buchanan and have been reassigned to the Chevalier. Four are all new including
two each standing at ease and at attention. These are 3D figures and the
best available in plastic. Each one has it's own personality and you can
even make out the facial features. |
 |
| Hopefully soon Dragon will release these as separate figure
sets, but until then if you want them you will have to buy this kit.
|

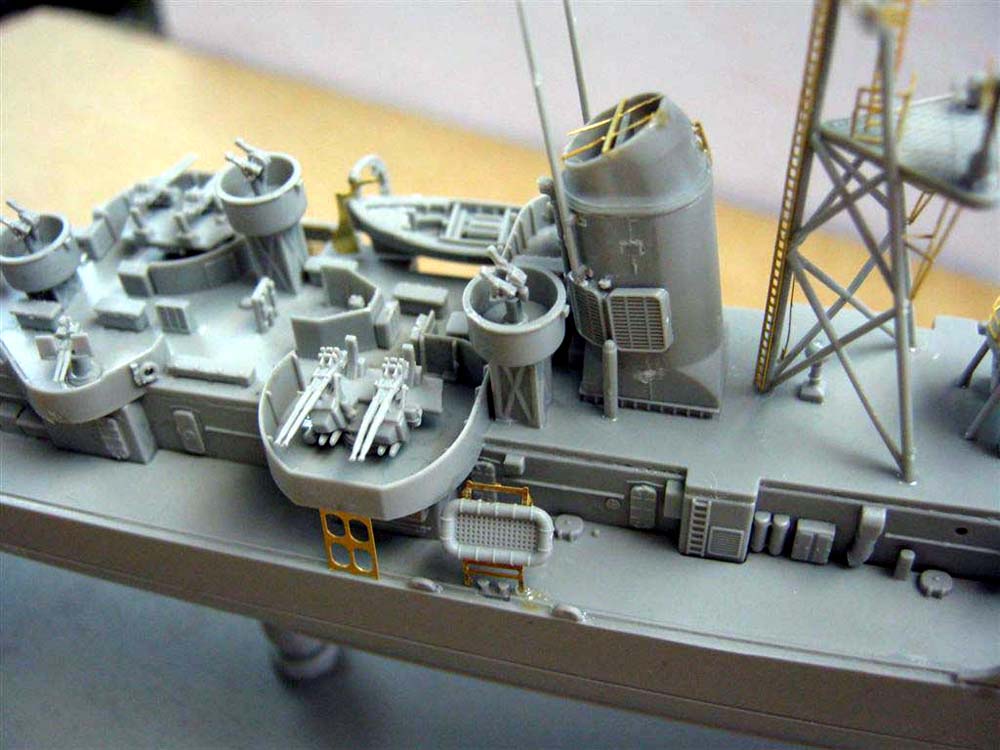

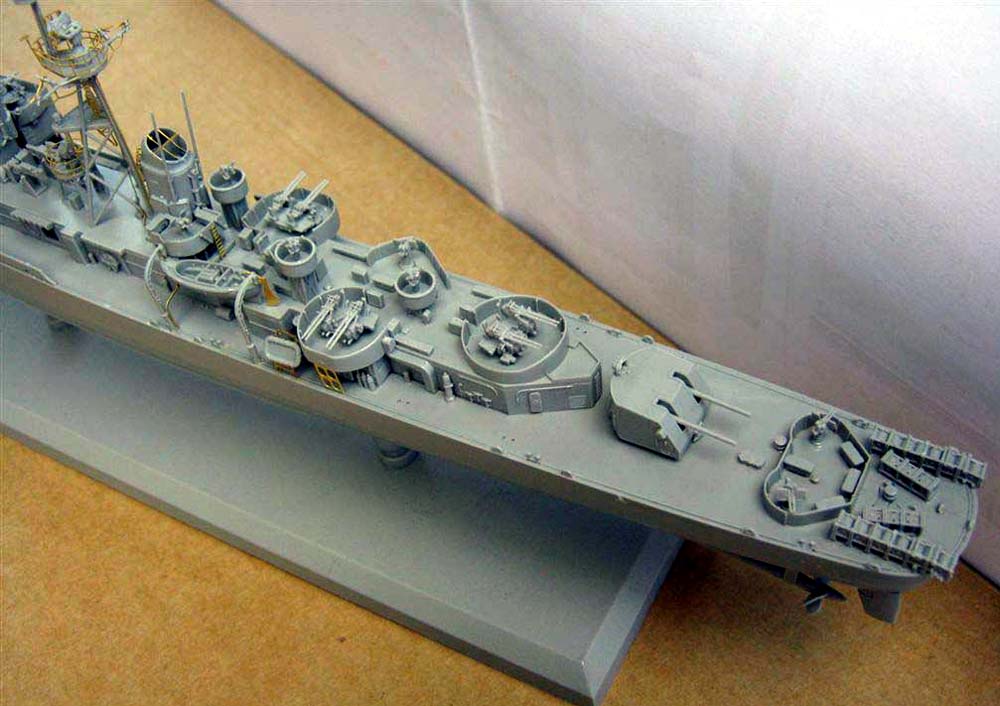

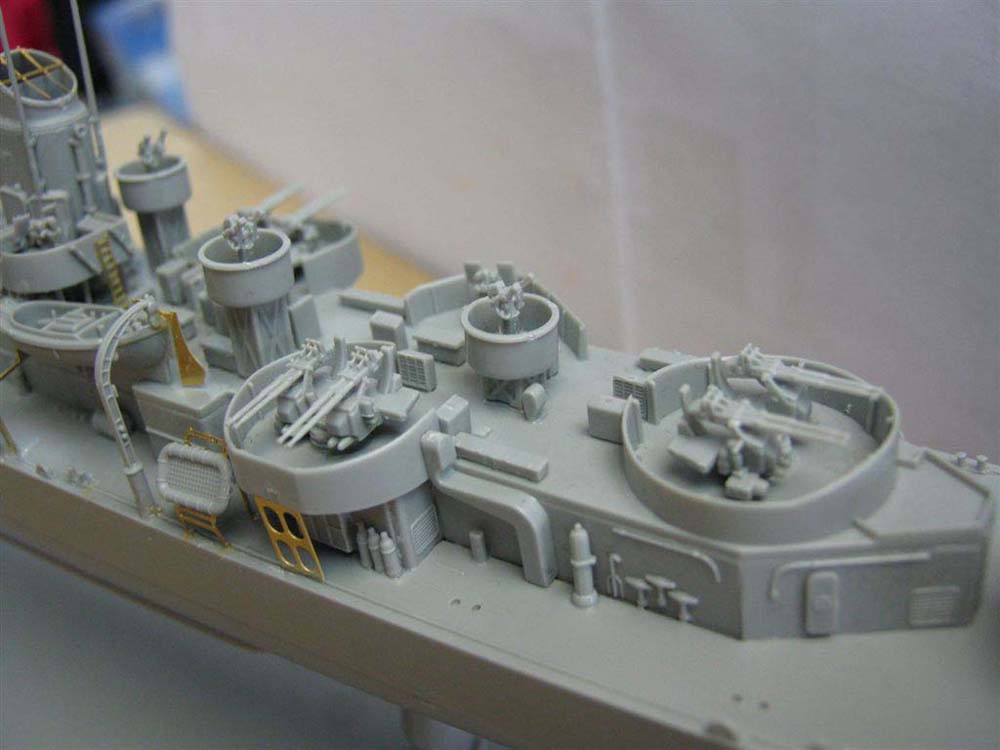

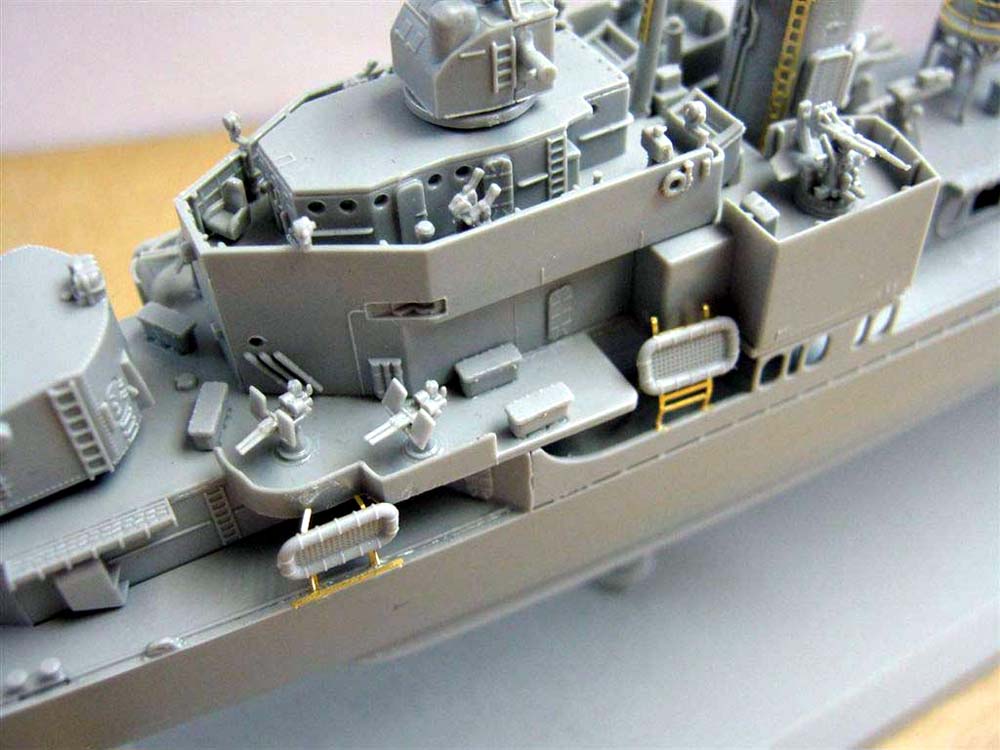

| These are photos of a fully assembled production version
of this kit shown below. Note the Photo Etch details for the 20mm
and 40 mm guns were left off and the plastic director towers were used
instead of the PE versions.
|
|
|
| CONCLUSIONS |
|
 This
DDR is a welcome addition to the Dragon Smart Kit line and a great upgrade
of the Gearing kit. It is packed with features and options and some of
the best plastic molded parts available. If you like the Gearing kit then
you will also enjoy this one. Many of you have the limited edition Cyber-Hobby
USS Buchanan 1945 Tokyo Bay version. The Chevalier was also there in
company with the Missouri and Independence
and s host of other Allied ships for the surrender signing. Make sure your
Tokyo Bay fleet is protected with this new state of the art DDR.
This is kit number DRA-1046 with a suggested retail price of $49.95.
It should be available at Dragon
USA now. This is a fantastic price when you consider all that you get.
|
 |
