OKB Grigorov
1/700 Project 627A Kit, NATO Code November, Attack Submarine




Reviewed January 2024
by Felix Bustelo

HISTORY
The Project 627/627A Kit (NATO reporting name November) was the Soviet Union's first class of nuclear-powered attack submarines. The boats measured about 352 feet long (107.4 meters), with a beam of 26 feet (7.9 meters) and a draft of 18 feet (5.6 meters). The November class had two water-cooled reactors and were fitted with eight 533 mm bow torpedo tubes. The Project 627A submarines differed in that they were fitted with a bow sonar dome in the keel and a hydrophone antenna over the torpedo tubes. The bow sonar dome increased the draft to about 21 feet (6.4 meters).

The November class submarines had a streamlined torpedo-like hull with an anti-sonar coating. This was the first time such a coating was used on a nuclear-powered submarine. The class also had special low-noise variable-pitch propellers and vibration dampening of main equipment. Despite these features, the November class was considerably noisier than diesel submarines and the early American nuclear-powered submarines.

The November class was comprised of 14 boats, with K-3 (later renamed Leninskiy Komsomol) the first to be commissioned on June 4, 1958 and the sole Project 627 class boat. K-3 was the first Soviet submarine to reach the North Pole in July 1962, four years after USS Nautilus. The submarines of the November class were in service from 1958 to 1990, with several suffering accidents during their service careers.

K-3 suffered an accident on September 8, 1967 while the submarine was returning home from a patrol mission in the Mediterranean Sea. A hydraulic system fire broke out which resulted in 39 sailors dying due to carbon monoxide poisoning.

K-8 sank on April 12, 1970 in the Bay of Biscay while returning from a patrol and participation in a large-scale naval exercise and was the first loss of a Soviet nuclear-powered submarine. While at a depth of approximately 395 feet (120 meters), short circuits occurred in two of the subs compartments which caused a fire in the air-conditioning system. The sub was able to surface to undergo damage control but became flooded due to stormy conditions. The loss of life due to the fire and sinking totaled 52 including the commander, but 73 crew were rescued. K-8 sank with four nuclear torpedoes on board.

In February 1965, a fire broke out while refueling both reactors on K-11 with 7 men exposed to radiation. On May 24, 1968, an emergency occurred in the port-side reactor of K-27 during submerged trials in the Barents Sea. There was a radiation leak in the reactor compartment and radioactive gas spread throughout the submarine. The captain at first did not believe that there was an issue, failed to do anything about for a period of time and didn’t sound the radiation alarm until the ship’s doctor and a chemical officer requested it. This inaction resulted in all 124 crewmembers becoming irradiated with more than 30 dying from the exposure between 1968 and 2003.

All but one of the submarines have been disposed of. On August 30, 2003, K-159 sank during a storm while being towed to a shipyard for scrapping. Nine sailors died in the accident. Only K-3 remains, and her nuclear reactors were removed for plans to preserve her as a museum ship in Saint Petersburg.

HULL & SAIL

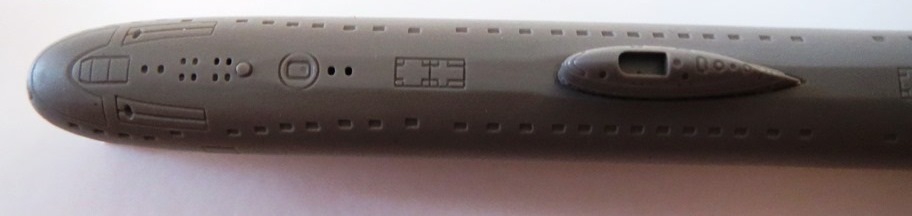

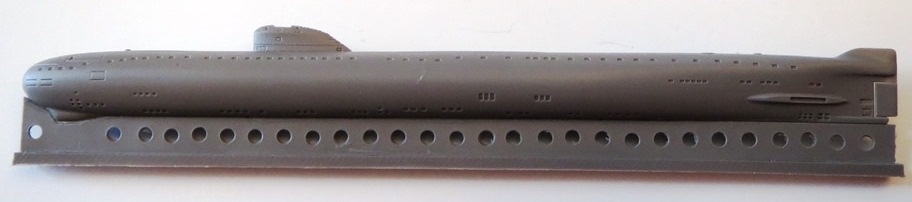

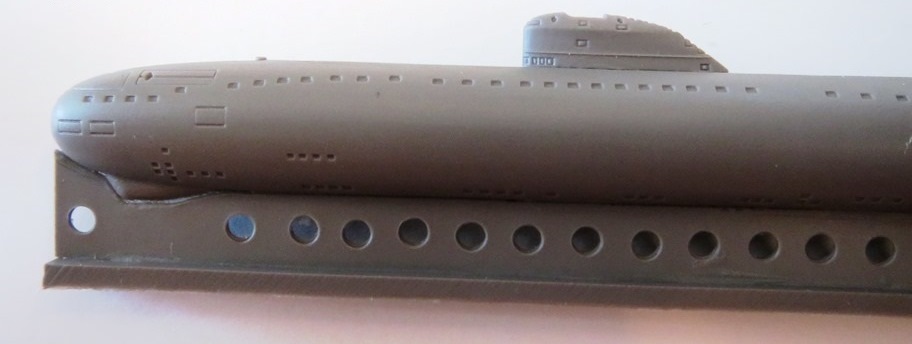

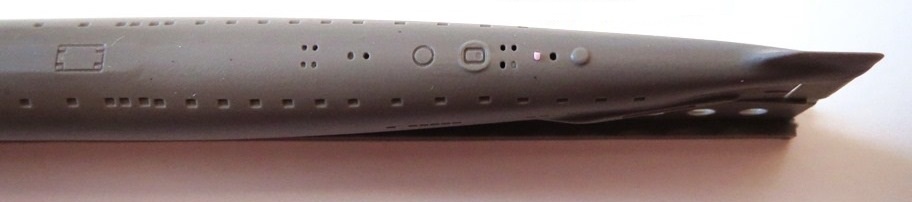

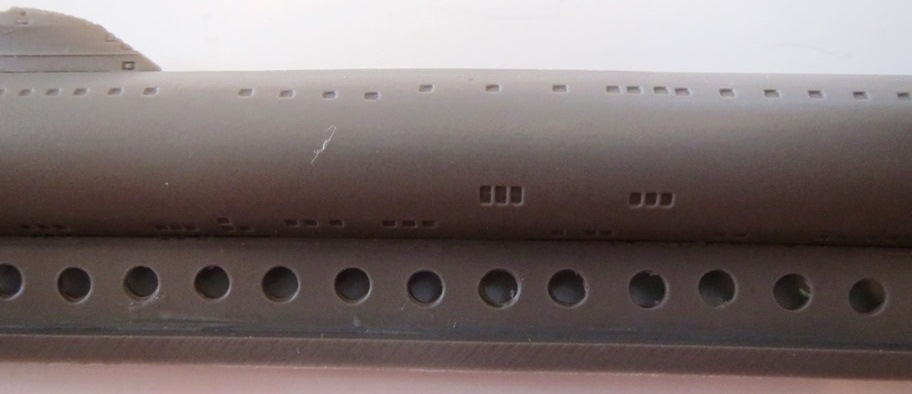

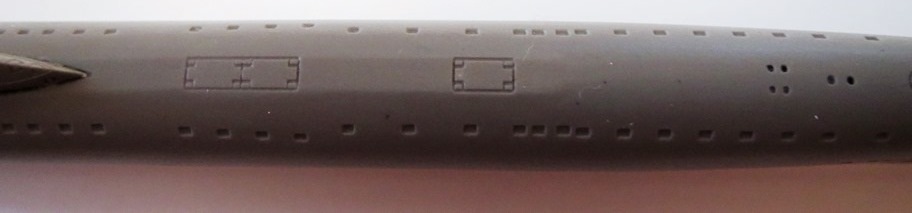

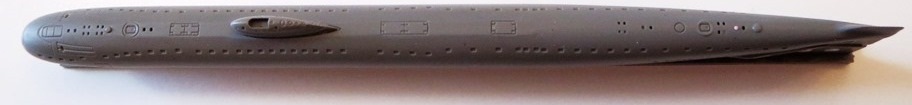

OKB Grigorov has an extensive catalog of 1:700 scale Soviet/Russian resin submarine kits and Project 627A November class is one of the newer releases. Like all OKB Grigorov submarine kits, this is a relatively simple affair in terms of parts count but not at the expense of detail. The main part is the one-piece full hull with sail which has a substantial amount of detail, such as the torpedo tube doors and numerous hatches cast into it. The part captures the profile of the long torpedo shaped hull well with the additional bow sonar dome. The hull comes on a casting runner which will probably require some clean up along the keel once it is removed.
SMALLER PARTS

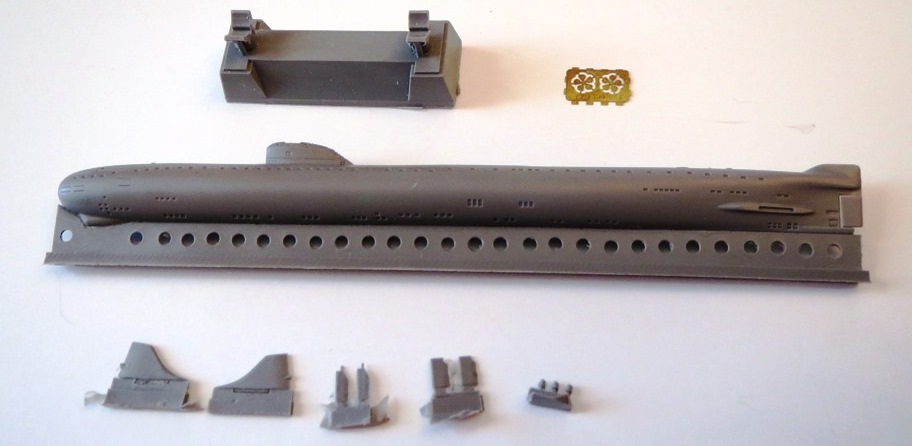

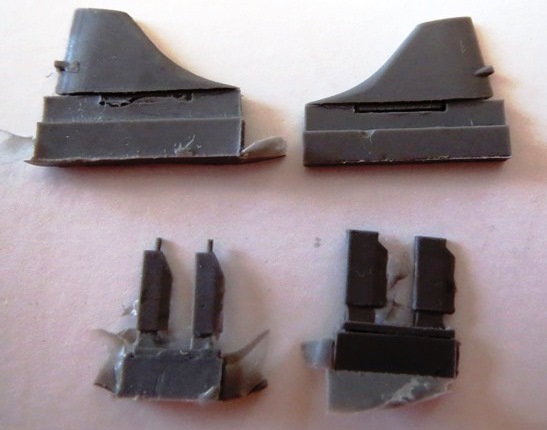

The smaller resin parts include the stern stabilizers, the forward and aft diving planes and the propeller hubs. If you wish to add periscopes, radar antennas or other bits to the top of the sail, you will need to make your own using rod and strip.
DISPLAY STAND

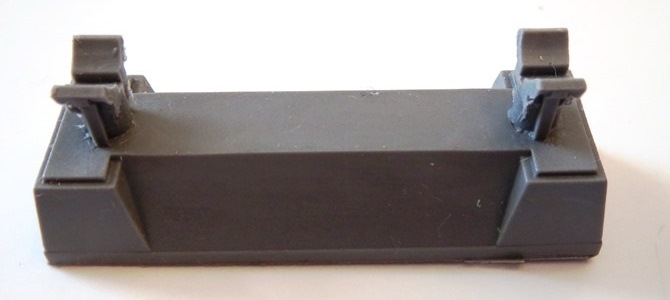

A very nice-looking resin display stand is also included.

PHOTO-ETCH

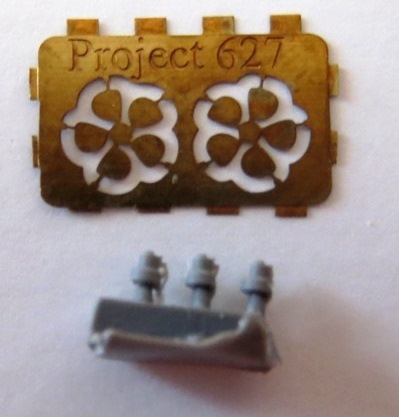

A pair of photo-etch 5-bladed propellers are provided.
DECALS
No decals are provided, so you will need to seek aftermarket options for Soviet submarine markings.
INSTRUCTIONS

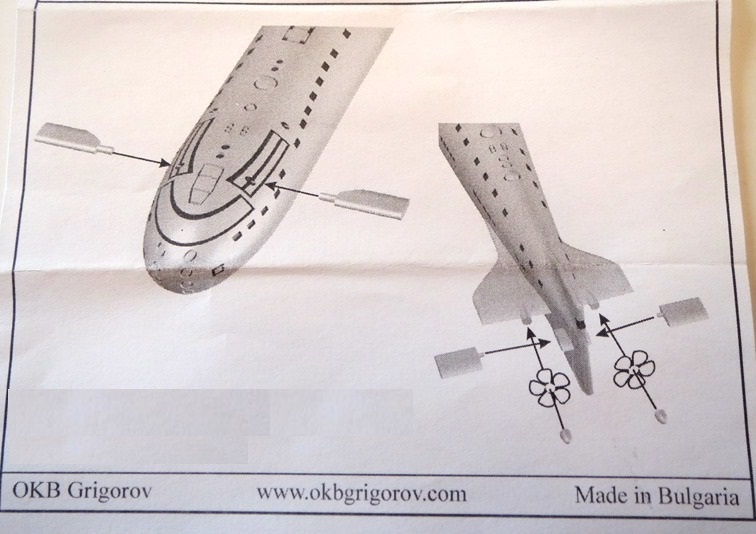

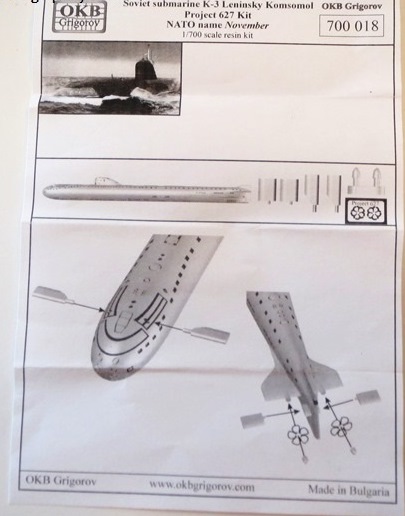

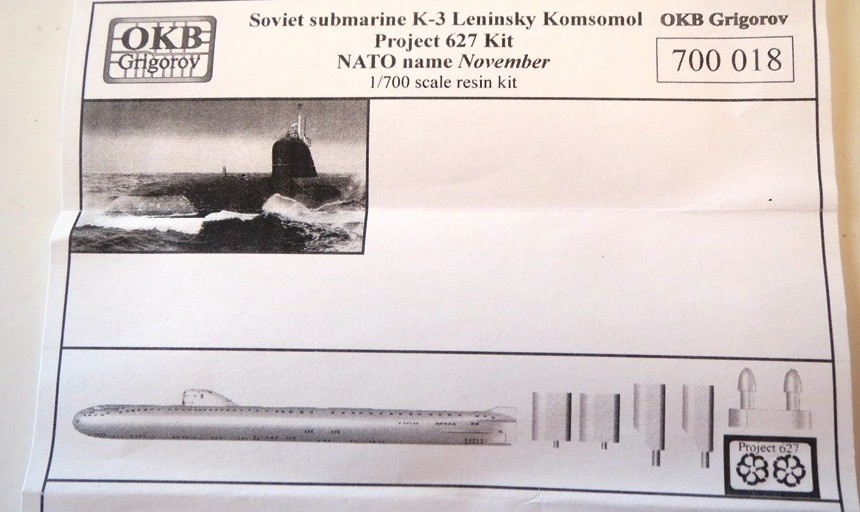

The assembly instructions are done on a single sided sheet of paper with clear diagrams, though they do not show that the stern stabilizers need to be attached.



FINAL THOUGHTS
The OKB Project 627A November is good kit and a good first resin model due to its simplicity. This kit would also be welcome to more experienced modelers wishing to expand their 1:700 scale submarine fleet and make an excellent weekend project. The annoying cons to this and other OKB Grigorov submarine kits and the lack of decals and the array of periscopes, antennas, radars and other items that would be fitted to the sail. Personally, omitting these items from a submarine model makes for an incomplete model. A 1:700 scale kit of the K-3 Project 627 submarine is also available. Both kits are sold directly from OKB Grigorov through their website (shop.okbgrigorov.com). My thanks to OKB Grigorov for providing the sample.
