The USS Cairo was a City class ironclad
river gunboat. This 512 ton monster only drew about 6 feet of water making
her ideal for operations in the shallow rivers. At 175' by 51', there was
plenty of room for a multitude of canons.
Cairo served with the Army's Western Gunboat Fleet, commanded by Flag
Officer A. H. Foote, on the Mississippi and Ohio Rivers and their tributaries
until transferred to the Navy 1 October 1862 with the other river gunboats.
Active in the occupation of Clarksville, Tenn., 17 February 1862, and of
Nashville, Tenn., 25 February, Cairo stood down the river 12 April escorting
mortar boats to begin the lengthy operations against Fort Pillow, Tenn.
An engagement with Confederate gunboats at Plum Point Bend on 11 May marked
a series of blockading and bombardment activities which culminated in the
abandonment of the Fort by its defenders on 4 June.
Two days later, 6 June 1862, Cairo joined in the triumph of seven Union
ships and a tug over eight Confederate gunboats off Memphis, Tenn., an
action in which five of the opposing gunboats were sunk or run ashore,
two seriously damaged, and only one managed to escape. That night Union
forces occupied the city. Cairo returned to patrol on the Mississippi until
21 November when she joined the Yazoo Expedition. On 12 December 1862,
while clearing mines from the river preparatory to the attack on Haines
Bluff, Miss., Cairo struck a torpedo and sank.
Today this historic vessel can be viewed at Vicksburg
National Military Park in Mississippi. Raised from the mud largely
intact, you can get an excellent idea of how this ship was constructed.
This new kit by Rusty White of Flagship Models is the first original
effort in the resin market. It is shows that Rusty is learning the craft
quickly, and we can expect many more great kits of these often overlooked
ships soon.
|
Specifications
Displacement |
|
512 tons |
Length |
|
175 ft |
Beam |
|
51 ft 2 in |
Draft |
|
6 ft |
Propulsion |
|
Steam engine driving a single paddle wheel |
Speed |
|
4 knots |
Complement |
|
251 officers and men |
Armament |
|
6 × 32 pounder cannons |
|
|
3 × 8 in smoothbore cannons |
|
|
4 × 42 pounder rifled cannons |
|
|
1 × 12 pounder howitzer |
|
|
HULL |
|

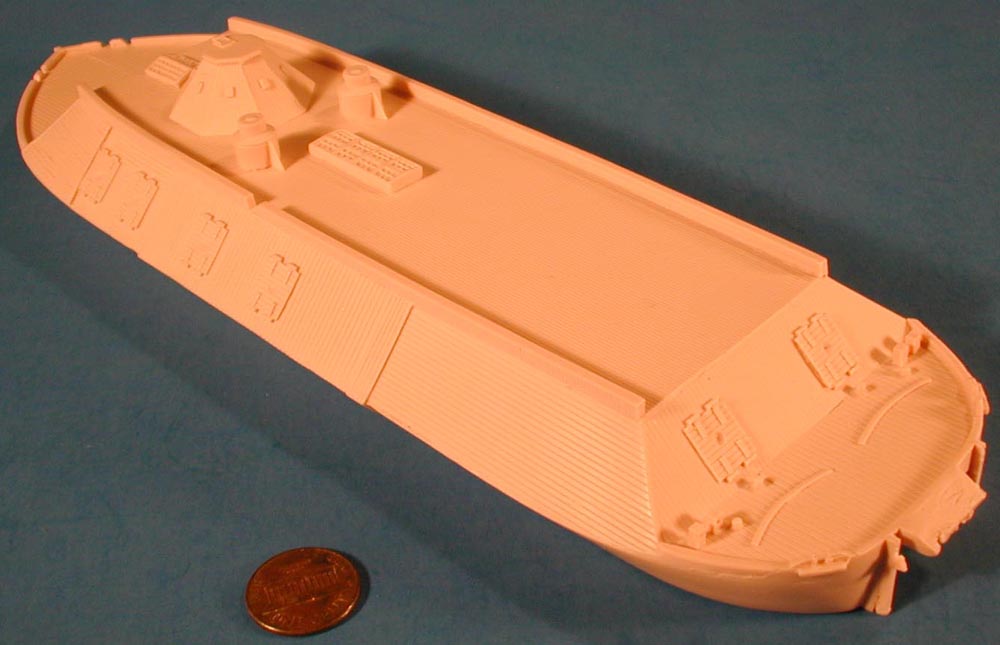

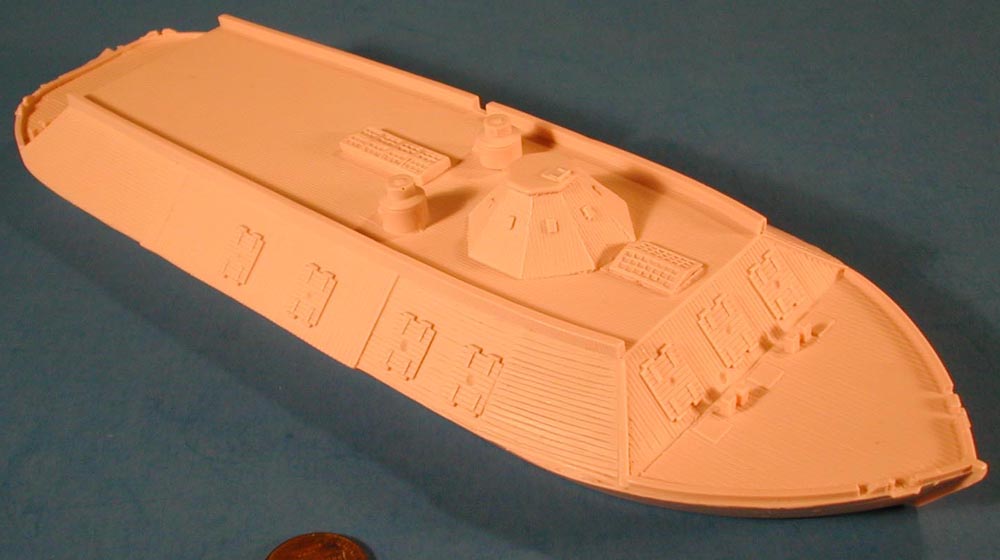

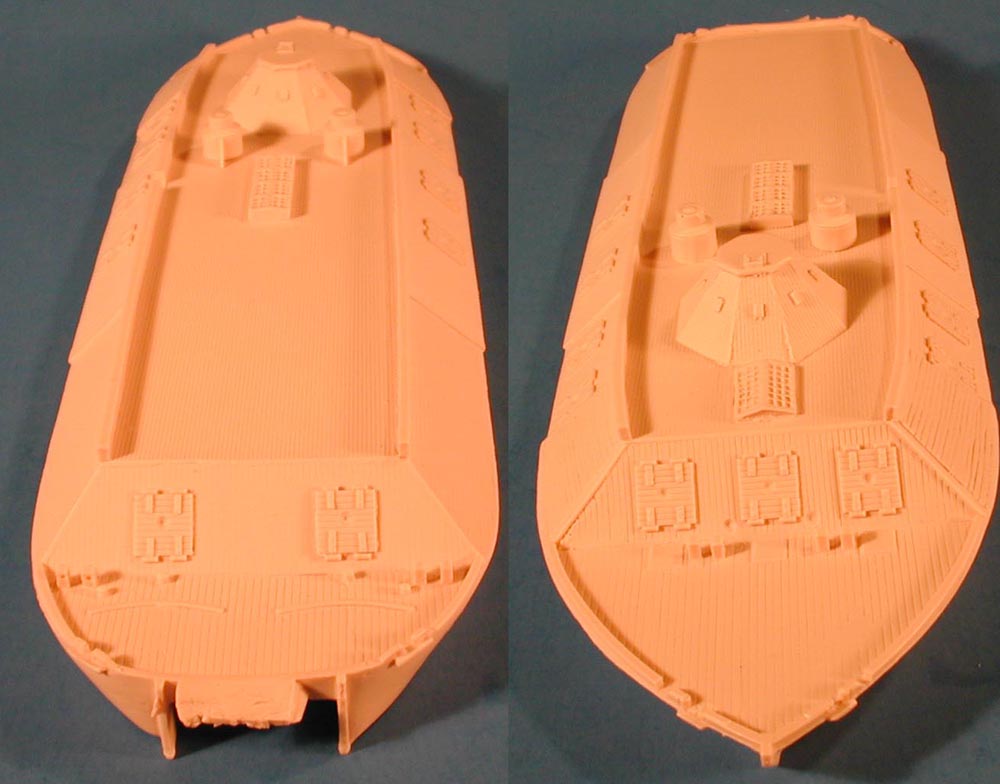

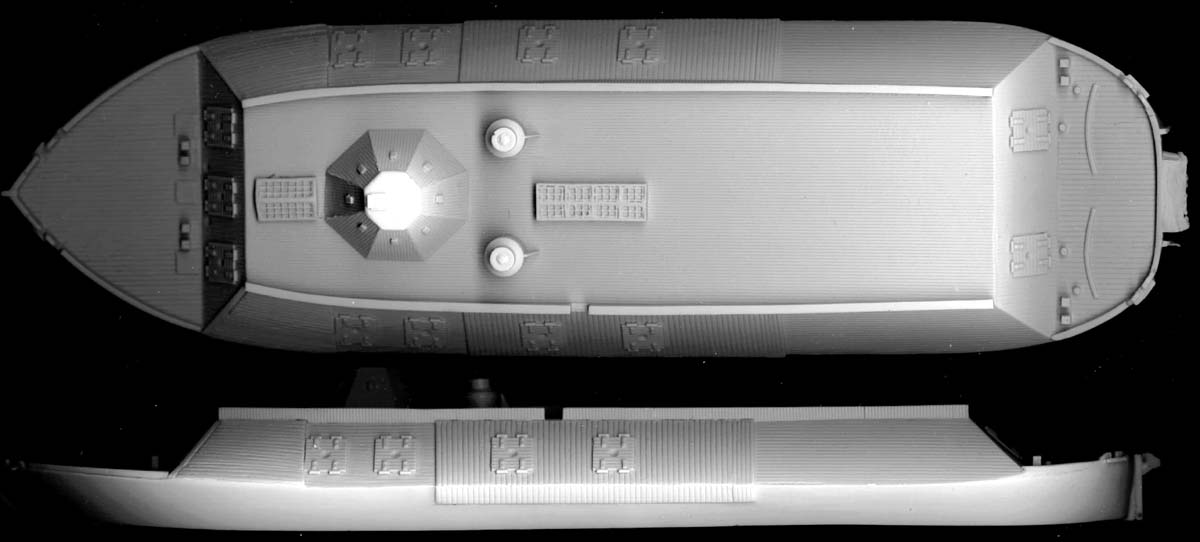

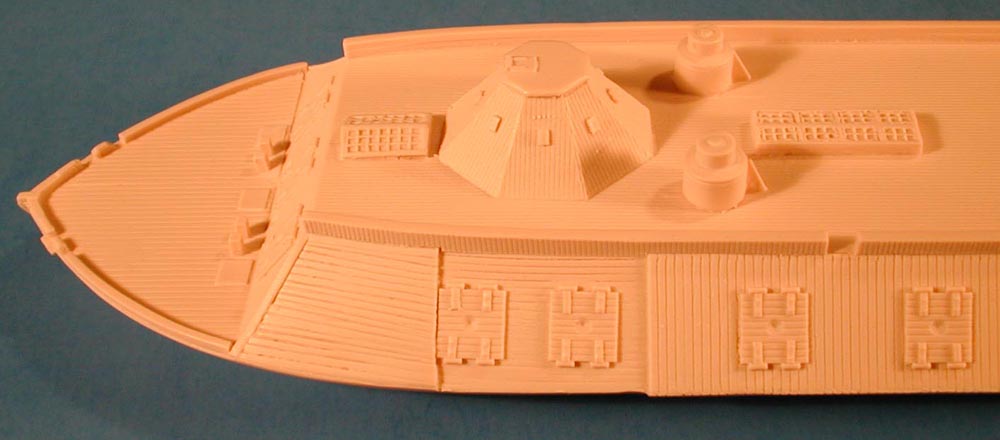

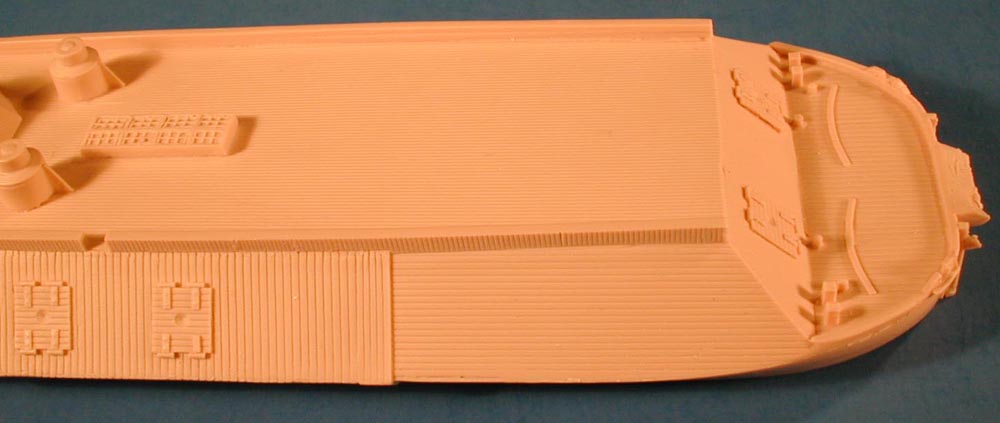

The hull is cast in full hull style with only two small pouring gates
on the stern. So there will be very little cleanup and preparation work
on this kit. The surface detail is very well executed and the hatches and

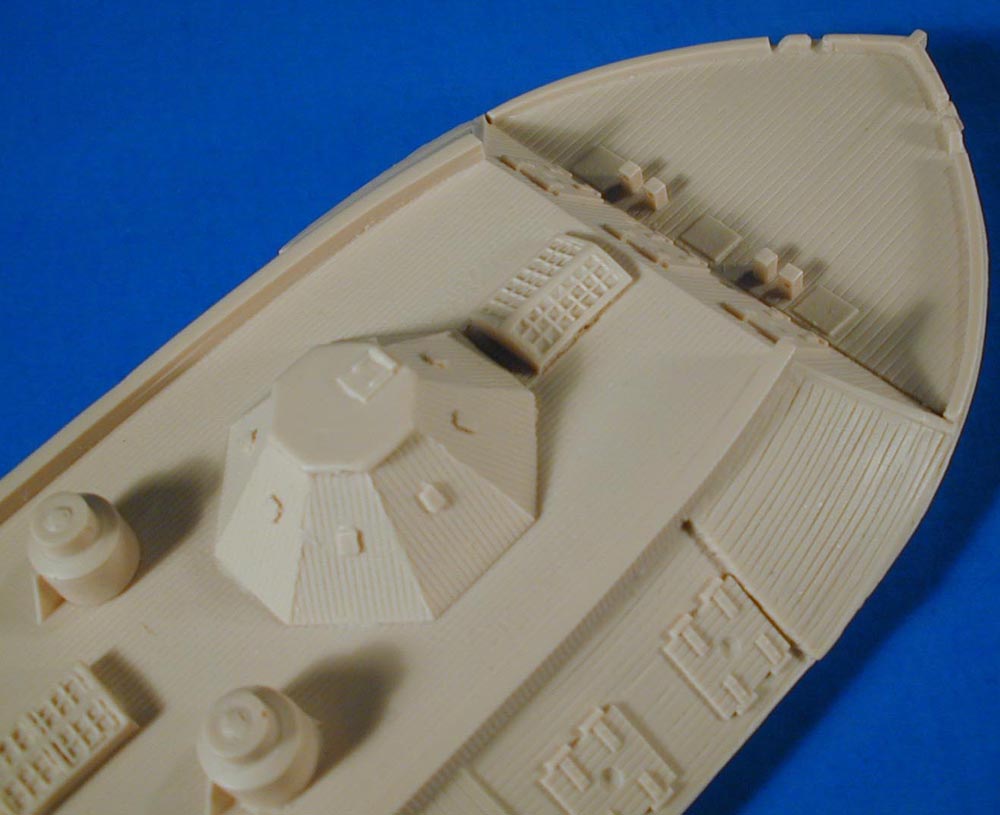

iron rail armor is well done. The hexagonal pyramid pilot house is

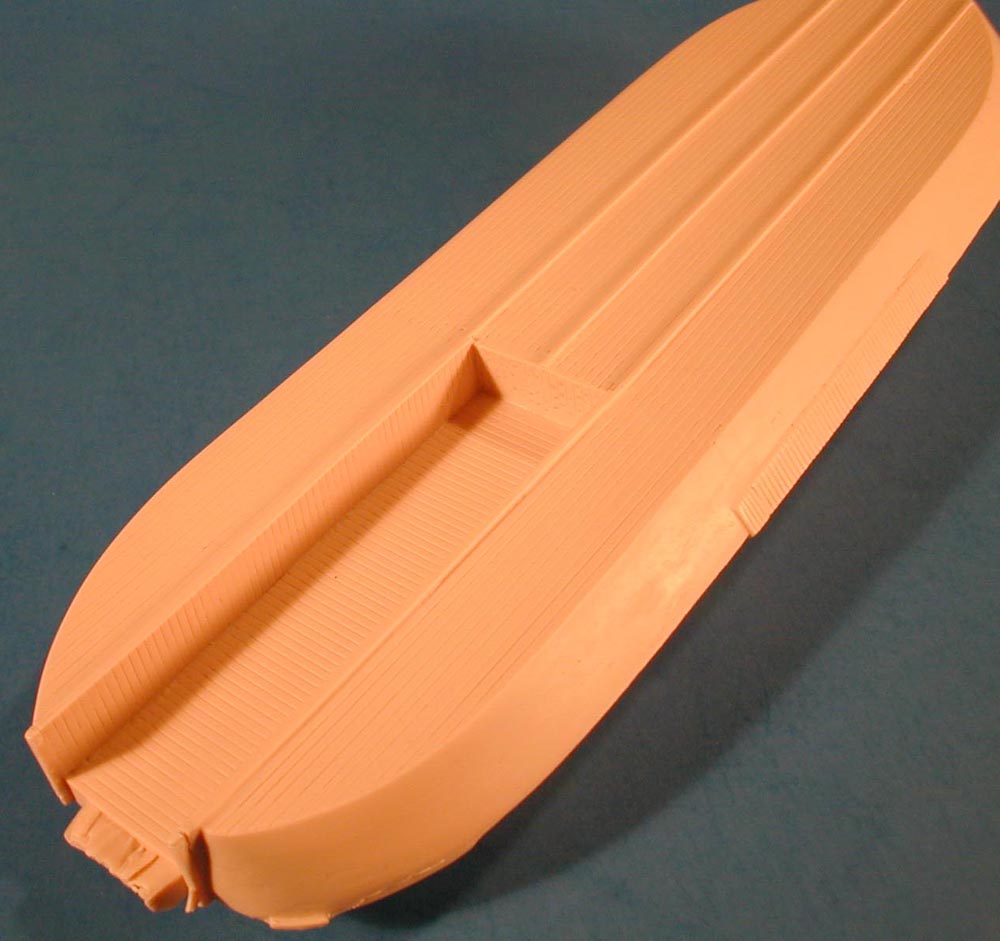

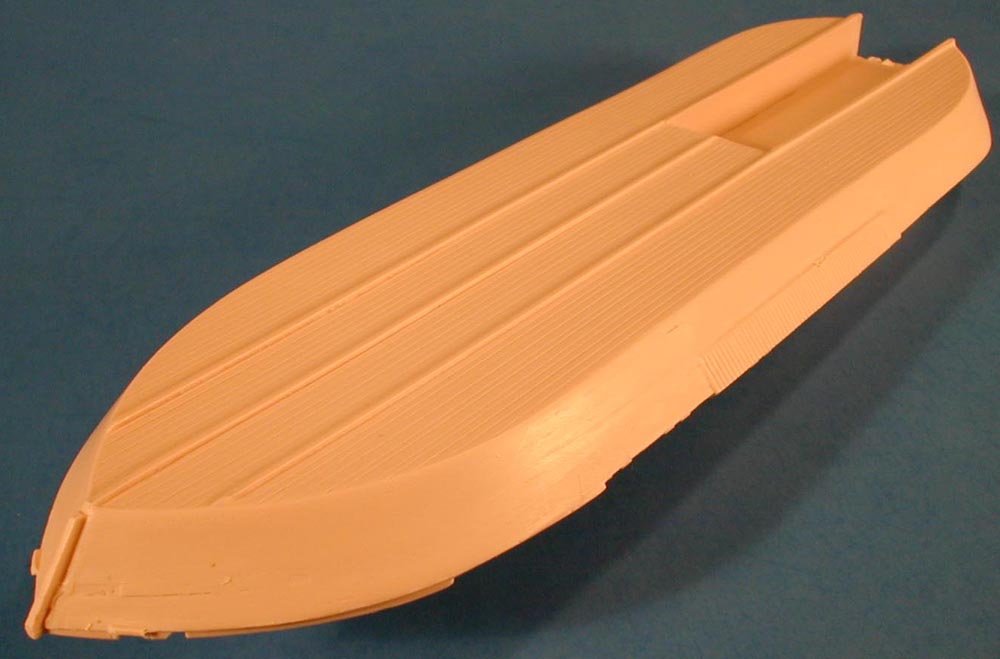

cast in place with other deck detailing such as the funnel bases. The lower

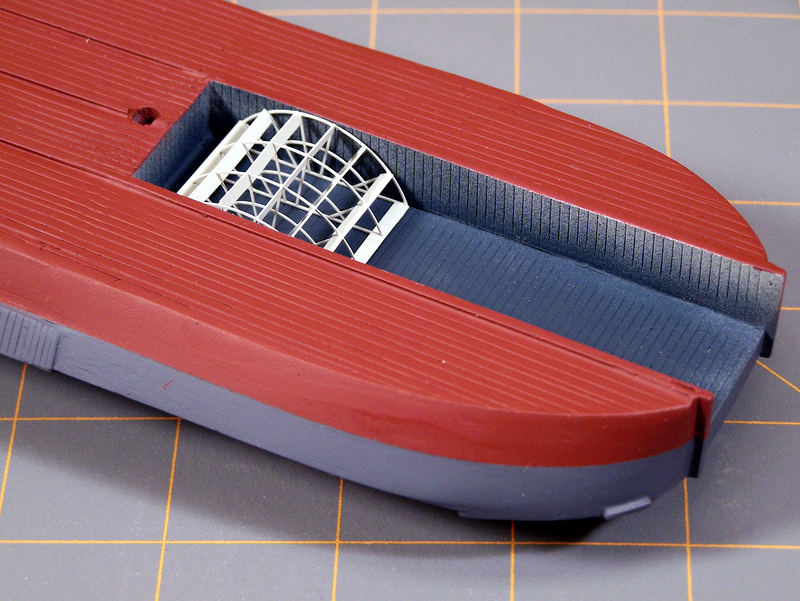

hull is also detailed with a large recess for the paddle wheel. As much
as I love waterline ships, this is one that I would have to do full hull
as it would be a shame to cover up the detailed paddle wheel assembly. |
click images
to enlarge
 |
|
RESIN, PLASTIC, AND METAL DETAILS |
|

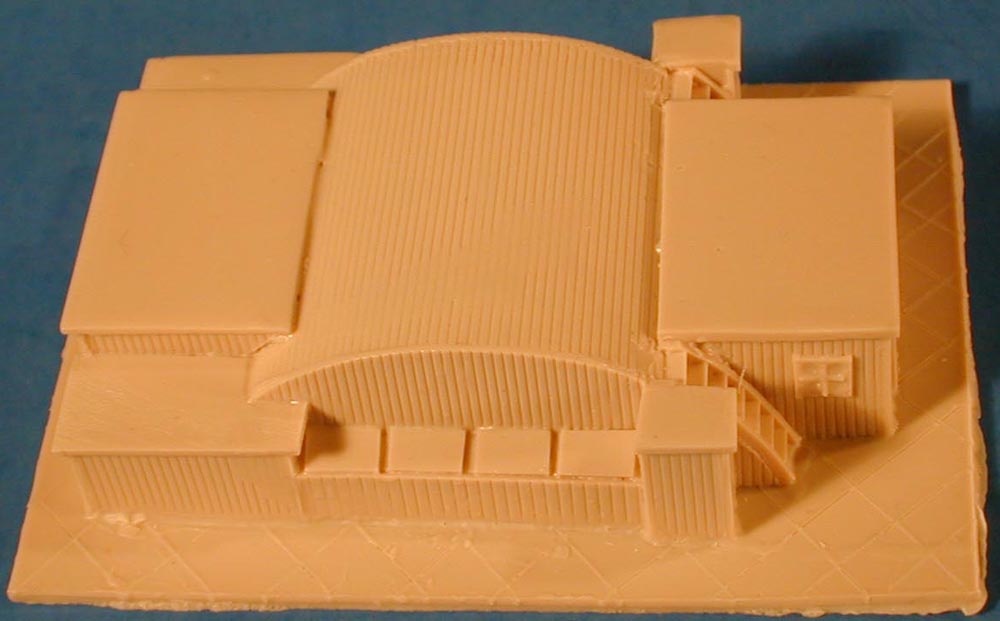

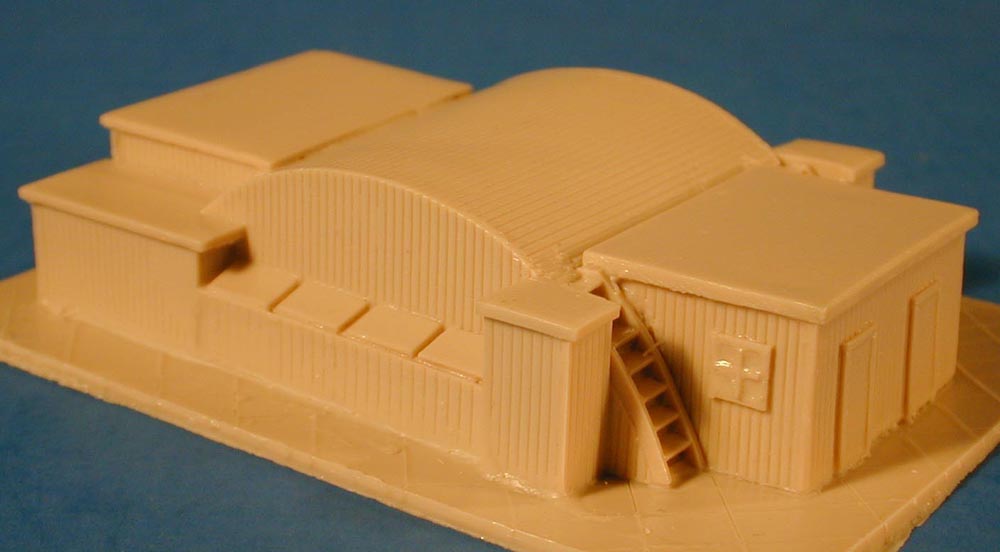

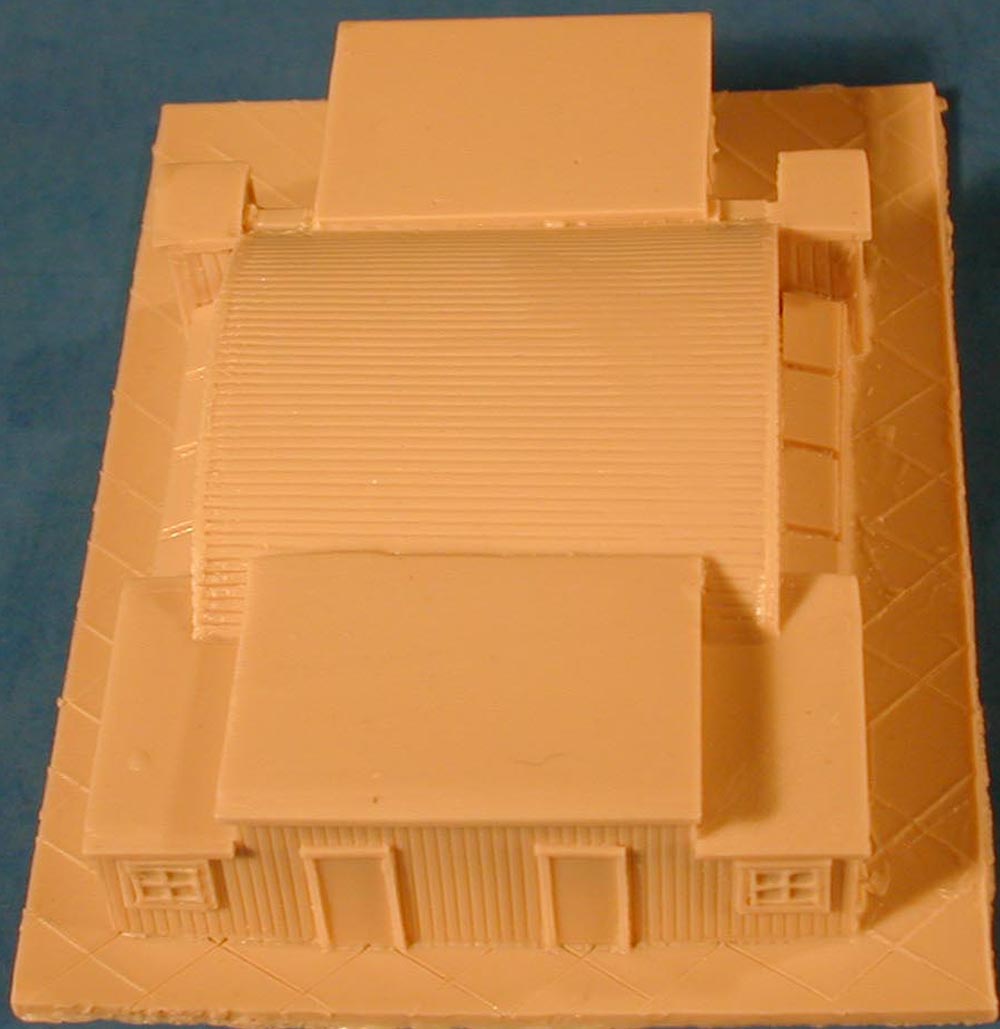

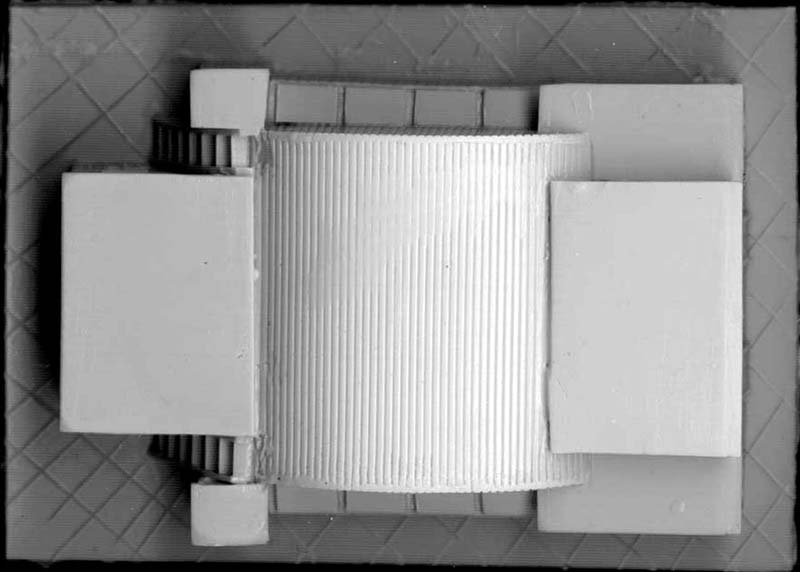

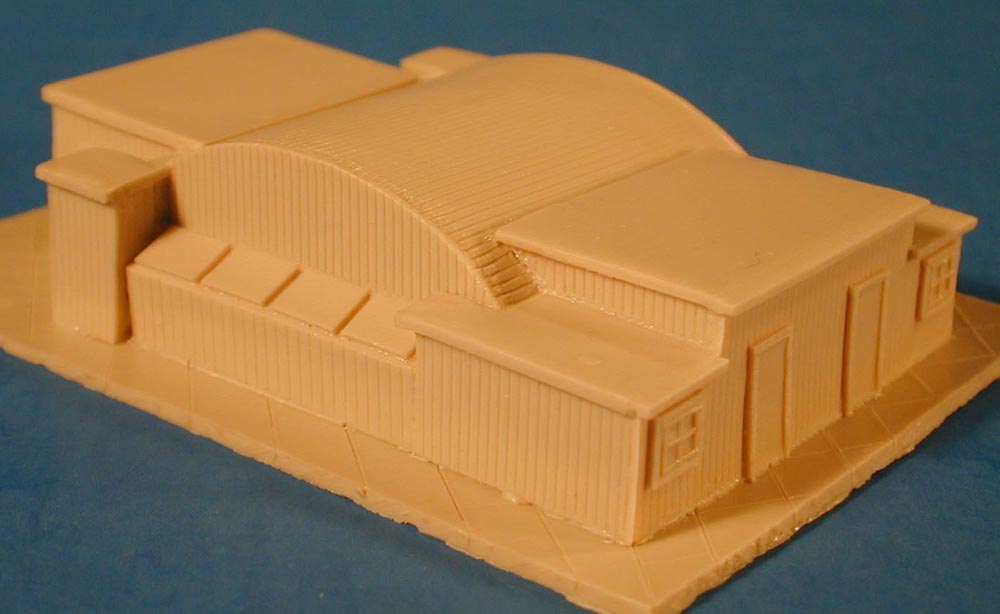

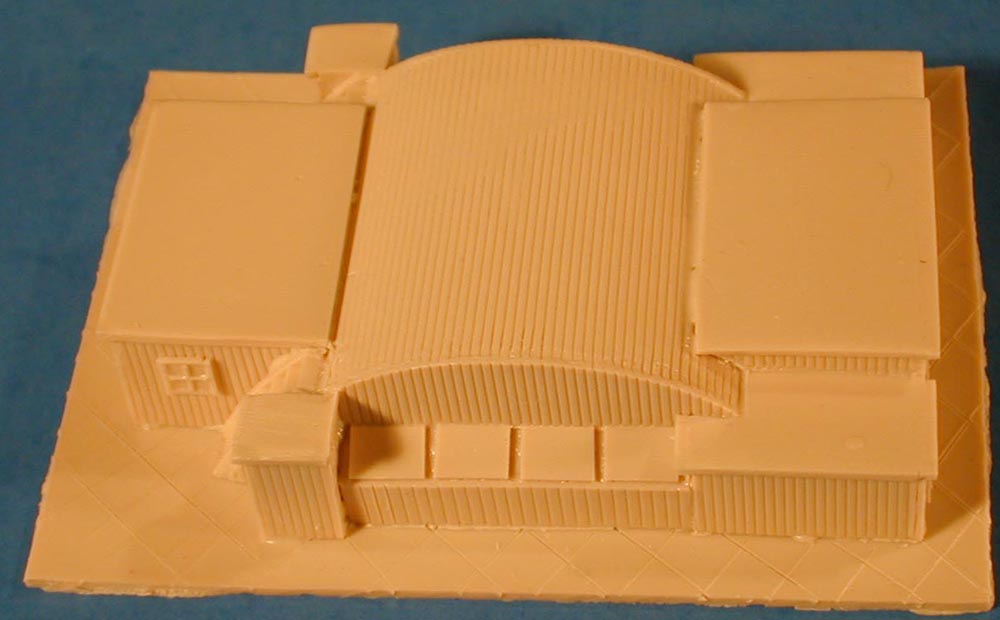

The Paddlewheel housing is constructed as one piece with cast on door,
window, and rail armor detail. The latter is very convincing, and will
stand out nicely with a bit of weathering. There are two stairways cast
on both sides of the house. The part is cast on a resin wafer, that is
a bit thick for my taste. This will take some time to flat sand to size. |
 |
|

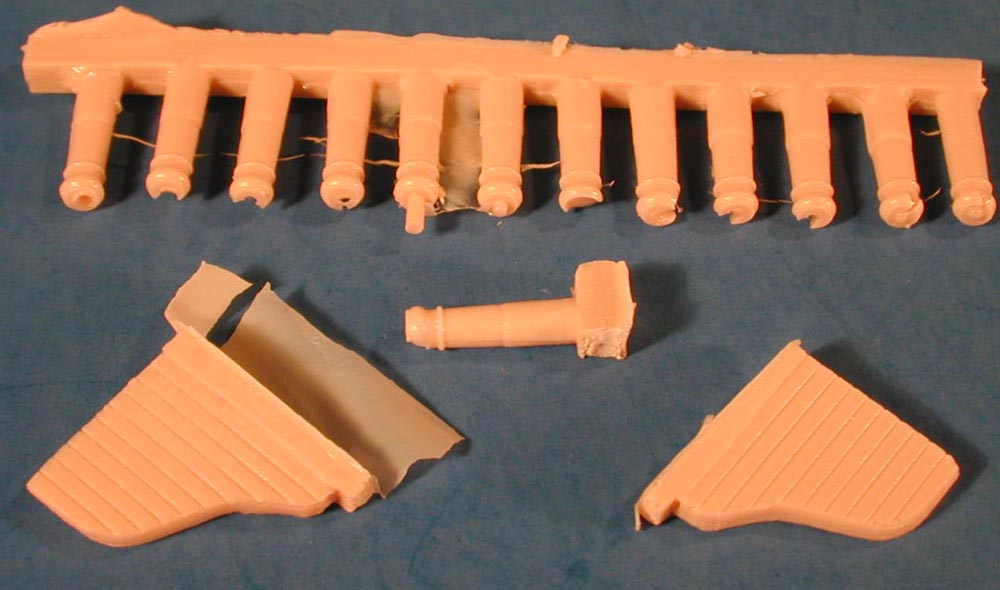

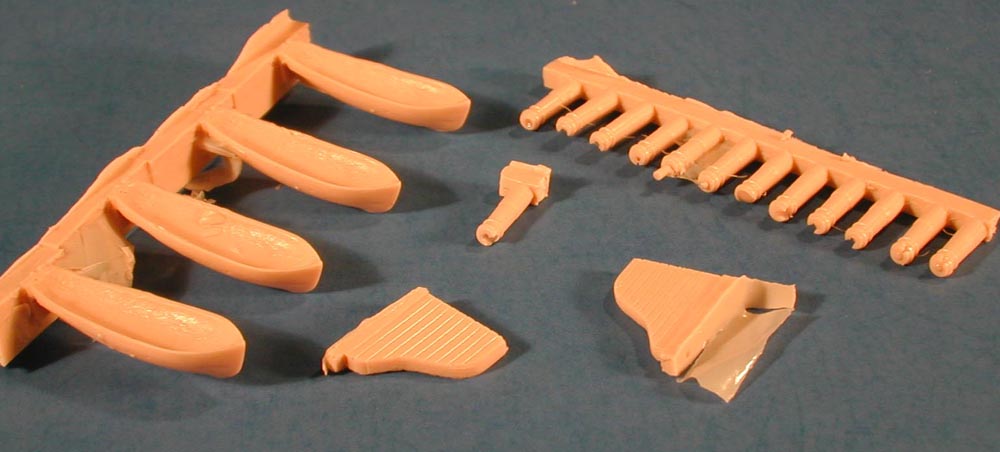

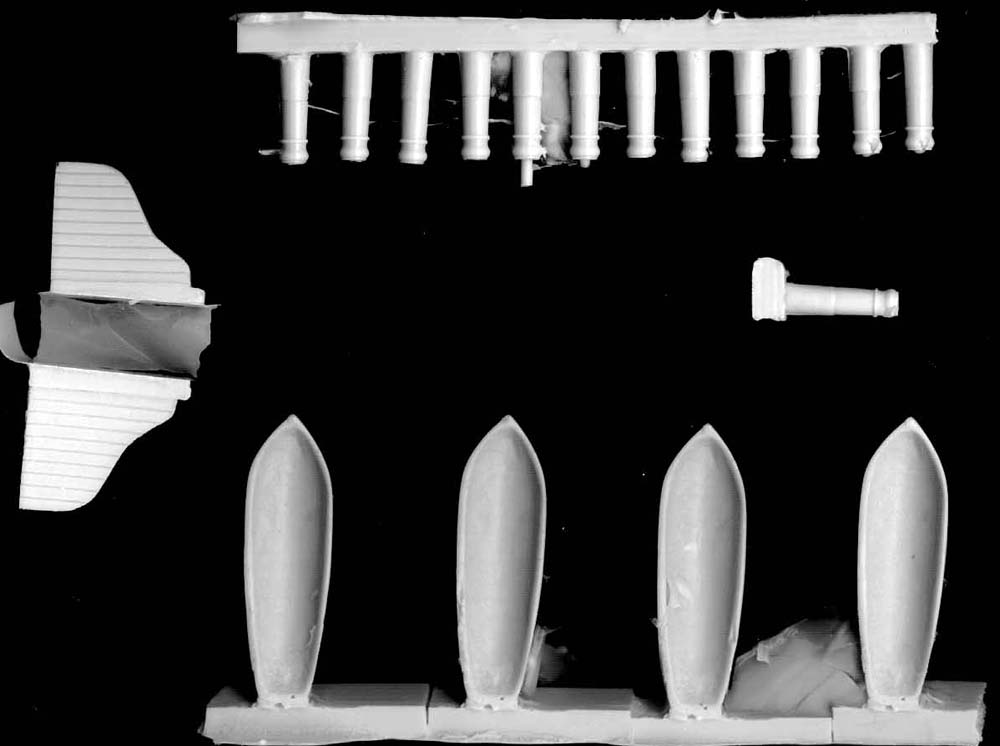

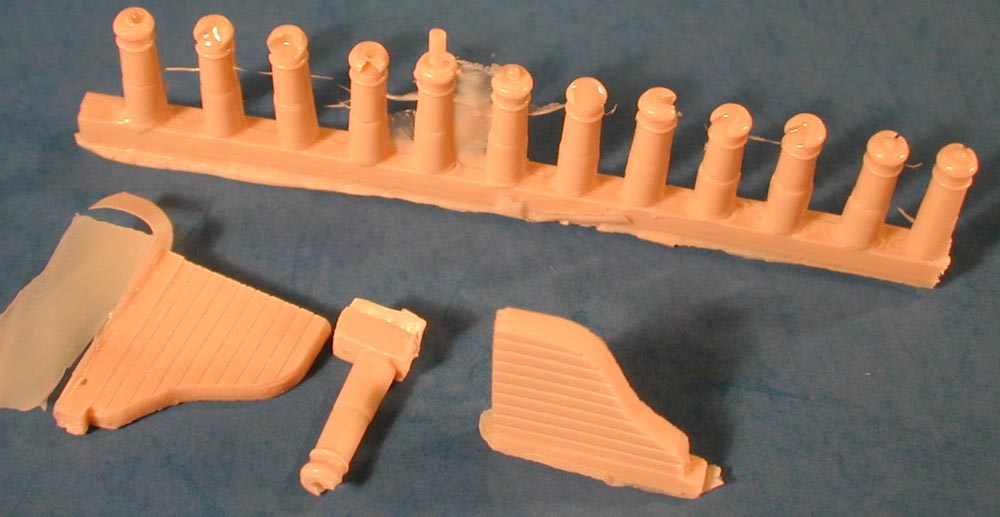

Small parts include the cannon barrels, ships boats, and rudders. The
cannon barrels will need a little attention as many of them have voids
in the end that are caused by air bubbles being trapped in the resin mold
during the casting process. These are fairly easy to fix by using a drop
of super glue to fill the void. Just place a drop of glue in the hole,
hit it with an accelerator (baking soda works well for me) and then sand

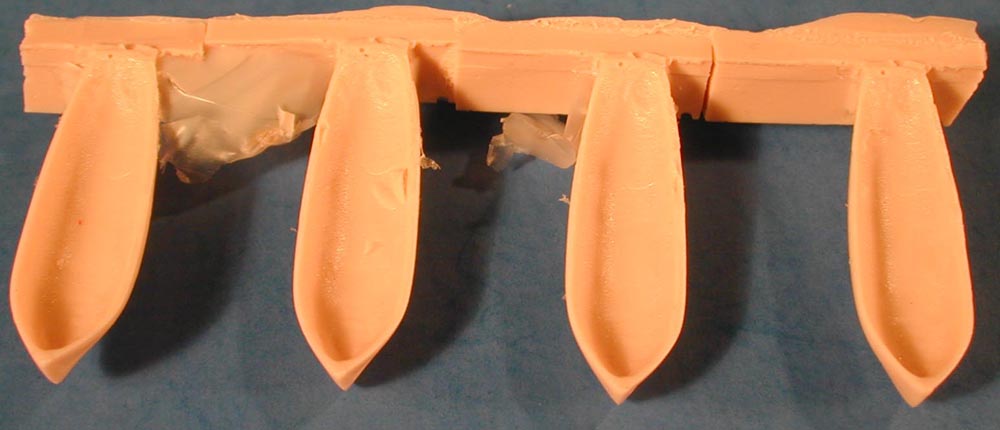

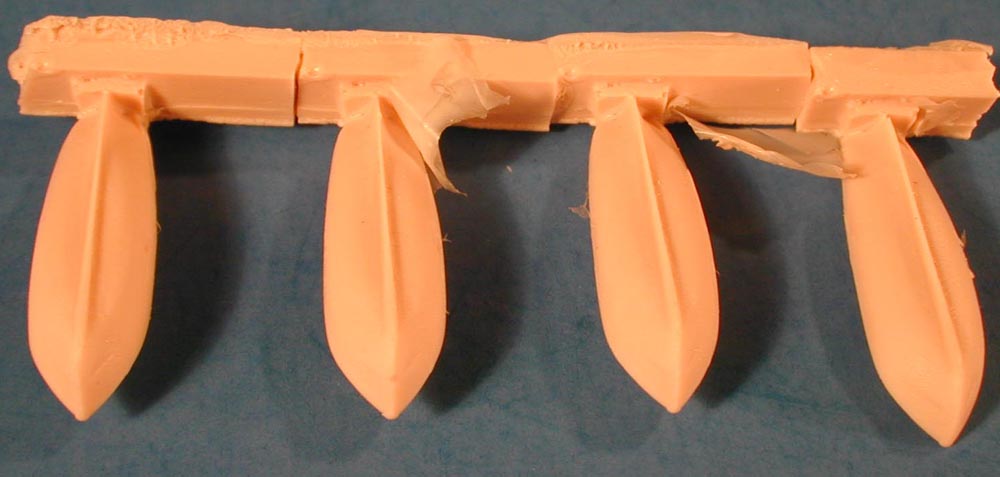

when dry. The boats look a little weird at first, at least until you notice
that they are designed for photo etch boat decks to be added to them. The
decks will give the boats a more realistic appearance especially when you
add the photo etch oars.. |
 |
|

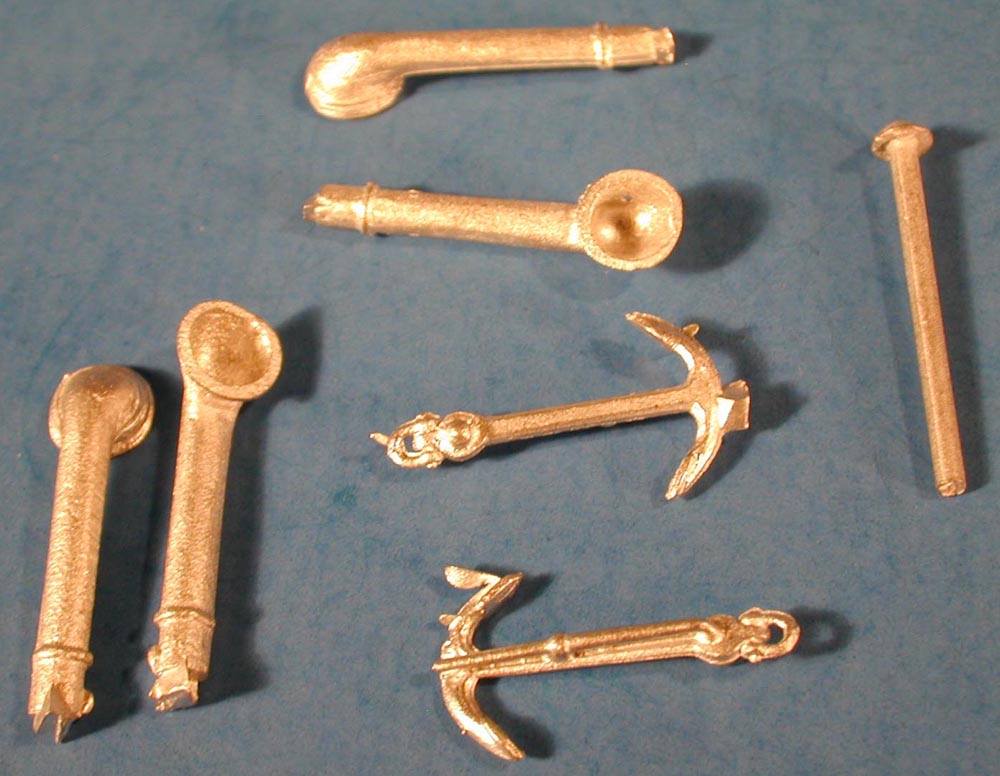

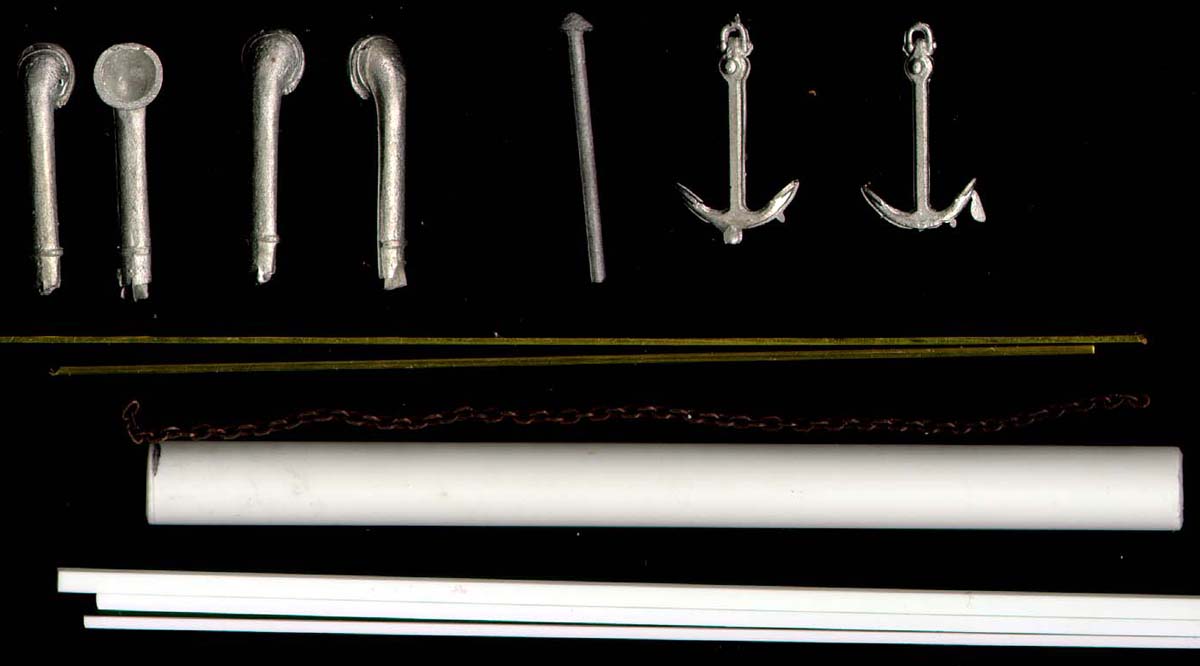

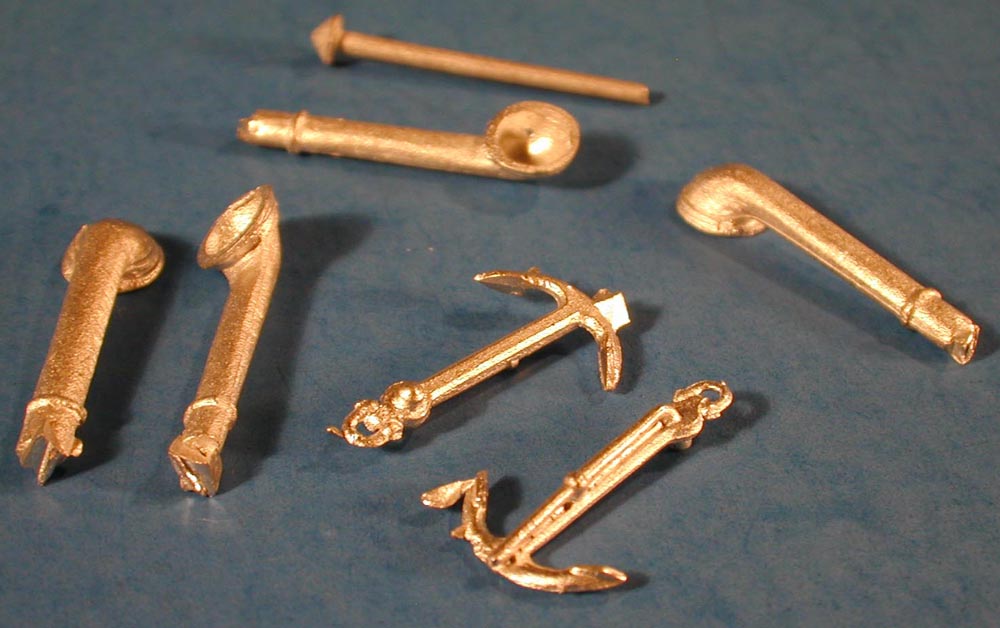

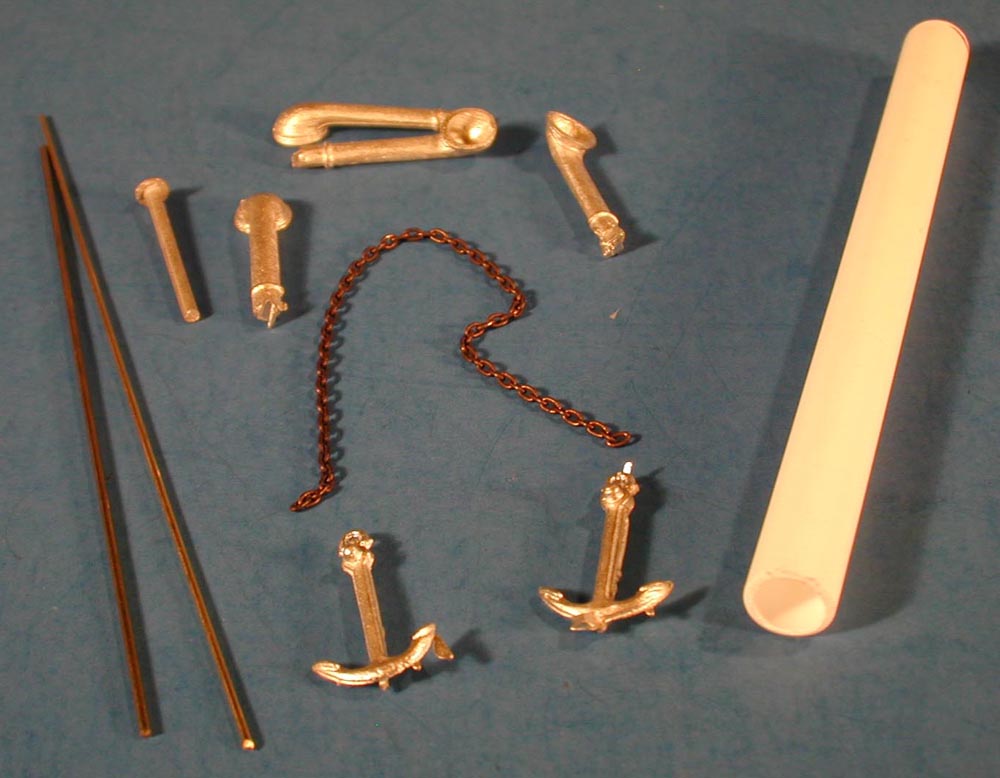

Cast metal anchors, and vents are provided. These are nicely cast with
only a bit of flash. A length of anchor chain is provided, a nice touch.
Plastic tubing and strips are provided to fabricate the funnel and other
details. Brass rod is also provided for for those other details. |
 |
|
PHOTO ETCH |
|

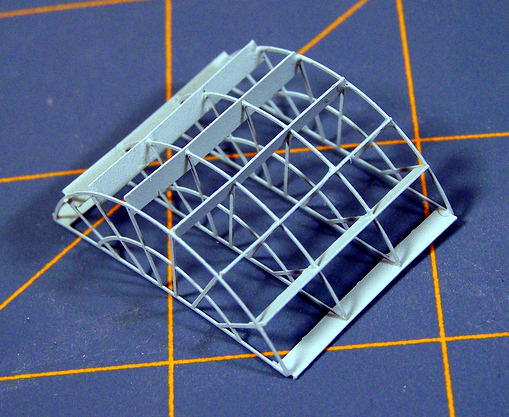

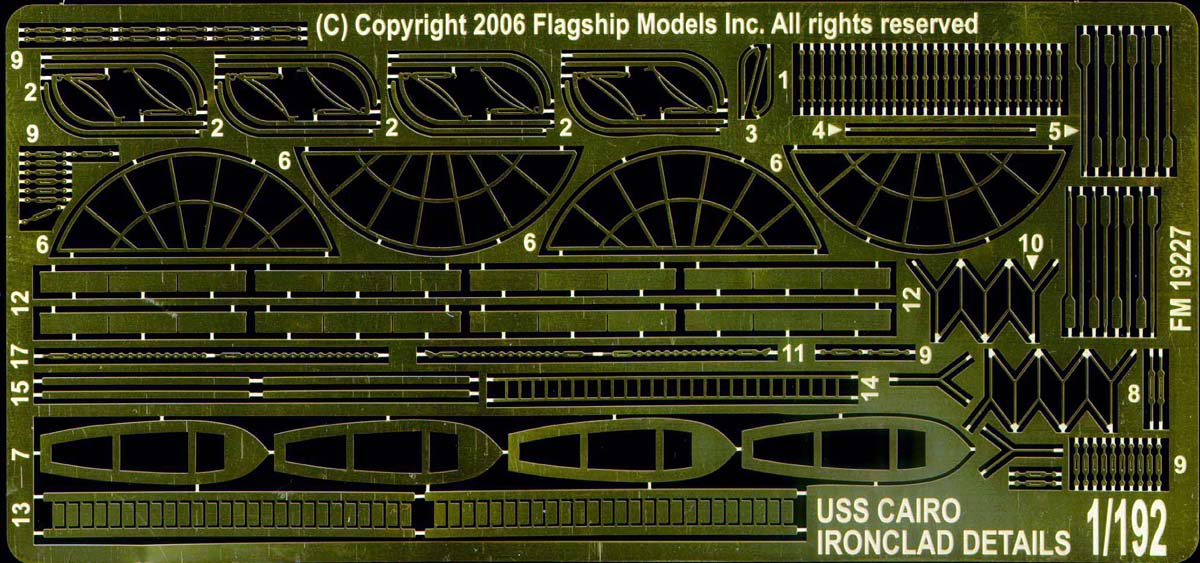

This kit gets it's own dedicated photo etch fret due to it's more complex
construction with the paddle wheel. Handrail stations and boat davits are
among the other details. Etched turnbuckles are a nice touch that will
make your rigging look much more realistic. |
 |
DECALS |
|
A decal sheet with various Civil War era flags is included, with descriptions
as to which time frame is appropriate for a particular ensign. |
 |
|
|
INSTRUCTIONS |
|

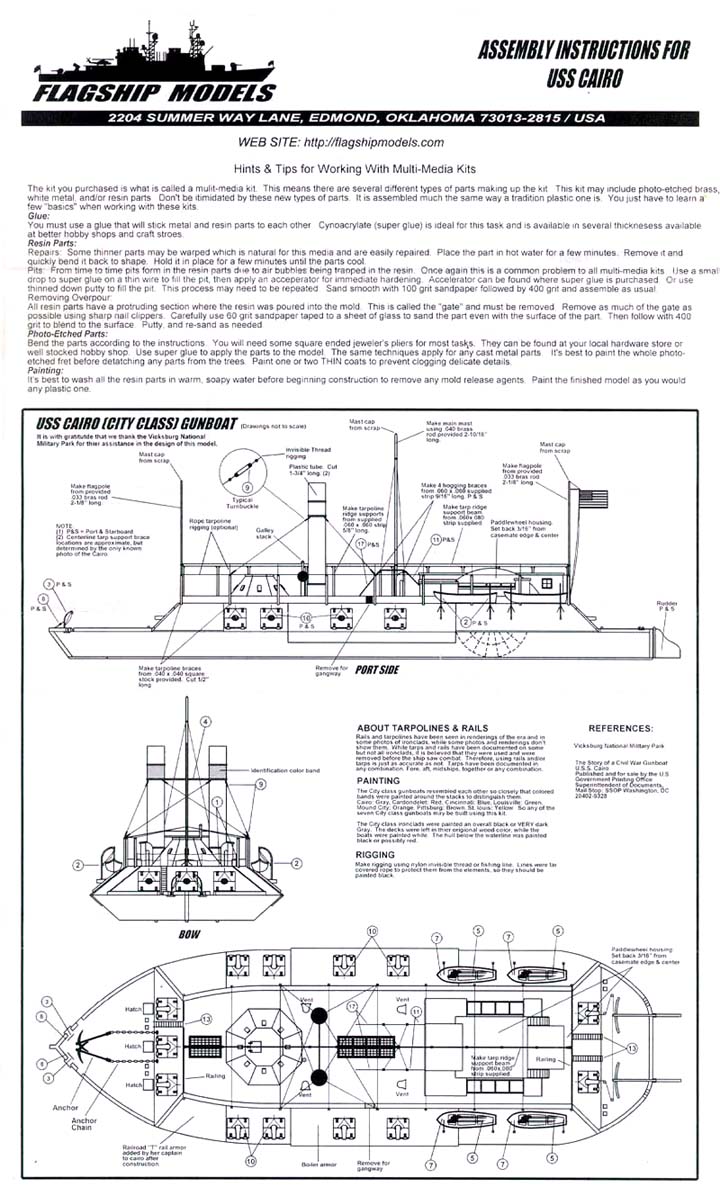

The instructions include plan and elevation views with

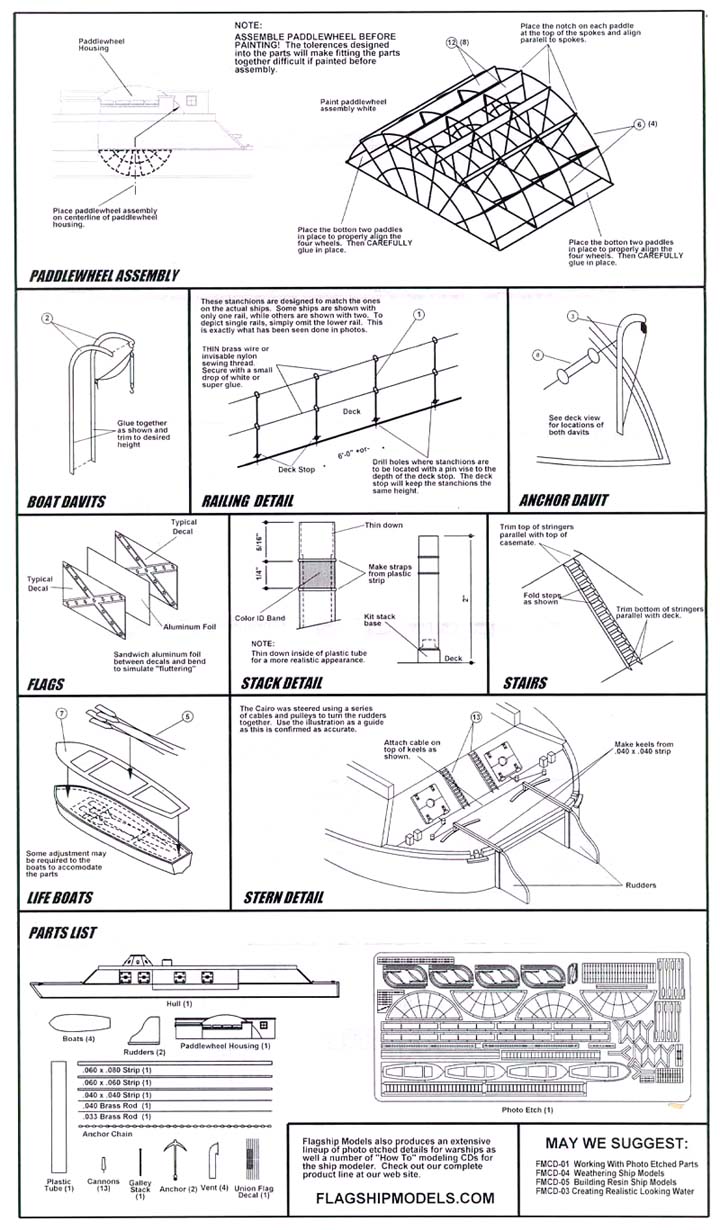

notes on parts placement. The second page shows the various sub-assembly
views in a 3 dimensional way. These are pretty detailed and give you plenty
of information to build this kit.
|
THE BUILD |
|

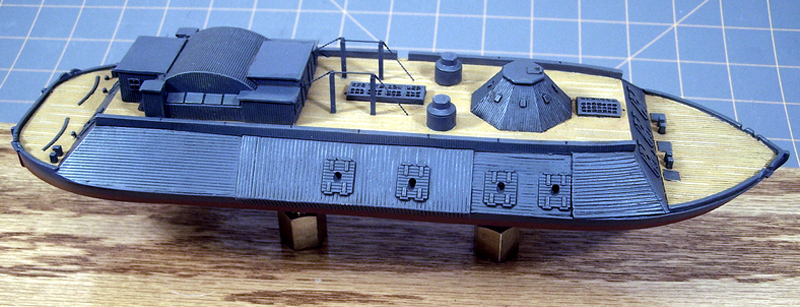

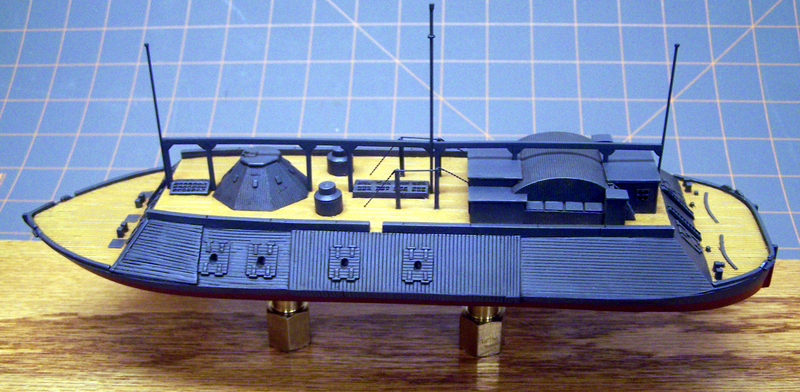

You can follow along as Rusty White builds up his kit in the Picture Post
section of the ShipModels.info
forum here. |
CONCLUSIONS |
|
Another nice Civil War era ship from Flagship. While there are some
minor flaws, the kit is a step forward in my opinion. You can bet that
there will be more Civil War era iron clads coming from Flagship in the
future. This is kit #FM19227 1/192 USS Cairo with a retail price of $90.00
US. More than fair for a large multimedia kit like this. You can even buy
it online at the Flagship
website using a secure server powered by Paypal. |
