Background
(reprised from the YH Mutsuki review) |
|
The modern Imperial
Japanese Navy battlefleet commenced with the construction of the battlecruiser
Kongo in 1911, followed by Japan’s first superdreadnought, Fuso, in 1912.
The initial emphasis on capital ships was both a response to an escalating
naval race between the leading naval powers, and as the principal instruments
of Japan’s Mahanian strategy of the decisive naval engagement. However,
the concentration on capitol ships meant a minimum focus on lighter escorts.
Belatedly, the Imperial General Staff, which set Japanese naval construction
and design requirements, authorized new classes of first-class destroyers
to augment their capital ships under their “Eight-Eight” program (modified
to the “Eight -Four” program) during the latter years of WWI. The new destroyer
designs emphasizing greater speed, firepower, range, and quality. Construction
of the first units commenced just as the First World War approached its
end.
Speed was the major driving consideration as most new capital ships,
particularly the battlecruisers, were projected to feature speeds over
30 knots. Almost none of the existing Japanese destroyer designs was up
to the task. By the time the Washington Naval Disarmament Conference of
1922 convened, three new, capable classes of destroyer had been completed
for the IJN, each an incremental improvement over the proceeding class.
The Mutsuki class of twelve ships was the last of these classes. |
|
|
DESIGN |
|
Up through mid-World War 1, Japanese
destroyer development had been closely linked to Royal Navy practices.
As that war progressed, attention was also paid to German destroyer design.
As a result, the initial class of new IJN destroyers, the Minekazes, incorporated
several new features first seen in the German designs, including a lengthened,
turtle-backed forecastle and the main armament set high on the centerline.
In the new class, four, single 12cm/4.7inch gun
mounts comprised the main armament, along with three sets of twin 53cm/21inch
torpedo tubes. One torpedo mount was set behind the forecastle in a well
deck in front of the bridge, the other two placed further aft of the funnels.
More powerful, turbine driven engines for higher speed were installed,
which also enabled more greater range. When completed, the new Minekazes
were considered the equal of foreign contemporary destroyers.
The second class of new destroyers, the Kamikazes,
tweaked the original design with a strengthened bridge structure and a
wider bean for greater stability. Some re-arrangement of the deckhouse
and main armament occurred as well in the last few units. There were subtle
tweaks to the main armament shielding as well.
The Mutsukis, the last class of new destroyers,
were tweaked yet again. A new bow form, referred to as a double spooned
bow, was incorporated, along with more flare to help with seakeeping. Beam
and draft were again slightly enlarged, better to accommodate a new, heavier
torpedo armament.
For the first time in a Japanese ship, 61cm/24”
torpedoes were installed, in two new triple tube mounts. Reloads for six
torpedoes were also provided for. More depth charges were added to the
stern. Some ships were equipped with minelaying rails, while others were
equipped with minesweeping paravanes. Engine machinery remained the same
as the proceeding class with 38,500shp and a top speed of just over 37
knots. Range remained the same, that of 3,600nm at 14 knots.
All class members underwent reconstruction between
1935 and 1937 as a result of issues with structural weaknesses exhibited
by some vessels during damaging encounters with typhoons. The hull and
bridge were reinforced, and the bridge reduced in width, made more aerodynamic,
and given a steel roof. An RDF loop and compartment were added aft. The
funnel tops were raked back and the torpedo tube mounts were enclosed by
a weather and splinter proof shield. A twin 13mm AA mount aft of number
two funnel was added to most units as well. Overall displacement increased,
and top speed was reduced to 32.5 knots. A degaussing cable was added to
the outside of the hull just prior to the beginning of hostilities in 1941.
Eventually, new destroyer designs beginning with
the succeeding Fubuki type rendered the Minekaze and Kamikaze classes obsolete
by the mid-1930s. Most of these ships were subsequently assigned secondary
duties. The enlarged and improved torpedo batteries of the Mutsukis were
seen as an asset, and these ships were retained as first line ships at
the outset of the Pacific war. |
SHIP
HISTORY |
|
Yuzuki (??, Evening Moon) was the
last of Mutsuki class ships to be authorized. She was laid down as Destroyer
#34 at the Fujinagata Shipyards on November 27, 1926, launched on March
4, 1927, and completed on July 25 of that same year. She was renamed Yuzuki
on August 1, 1928.
She was assigned to the 23rd Destroyer Division
(DesDiv 23), based out of Sasebo. There, Yuzuki joined Kikuzuki (FL), Mikazuki
and Mochizuki. These last four sisters differed from the earlier eight
Mutsuki ships in that these vessels were equipped with minesweeping equipment
composed of two paravanes and a large winch. The earlier vessels carried
mine-laying equipment, typified by two sets of parallel tracks set at the
stern to carry sixteen mines.
In the mid-1930s, Yuzuki and DesDiv 23 participated
in numerous landings and provided fire support during various operations
in Chinese coastal waters. In late 1937, she collided with the merchant
ship Kinka Maru and returned to Sasebo, Japan. There, she was classified
a reserve ship and underwent reconstruction and modernization in the same
manner as had her sisterships. Yuzuki was in reserve for approximately
two years.
She returned to duty with DesDiv 23 in very late
1939 and spent the next year training and spending time back in Chinese
waters. This included some months as escort to the Second Carrier Division
(Hiryu and Soryu) as they conducted operations there. In the early fall
of 1941, the division returned to Sasebo for upkeep and refit in preparation
for war.
Still assigned to DesDiv 23 at the outset of the
Pacific war, she participated in the invasions of Guam, Kavieng on New
Ireland, New Britain, Lae, Salamua, and the Shortland Islands; all by the
end of April, 1942. Sprinkled among the invasions were several convoy escort
missions performed in conjunction with her division.
In early May, she and DesDiv 23 participated in
the invasion of Tulagi. Sistership Kikuzuki was sunk, and Yuzuki was strafed
by aircraft from USS Yorktown. She lost her captain and nine others, with
20 more men wounded and minor damage. With Kikuzuki sunk by Yorktown’s
aircraft, she assumed division flagship duties.
Yuzuki returned to Sasebo, Japan via Truk, arriving
in late May. While there, DesDiv 23 was disbanded, and Yuzuki assigned
to DesDiv 29 as flagship. She joined Kamikaze class sisters Oite, Asanagi
and Yunagi. Repairs and refit took two weeks. DesDiv 29 then returned to
Truk by the end of June.
The division participated in various duties, such
as accompanying airfield construction battalions to Bougainville and Guadalcanal,
the invasion of Buna, and the escort of various troop convoys around the
Solomon Islands. In mid-August, Yuzuki participated in both reconnaissance
and bombardment missions to Guadalcanal. Further escort and patrol missions
in the Central Pacific occupied the rest of 1942.
Yunagi returned to Japan in January 1943 for a
brief refit at Sasebo. Afterwards, DesDeiv29 returned to the Central Pacific
in late February, where members continued in various escort duties as well
as the rescue of crews from torpedoed transports and tankers. In April,
DesDiv 29 was disbanded, and Yunagi assigned directly to 2nd Surface Escort
Division, continuing with the same set of duties.
She returned to Yokosuka NY in November for another
brief refit. She was subsequently assigned to DesDiv 30, joining sister
Uzuki. While still at Yokosuka, it was decided to give her a more extensive
refit. This refit was carried out at initially at the nearby Ishikawa Shipyard
and finished at Yokosuka. The refit was carried out between the first week
of December and the last week of January, 1944.
The refit itself followed the general layout of
the surviving, late war Mutsuki ships. This entailed the deletion of the
aft triple torpedo tube mount, a reduction in the number of spare torpedoes
from six to three, the deletion of main gun mounts 2 and 4, and the elimination
of the bridge mounted 7.5mm MGs. Enlarged AA platforms replaced the two
main gun mounts, with each location carrying two triple 25mm AA mounts,
side by side. The light machine guns forward were replaced by two twin
13mm AA mounts on low platforms to either side of the bridge face, above
the forward torpedo mount well. An improved sonar apparatus was added as
well.
In February, 1944, Yuzuki returned to duty. She
returned to Truk, where she joined sister Minazuki in escorting a small
convoy to Rabaul. She subsequently made two destroyer transport runs to
New Britain with Minazuki. Both ships then moved their base of operations
to Palau, where they continued to patrol and escort. In late April, Yuzuki
assisted destroyer Samidare in rescuing surviving crewmembers from the
torpedoed light cruiser Yubari.
Yuzuki returned to Sasebo at the end of May for
yet another refit. This time, she added several single 25mm AA mounts as
well as replacing the twin 13mm mounts with twin 25mm mounts. A Type 13
radar was also added to the mainmast. Yuzuki and DesDiv 30 were then re-assigned
to Escort Squadron 31, with Yuzuki as flagship.
She remained in Japanese waters until September
when she participated as escort to a convoy to Singapore, returning via
way of Manila. After another brief refit, she escorted several large naval
units to Manila in late November. She remained on station in Manila.
Eventually, Yunagi participated as an escort to
convoy TA No. 9, the last of an ill-fated series of troop reinforcement
convoys between Manila on Luzon and Ormoc Bay on Leyte in the Philippines.
Known as the TA Operations by the Japanese, these convoys had been designated
as critical in supporting Japanese Army efforts to fighting off the American
landings on Leyte. The first eight convoys had been incredibly costly in
terms of lost aircraft, ships and men for the Japanese. A light cruiser,
eight destroyers, thirteen troopships and countless smaller escorts and
landing ships had been lost to intensive and repeated air attacks by USAAF
and USN aircraft. USN surface forces had also intercepted some of the convoys
with destroyers and PT boats.
On December 10th, Yuzuki, sister Uzuki, and the
Matsu class destroyer Kiri were tasked as the main escorts of a small troop
convoy composed of three transports, two landing ships and two subchasers
that were used as additional escorts. The next morning, the ships were
attacked enroute by fighter-bombers, leaving two of the transports afire
and dead in the water. The third transport was directed to land at a site
closer than Ormoc, escorted by Uzuki. That landing was successful.
In the meantime, Yuzuki, Kiri and the remaining
ships continued on to Ormoc Bay, where fierce fighting was already taking
place in that location. The landing ships successfully offloaded their
troops and supplies with the loss of just one landing ship. The remaining
landing ship, Yuzuki and Kiri subsequently withdrew.
Uzuki had been ordered to rejoin Yuzuki enroute
back from Ormoc Bay, but she was intercepted by PT boats and violently
sunk by a close-range torpedo attack. The remaining ships continued undisturbed
until the next morning when all were attacked by US Marine aircraft. Interestingly,
most of the subsequent damage incurred by the small convoy was from by
strafing attacks. Yuzuki herself became un-maneuverable and suffered progressive
flooding, eventually sinking with the loss of twenty men.
Kiri and the other vessels were also heavily strafed,
but they all managed to return to Manila with Yuzuki’s survivors aboard. |
The
Review Kit: 1/700 Yuzuki
Yamashita Hobby (YH) continues to release variants
of its Mutsuki class destroyer kit. As of this writing, there are kits
for six different vessels issued (Mutsuki ’42, Fumizuki’43, Mikazuki’43,
Satsuki’44, Yuzuki’44, & Kikuzuki’42). I gave a brief overview on the
evolution of the 1/700 Mutsuki class kits in my original my original YH
Mutsuki review; suffice to say that YH improved on the earlier kits’ shortcomings.
This kit is molded in a light grey plastic with
uniformly sharp detailing. It is a waterline version only; no full hull
option is available. There are now 17 sprues and approximately 250 pieces
to accommodate several fits and variants, though not all are used for this
kit. As with the Mutsuki kit, hull dimensions and the scale of the main
armament are the most notable of the improvements over prior manufacturer’s
kits.
While this kit is marketed as Yuzuki 1944, it has
enough alternate parts to be built as any of the DesDiv 23 minesweeping
sisters in most timeframes, save for a late war Uzuki. The inclusion of
a mid to late war minelaying variant stern and forecastle means that several
of the other sisters could be built as well. Keep in mind though that the
kit does not provide a degaussing cable on the hull. |

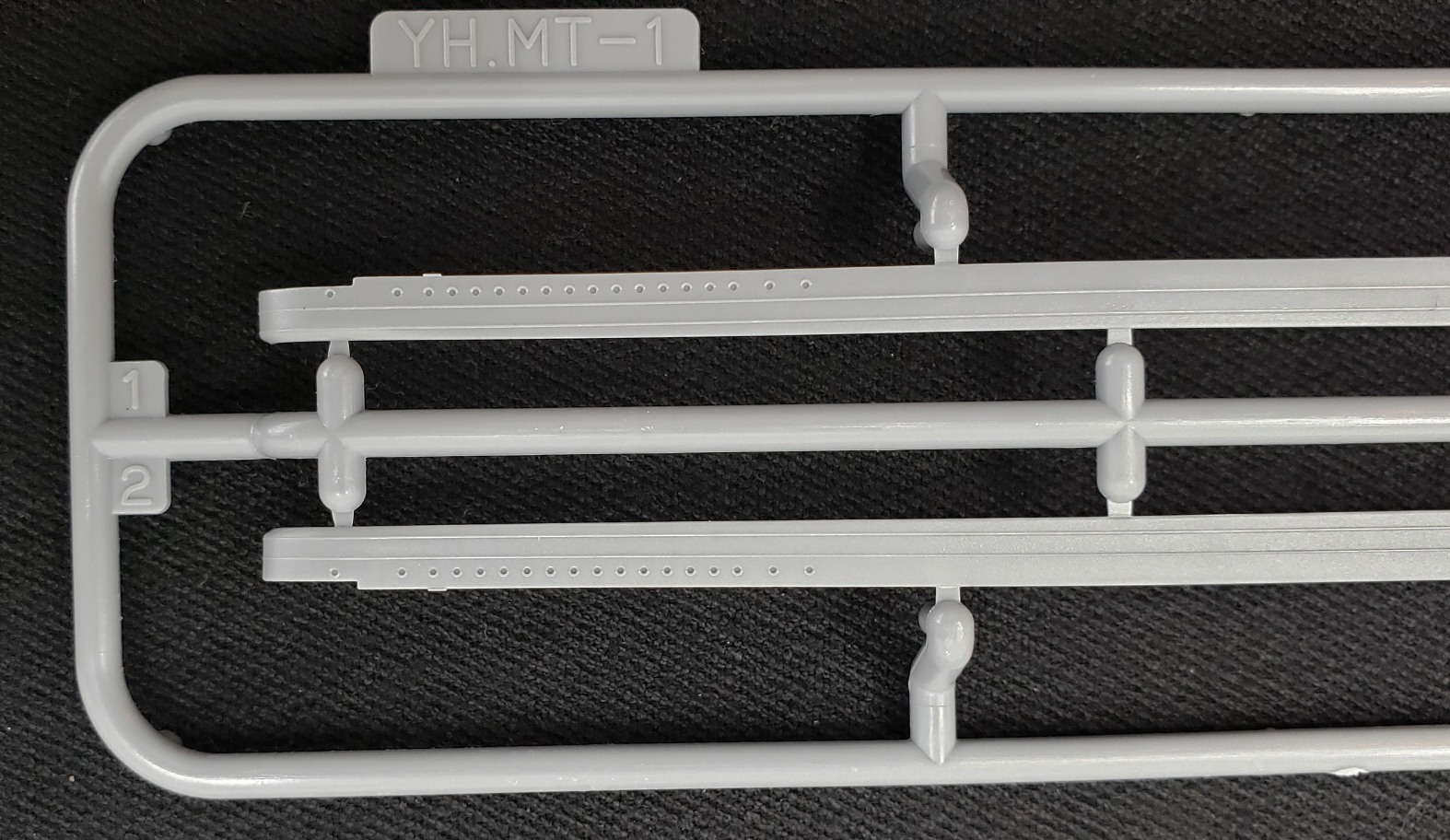

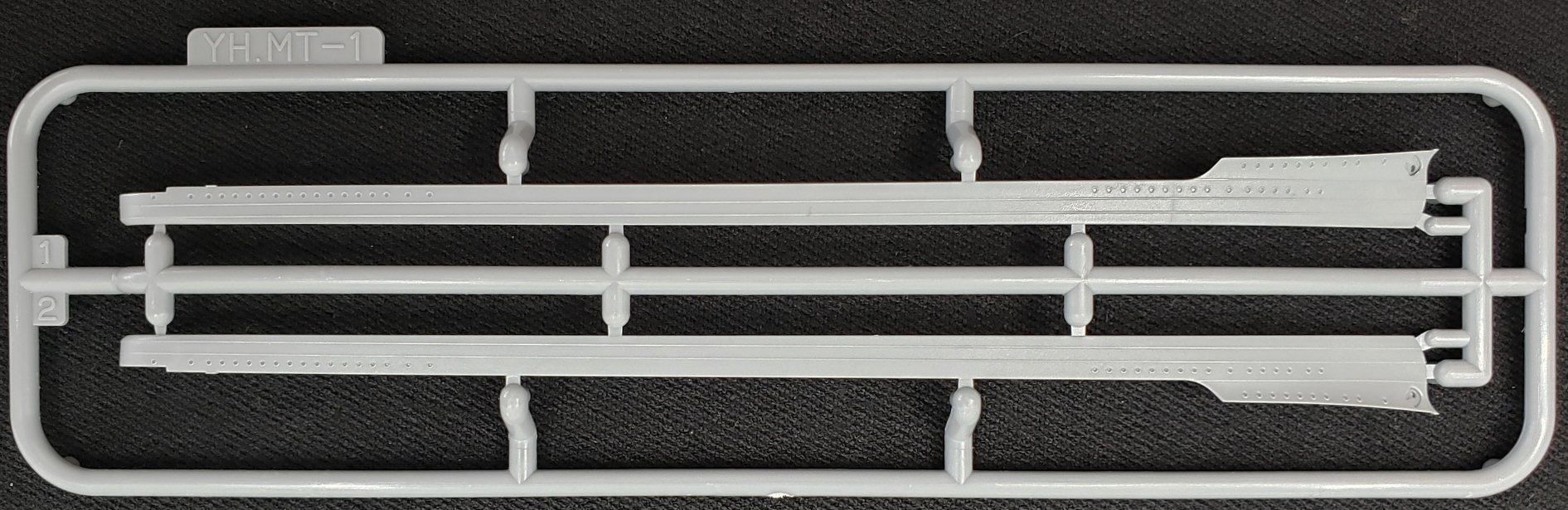

HULL
SPRUE (MT-1) |
|

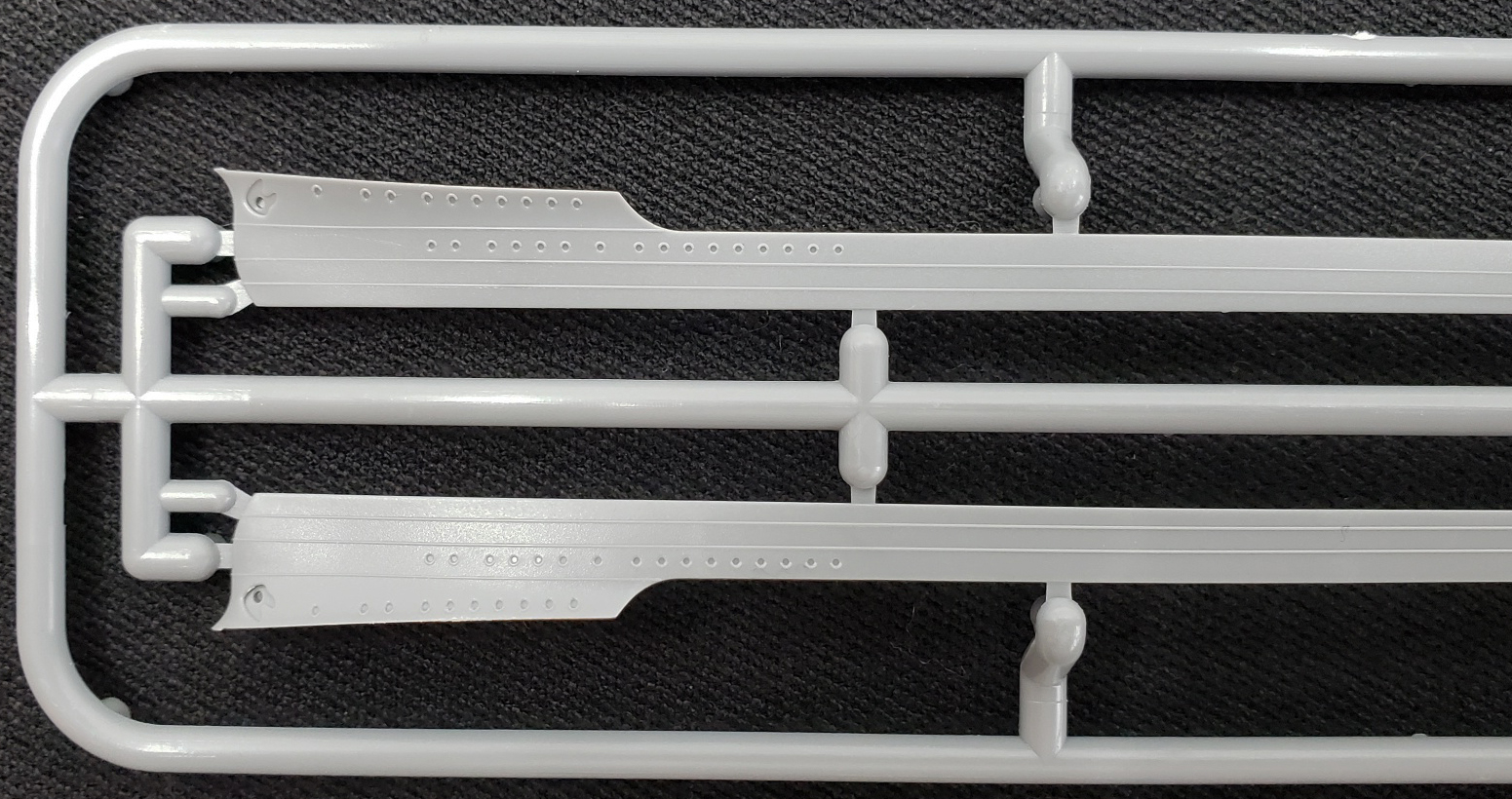

This sprue is carried over from the
initial kit. It holds the main hull, which is split into halves and is
strictly a waterline presentation. The hull is cleanly molded with very
sharp details, including portholes, porthole eyebrows, properly shaped
anchor recesses, and subtle raised seam lines for plating. There are no
subtle depressions or sinkholes. As stated above, there is no degaussing
cable, so one must add a degaussing cable for a wartime fit. Also, none
of the lower rows of portholes are plated over, as would befit a later
war kit.
The “double spoon” bow profile is excellent, with
the bottom portion jutting forward of the vertical axis by just a hair.
The sprue tree is attached to the leading edge of the bow from the inside
of the hull, in order to retain the bow’s subtle profile and fineness.
Care must be taken to remove it; preferably by shaving the attachment point
from the inside out.
While the inside of the hull halves has an inset
lip to hold a hidden bottom plate, it has also been engineered to accept
a more substantial bottom plate assembly in order to combat any inadvertent
bending of the hull and to keep it flat. More on that in a moment.
The kit hull dimensions scale out particularly
well:
Overall Length: 102.72m/337’ |
1/700 OA length: 146.75mm |
Kit OA length: 147mm |
Waterline Length: 99.67m/327’ |
1/700 WL length: 142.39mm |
Kit WL length: 143.5mm |
Beam: 9.16m/30’1” |
1/700 Beam: 13.1mm |
Kit Beam: 13.2mm* |
*width is an estimate based on the measurement
of components, as the kit hull is in halves. |
|

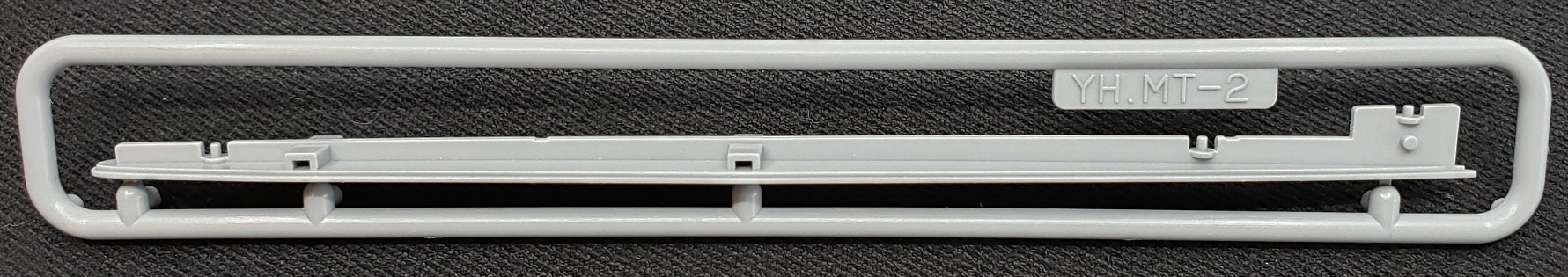

SPRUE
WL MT-2 |
|
With this unique bottom plate, Yamashita
Hobby has taken a more proactive approach to keeping a waterline hull flat.
Essentially, it enforces hull stiffness by adding a raised, lengthwise
ridge along the top of the flat bottom plate. It resembles an upside down
“T” in cross-section, along with some bulked-up attachment points along
the hull and within the bow. I did not test fit it, but it certainly seems
like it could do the job. This piece is common to all of the YH Mutsuki
kits. |
|
SPRUE
MFS-01 |
|

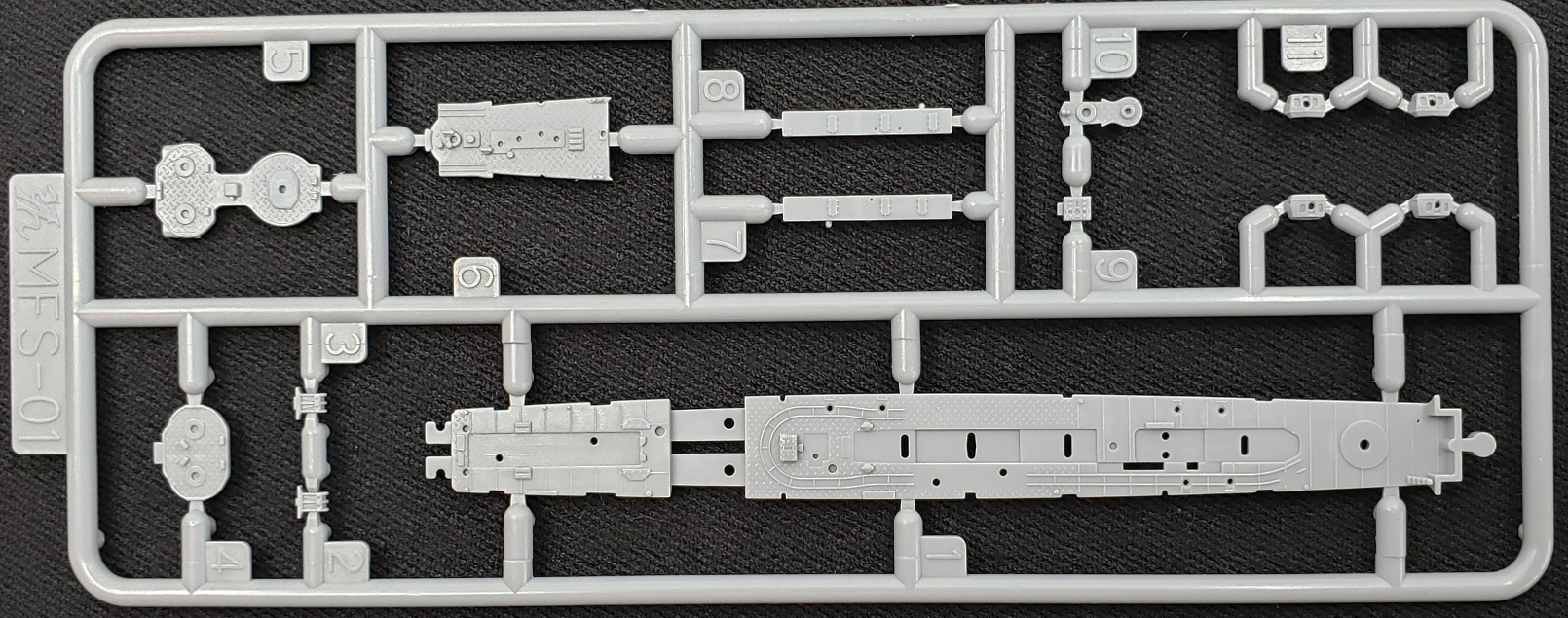

This sprue replaces the original sprue
(MT-2) that carried the main and forecastle decks of the initial Mutsuki
kit (NV11). This sprue has a new main deck arrangement that has been used
in all the subsequent kits to date, including early, mid and late war variants.
The second molded-on, aftmost torpedo mount base has been eliminated, and
appears as a gap, in order to accept a separate deck piece containing either
the second torpedo mount base or a flat, empty, linoleum covered section
of deck. The main deck has also been truncated aft to accept a new stern
piece representing either the minelaying or minesweeping variants.
A new stern piece meant for the minelaying fit
versions is present on the sprue, but is not to be used for this kit. Also
present are some of the late war main battery and AA bandstands, some truss
supports for same, some deckhouse bulwarks, main battery shields, and the
top of the RDF compartment, which is also not used in this kit.
All these pieces are superbly detailed, scaled
and sharply molded, particularly the decks. |
|

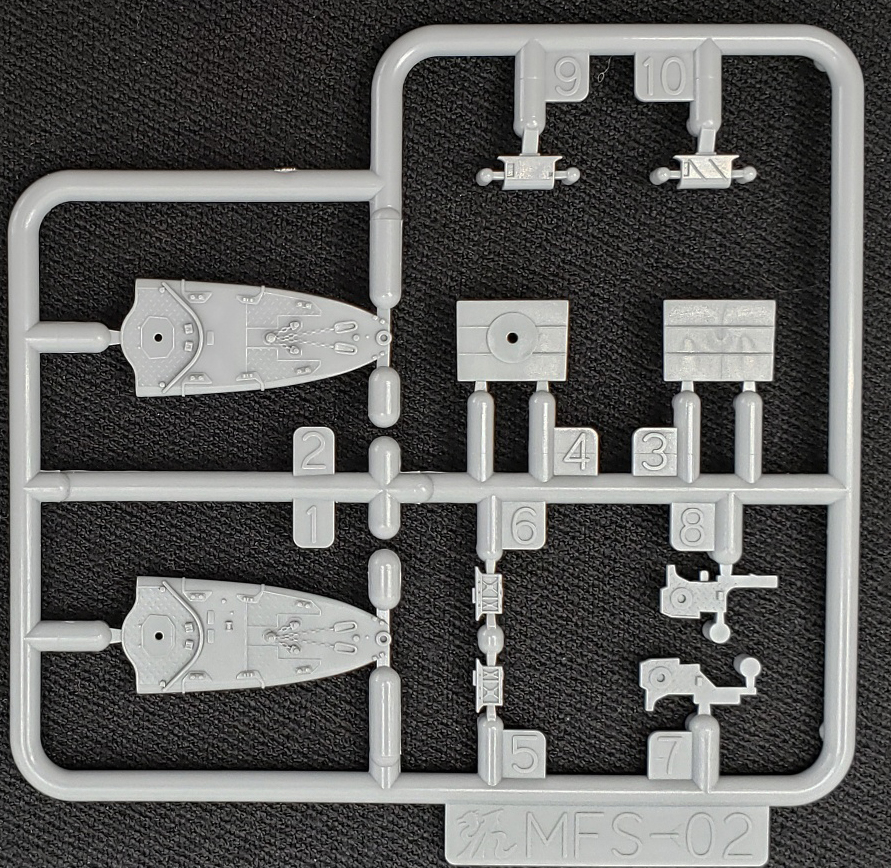

SPRUE
MFS-02 |
|
This is another new sprue now used
for all the Mutsuki class kits issued, aside from the initial Mutsuki kit
NV11). It holds two different type forecastle decks (presumably one for
the minelayers and the other for minesweepers), port and starboard AA platforms
for either side of the bridge in late war ships, two insertion sections
for the main deck (one with a torpedo mount base and one flat section without),
and some truss supports for the main battery platforms.
Parts unused for this kit include one of the bows,
the main deck insertion plate with the torpedo mount base, and the AA platforms. |
|

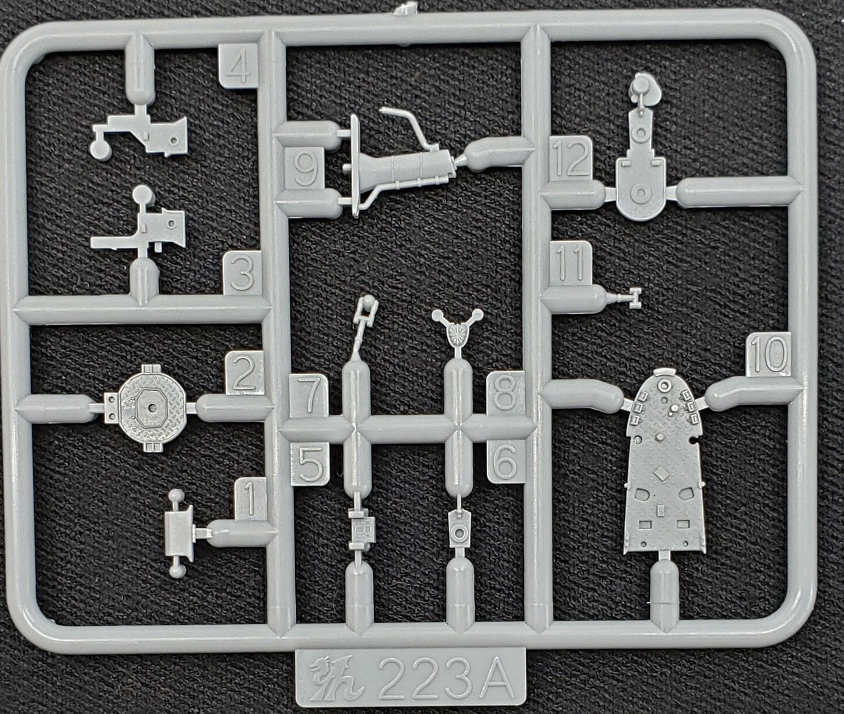

SPRUE
223A |
|
A third new sprue, this contains
a different set of port and starboard AA platforms for either side of the
bridge in late war ships, a main battery platform, a stern main deck with
six individual roll-off depth charges, a downsized funnel used in the mid-war
Mikazuki kit (and a late war Uzuki, if such a kit is ever released), and
some smaller fittings such as the top of the RDF compartment. Only the
stern, bridge AA platforms, and RDF compartment top are used for this particular
kit. |
|
SPRUE
223B |
|

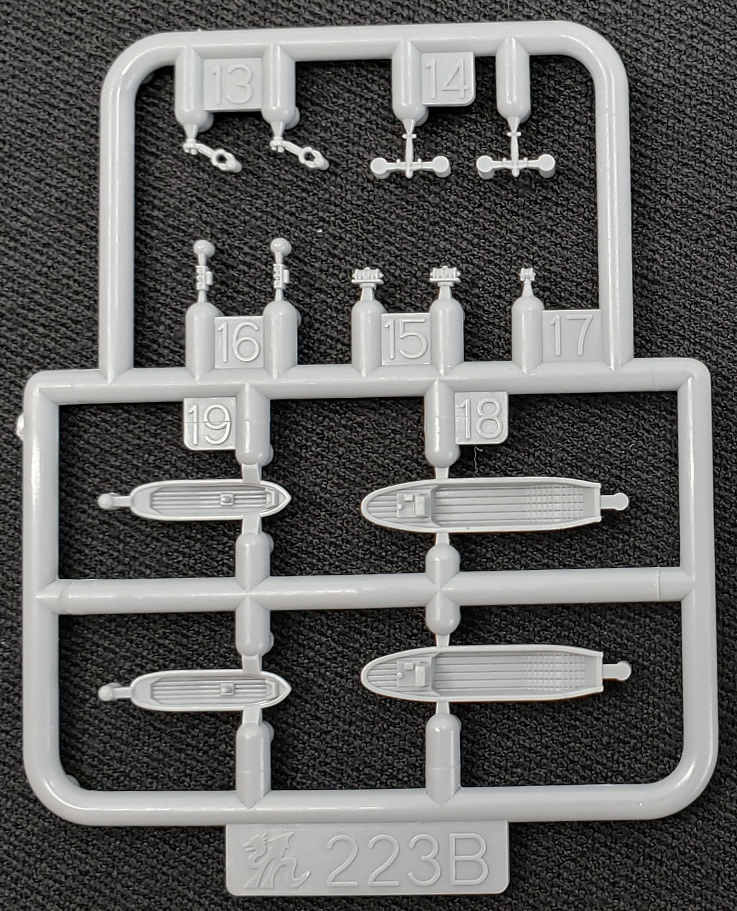

This is the fourth and last of the
new sprues. Included are two 10m Shohatsu cargo/landing craft, two 14m
Daihatsu landing craft, two paravanes and two paravane gantries, and two
sizes of hawser reels. (This sprue is also available as a separate aftermarket
accessory set from YH.) |
|
SPRUE
MT-3 |
|
A smaller sprue, this one contains:
a 6.5m motor launch, bridge windows insert, several air intakes, port &
starboard navigation light boxes, anchors, jackstaffs, and a 75cm searchlight.
All parts are crisply formed and scaled. |
|

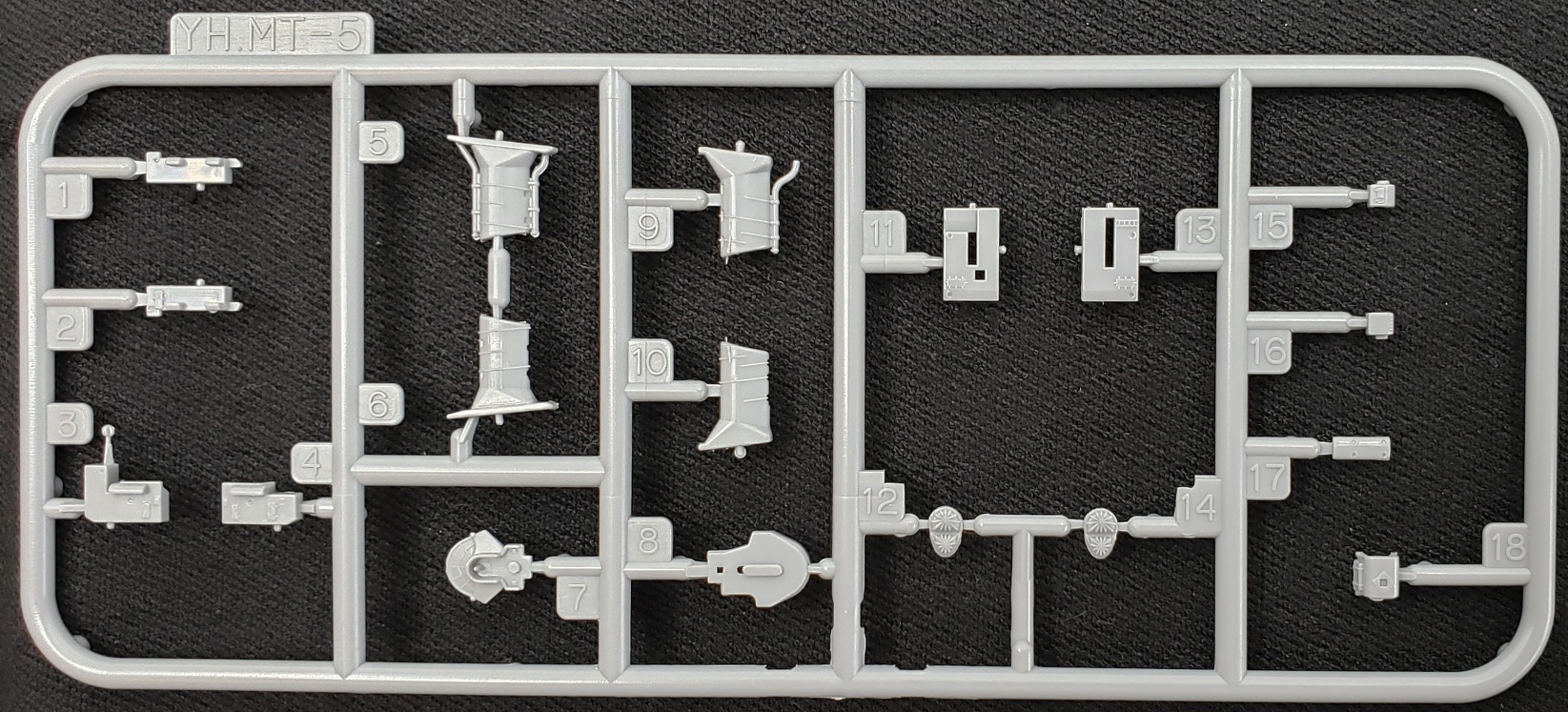

SPRUE
MT-5 |
|
This sprue holds the funnel halves
for both original funnels, the funnel grills, the main components of the
bridge, the halves of the RDF compartment, the compass bridge deck and
roof, and some further components that make up the various deckhouses.
The detailing is very good, though, of course, a photoetch funnel grill
is always preferable to plastic. |
|
|
|
|
|

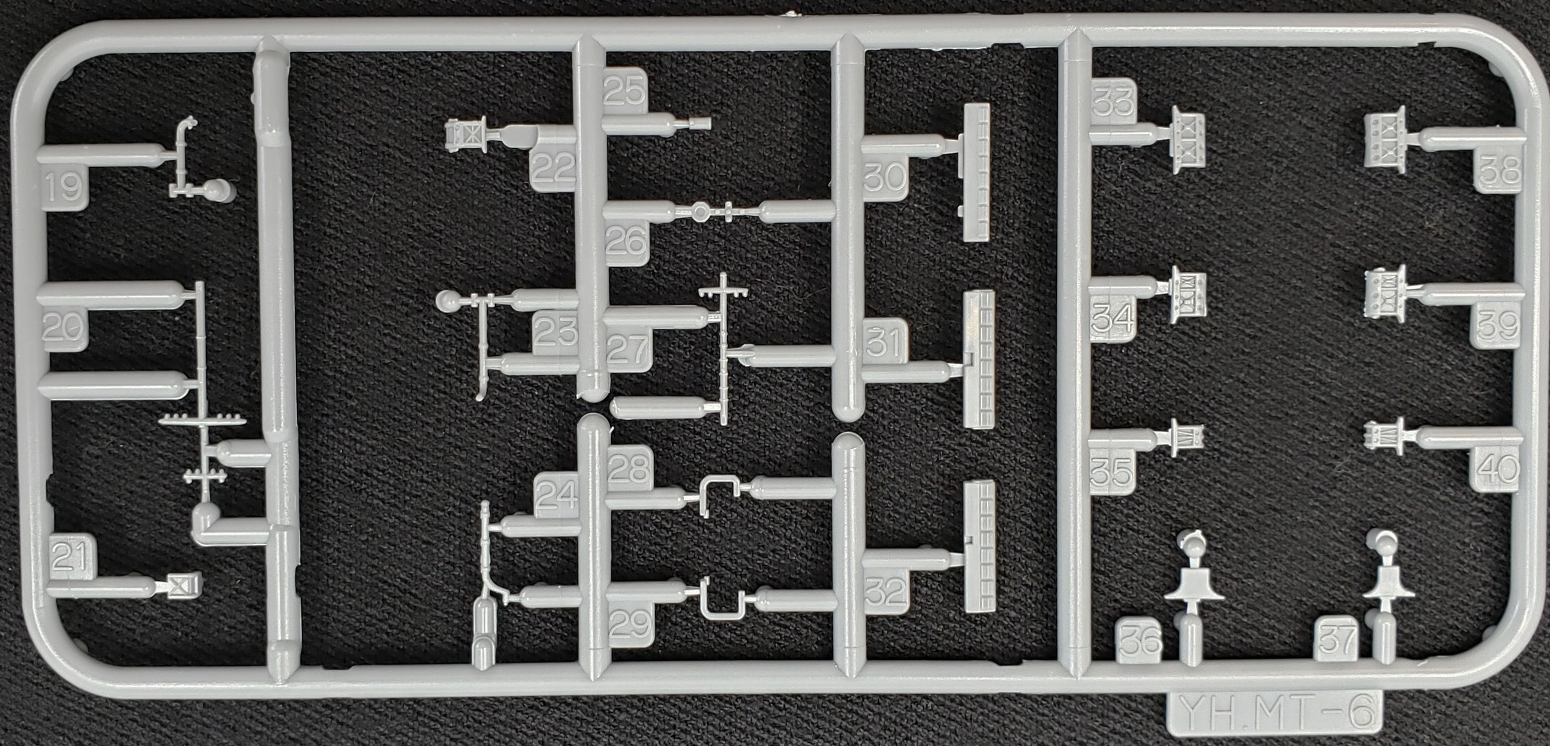

SPRUE
MT-6 |
|
A small structures sprue, this one
contains the fore and mainmasts, the funnel galley pipe and other auxiliary
piping, all of the torpedo storage bays, the trestles that support the
main mount bandstands, the maneuvering light affixed to the main mast,
a crow’s nest for the foremast, and a torpedo reload gantry.
Again, everything shows some very nice detailing.
Aftermarket PE alternatives for the trestles are available, if one so desires. |
|
SPRUE

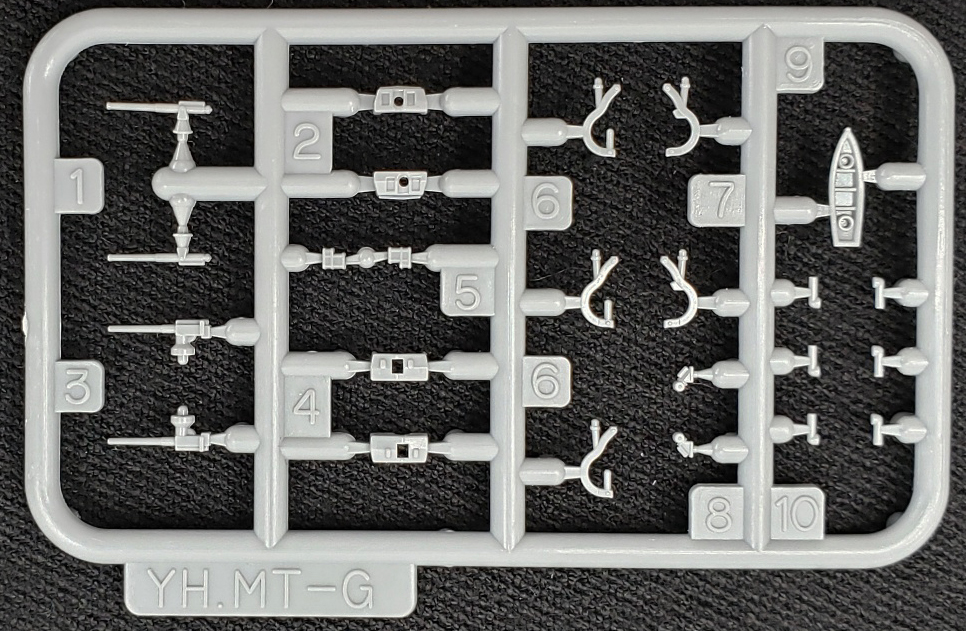

MT-G (X2) |
|
This is the main armament sprue. It
supplies two different versions of the 12cm/45 Third Year Type naval gun,
two different Type G shields for same, single depth charge throwers and
small depth charge racks for same, davits for the ship’s boats, a 6m cutter,
and air intakes.
Only one type of gun and shield is used, designated
parts 1 & 2. The unused parts appear to be the earlier shield and breech
block/housing used aboard the Minekaze class ships. |
|
SPRUE
YH700T4 (X2) |
|

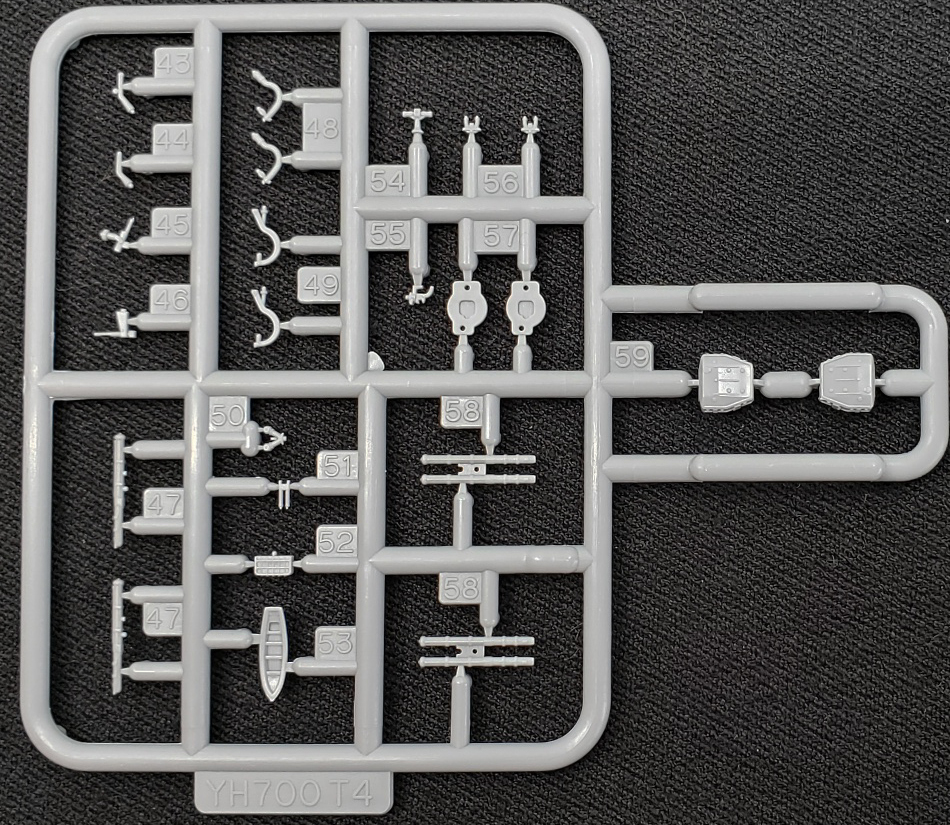

This is the torpedo battery sprue
and it is carried over unchanged from Yamashita Hobby’s Fubuki class kits.
The two classes shared some equipment, particularly the Type 90 61cm/24”
diameter torpedoes and triple shielded mounts. Included on this sprue are
the triple torpedo tube housings, mounts, and tubes, boat davits, torpedo
and depth charge davits, a depth charge rack, a Y-thrower for the depth
charges, ship’s 7m cutters, single 13mm AAs, anchors, depth charge, a 12.7cm
practice loader, and rangefinders.

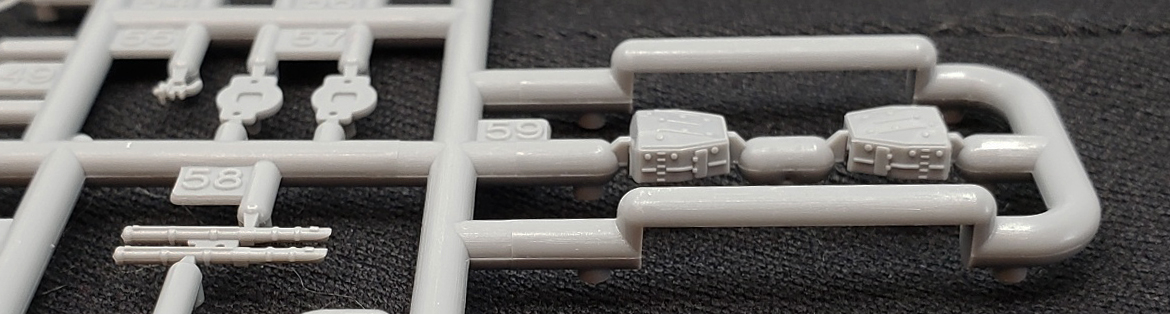

The breakdown and detail of the torpedo tubes is
on a par with, to the Fubuki class version issued by Pit-Road with its
NE07 equipment set. It’s also comparable to similar FineMolds accessories.
Most everything is sharply defined. The practice loader is a little tall,
but’s it’s also sized as a 12.7cm mount, not a 12cm mount.
Much of the equipment on the sprue is designed
for the Fubukis, so several pieces are not utilized in this kit, including
the anchors, boats, davits, depth charge rack and Y-thrower. Coupled with
the fact that two such sprues are provided, there’s a lot of good stuff
for the spares box. This set is also available for individual sale as a
small vessel equipment set from YH. |
|
SPRUE
YH700P6 (X2) |
|

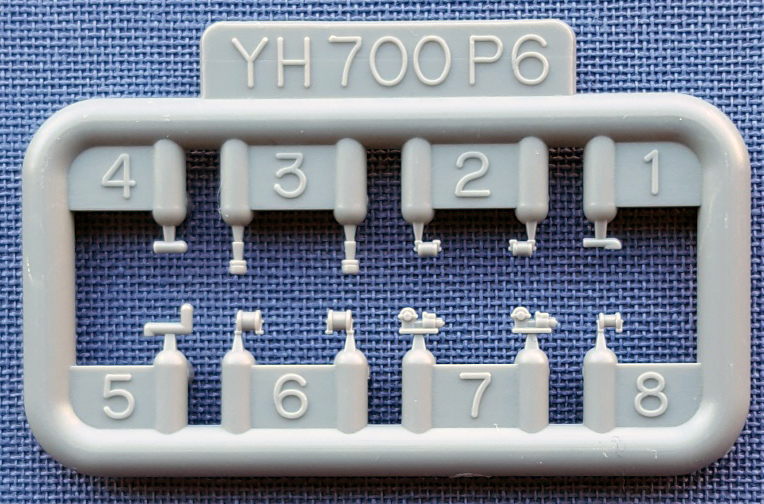

This is a small sprue of deck accessories
and is carried over unchanged from the Fubuki class kits. It’s also available
for separate sale as a winch reel set. Each includes three sizes of hawser
reels, two deck winches, and several sizes of both regular and storm mushroom
vents.
As I have stated in earlier YH reviews, the scale
and sizing of these pieces continues to be smaller and finer than anything
previously offered in styrene, and rivals some offerings available in brass
or 3D printing. For anyone who ever chiseled off the molded-on deck reels
on the waterline kits and then wondered why all the better detailed replacements
seemed so oversized, the answer is that, until these were released in 2015,
no one was willing, or able, to mold them small enough to be in scale with
any reasonable detail. This is a great set of fittings. |
|

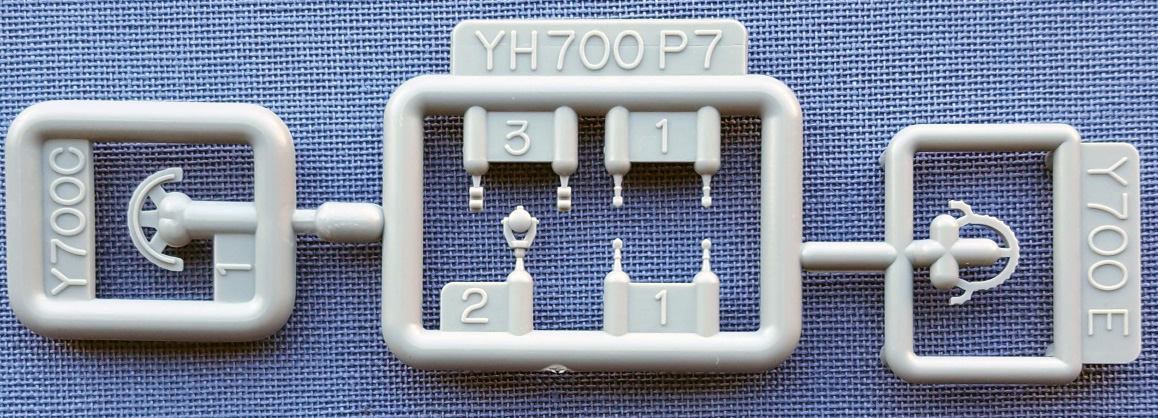

SPRUES
YH700P7, Y700C & Y700E |
|
This sprue is also a carryover from
the YH Fubuki class kits, though, in those kits, it’s produced in clear
plastic. Here, it’s rendered in plain grey styrene. Included are port and
starboard running lights, a 90cm searchlight and four 30cm signal lights
(you only need two of them). Once again, everything is to scale, which
means these pieces are carpet monster eligible. I will say that the FineMolds
version of the 90cm searchlight is still more detailed.
The YH700C & YH700E sprues are not used in
this kit. I still don’t know why they weren’t clipped off before packing. |
|

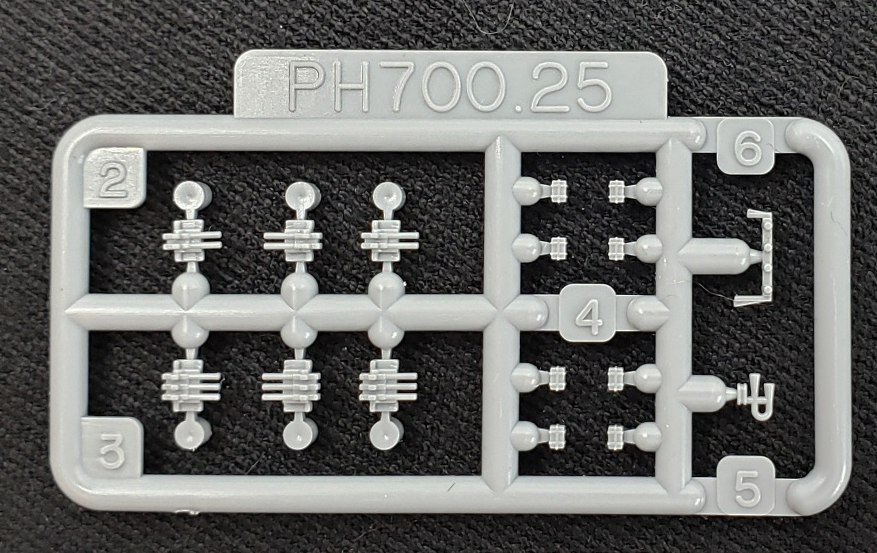

SPRUE
PH700.25 (X2) |
|
This sprue contains three each of
the twin and triple 25mm AA mounts. Also included are eight 25mm ammo boxes,
a Type 13 radar and a Type 22 radar. This sprue was first introduced with
the Matsu class YH kits in 2017.
Unfortunately, I don’t care for the these 25mm
AA mounts at all. The bases seem oversized and misshapen, and the barrels
set too far apart. Nor do they show the recoil tube detail often seen on
other makes. These are a rare mis-step for Yamashita Hobby. Fortunately,
there are plenty of aftermarket alternatives for these mounts.
On the other hand, the ammo boxes are sharp, as
is the Type 22 radar. The Type 22 was not used aboard this class of ship,
while the Type 13 radar was used in the very late war fits. |
|
DECALS |
|
None are included,
just as with the Yamashita Hobby Fubuki Type kits. I suppose it helps keep
the kit’s cost down. Fortunately, there are several aftermarket alternatives,
particularly for flags. Pit-Road also makes a decal sheet with katakana
lettering for sides of the hull, for those interested in detailing a pre-war
version. YH has released a similar katakana sheet for its own Fubuki kits,
and I’m surprised that such a sheet has yet to be released for their Mutsuki
class kits, given that YH continues to roll Mutsuki class variants out.
Perhaps one will appear in the not-to-distant future. |
INSTRUCTIONS |
|
These are in Japanese and handled
in the typical format. They consist of one large sheet printed front and

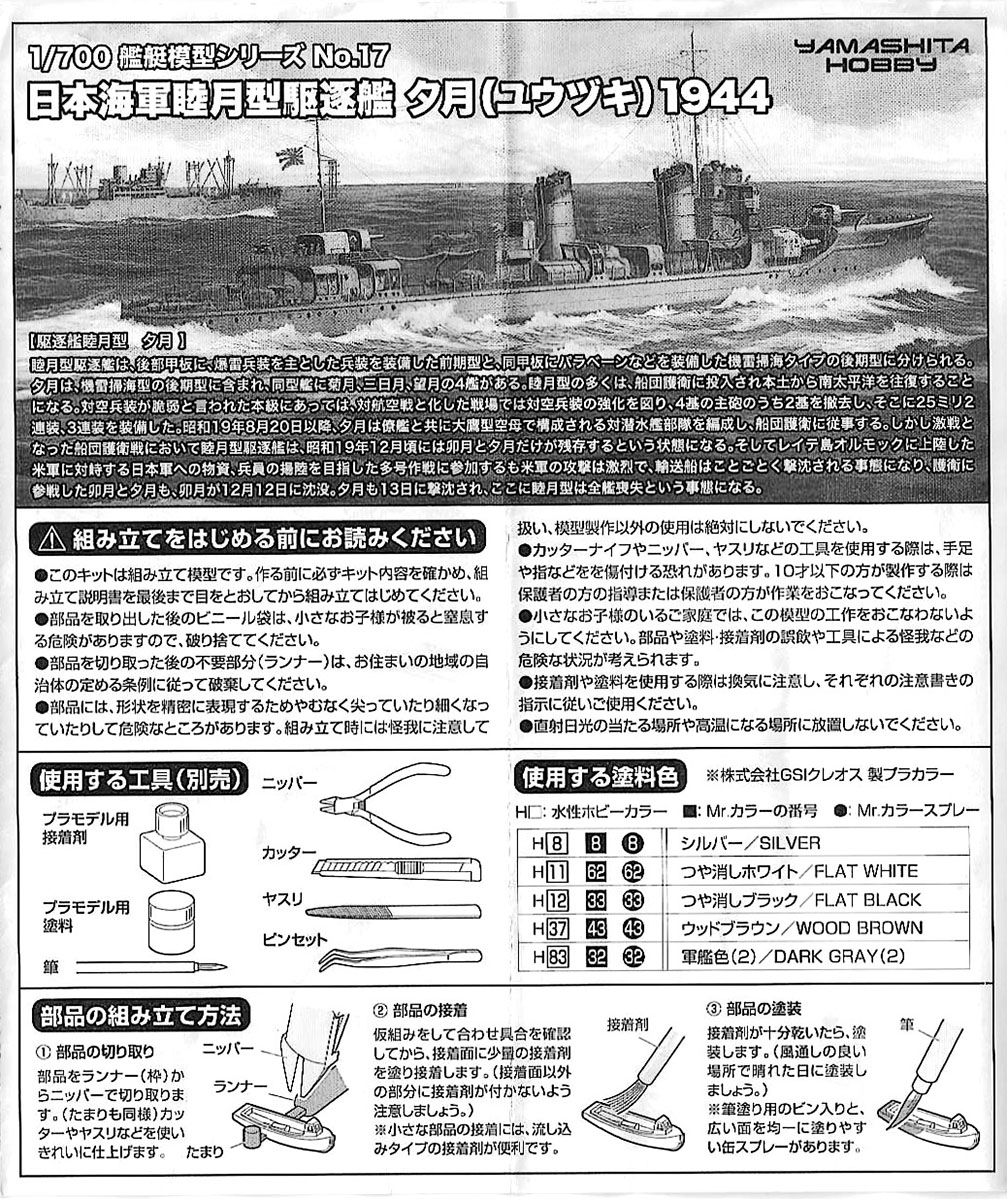

back, then folded into several panels. The front panel portrays the usual

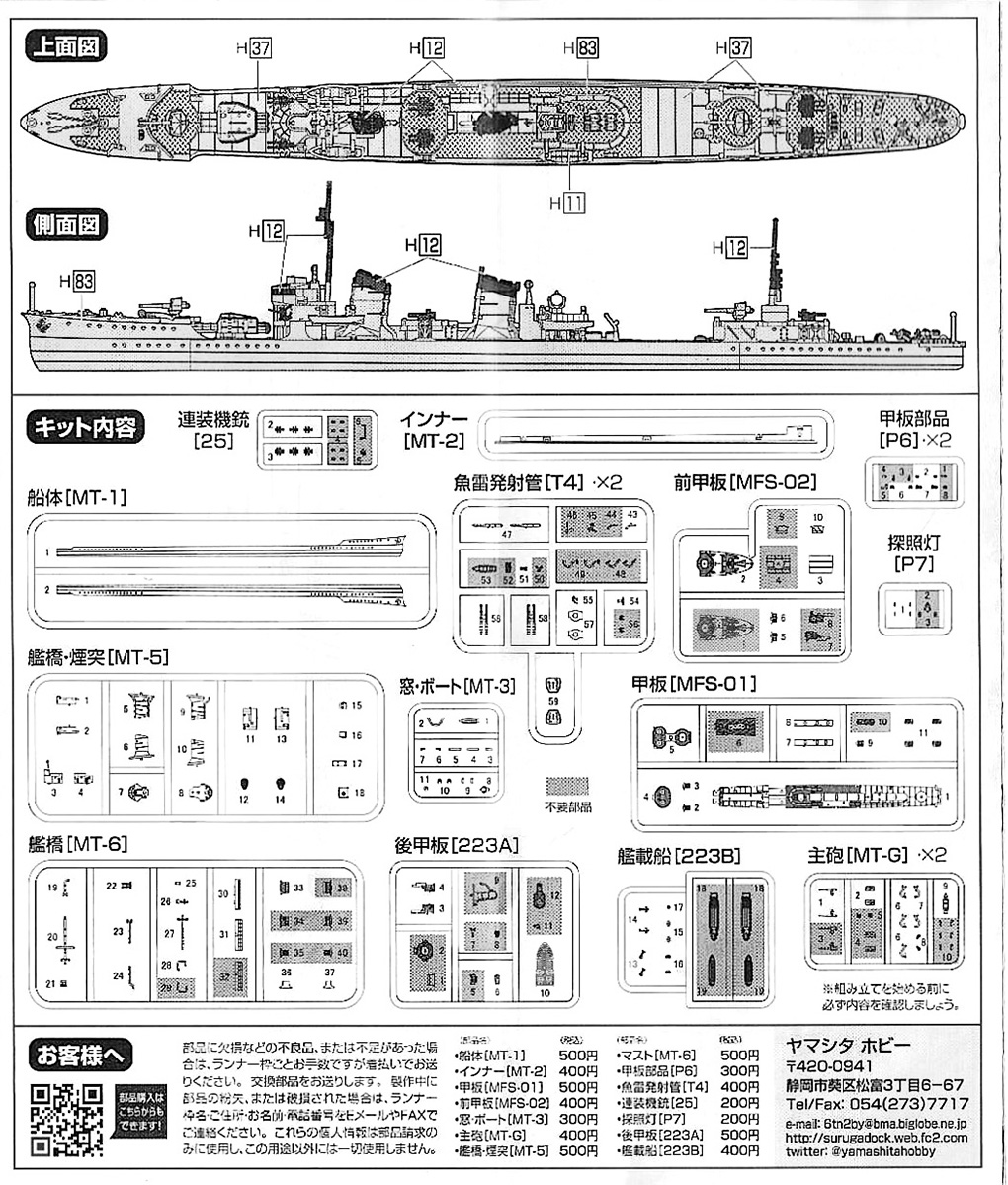

black & white reprint of the cover art; a second panel has plan and
line drawing views keyed to Mr. Color callouts for painting, and is paired

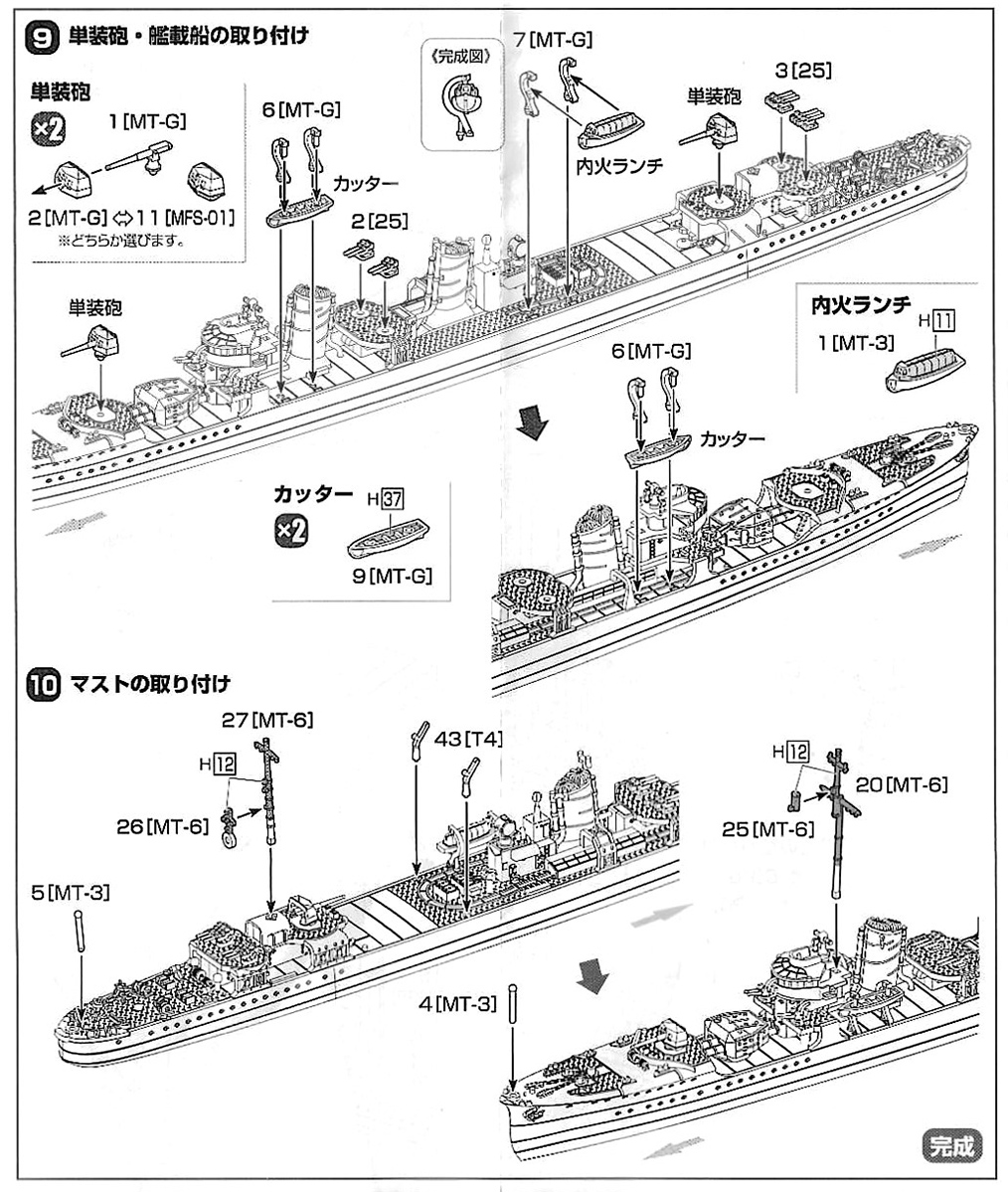

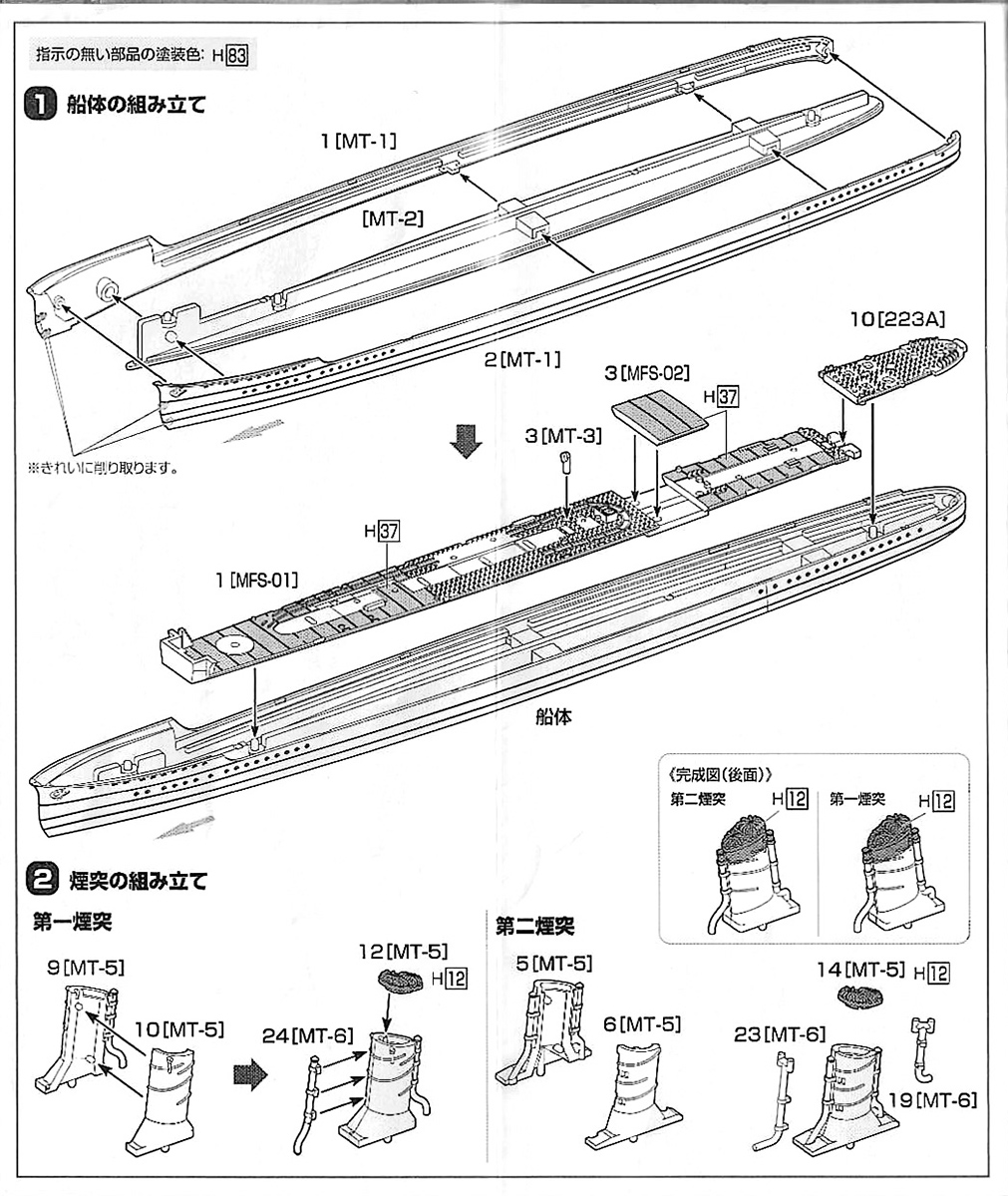

with the sprue/parts breakdown. The rest of the sheets have a step-by-step
progression of assembly using exploded, three-point perspective illustrations.
The sprue marking system continues to a little
confusing, as some sprues are marked by similar letters or numbers. Yamashita
did take care to list the sprue number next to every part number, which
helps greatly to eliminate confusion. Cross-checking the sprues with the
sprue/parts list in the instructions will be helpful in keeping things
straight. There are different prefixes in Japanese marked on the instructions,
but that’s not particularly helpful to those who don’t read Japanese. Still,
it’s not rocket science, and the correct parts can be ascertained by paying
close attention to the assembly portion of the instructions. |
|
FINAL
THOUGHTS |
|
Yamashita’s lineup of
Mutsuki class kits continues with another welcoming addition. Particularly
as it introduces the minesweeping variant. Now, just about all fits for
all stages of the war can be had in a ship of this class.
Highly recommended.
This kit comes courtesy of my wallet.
I don’t see this kit currently offered for sale by US distributors, but
the cost at Hobbylink Japan is approximately US$10.65, plus shipping. (Btw,
that’s two dollars cheaper than when the Mutsuki kit was first released.) |
|
