I know almost nothing about Royal Navy
ships, especially modern ships. However this is an attractive ship
with an historical background so it grabbed my interest when I heard about

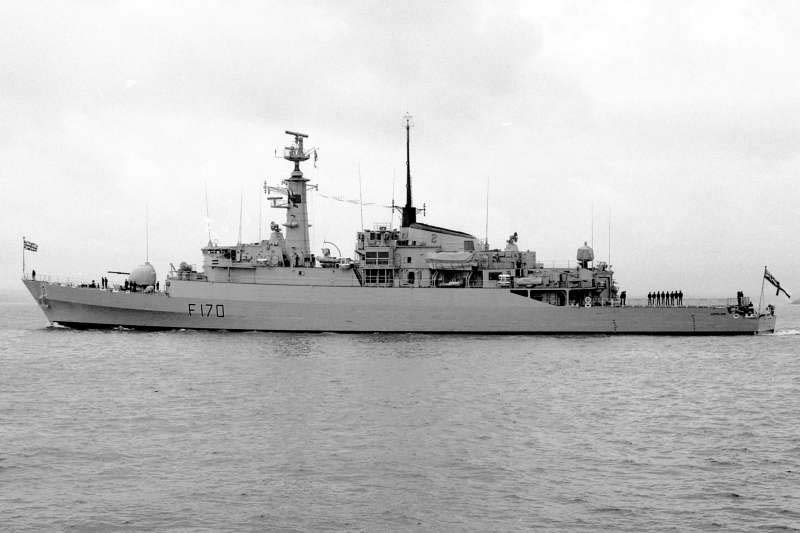

her. HMS Antelope was sunk by an air attack during the Falklands
war. This is the 30th anniversary of that conflict. She was
attacked twice by two pair of Argentine A-4Bs. During the first attack
one of the A-4's was able to drop her bomb which did not explode and lodged
into the ship. One of the A-4's from the second flight struck the
aft mast as it crashed. While trying to disarm the bomb it exploded
sending HMS Antelope to the bottom. That's the short story.
I have seen pictures of the Airfix offering in 1:600 scale. Having
built several of the latest Dragon kits I had high expectations for this
kit. Indeed when I opened the box and looked over the parts I was
not disappointed. Very typical of modern Dragon kits. You have
the option to make this full hull or waterline. However I had just
heard that the hull of this kit, although advertised as 1:700, had the
exact dimensions of the Airfix kit. The first thing I did was measure
the hull using my handy Loose Canon Models 1:700 scale. The hull
measured 445 feet or 136 meters. Checking the internet the prototype
is 384 feet or 117 meters. I then measured the parts such as the
Lynx helicopter and they were at or slightly below 1:700 scale but certainly
close enough. In other words we have what is roughly 1:600 scale
hull with 1:700 scale parts. I think you see the problem.
|
|
|
SPRUE A & D |
|

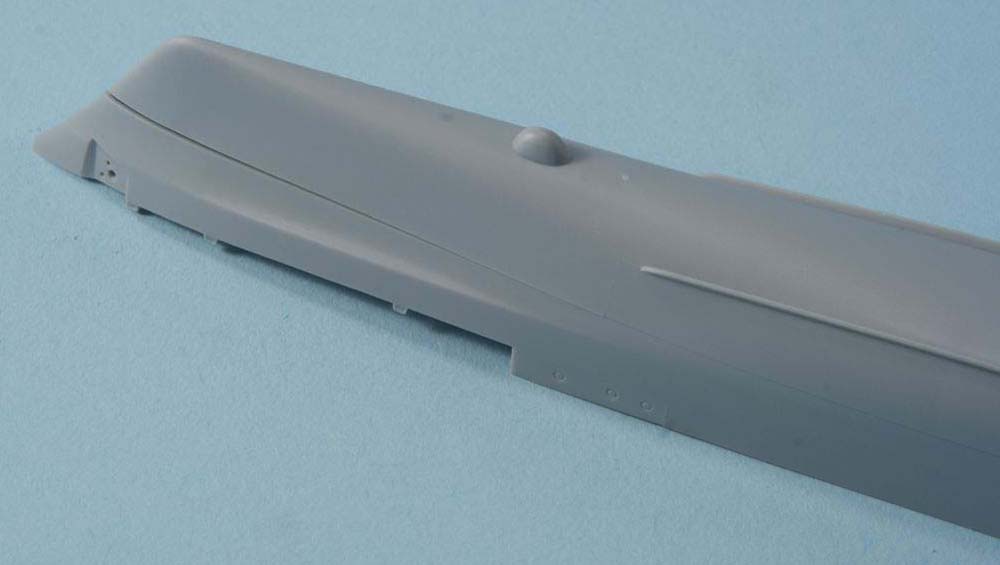

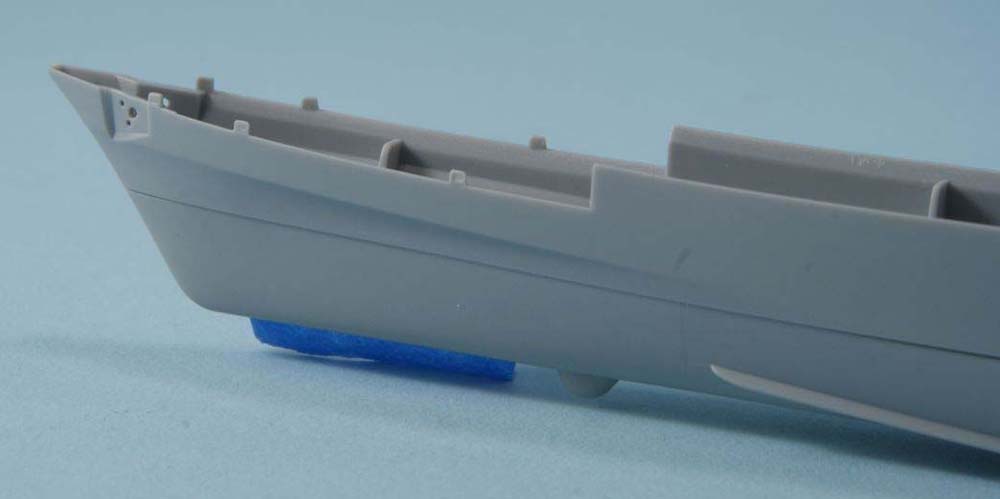

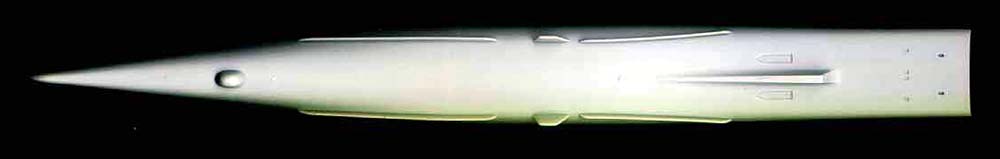

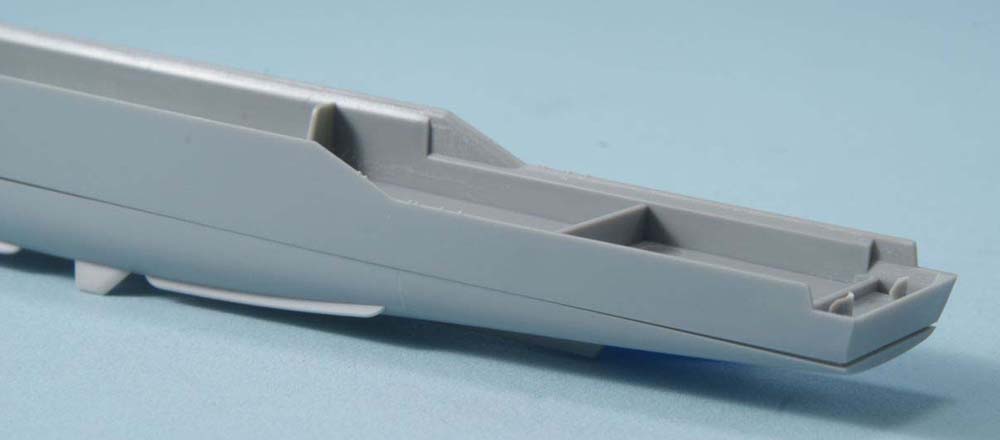

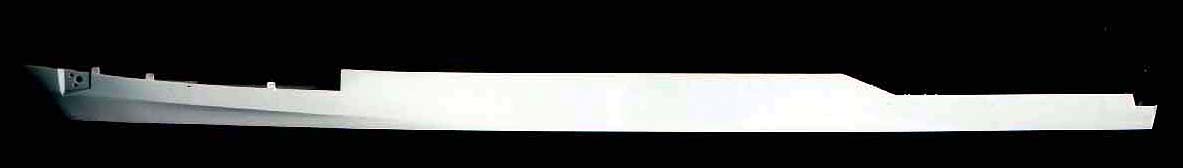

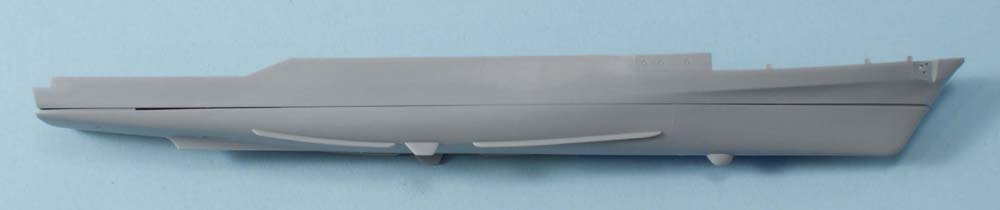

This photo shows the nicely molded and oversized hull sections.
Also shown are the two hull sections together. They match up nicely.
As you can see the shape of the hull is well represented. |
|
|
|
SPRUE B |
|

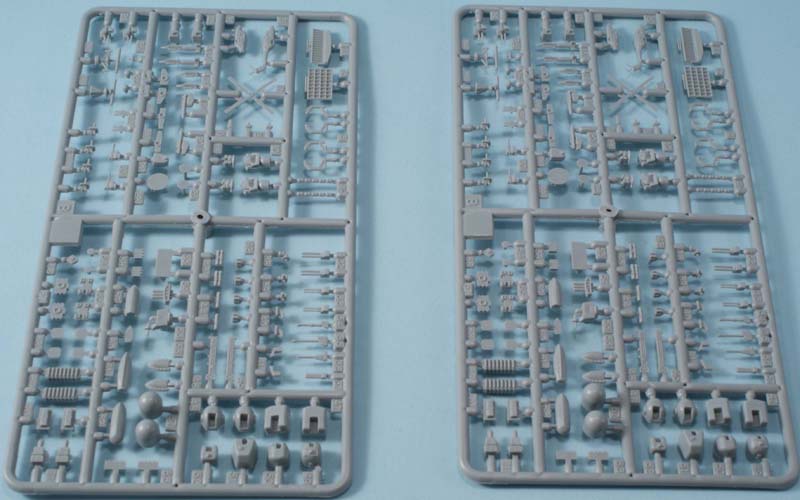

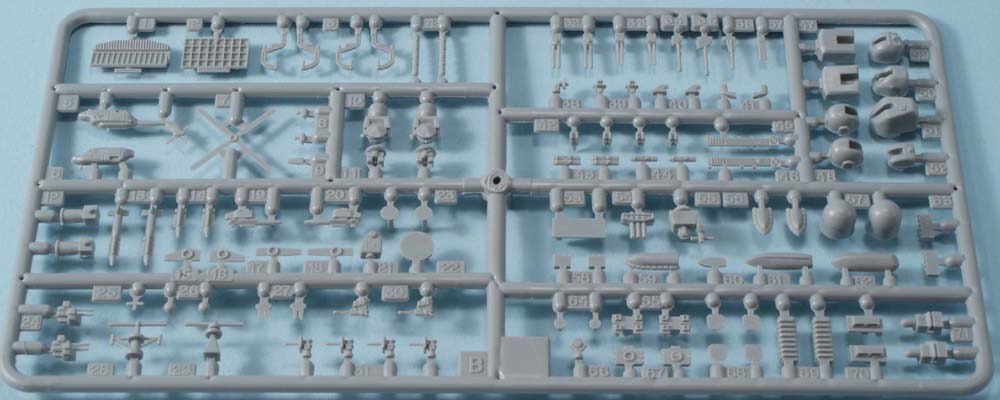

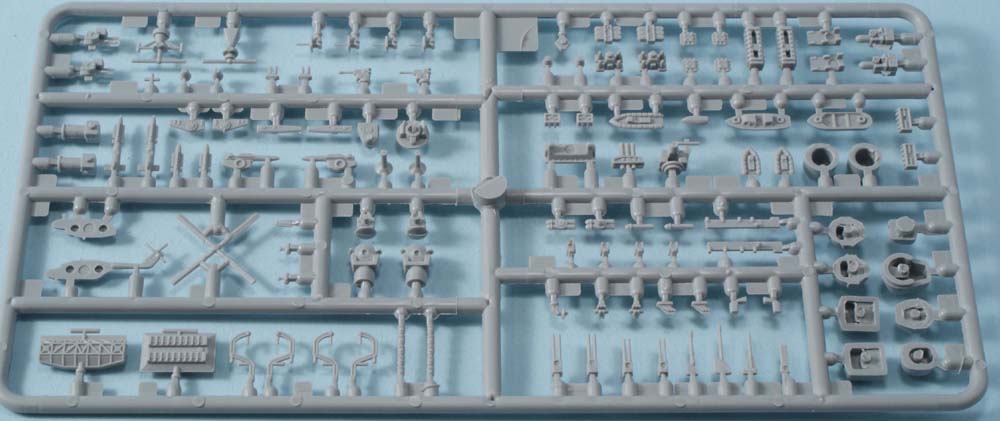

These three shots are all the same sprue. The kit provides two
of these. As you can see from the instructions in later pictures
only a few parts from this sprue are used for this model. The items
in blue are parts for other ships. These parts appear to be roughly
in scale. The Lynx measures just slightly smaller than the prototype.
The problem with them being in scale is that they appear slightly small
on the model. What caught my attention was the turret on the foredeck.
Disappointing to say the least. |
|
|
SPRUE B |
|

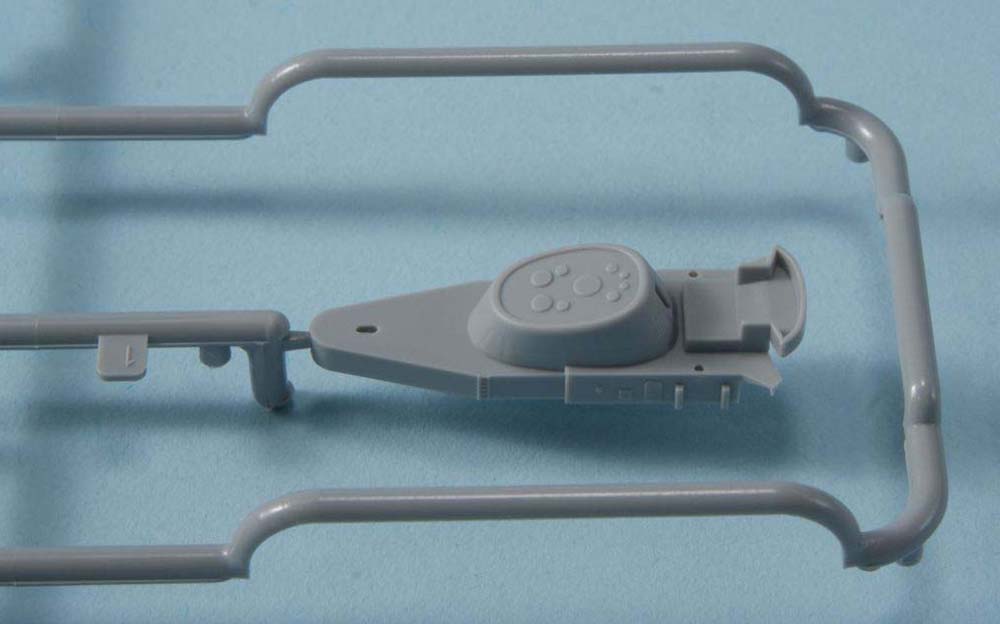

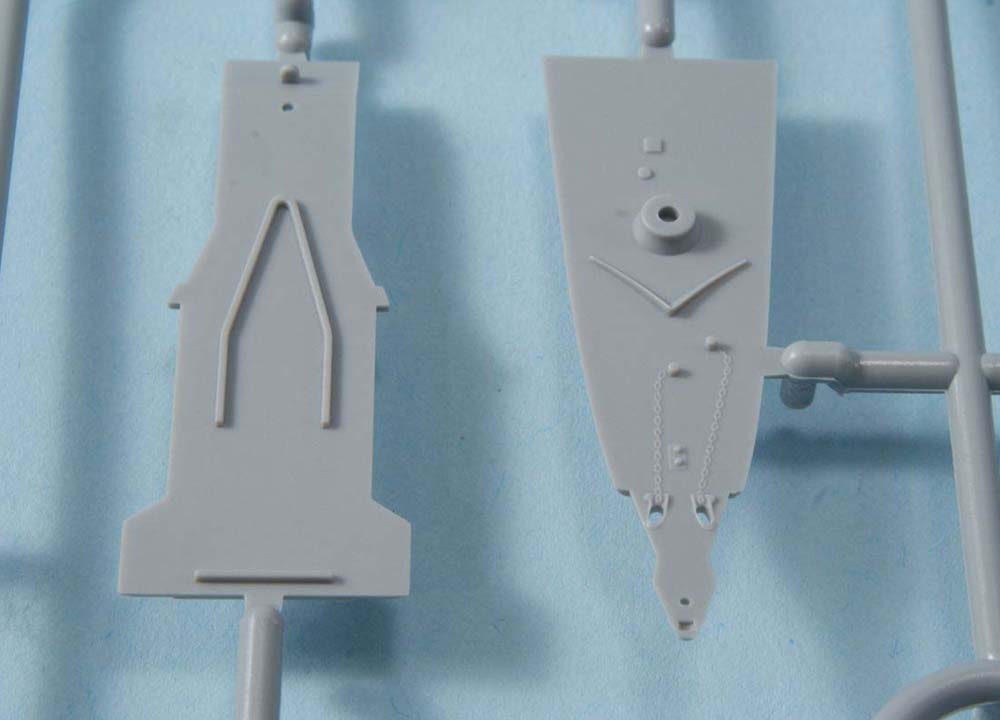

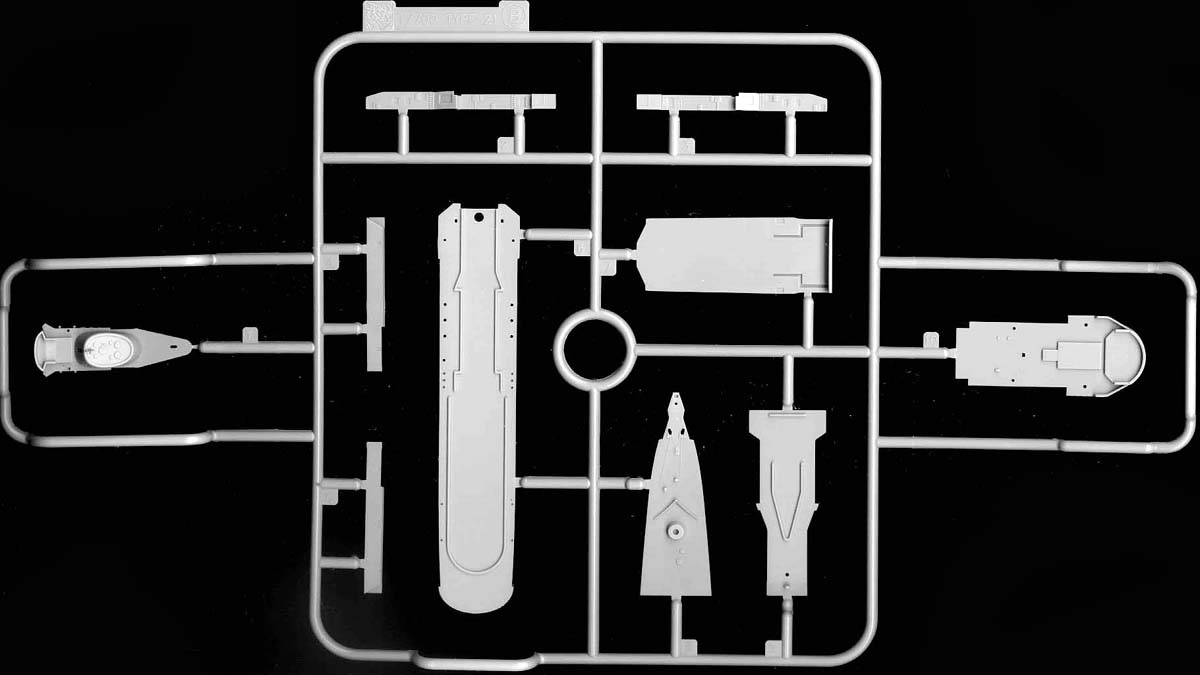

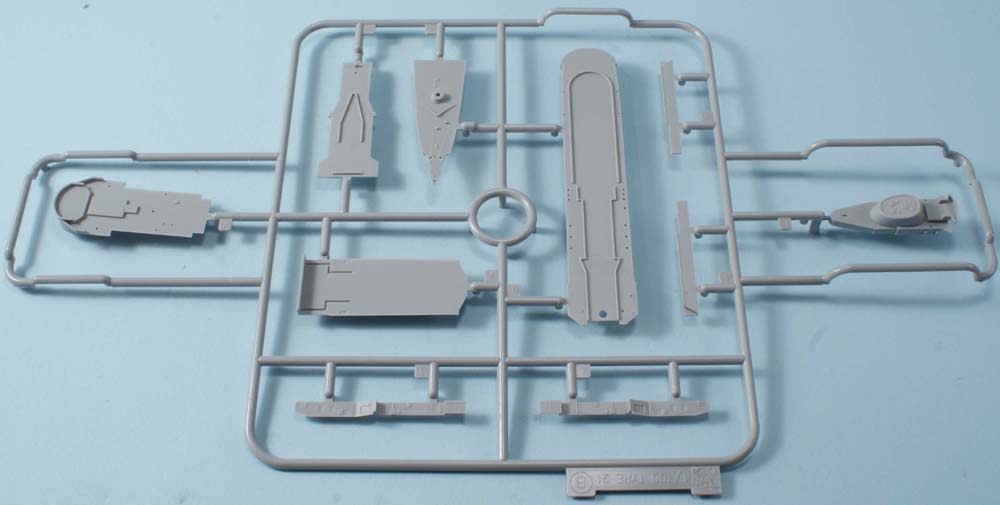

This sprue shows the various decks and exhaust stack structure.
Again, very nicely done. |
|
|
SPRUE C |
|

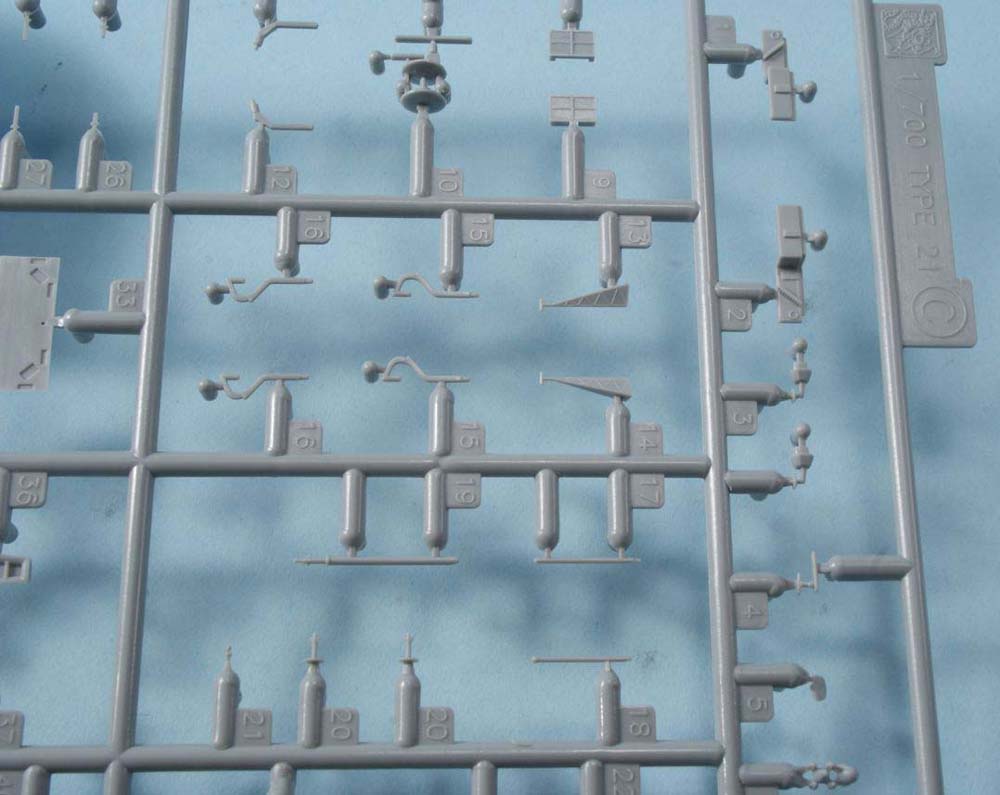

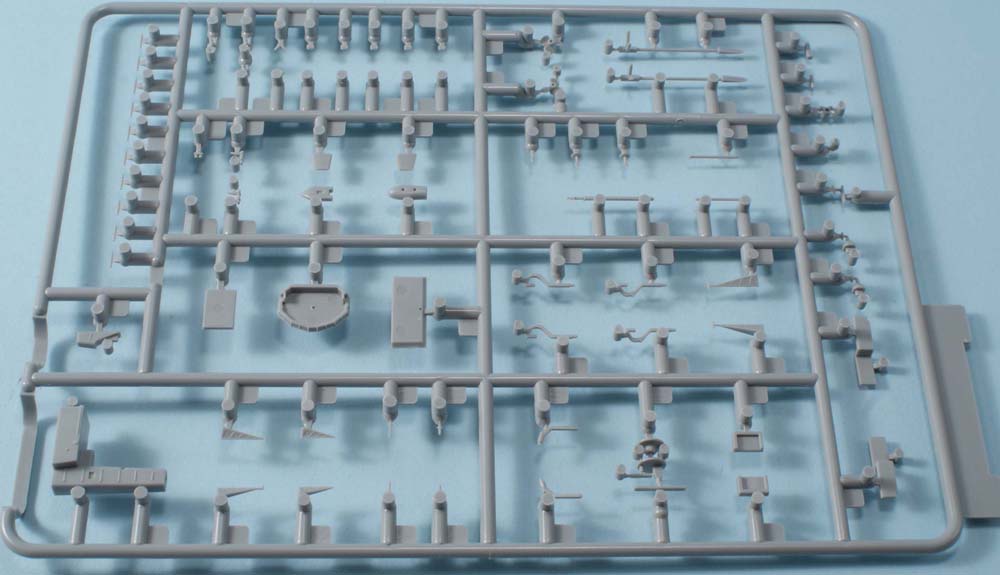

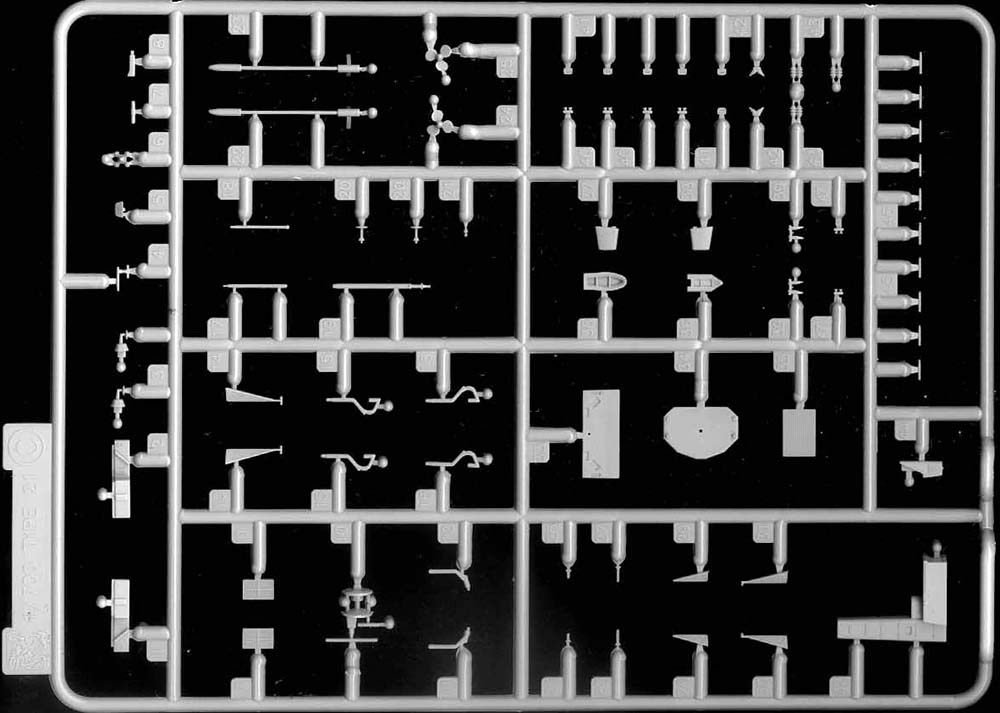

Here is the second sprue. Again, very nice parts well molded
and clear of any flash. The propeller shafts and propellers are excellent.
The ships boats upside down in this photo show nice detail on the top.
There are a few ejector pin marks but I don't believe they are in areas
where you would notice them. The masts that protrude from the sides
of the upper structures are molded solid which would be better done with
photoetch. The modeler can certainly scratch build these with brass
wire. |
|
|
SPRUE Z |
|

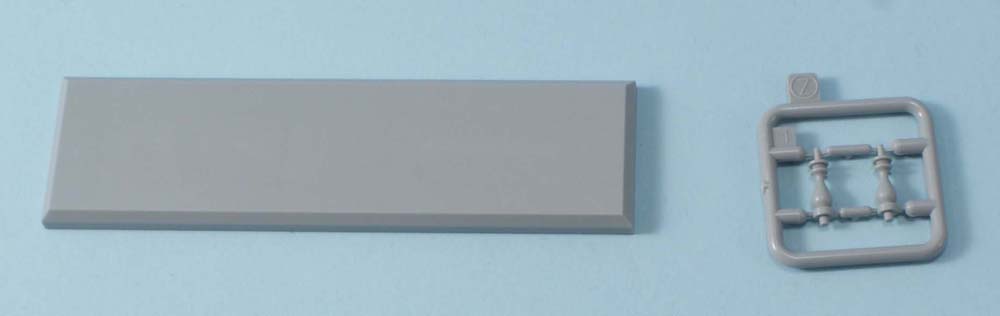

Included is a stand should you decide to build this as a full hull
model. |
|
|
PHOTOETCH FRET |
|

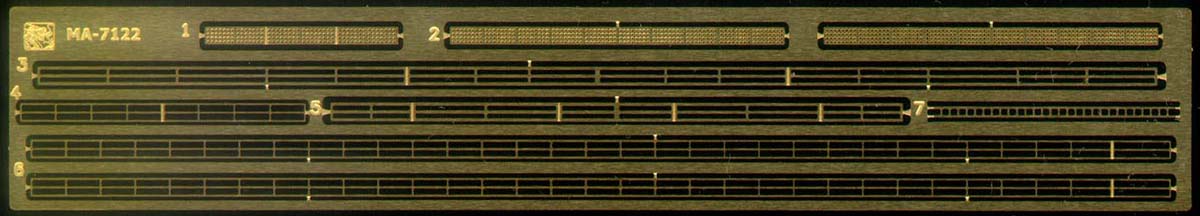

Photoetch set includes railings, ladders, and safety nets. |
|
|
|
DECALS |
|
Decals are by Cartograph of Italy who always do wonderful decal sets.
You have the option to do 4 different Type 21 Frigates. The prominent
hull numbering was not present on the ship during the Falklands War but
they are provided should you decide to build her during peacetime. |
|
|
|
INSTRUCTIONS |
|

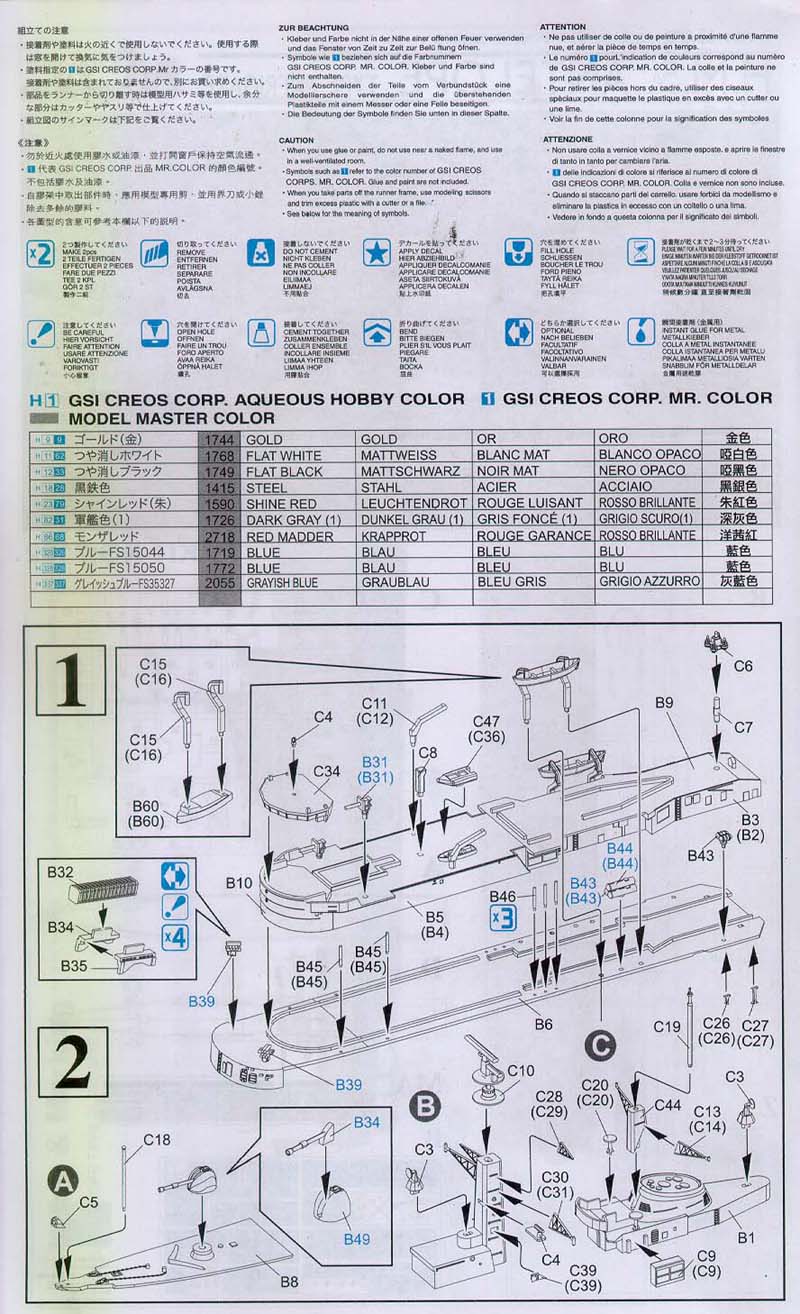

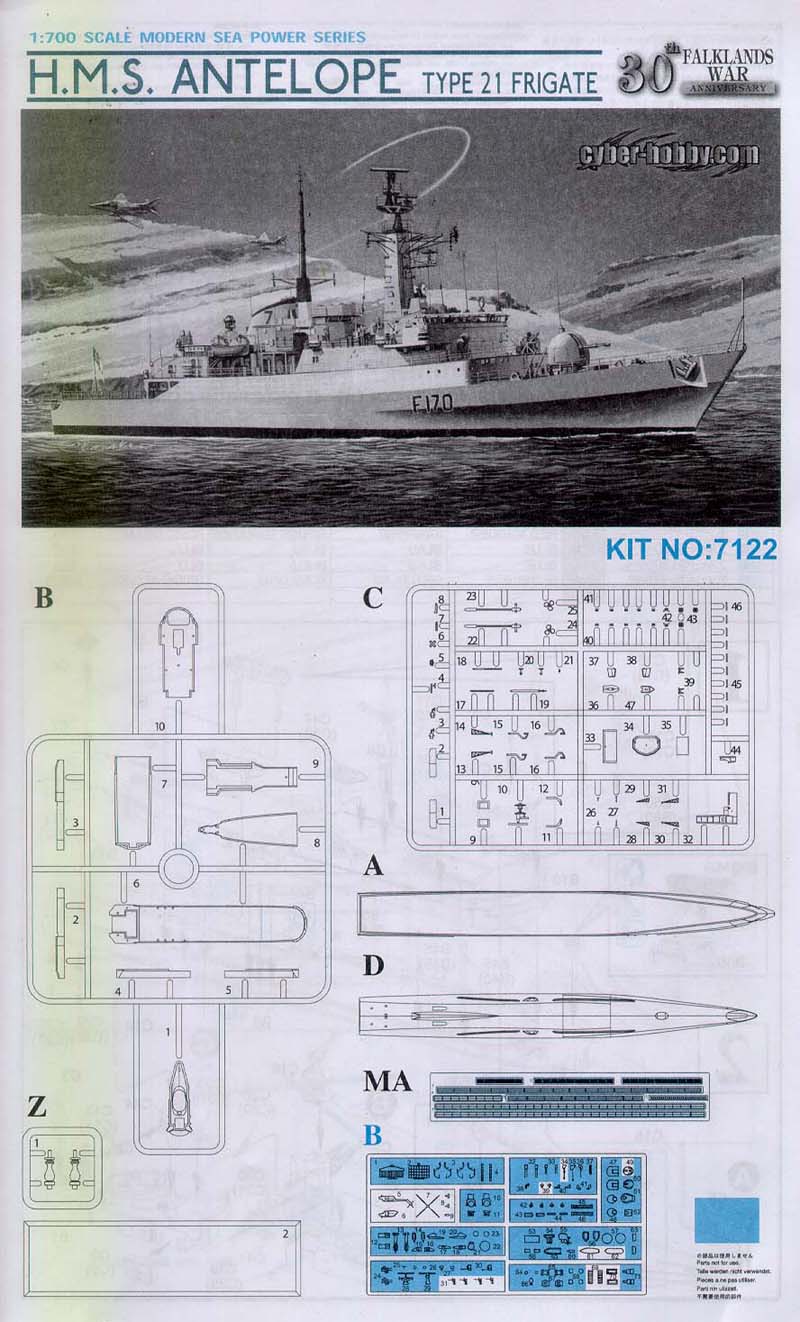

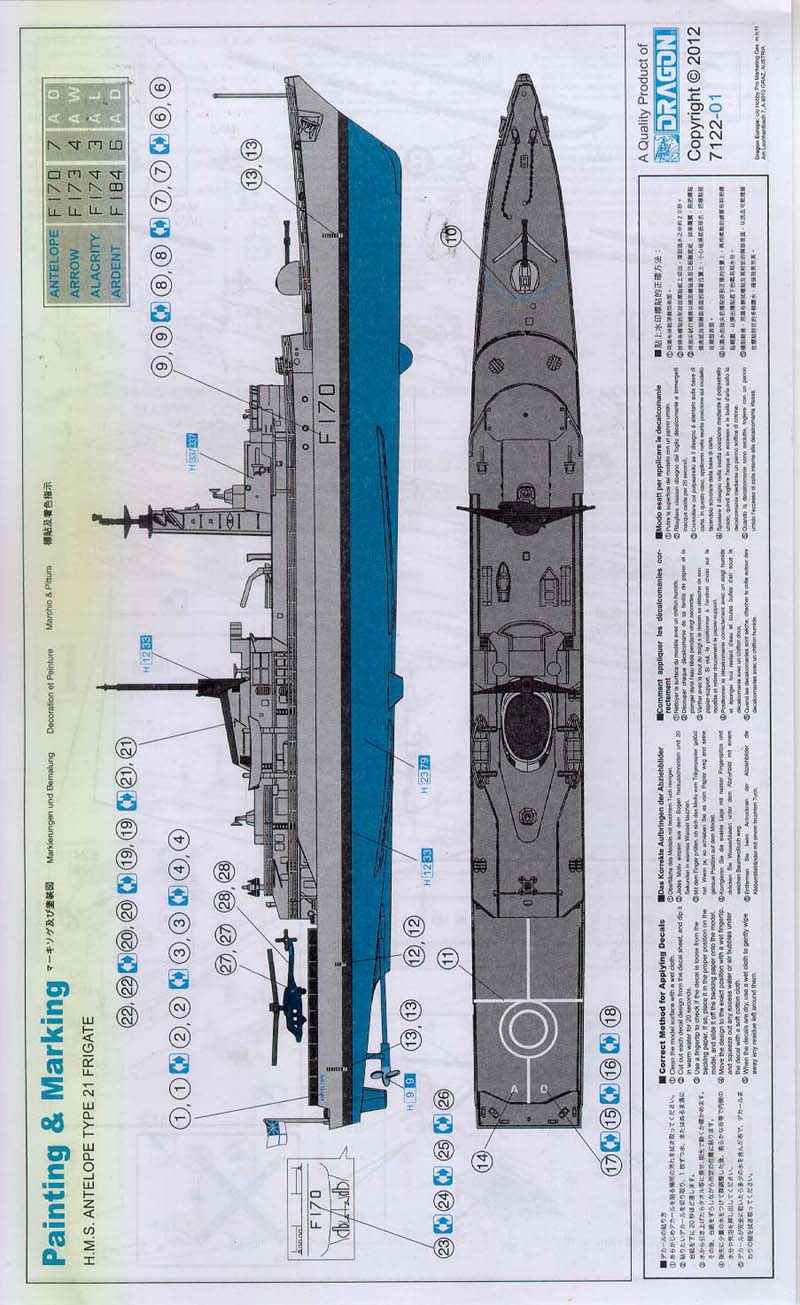

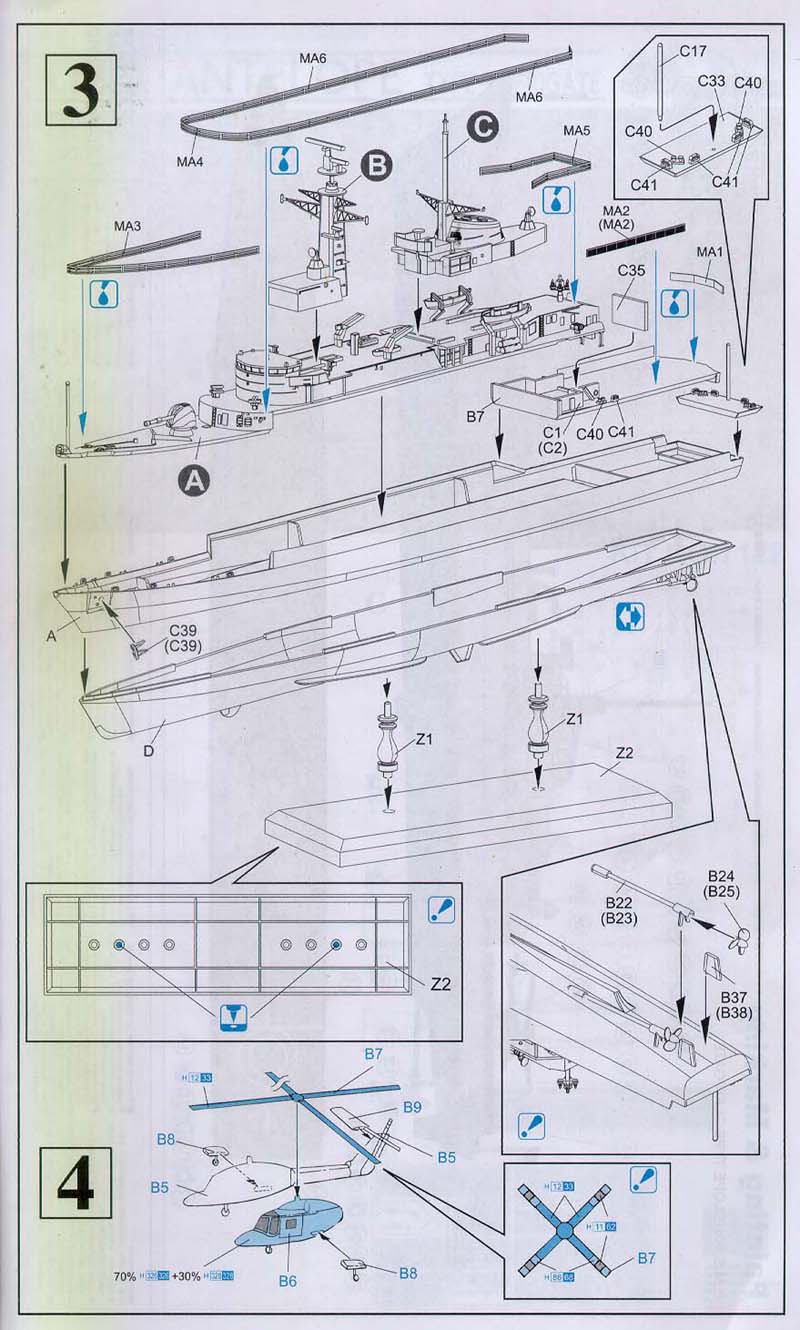

The painting and marking instructions are nice. Although
imagine a red bottom instead of blue. I think Dragon was saving on
printing costs here. The painting instructions seem accurate enough
although you may choose not to use these on your model.
|
CONCLUSIONS |
|
Positive:
Very nice molding and details as you would expect from a new Dragon
release. Enough photoetch for a decent model but room for improvement
from 3rd party companies. Lots of extra parts for use in other subjects
later.
Negative:
As was said to me, and pardon the punn, the hull size was a ROYAL screwup.
It's hard to believe they could have missed this but they did.
Recommendation:
It depends. If you can get past the incorrect scale for the hull
and some of the under sized prominent parts such as the Lynx and the turret,
I think you will find this will build into a nice model. It's a lot
better than the Airfix offering. If you're a detail addict like me
you will be bothered by the scale, especially if you display her with other
1:700 ships. I really wanted to like this kit, but for me, this kit
is a big thumbs down. But you decide. My suggestion to
Dragon is to fix the problem and reissue the kit. Your reputation
is at stake.
|
|
