HISTORY | |||||||||||||||||||
HMS Glorious
was the second of the three Courageous-class battlecruisers built
for the Royal Navy during the First World War. Designed to support the
Baltic Project championed by the First Sea Lord, Lord Fisher, they were
relatively lightly armed and armored. Glorious was completed in
late 1916 and spent the war patrolling the North Sea. She participated
in the Second Battle of Heligoland Bight in November 1917 and was present
when the German High Seas Fleet surrendered a year later.
Glorious was paid off after the war, but was rebuilt as an aircraft carrier during the late 1920s. She could carry 30 per cent more aircraft than her half-sister Furious which had a similar tonnage. After re-commissioning in 1930, she spent most of her career operating in the Mediterranean Sea. After the start of the Second World War in 1939, Glorious spent the rest of the year hunting for the commerce-raiding German cruiser Admiral Graf Spee in the Indian Ocean before returning to the Mediterranean. She was recalled home in April 1940 to support operations in Norway. While evacuating British aircraft from Norway in June, the ship was sunk by the German battleships Scharnhorst and Gneisenau in the North Sea with the loss of over 1,200 lives. For more on Glorious, visit her Wikipedia page here, which is where this abridged history was pulled from. |
|||||||||||||||||||
The
Triumph Models/Ostrich Hobby HMS Glorious

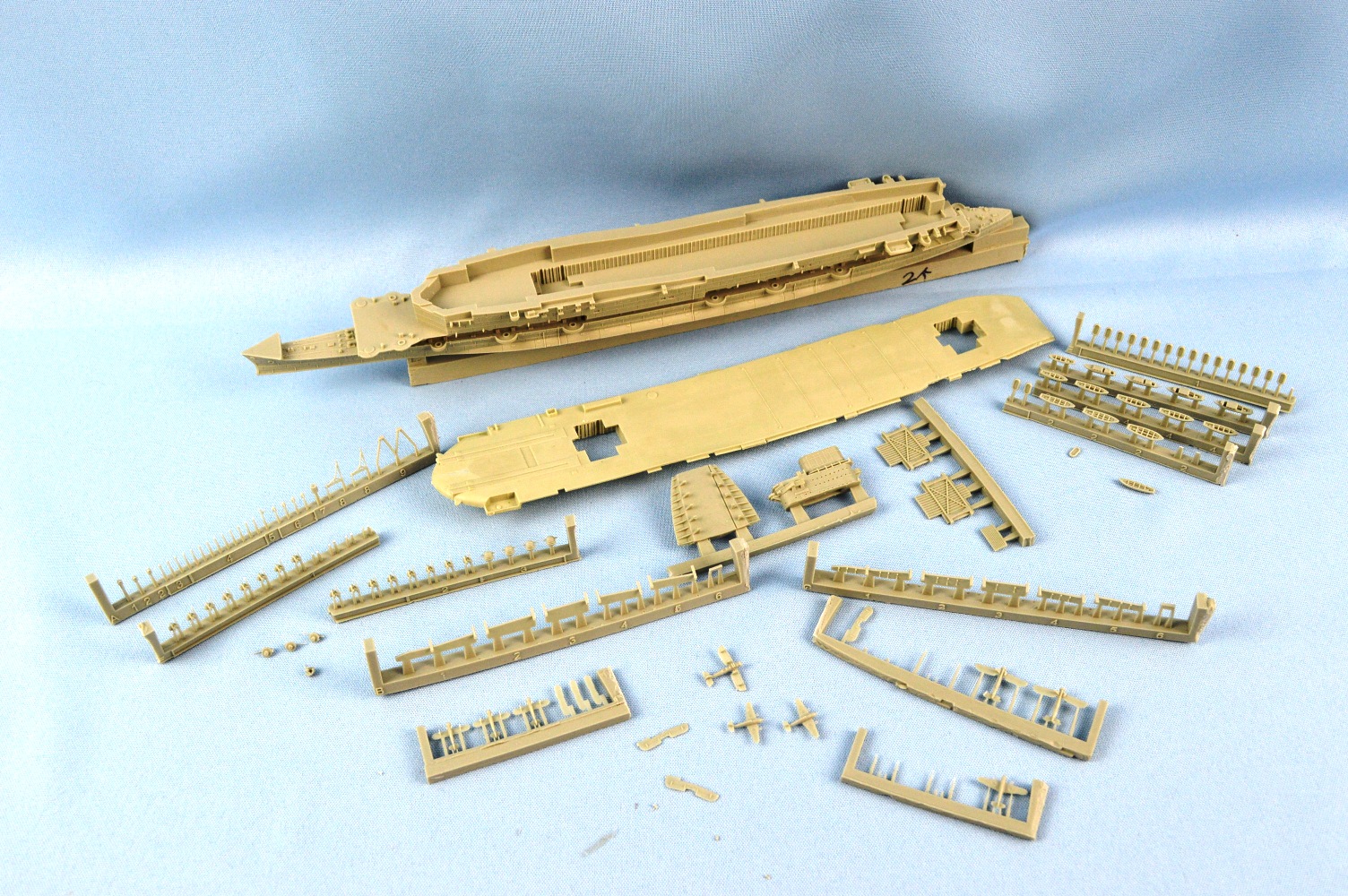

Triumph Model, in conjunction with Ostrich Hobby, has released a 1/700 HMS Glorious, circa June 1940, at the time of her sinking. The kit comes in a white flip-top cardboard box with artwork showing Glorious under steam on the box top. Inside the box is the hull, flight deck and multiple small plastic bags with the different runners, all in resin. Also included are decals, photo-etch and instructions. |
|||||||||||||||||||
|
|||||||||||||||||||
THE HULL | |||||||||||||||||||

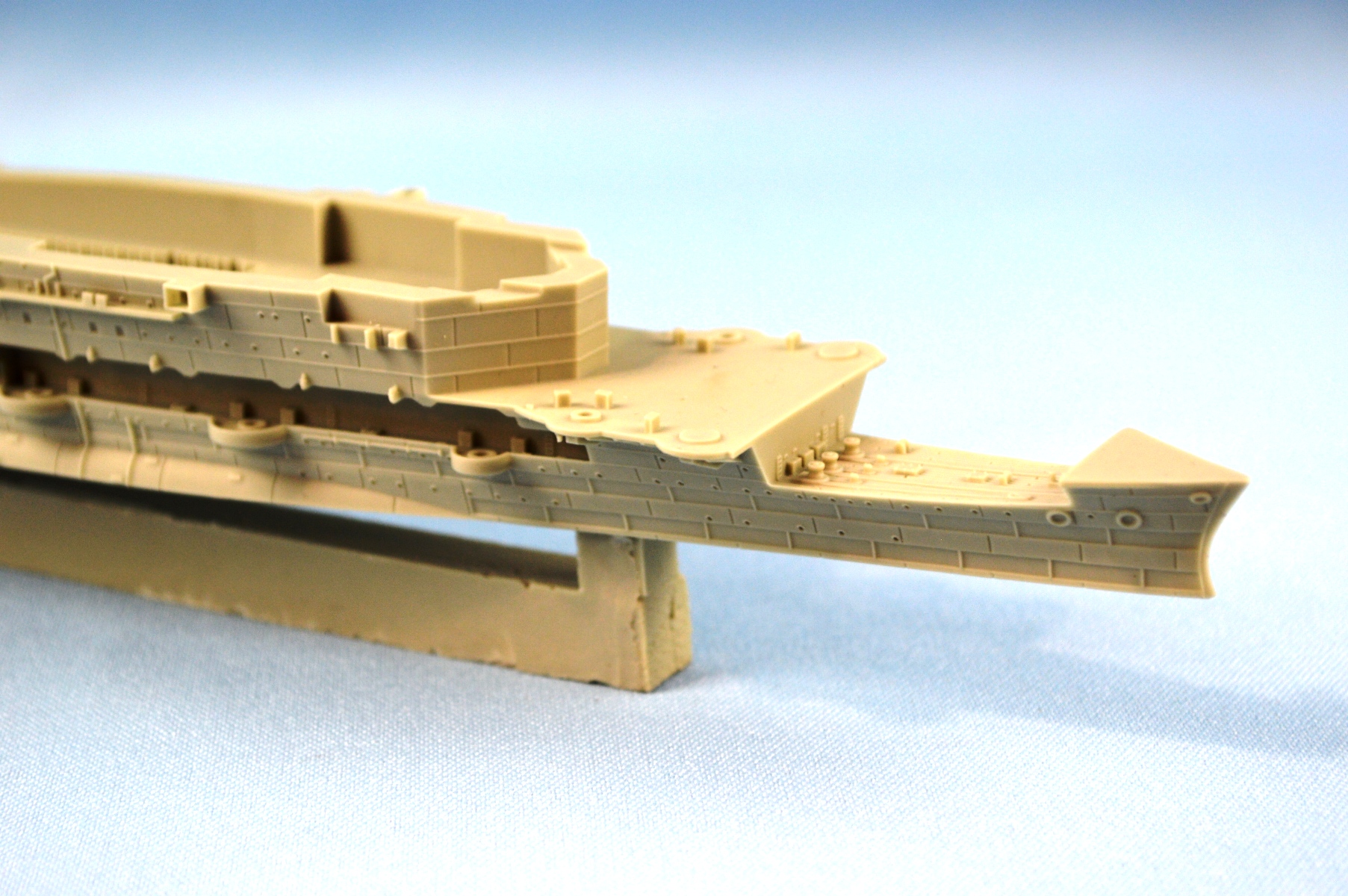

The hull is a large, crisply cast,
chunk of resin, with molded on platforms, planked decks fore and aft, a
large hangar with good cast detail on the hangar bulkheads (which you will
never see), and prominent hull plating. To the Mk 1 eyeball, the
hull plating doesn't look as pronounced as is does in photographs, and
should be toned down under a coat of paint.
When I received the kit, my hull was badly warped. The eBay seller asked me to try straightening it at first. I did, and failed, so he (somewhat reluctantly) sent me a replacement hull. The second hull came attached to a large casting block, which helped keep it straight. I'll leave it on there until I get around to building the kit. On both hulls, some of the platforms were broken off, but in the box, Curiously, the instructions show most of these platforms as separate items. That would have been better, as to avoid breakage. According to feedback I saw on the Modelwarships forums, when this kit was first released, the quarterdeck area is incorrect for Glorious, but correct for Courageous. I don't know enough about these ships to know if that statement is correct (but I respect the person who posted it). However, this area will be mostly hidden under the flight deck, and most people won't know the difference, except for some contest judge with nothing better to do. |
|||||||||||||||||||
|
|||||||||||||||||||
FLIGHT DECK | |||||||||||||||||||

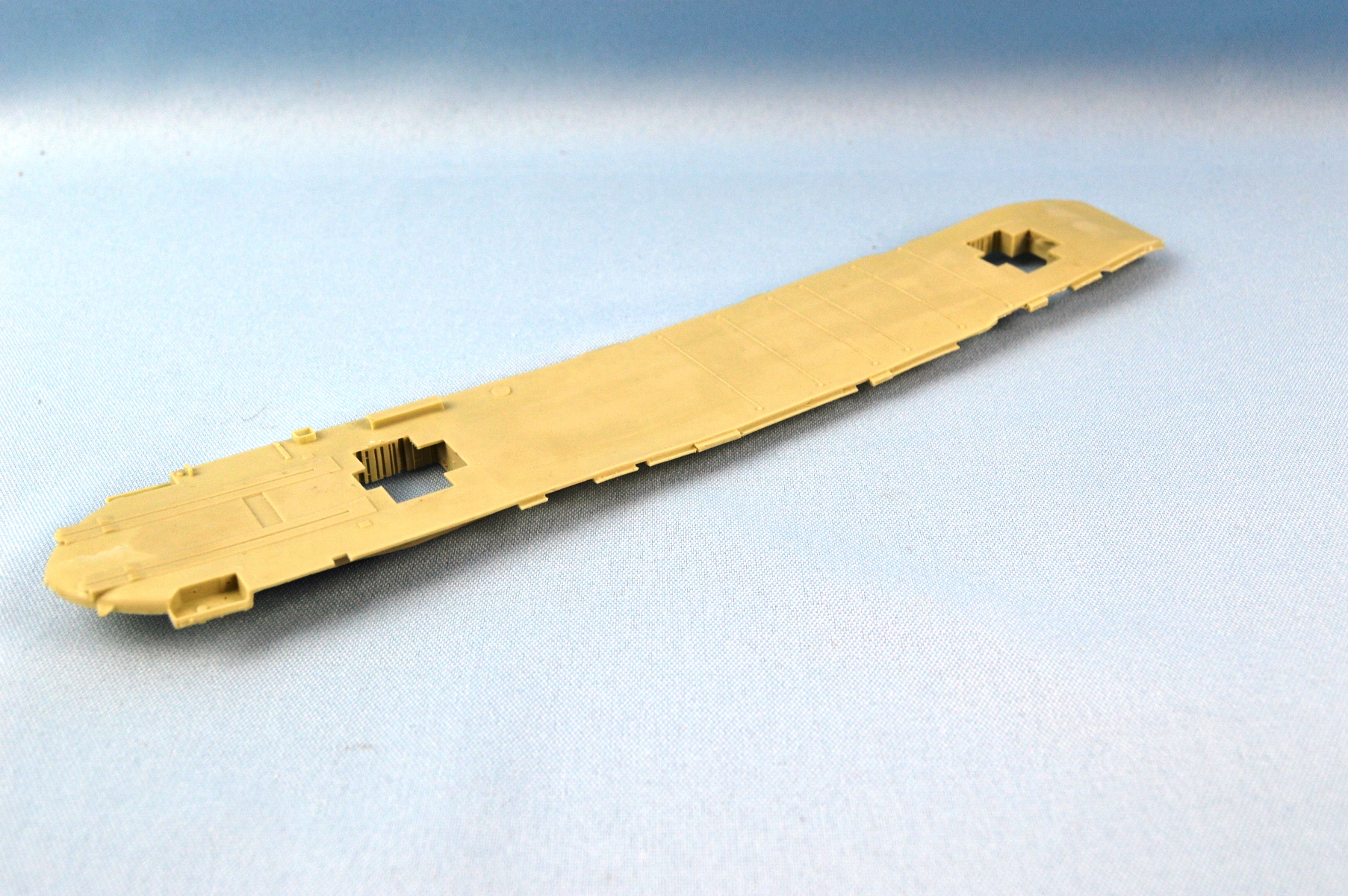

The flight deck
is one piece. Details are generally good, except for a section at
the forward part of the deck, where the resin is a little rough and translucent.
Also, there is some flash along the edges of the flight deck what will
need to be cleaned up.

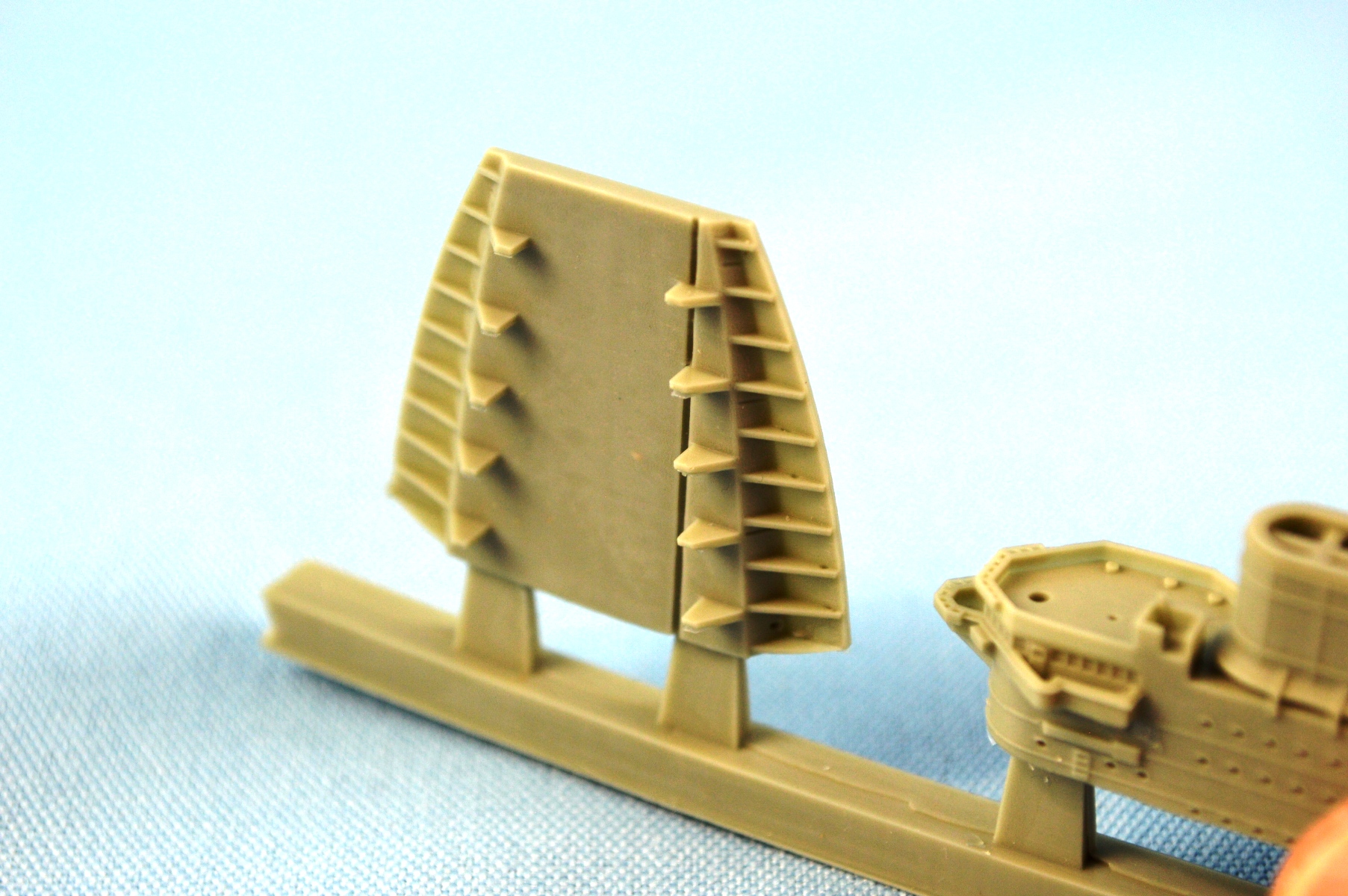

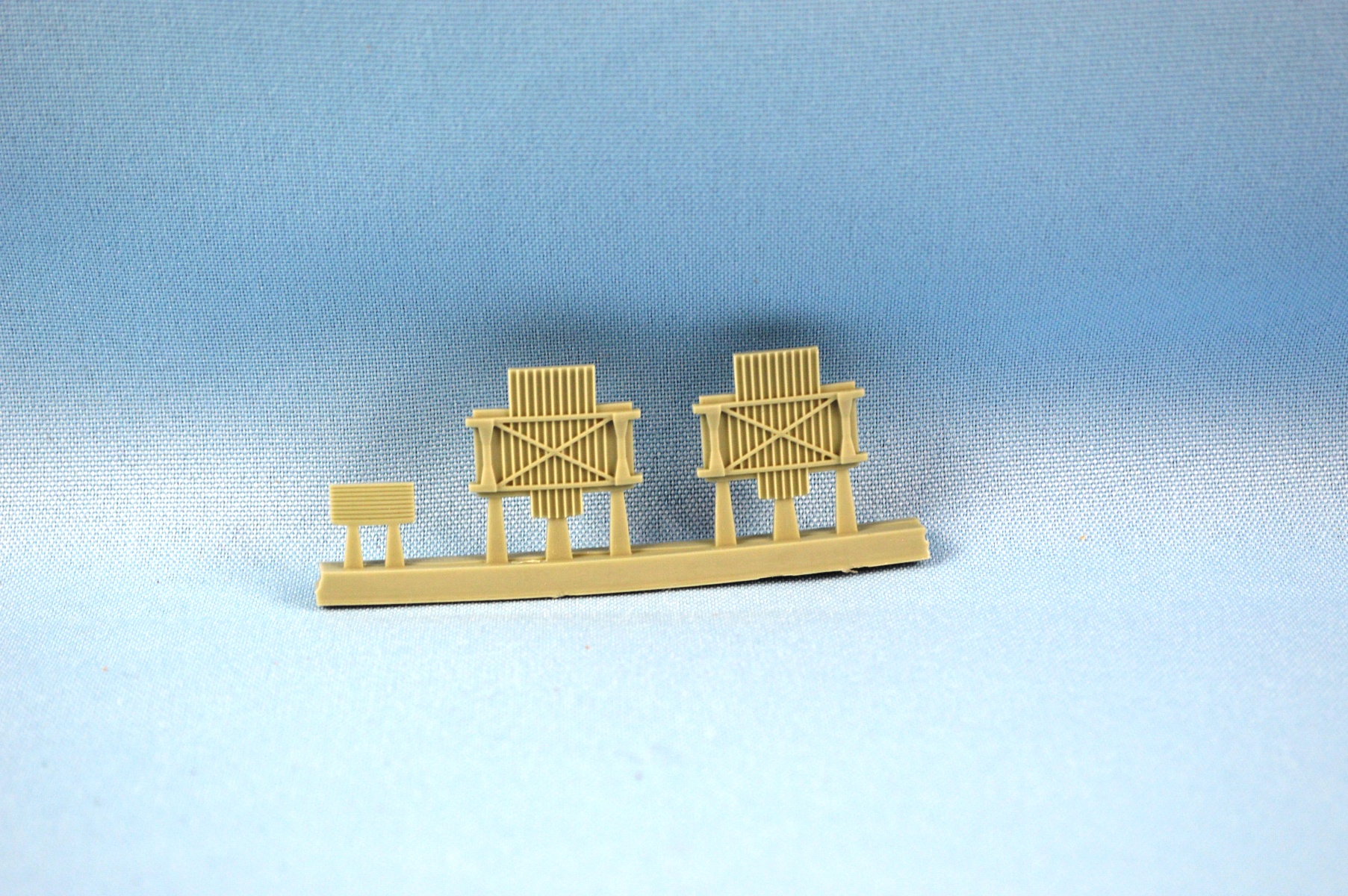

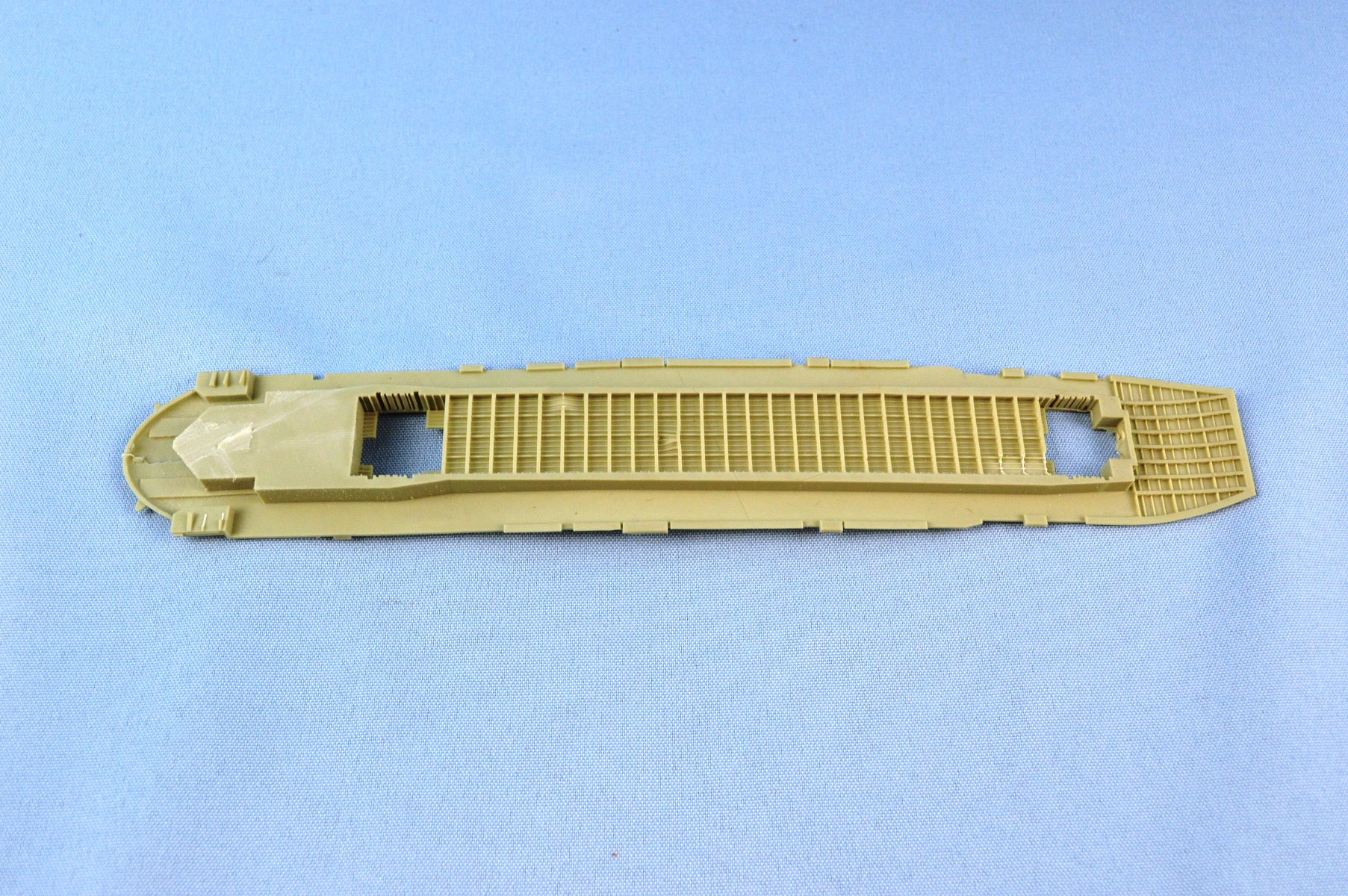

The underside of the flight deck (the hangar overhead) is well detailed, but again, you'll never see it. The underside of the round down also had nice cast detail, which will be difficult, or impossible, to see. The biggest problem with the flight deck is where it fits into the aft end of the hanger - there is a large gap on both sides between the flight deck and the hull, that is going to be a real pain to fill. On a separate sprue are the two flight deck hangars, and a roller door for the aft end of the hangar. Again, nice detail on the undersides of the elevators, but why? |
|||||||||||||||||||
|
|||||||||||||||||||
THE ISLAND & FORE DECK | |||||||||||||||||||
Another small resin sprue has the
island and a part of the lower flying off platform, which was no longer
in use by World War II. The section of deck covers the area of the
original battlecruiser deck where the anchor handling equipment and chains
are on the hull. The issue is the deck appears to be both too short
(shrinkage?), but also looks to be the wrong shape at its widest (after)
part. This will be a tricky area to fill. The arresting
wires look pretty good, but I think the catapults are over scale.
The island, however, is nicely cast with pretty good details. |
|||||||||||||||||||
|
|||||||||||||||||||
PLATFORMS & SMALLER PARTS | |||||||||||||||||||

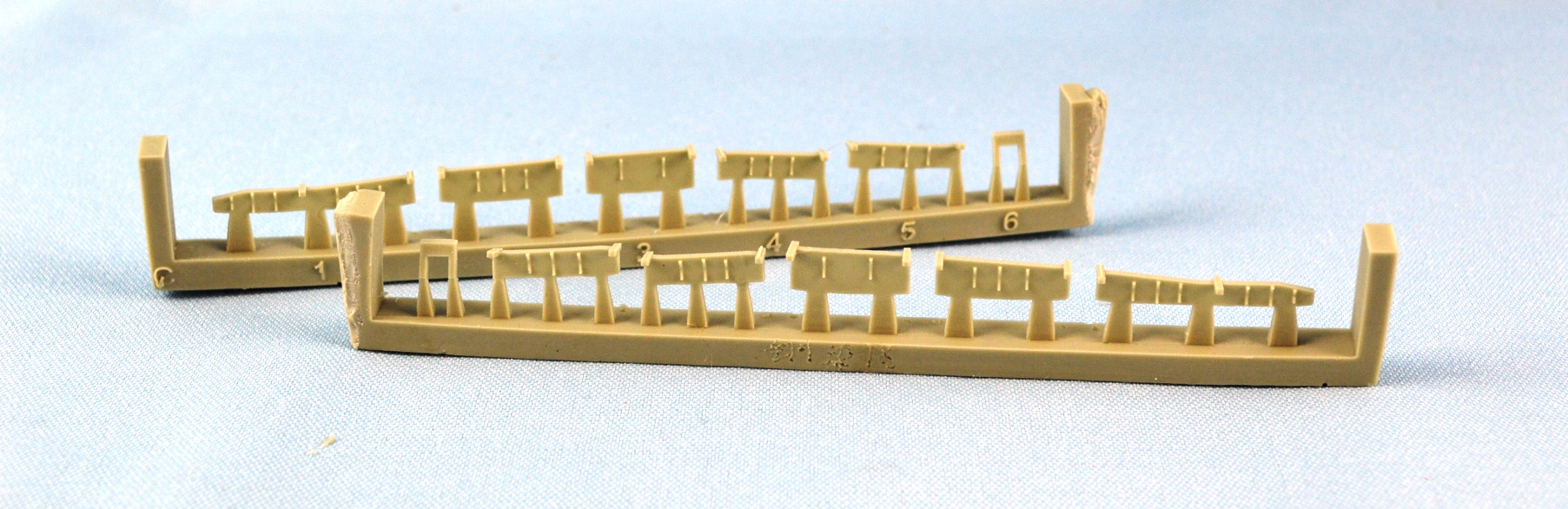

The kit comes with two resin sprues
of platforms, enough to trick out both sides of the ship. These appear
to be mostly for boat stowage.

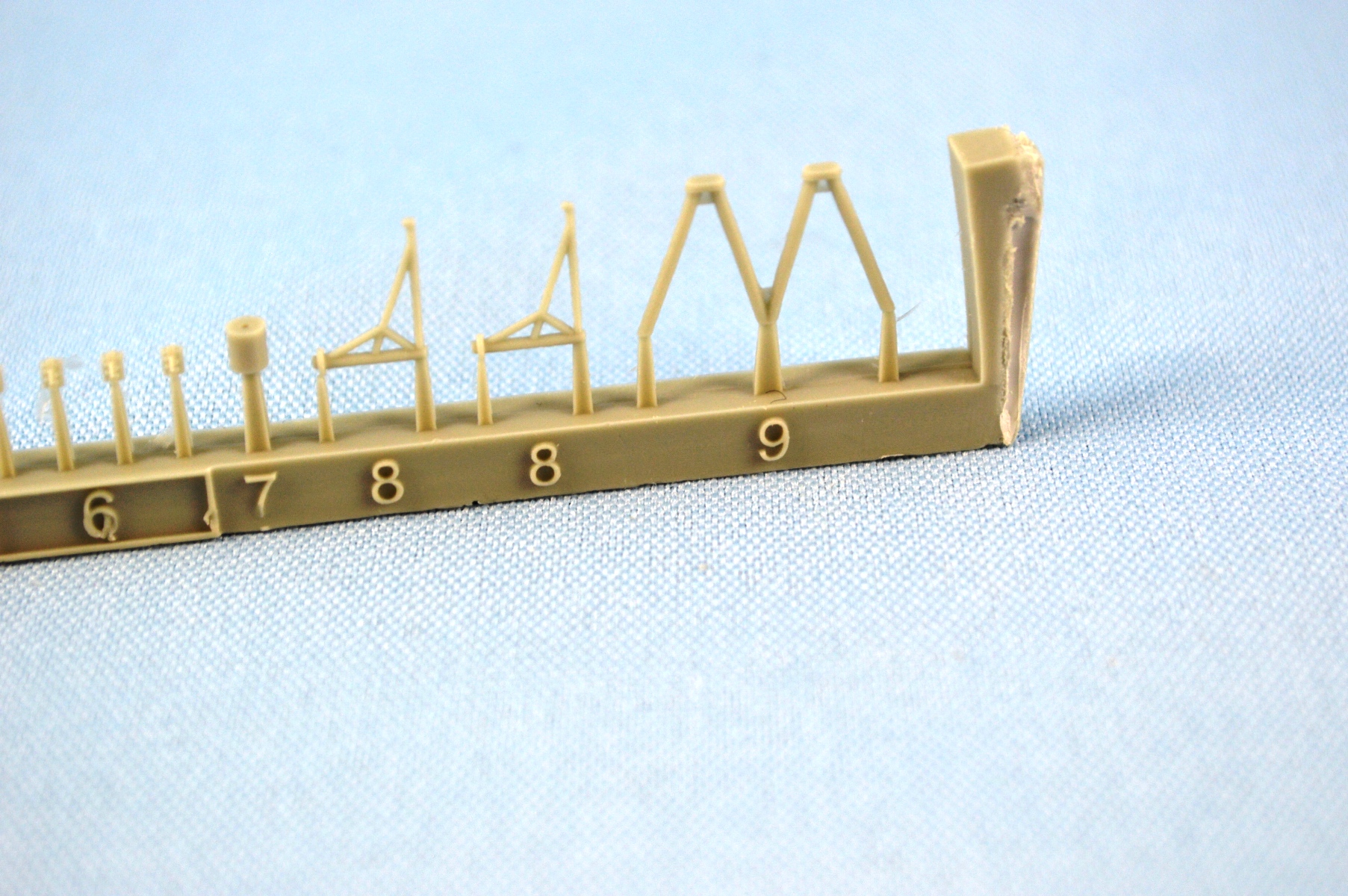

Another resin sprue has a variety of parts - supports for the aft end of the flight deck, cranes, directors, searchlights and bridge equipment. Detail is generally good on these parts. |
|||||||||||||||||||
|
|||||||||||||||||||
WEAPONS | |||||||||||||||||||
There are two resin weapon sprues. One is all 4" guns, the second a mix of HA directors and 4" guns. The 4" guns are ok, though the directors are pretty nice. Super detailers may want to replace the guns with 3D printed versions. | |||||||||||||||||||
|
|||||||||||||||||||
BOATS & RAFTS | |||||||||||||||||||
There are four resin sprues holding the boats and rafts. One has just rafts on it, the other three have a variety of motor boats and open boats. Generally detail is good, though as with the guns, some might want to upgrade these with 3D printed versions. | |||||||||||||||||||
|
|||||||||||||||||||
AIRCRAFT | |||||||||||||||||||

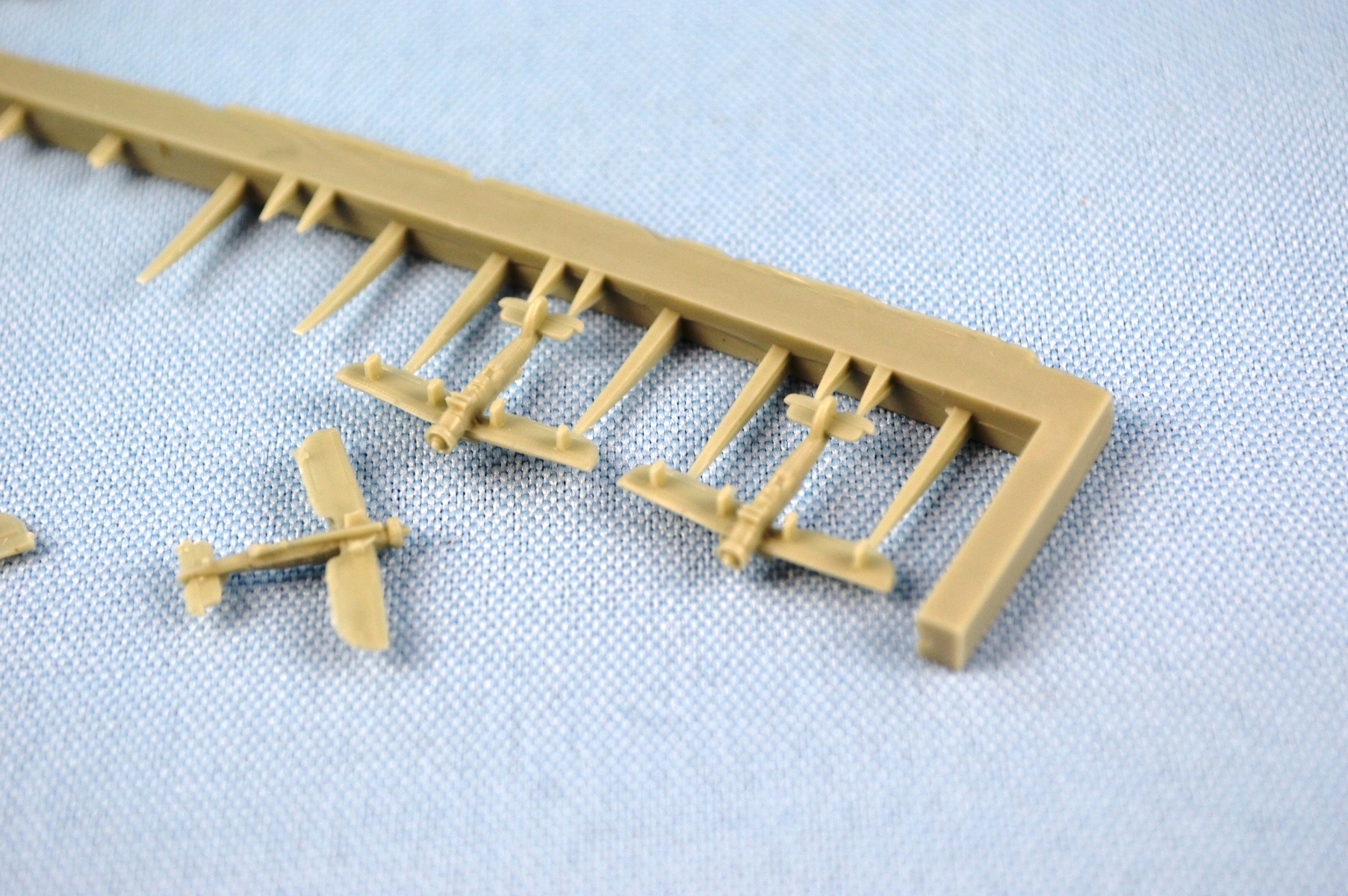

There are three resin sprues with three different types of aircraft: Gloster Gladiators, Hawker Hurricanes (they look like Mk II with 20mm cannon) and Fairey Swordfish. Frankly these are the weakest part of the kit, with the Swordfish being the worst of the aircraft (though these do have torpedoes cast integral to the aircraft). The Gladiators and Hurricanes are usable, but I'd replace the Swordfish with the one's from Flyhawk. | |||||||||||||||||||
|
|||||||||||||||||||
DECALS | |||||||||||||||||||
There is a decent sized decal set
included with the kit. The majority of it is taken up with the flight
deck markings. Also included are multiple roundels and fin flashes
for a squadron of aircraft, and two types of flag - the union flag and
the White Ensign.
Unfortunately, it appears that this is just one giant decal, so everything will need to be cut out individually, which is going to be tedious, and not to mention difficult when separating the roundels and fin flashes. |
|||||||||||||||||||
|
|||||||||||||||||||
PHOTOETCH | |||||||||||||||||||
A good sized photo-etch set comes with the model. Included are rails, cranes, flight deck netting, pom-pom guns (I would have preferred these to be resin), props for the aircraft, windbreaks for the flight deck and the lower flying off platform, flight deck antennas and more. It also comes with a pair of elevators, which are already supplied in resin. | |||||||||||||||||||
|
|||||||||||||||||||
INSTRUCTIONS | |||||||||||||||||||
The instructions are five pages over three 8 x 10 sheets of paper, in black and white. They are exploded view and should do the job. There is no parts manifest, painting instructions or color callouts. While the box are shows the Glorious in what looks like overall RN 507C, when sunk (which is what the kit purports to represent), Glorious wore a striking two-tone camouflage pattern of 507C and 507A, as seen in the photo below, which was taken while operating with Ark Royal, not long before her demise. | |||||||||||||||||||
|
|||||||||||||||||||
|
|||||||||||||||||||
CONCLUSIONS | |||||||||||||||||||
This kit is a decidedly
mixed bag. On the plus side, in the "faint praise" department, it's
a model of HMS Glorious, and in her as sunk configuration.
It doesn't have an overwhelming parts count, and does have some nice detail
- in places - as well as large PE set. Everything you need to built
Glorious as sunk is in the box (Scharnhorst
and Gneisenau sold separately).
On the other hand, the hull plating is probably overstated (though I think I'll be able to live with it); there are some noticeable fit issues (aft end of hangar to flight deck, flying off platform insert to hull); the aircraft provided are generally abysmal; the decals sheet is pedestrian, at best, and the kit is not cheap. I bought this because of my desire to (someday, if I live long enough) do a diorama of Glorious and Ark Royal together, as seen in the photo above. Overall, I really can't recommend this kit, expect to hardcore aircraft carrier and/or Royal Navy fans, who just have to have a model of HMS Glorious in their collection. This is Triumph’s 1/700 HMS Glorious, kit number TM70001. The kit is currently selling online for about $150.00 USD, but you may be able to find it cheaper. I purchased mine off eBay.
|
