| The Z-38 was a 1936A (Mob) type destroyer
built in 1940. Completed in 1943, Z38 operated along the Norway coast and
sortied with the Scharnhorst for the Battle of the North Cape. Z-38 was
ordered along with destroyers Z-29, Z-30, Z-33, and Z-34 to probe
south for the British convoy and thus missed the rest of the battle. After
the war the ship was given to Britain as a price of war and operated as
the HMS Nonsuch. She was sold for scrapping in 1949. |
Dragon has continued their Smart Kit line with this important German
Destroyer. This one also features the CAD work of Rob McCune with the bulk
of the research coming from Sean Hert. This kit has much in common with
the original release Z-39 with it's twin turret mounted on the bow instead
of the single arrangement found on Z-31.
|
| SPRUE A |
|

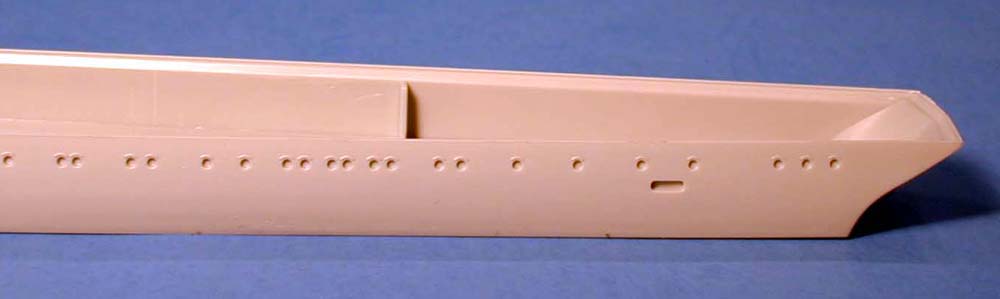

| The upper hull is molded waterline style with a sharp and distinct
bow. The kit is packed with a plastic protector to prevent damage in shipping.
It should be noted, now that three versions of this destroyer class are
available that they are not just reboxed kits. Each one has a slightly
different hull. Note in the images on the right showing Z-31, Z-38, and
Z-39 that the strake along the hull side is presented differently on each
hull. |
 |
| Portholes are deeply recessed into the hull with rain gutters
commonly called eyebrows molded on. The shape appears to match the drawings
of the ship very precisely.
|
| SPRUE B |
|
| The lower hull includes slide molded bilge keels and even a sonar dome.
Fit with the upper hull is almost exact and the modeler will have very
little work to do to join the two parts for full hull display. The upper
deck fits nicely into the upper hull and has some nice surface detail.
Mine rails are molded onto the deck and include the cross ties. |
 |
| Recessed sockets are included for the superstructure assemblies
to plug into making for a smart fit that will allow you to pre-paint them
for easier assembly. Also on the sprue are the rudders, props and breakwater
for the bow. All are sharply molded.
|
| SPRUE C |
|
| This sprue includes much of the upper decks and superstructure parts.
Two of the deckhouses are molded using three slides so that open doors
and surface detail can be included on a single part with no seams. The
funnel caps include grills on the top and one piece hollow bodies tanks
to more slides in the mold. The other end of the sprue also features a
slide that allows for one piece prop shafts and an open door on a superstructure
part. |
 |
| Bridge wings have detail on both sides and include molded
supports. The funnel air intakes feature some stunning detailing and when
combined with the included PE shown below will make for a most realistic
assembly.
|
| SPRUE D x2 |
|
| This sprue has the mast and yardarm parts and features some really
thin molding. These parts are delicate so use a sharp knife to remove them,
but they are nice enough that you will not have to replace them with aftermarket
parts. A crows nest and even little weather vanes and antenna are included.
Some of those parts may seem a little extreme as they are very tiny, but
you don't have to add them if you don't want to and it is so much easier
to leave them off than to cut off overscale blobs like those found in some
kits. |
 |
|
|
| SPRUE E |
|

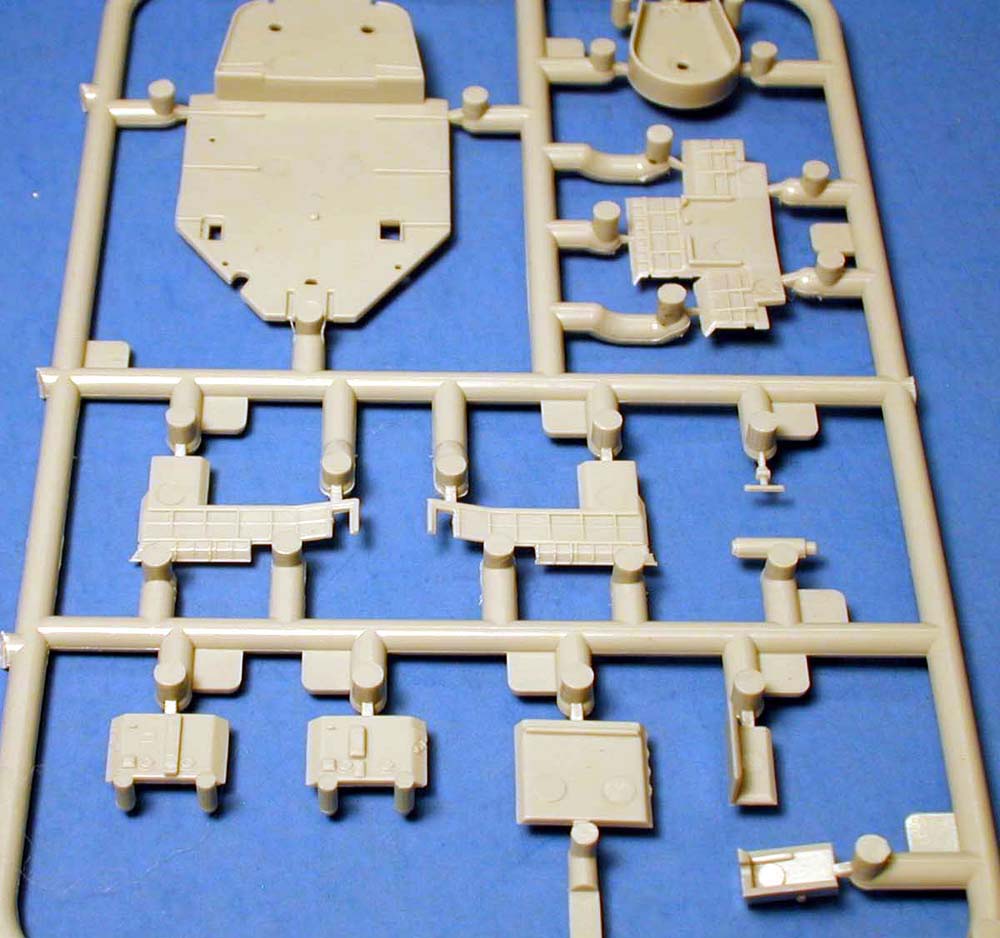

| The bridge face and other parts are included on this sprue with yet
another slide molded deckhouse. The detail is very fine and I was surprised
at how nicely these part went together with barely a trace of a seam. interior
and exterior detail is molded onto the open bridge walls. |
 |
|
|
| SPRUE F x2 |
|
| There are two of these weapons sprues with the best looking torpedo
launchers I have ever seen in this scale. These have very fine detailing
with air cylinders and piping being distinctly molded. But the real plus
is the use of slides in the mold to give the tubes and open appearance.
The range finders, searchlights, and other fittings are molded to the same
level of detail that we have come to expect from the Smart Kits. |
 |
| Check out the mine winch assembly molded in one piece yet
with exceptional detail. Cable reel assemblies, and individual Marx floats
are also very well done.
|
| SPRUE G x2 |
|
| Two sprues featuring the ships boats are provided. The large launches
are almost separate kits in themselves with really cool detail. The separate
roof allows for an open cabin and a slide allows for a one pieced hull
with a molded on rudder and room for a propeller if you propeller if your
really good with tweezers. An open decked boat is also included. Fine wheels
are included to mount on the capstans on the bow. |
 |
|
|
| SPRUE H x2 |
|
| Two of these weapons sprues are included with the light anti aircraft
guns included. Like those on the larger Scharnhorst kit, these are also
incredibly detailed. The ends of the barrels feature hollowed out tips
thanks to slides in the mold. I hope to see these weapons offered separately
someday as they are the best on the market and could be used to upgrade
other kits. |
 |
| Weapons include are the 127mm single, twin Flak 38 LM43,
20mm Naval-vierling, and 3.7 twin anti-aircraft guns.
|
| SPRUE J |
|
| The twin 5" gun turret is molded in one piece with a separate bottom,
barrels, and Marx float holders. Thanks to the 3 slide mold the body of
the turret will have only one small sprue attachment point to sand off.
The bottom fits neatly under so no seam will be visible. I tested fitted
the assembly and when competed it looks amazing. The gun barrels are scale
size, and have hollowed out ends. |
 |
|
|
| SPRUE K x2 |
|
| There are two sprues of the single 5" mounts. These also feature one
piece 3 slide molded shields with the only seam being on the underside
where it will not be seen. Footrails for the base of the gun are included
to mount to the deck This mount has some really nice rivet detailing
on the surface. The only thing that I can complain about here is the racks
for the Marx floats as they look a little thick. |
 |
|
|
| SPRUE P |
|
| A new base for this kit has been designed based on how most modelers
like to display their ships in full hull mode. The stands which resemble
lamp finales are even slide molded so they can be done without seams. |
 |
|
|
| SPRUE M |
|
| This sprue features the mines and trolleys. These the very much too
scale and include separate photo etch parts on the fret below. |
 |
|
|
| PHOTOETCH |
|
-
Fret MA features grills with shutter assemblies for the funnel intakes.
These can be opened up or displayed closed. Footrails for the funnel will
also help dress up the kit. Radar antenna give you an option in case you
don't want to use the plastic ones.
-
Fret MB provides the shields for the light anti aircraft guns. Handwheels
and seats are also included if you wish to add extra detail. You don't
have to use all these parts but they are there if you do.
-
Fret MC includes the watertight doors relief etched in two different styles.
You will need to supply the majority of railings. But there are many photo
etch companies that sell these. Dragon wanted to keep the cost down on
this kit for those who don't typically add extra photo etch. |
 |
 |
 |
|
|
| DECALS |
|
| Two decal sheets are provided. The first sheet includes
hull numbers, draft markings, and other nicely rendered markings. Only
the number D107 and R40 is included so you will have to supply your own
numbers if you use this kit to do a sistership.
The second one includes the German and British flags. The US flags
are in case you wish to model this ship in British service as HMS Nonsuch. |
 |
 |
|
|
| INSTRUCTIONS |
|

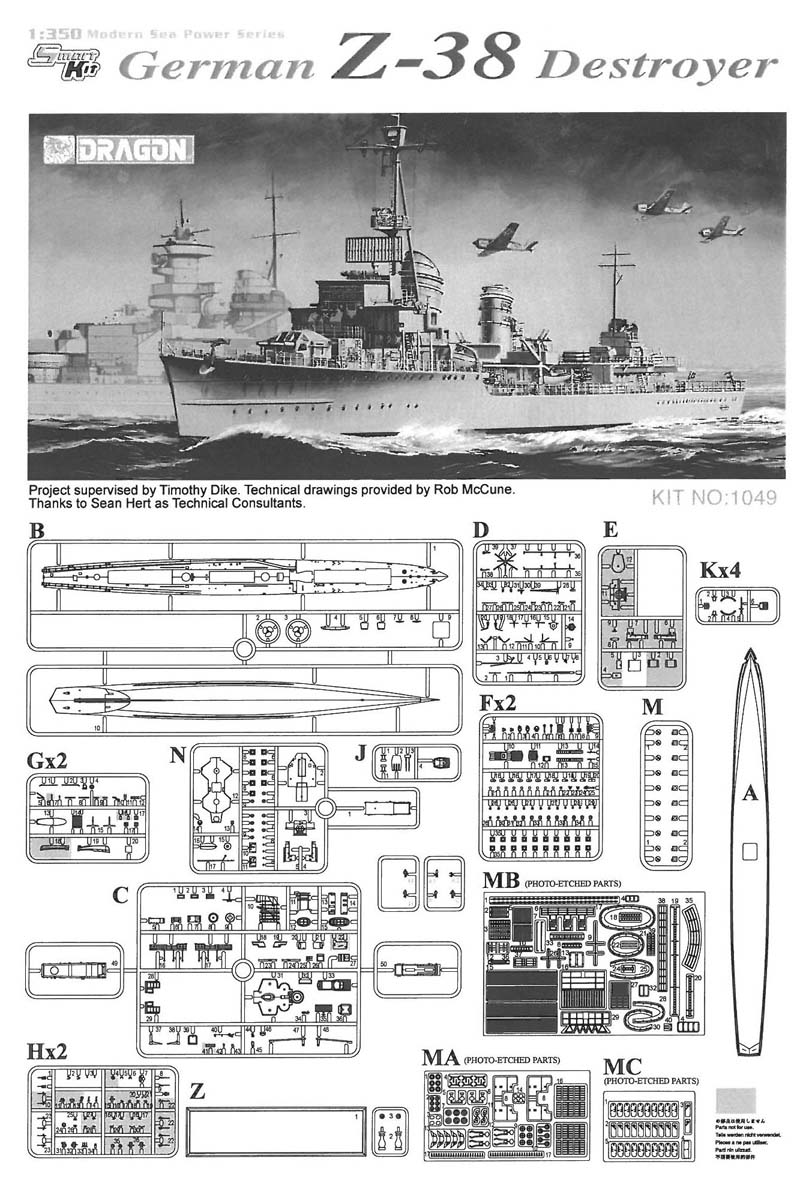

| Instructions are eight pages showing bill of materials,
sub-assembly views, and painting guides. The assembly is changed
a bit to reflect the steps typically followed by modelers. I am glad to
see Dragon listening to modelers and putting the extra time and effort
into their instructions.
|
| BONUS CREW MEMBERS |
|

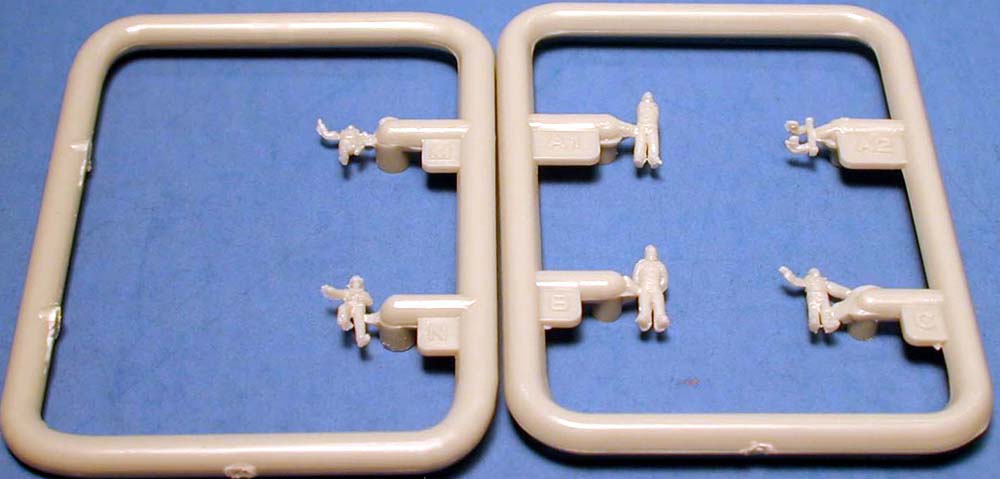

| Dragon has included some stunning bonus figures. These figures are
not CAD designed but are mastered using the same sculptures that are responsible
for Dragons well known figure line. These are provided in realistic lifelike
poses and will add a nice touch. The detail on these figure is almost insane.
You can make our their facial features, and the wrinkles in their clothing. |
 |
| My only complaint is that you only get a few. One of these
sprues was also included in the Scharnhorst kit, but the other is new just
for this kit.
|
| CONCLUSIONS |
|
| This is Dragon's third German ship
in the Smart Kit line. It is a nice follow up to the Z39 and Z31. This
kit will give the German Navy fan yet another Zerstörer to fill out
their collection or escort their favorite German Capital ship.
This is kit number DRA-1049 with a suggested list price of $49.95. It
is a tremendous value for the modeler when you consider the detail, and
hours of enjoyment you will have building it. These ships should be showing
up in your hobby shops soon or order your direct from Dragon
USA. |
 |
