The Mitschers were the forerunner of
all post war destroyer designs. The Mitscher class design was begun on
May 10th 1945 and the lead ship of the class of 4 was completed May 16
1953. Between 1945 and 1953 the Navy debated what the next generation destroyer
was going to look like and what function it would play in the "New" post
war world. They knew they needed a fleet destroyer to act as a radar picket,
provide anti-air cover and keep up with the fleet's carriers. But the threats
of submariners also remained and while the speed of the fast carriers and
their escorts would somewhat negate the submarine threat, the next generation
fleet destroyer also had to be able to deal with submarines. A fleet destroyer
that could accomplish all four tasks would, with all the new radar technology
and improvements in automated rapid firing guns, need to be quite a bit
larger than wartime destroyers and the cost would be much greater also.
The final design was armed with two 5-in/54s, two twin 3-in/70s (this weapon
was not ready until 1957, so two twin 3-in 50s were installed initially),
and two Weapon Alfa. The length was 493 feet on a displacement of 3,650
tons. Only four units were built - two by Bath Iron Works and two by Bethlehem
Steel Company.
With modern weapons, technology and the new post war tactics the Mitscher
class was an experiment. While they received ASW weapons and sensors, this
was a secondary mission. The need for speed made them noisy, thus reducing
their effectiveness in ASW. The primary mission for the Mitschers was to
act as fleet radar pickets. This requirement reduced the amount of anti-air
weapons it could carry as the height finder SPS-8 radar and its associated
equipment took up valuable weight. Thus, compared to wartime destroyers,
the Mitschers, as well as all destroyers that followed, appeared to lack
weapons to effectively handle anti-air protection for the fleet. This was
not their designed purpose, they were to act as the eyes of the fleet to
warn and direct carrier based fighters to intercept the air threat. Naval
planners did not expect the Mitschers to protect the fleet with her guns
but with her sensors.
The Mitschers new designed light weight power plants, which provided
sufficient amounts of power while taking up less tonnage as wartime power
plants, suffered from machinery problems through out their relatively short
careers and contributed to the early retirement of two of the class.
The class underwent many conversions during their time in the fleet.
In the early 1960's all 4 were equipped with DASH hangers and pads. The
Wilkinson was the first to land a DASH at sea in August of 1960. The Mitscher
and John S. McCain were authorized in 1966 to be converted to carry the
Tarter missile system. They were reconfigured between 1966 and 1968. The
conversion removed the Weapon Alpha, the two twin 3-in/70s and one of the
5-in/54s. In their place, an ASROC (forward) and single rail Tarter launcher
(40 missiles) (aft) were installed, along with the necessary sensors and
directors. The other two ships were never converted and were subsequently
decommissioned in 1969. The two conversions remained in the fleet until
1978.
|
|
|
|

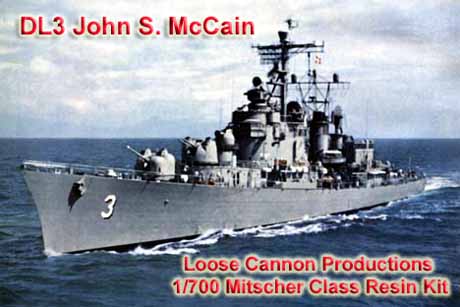

The Loose Cannon Productions kit depicts the DL3 John S. McCain during
her Pacific tours of 1960-1963.
The Mitscher kit comes in a cardboard box packed with peanuts and all
the parts in plastic bags. Some of the parts had come off the sprues but
all parts where in the sealed bags and unbroken. The parts are cast in
a soft dark grey resin, nice to see a resin navy ship in grey. Most of
the parts contain some light resin flash that is easily removed and very

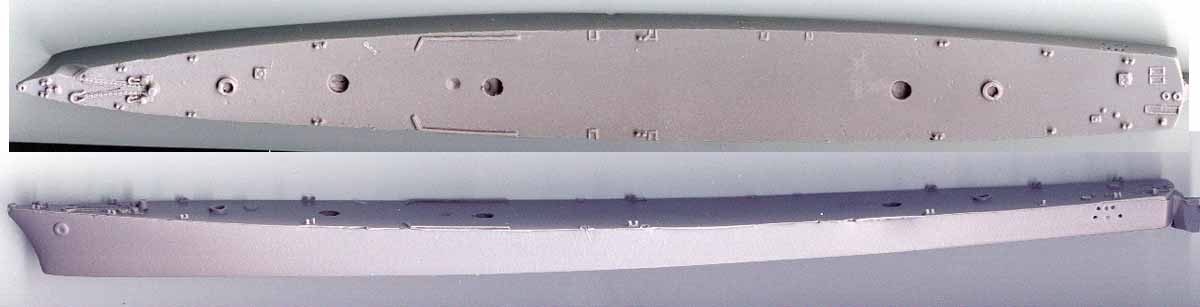

common on resin kits. The casting quality is pretty good, the hull has
some pin holes and is little warped. Nothing major, but it will require
some time to correct. Dimensionally, the beam is a little over 1 scale
foot large or 0.02 inches and the overall length scales out at a little
over 1 scale foot small, or 0.03 inches too small per published data in
Conways - All the Worlds Fighting Ships 1947-1995. This is better than
most plastic kit manufacturers. |
Click images
to enlarge
|
|
|

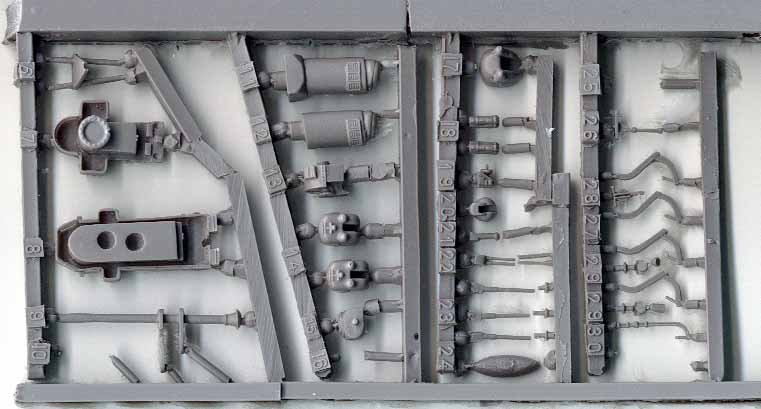

The kit contains some 55 resin parts plus a very extensive PE fret.
I like that the parts are numbered just like injection molded plastic kits.
As stated earlier, the kit represents the DL3 John S. McCain as she appeared
in 1960 to 1963. The kit comes with two 5 in/54, two triple ASW torpedo

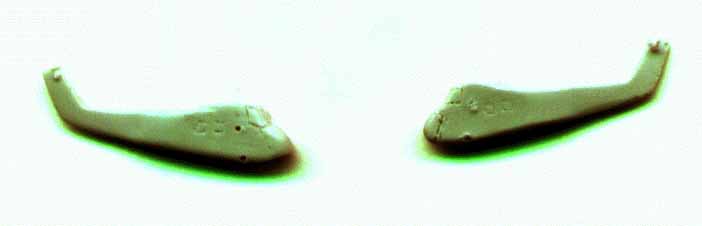

tubes, Alpha ASW weapon, and a duel 3 in/70 anti-aircraft gun plus a H-34
Seahorse helicopter. The class never embarked this type of helicopter.
At the time, the class had the DASH hanger installed and was set up to
carry the DASH but the manufacturer, David Angelo, said he was unable to
find enough info to include one in the kit. This is too bad as I (and I
am sure many others) would love to add a DASH to this kit as well as to
other Cold War era ships. Maybe someday a manufacturer will make a 1/700
DASH for us Cold War era ship lovers. |
|
|
|

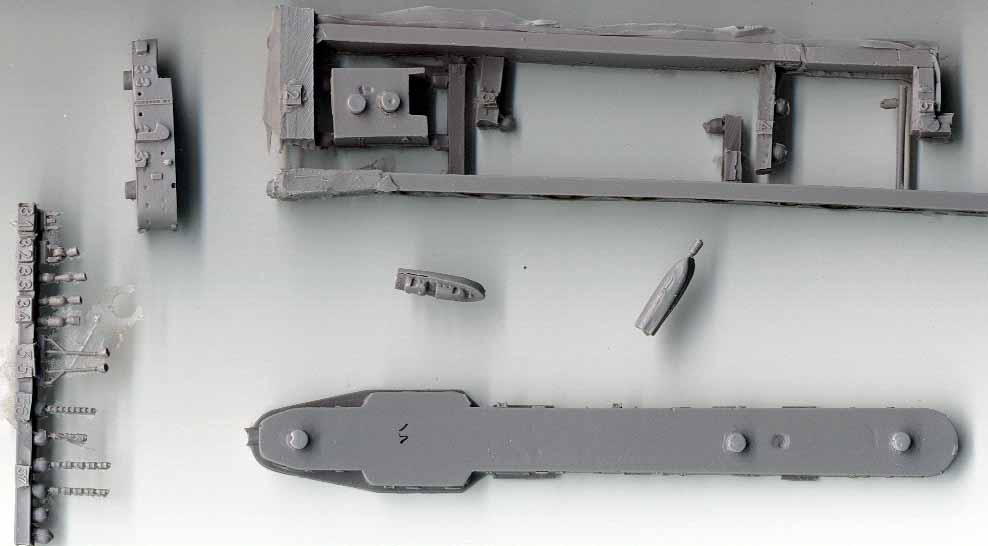

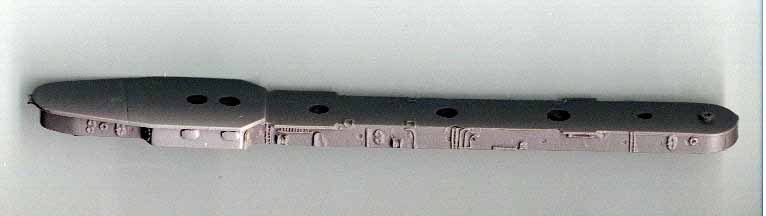

The superstructure is cast in several pieces, much like
a plastic kit. There is quite a lot of detail, hatches, ladders, and fire
hoses on the parts. Some of the ladders and hatches have lost detail and
are not as crisp as others. These can easily be sanded off and replaced
by PE. Many experienced modelers will want to replace all the cast-on details
anyway, so for them this is not a problem. For others who are afraid of
PE, it might be feasible to remove enough of the excess flash from these
details so that you are the only one who will know they are not "perfect".
The locations of the cast-on details match up wonderfully with pictures
and line drawings at my disposal.
It is easy to fit the various superstructure components, bridge, funnels,
and DASH hanger together. They come with locating pins and holes in the
mating surface. There is enough built in sloop so you can fiddle with the
alignment until you are satisfied with the fit. Dry fitting the parts,
they will require a little sanding, but go together very easily. |
|
|
|
|
|
The real beauty of this kit is the brass photo-etch fret.
It has just about everything, including tackles for all ships boats, rudders
for the whale boat, shell catchers for the duel 3 in/70 turret, funnel
guards, fire control radar dish, yardarms, main mast, 31 crew members,
depth charge rack, helo parts, propeller guards, anchors, radars, ladders,
stairways, platforms, a ton of other goodies, and yes, even railings! The
fret is not relieved etched. |
|
|
Another great item is the directions - step by step instructions
with detailed drawings. While some of the drawings are hand done and somewhat
small, they fully explain what you should be doing and how. I admit that
reading the directions and actually using them to assemble a kit can be
two different things, but these directions are written in such a way that
I don' t anticipate any problem whatsoever with them. Your ability to take
a small piece of PE and fold it to match the drawing is another subject.
A brief history of the class, a line drawing and a black and white picture
are also provided.
The decals are sharply printed on a small piece of decal paper and contain
numbers for all ships of the class and the DASH markings plus helo markings.
All the names of the class are given for the stern.
Overall this is a great little kit of an important destroyer in the
post W.W.II era. As is typical of older resin kits, time will be spent
cleaning up flash and ensuring proper fit of all parts, but the super PE
fret and the directions will really bring this kit to life. I would not
recommend this kit for a first time resin builder. While the casting is
not up to the new standards set by JAG Collective and WEM, this kit, with
a little time put into her, will no doubt build into a very beautiful model.
I would like to thank David Angelo of Loose Cannon Productions for this
review sample. |
|
|
References:
Conways, All the Worlds Fighting Ships 1947-1995,
Naval Institute Press U.S. Destroyers, An Illustrated Design History,
Norman Friedman, Naval Institute Press |
