MidShip 1/700 USS Sims DD-409

Reviewed by Timothy Dike
The USS Sims was commissioned on August 1, 1939 at Bath, Maine. She operated in the Atlantic

Following the attack on Pearl Harbor, warships were urgently needed in the Pacific and Sims departed December 16, 1941 to join the task force formed around the USS Yorktown CV-5.  See her full DANFS entry here.

Midship has produced a new Sim class destroyer that can be built as shown on the box in 44 or even a 1942 early war version. This kit began life as the old Classic Warships kit and has been updated with some new parts.


HULL

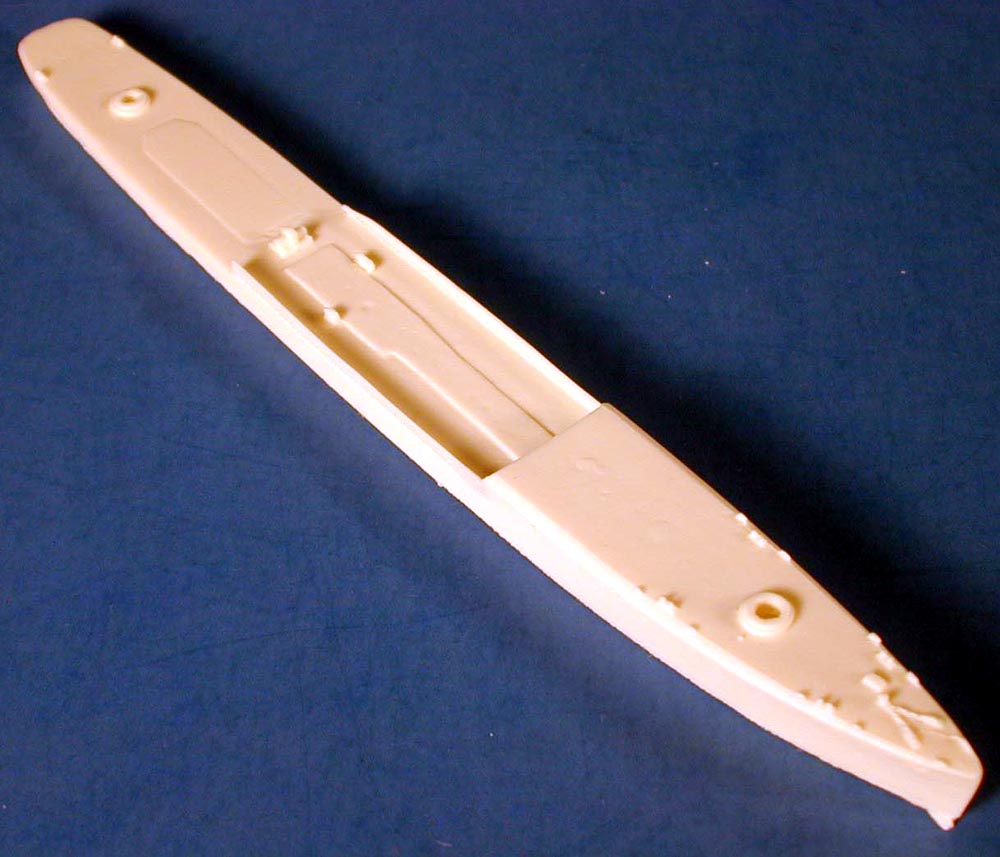

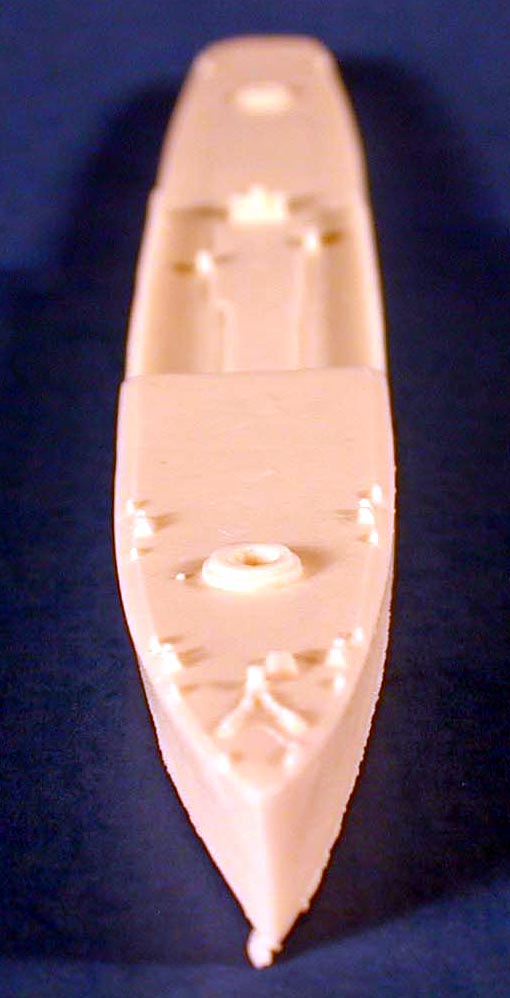

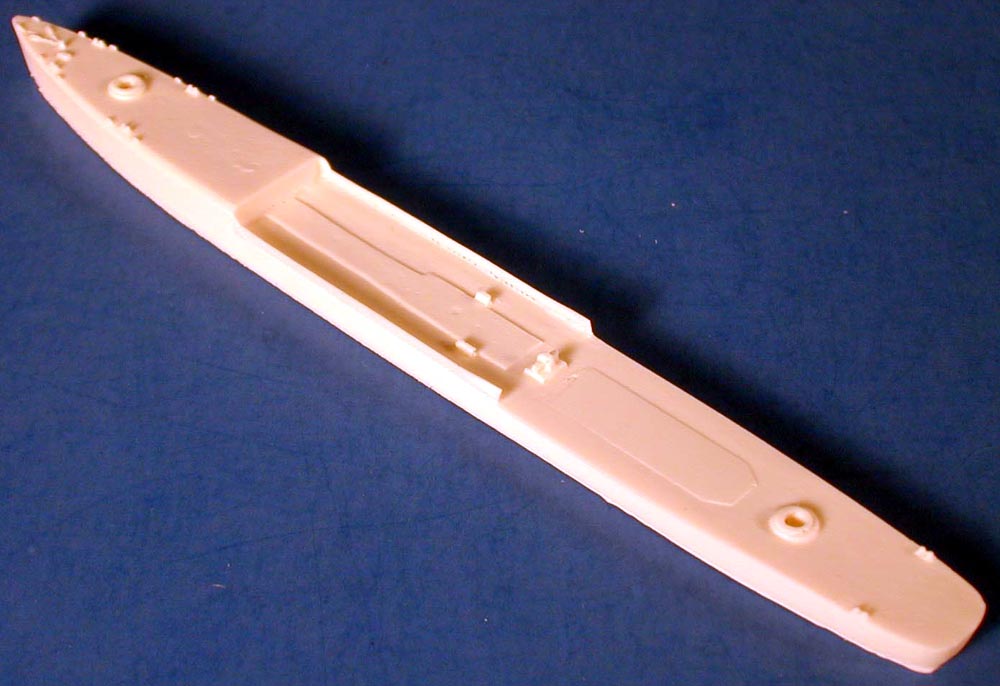

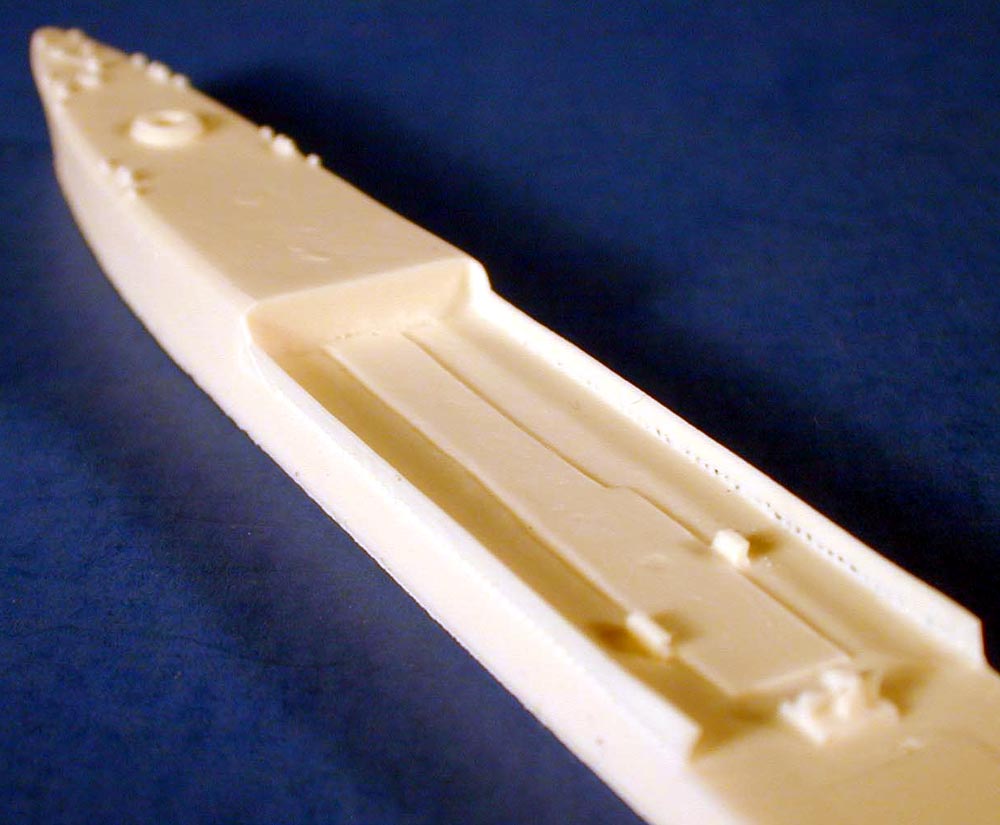

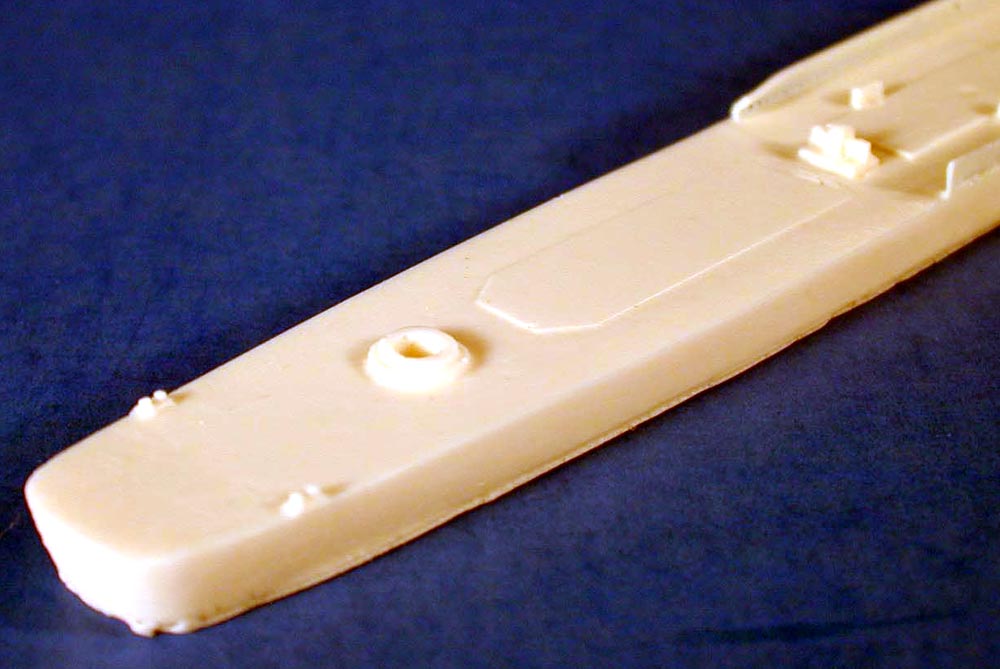

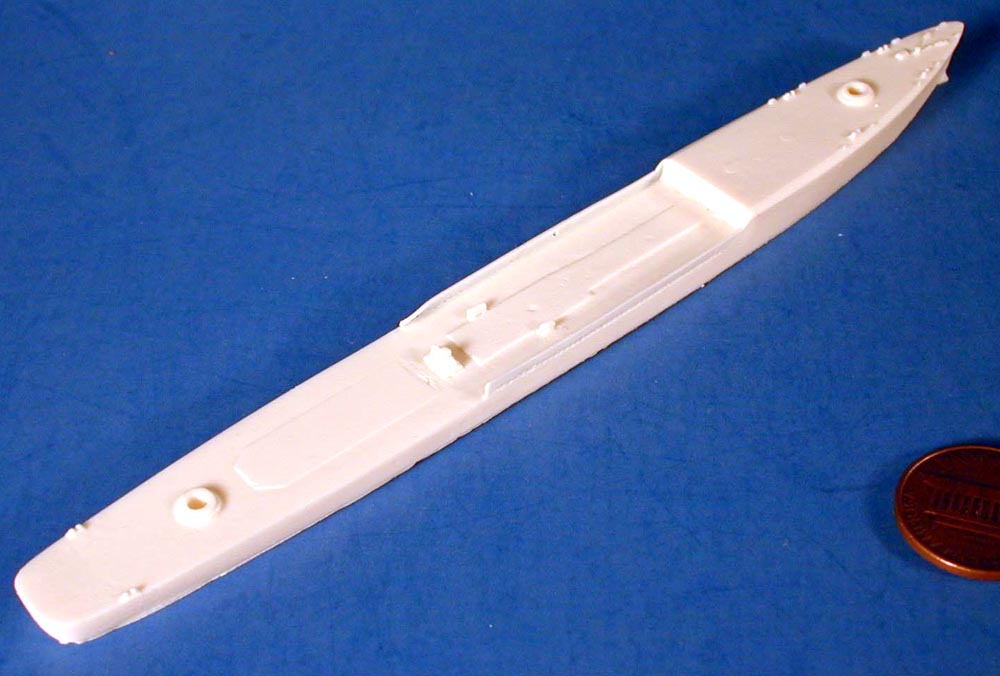

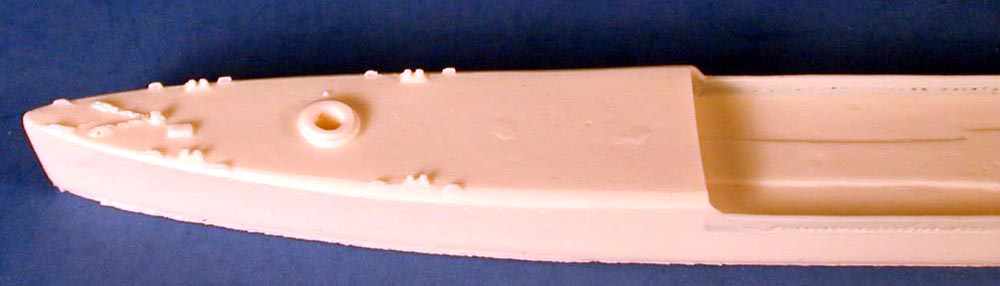

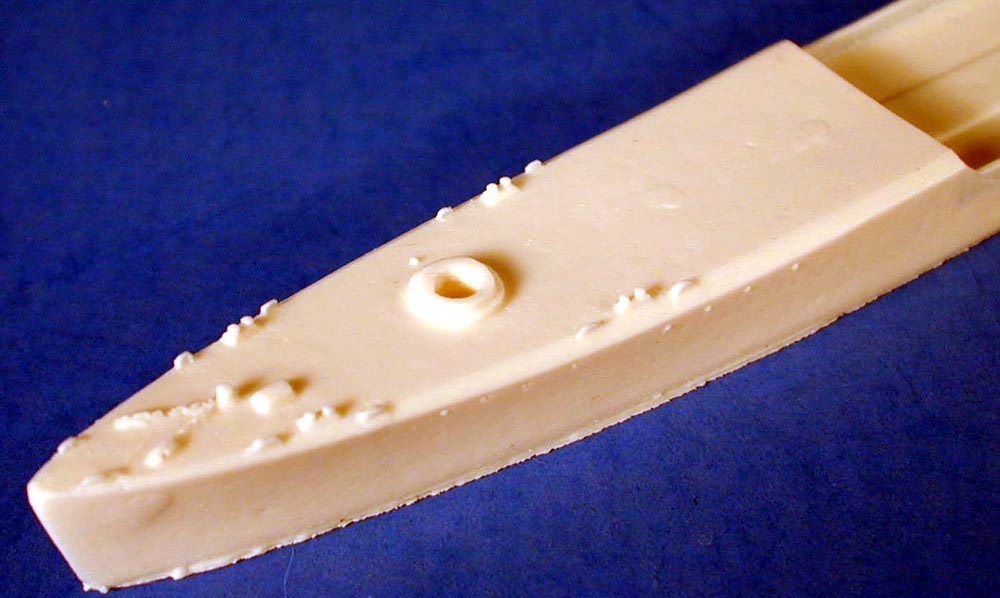

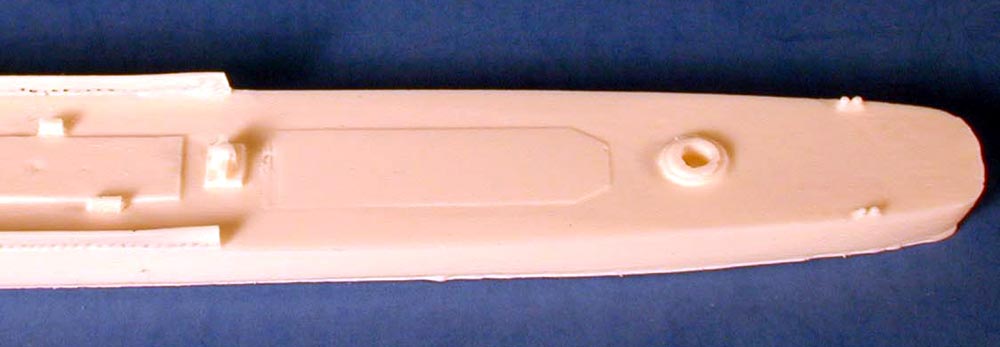

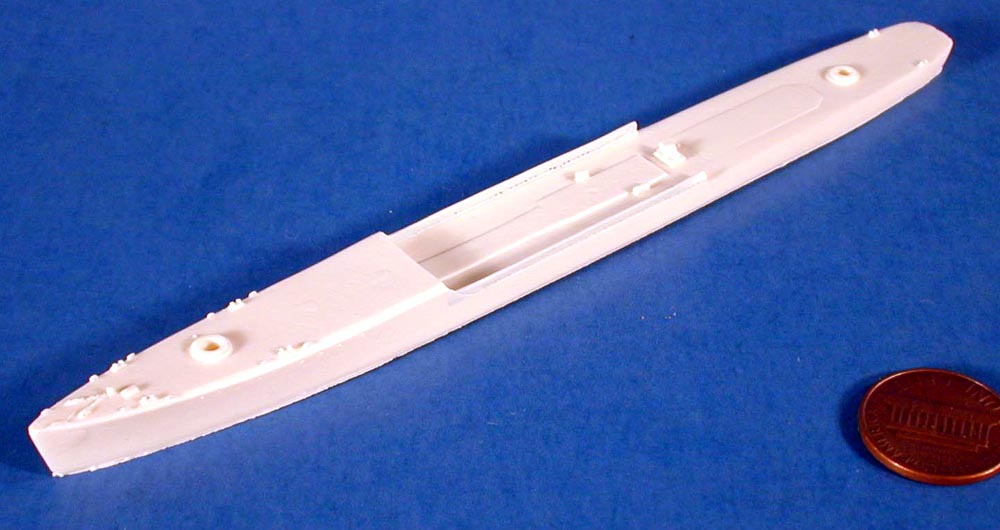

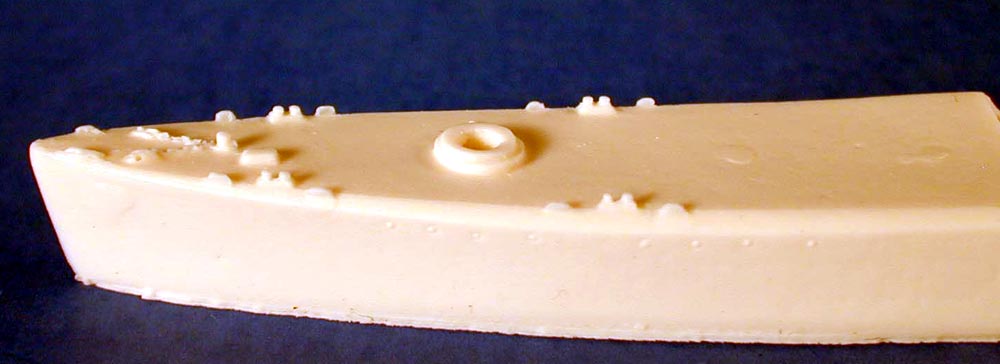

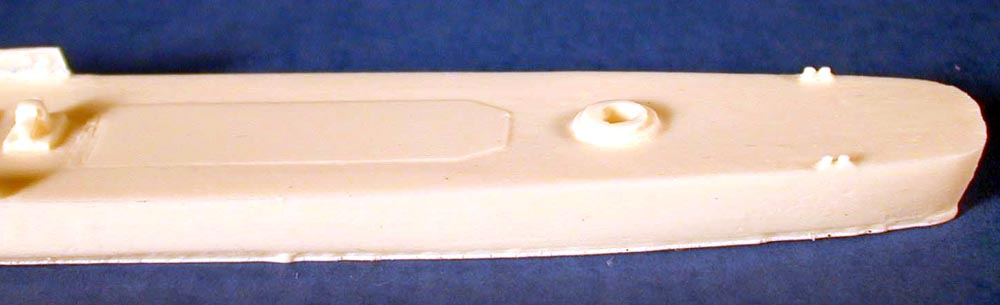

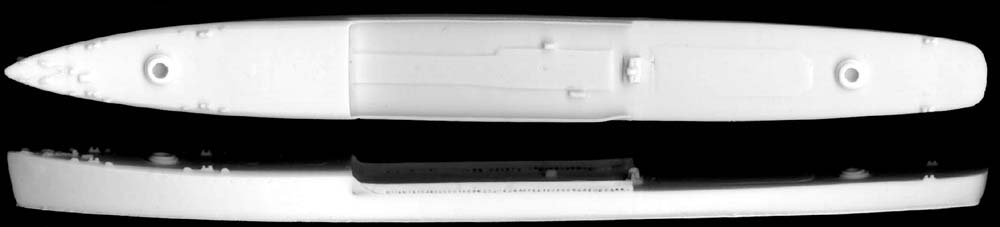

The hull is well cast and comes very close to the size and shape of the Sims hull. The radius on the fore deck correctly narrows as it goes to the bow. The surface detail is pretty good and the only flash was along the waterline where it is easy to deal with.
click images
to enlarge

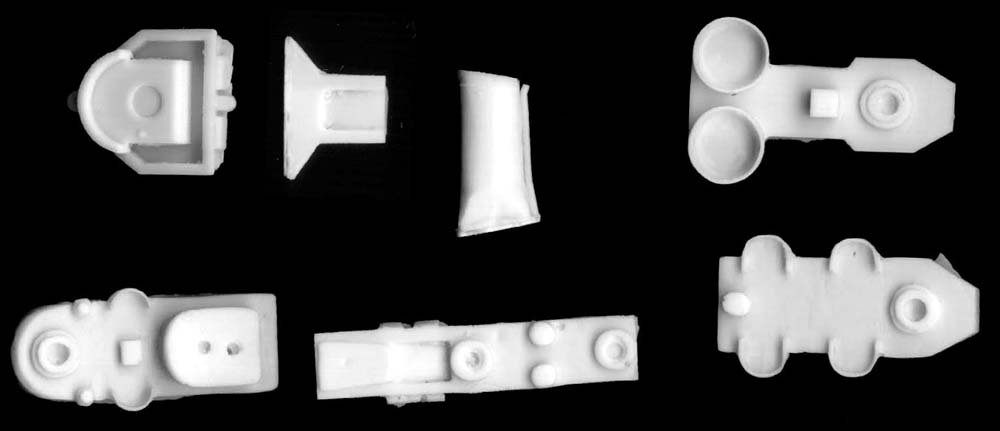

SUPERSTRUCTURE, WEAPONS, FITTINGS, AND SMALL PARTS

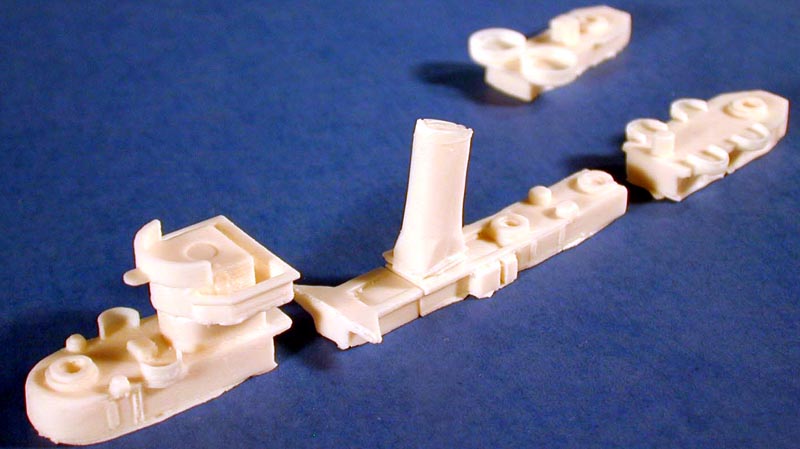

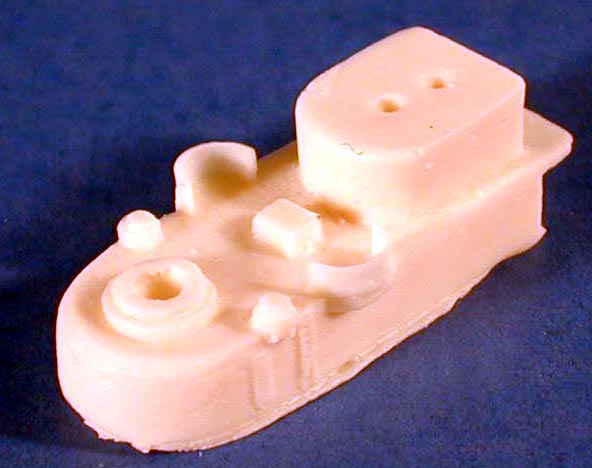

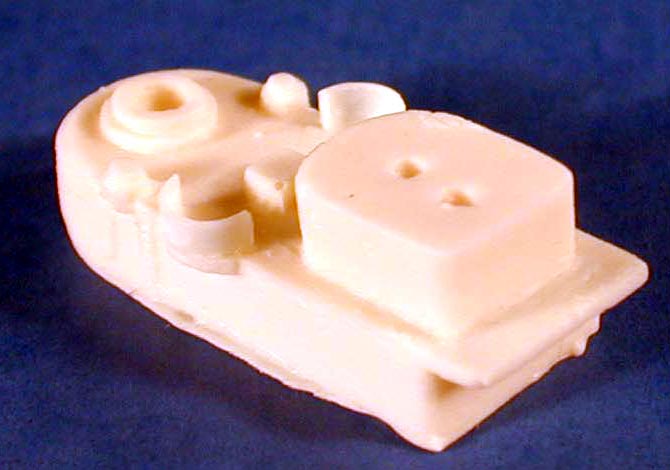

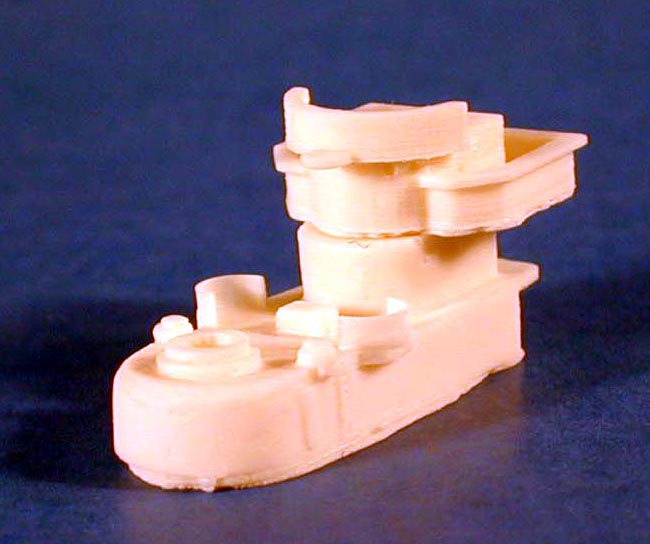

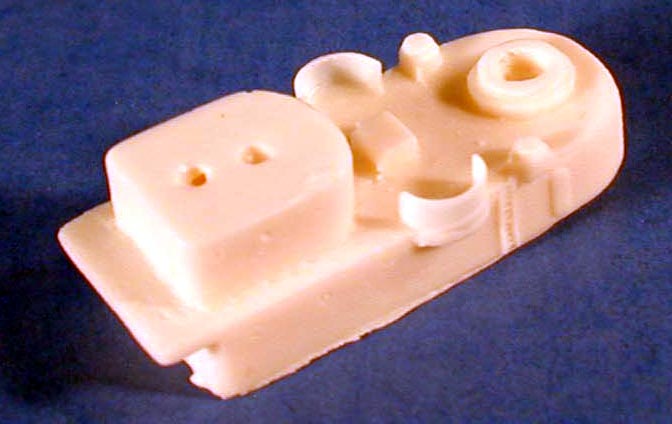

 The main forward superstructure and deckhouse are cast together and the shape looks very accurate. Splinter shields on this part look good as does the 5" gun base.
click to enlarge click to enlarge click to enlarge click to enlarge

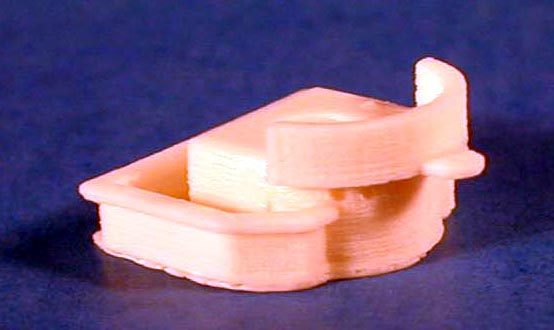

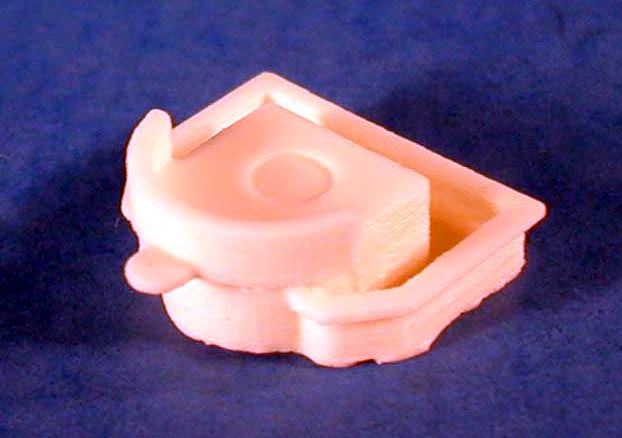

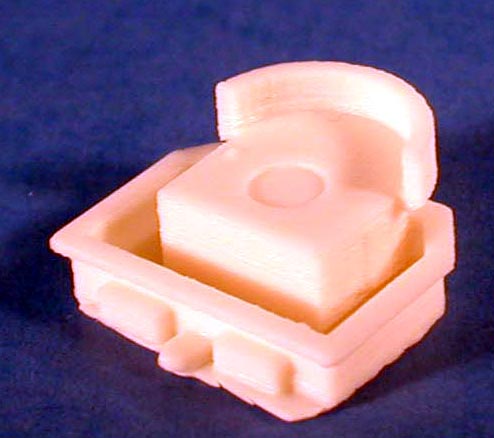

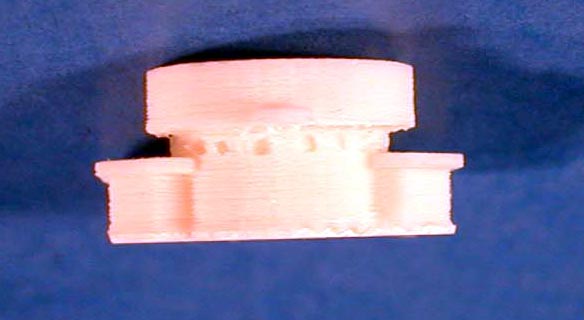

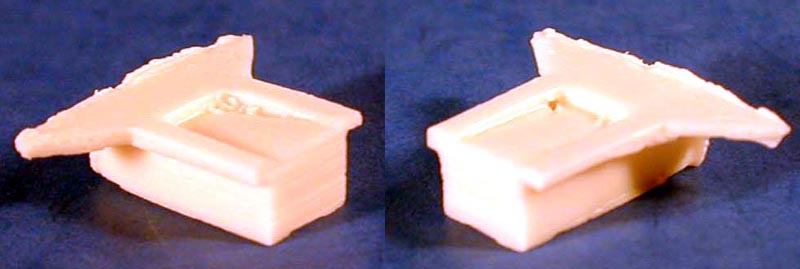

The bridge will need some work as the canvass covered railing on the top are way too thick even for this scale. I would recommend that you cut this part off and replace it with photo etch. Make sure you cut it flush with the roof top and then you can bevel the edge of what's left to form the awning found on most of these ships. The bridge wings appear to have a crown molding all around the top edge. This should be a flair very hard to replicate in this small scale, but if you radius the inside edge you can simulate it. Also the back side of the bridge wings where the flag bags are located should be open.
click to enlarge

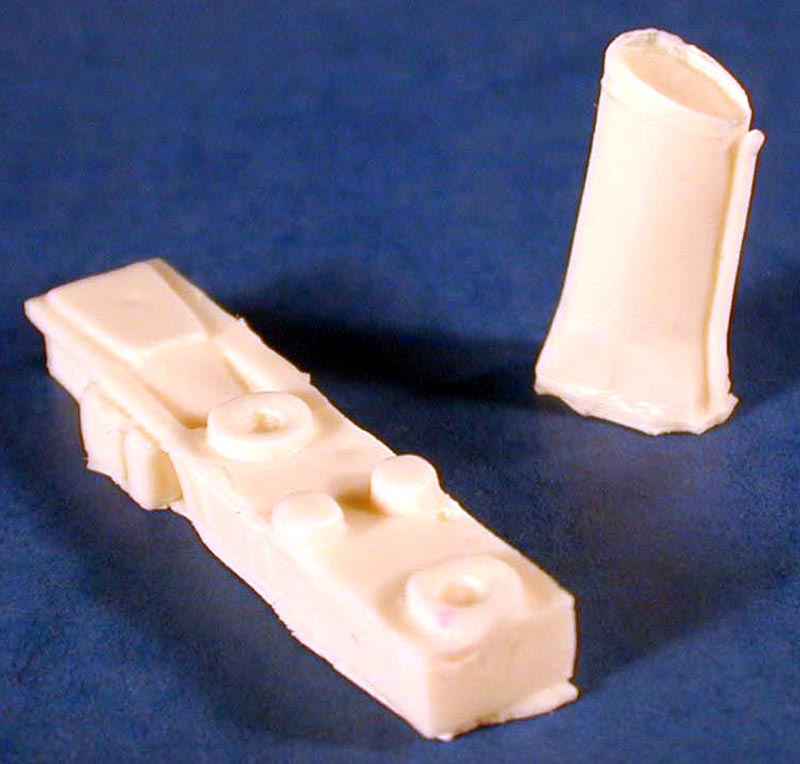

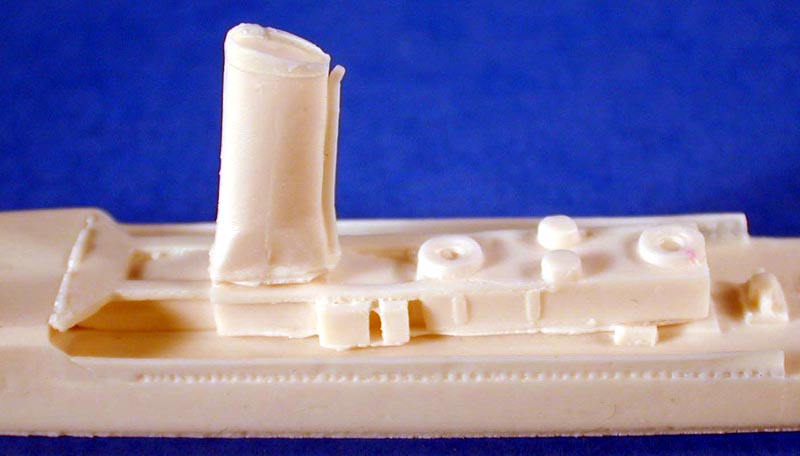

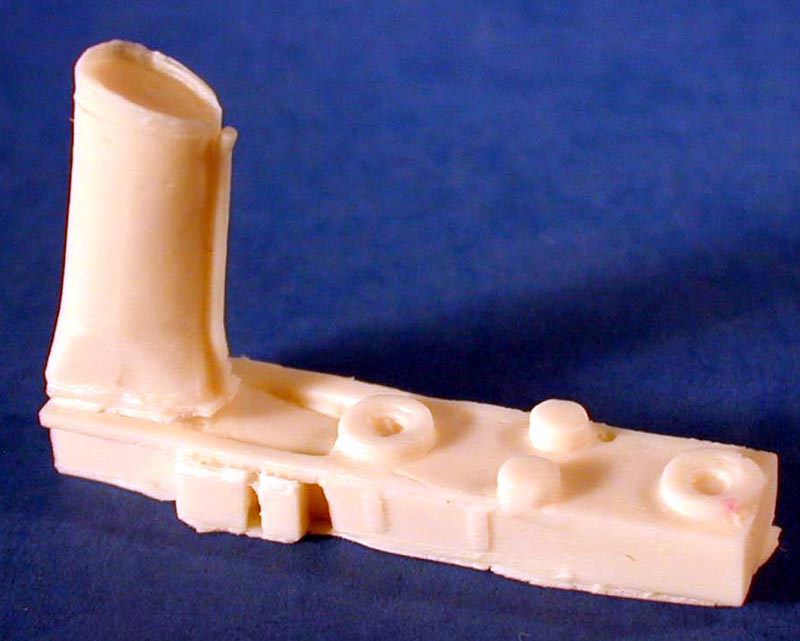

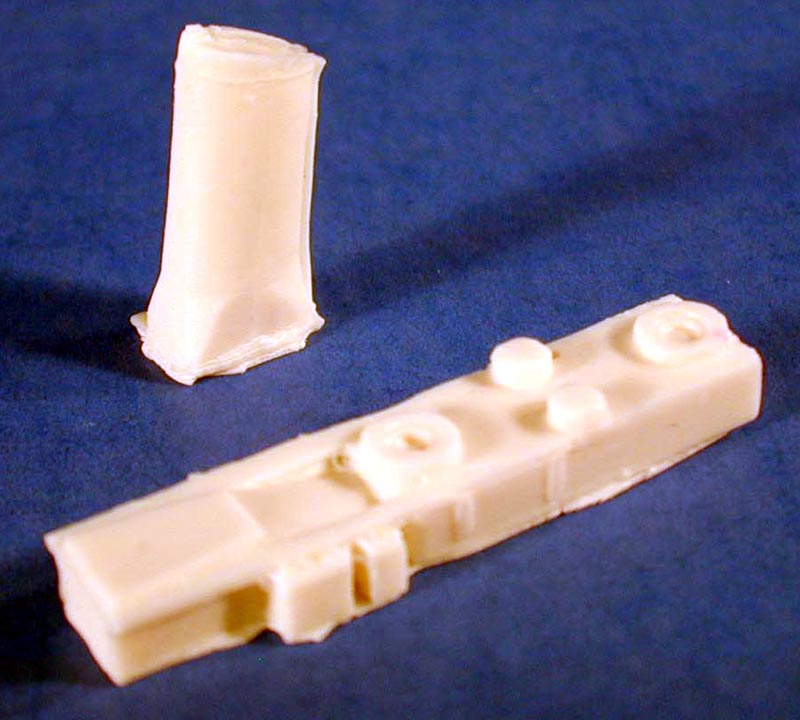

The small deckhouse with the forward deck extensions look a little rough, but fit pretty good considering that I have not cleaned them up. The funnel has the correct shape above the trunking. On this kit most of the trunking is faired over, not really correct but not really a bad look. There would be walkways on both sides of the funnel to connect the two decks that tend to give it a box like appearance from a distance.

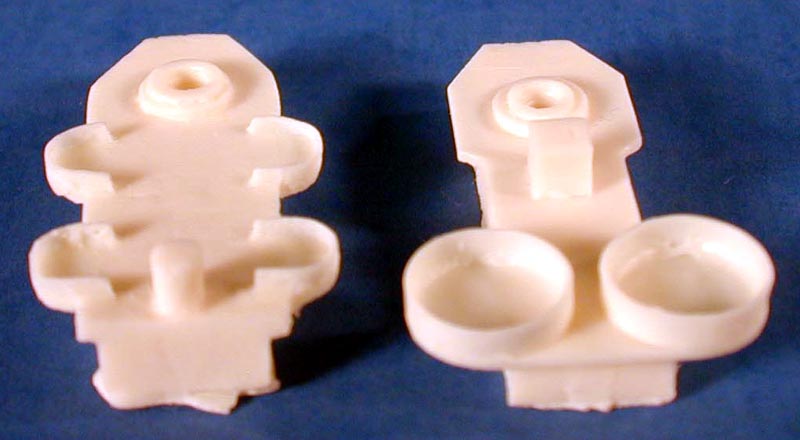

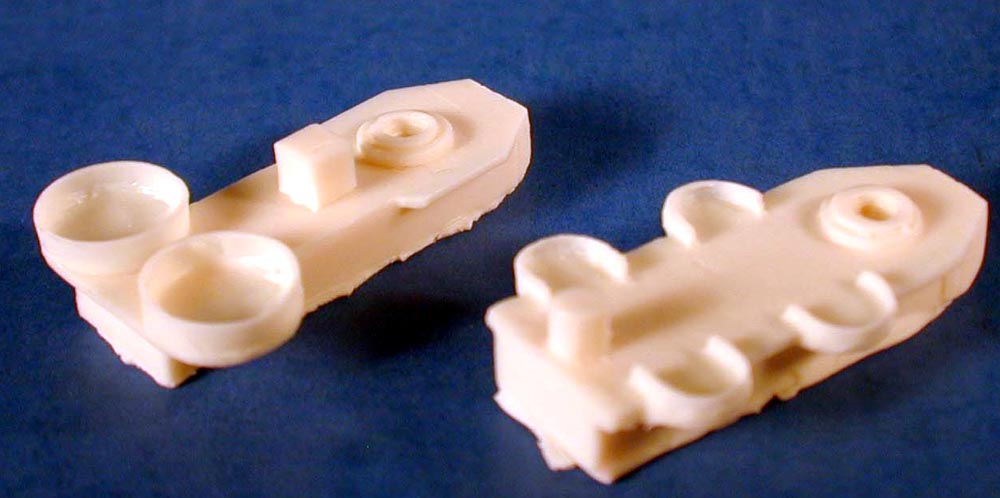

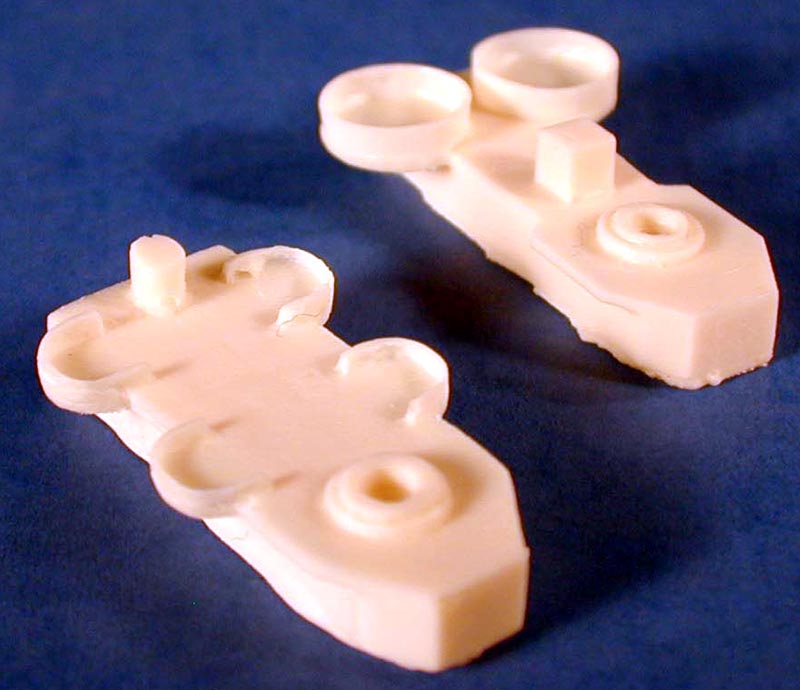

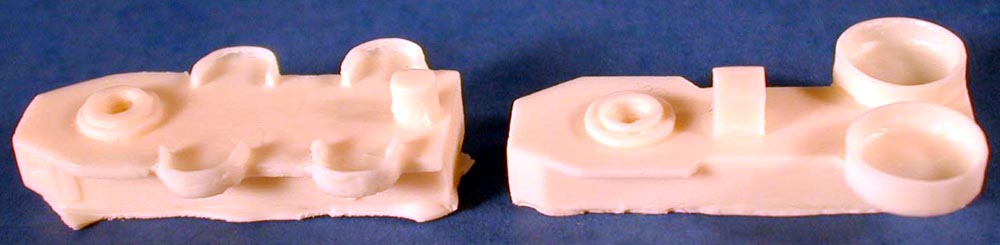

Two different aft superstructure options are included. An as built with room for 4 x 20 mm gun mounts. The gun shields are a bit short though. A later version has two gun tubs for 2 x 40 mm twin mounts. So you can build an as built Sims or a late war version of the other members of the class.
METAL PARTS

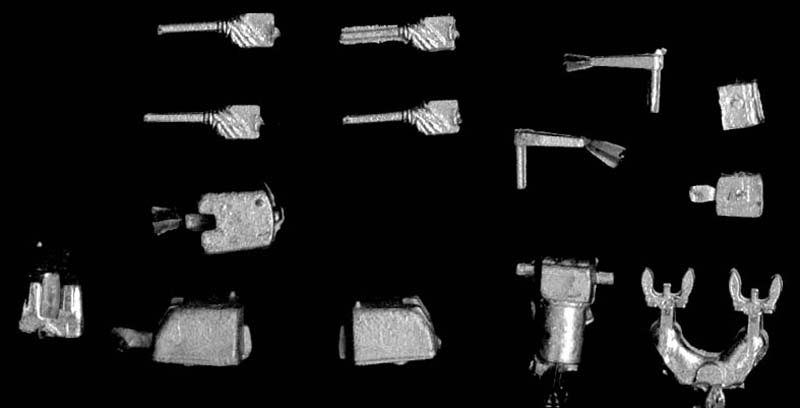

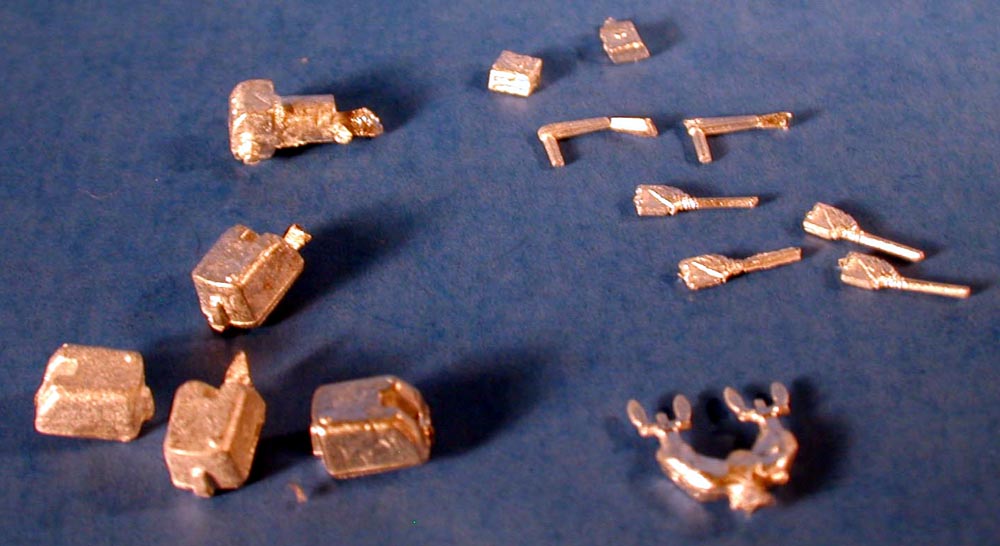

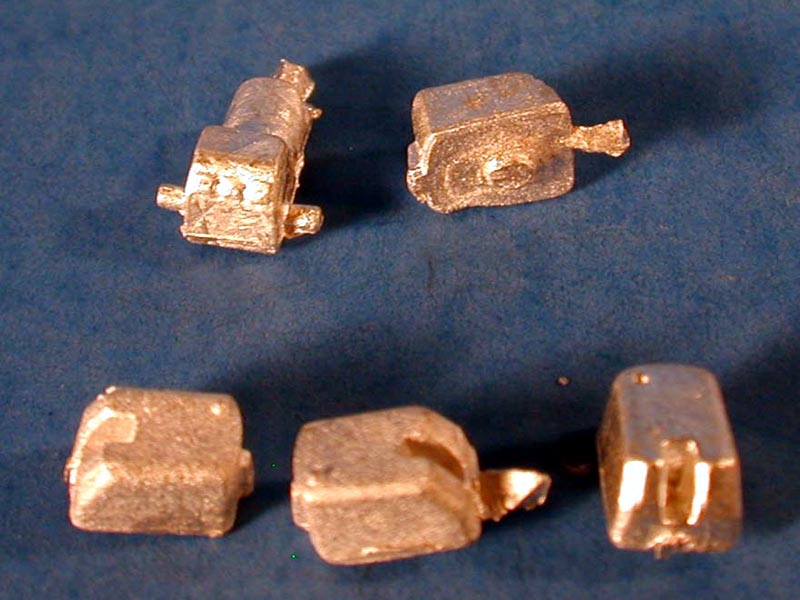

The 5" gun mounts are cast in metal. The shape is pretty good, though #3 turret should be a canvas covered version. You can make one yourself by filing the top of the turret. The other metal parts have a little flash but otherwise are shaped correctly. Two torpedo cranes are provided as well as new flag bags and anchors.
PHOTO ETCH

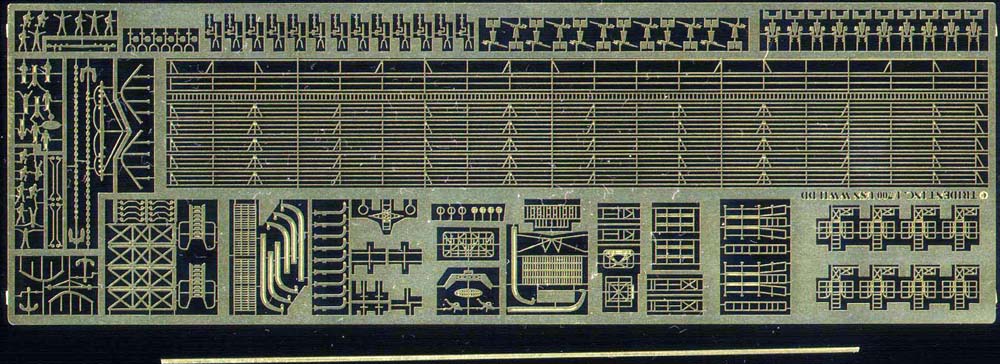

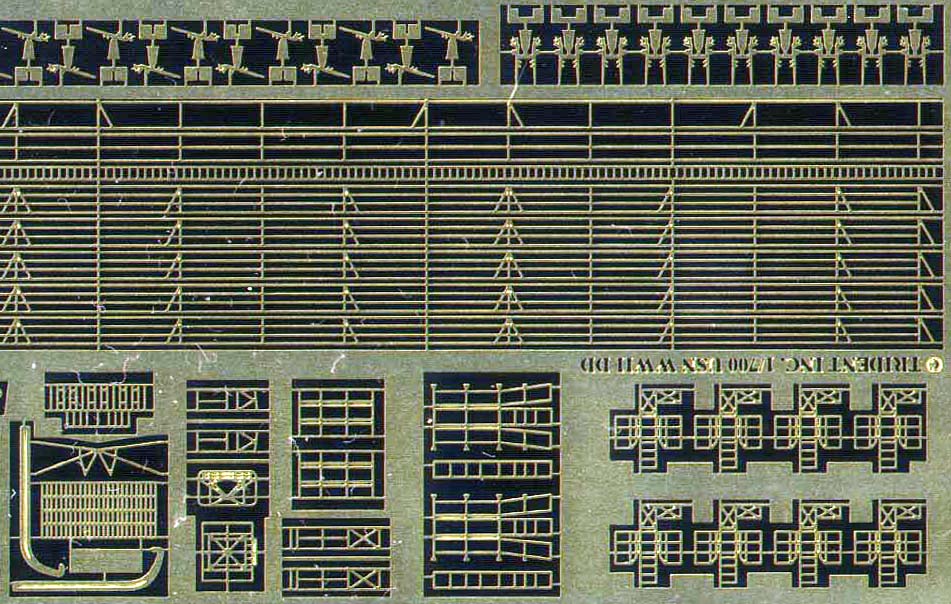

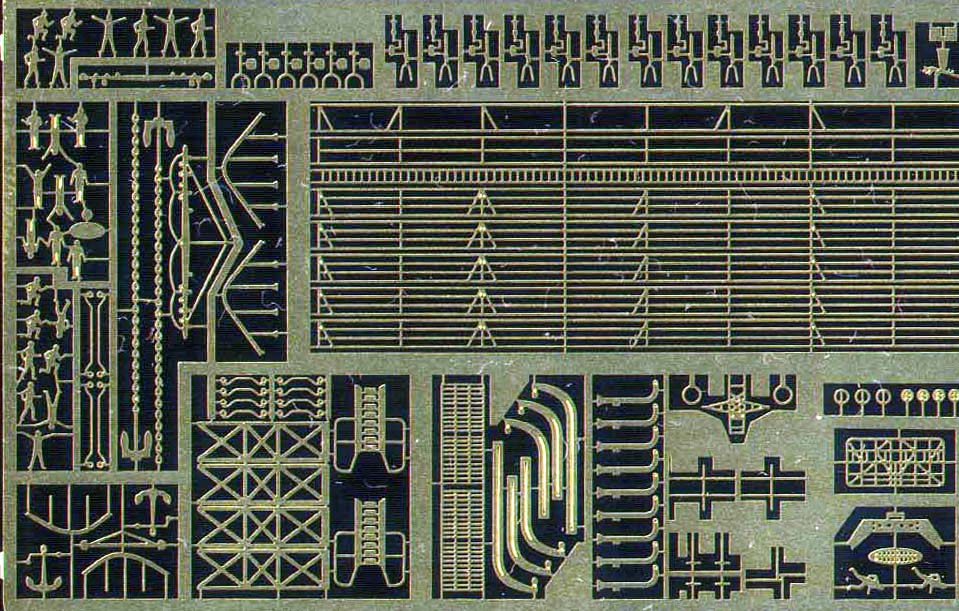

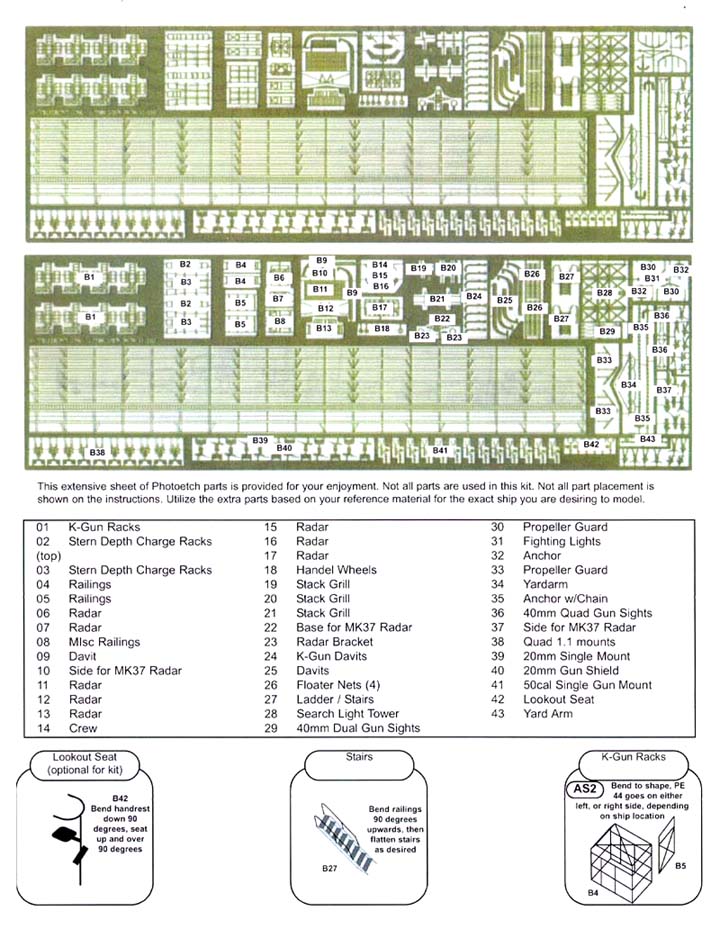

A relief etch brass photo etch fret is included to add the fine details. Detailed yardarms, boat davits, 20 mm guns with bases, and depth charge racks are just some of the nice items included. As mentioned above there are detail parts for the torpedo tubes that include the doors, and plumbing and bracing parts.
While these parts are not as fine as some of the other aftermarket manufactures, the approach to the detailing is very innovative. You will have to supply your own outer railings, but most of us have plenty of those anyway. Separate brass rod is included to fabricate the mast.
WEAPONS SPRUE
This kit features the Midship standard weapons sprue to supply the small weapons and fittings.  There is everything you need to build a most any  class as well as a bunch of extra spare parts you can use for other projects. The rafts are molded in two styles and are both nicely done.
DECALS
The decal sheet is a real treat and includes flags and pennants as well as both prewar and early and late war hull numbers. These are printed by Microscale and are typical of the high quality decals they usually produce. They are nicely registered and sharp.
INSTRUCTIONS

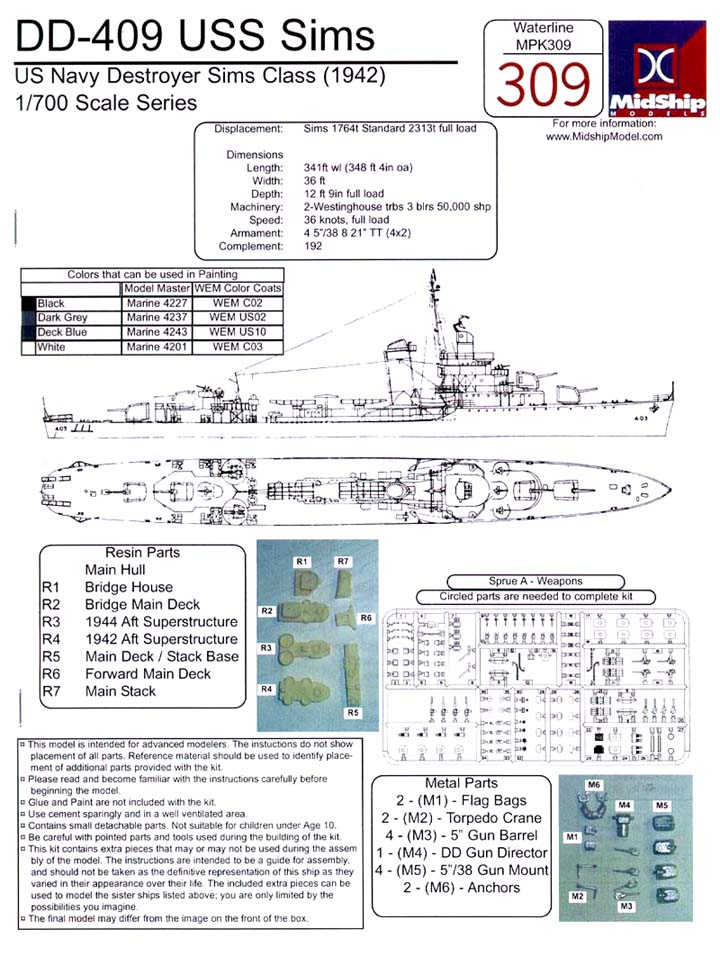

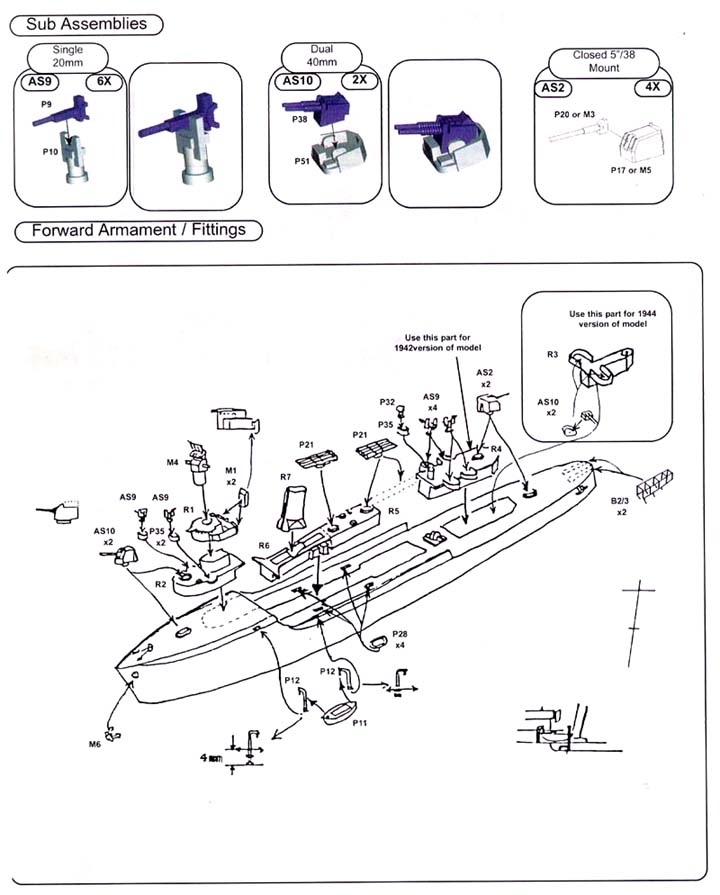

The instructions are three pages. A bill of materials on one side and and exploded view on the others. The illustrations are good, but a good plan and elevation of the finished ship would have been nice.
CONCLUSIONS

It's nice to see Midship offering more kits for 700 scale modelers. This new Sims kit has a lot to offer, a nice photo etch fret, great decals, and options for early or late war. A few of the parts will need some extra work, but there is a lot of potential here. The hull is correct and that provides a good foundation on which to build your ship.

The retail price is $40, but I have seen it online for much less.
