Reviewed January 2023
by Martin J Quinn

HISTORY
USS Atlanta (CL-51) of the United States Navy was the lead ship of the Atlanta-class of eight light cruisers. She was the third Navy ship named after the city of Atlanta, Georgia. Designed to provide anti-aircraft protection for US naval task groups, Atlanta served in this capacity in the naval battles Midway and the Eastern Solomons. Atlanta was heavily damaged by Japanese and friendly gunfire in a night surface action on 13 November 1942 during the Naval Battle of Guadalcanal. The cruiser was sunk on her captain's orders in the afternoon of the same day.

Atlanta, in some works, is designated CLAA-51 because of her primary armament as an anti-aircraft cruiser. Hence, all of the Atlanta-class ships are sometimes designated as CLAA. However, her entire battery of 5-inch (127 mm) guns were dual-purpose (DP) guns, and were capable of being used against both air and surface targets, able to fire anti-aircraft, high-explosive and armor-piercing shells.

The Atlanta-class ships were lightly armored, making them poor surface combatants compared to a typical light cruiser. In terms of armament, the Atlanta class was closer to a destroyer, being armed with 5-inch guns, than a light cruiser, which were generally equipped with 6-inch guns; but at well over 500 feet (152 m) in length, and combined with their large battery of sixteen 5-inch (127 mm) guns (reduced to twelve in number for later ships of the class), they were designated as light cruisers. The unusual features of the Atlanta class is a result of the class originally being intended to be a destroyer leader. A destroyer leader is larger than its destroyer counterparts to accommodate command staff and resources as well as other general utilities to support the destroyers that they would be paired with. In line with this intended role the ship was given a complement of torpedoes and relatively thin armor compared to other ships of its size. Later the dimensions and tonnage of the ship resulted in a change in designation of the Atlanta class to a light cruiser. Despite this change in designation the Atlanta class of ships maintained their destroyer leader features.

For more information on Atlanta's history, check out her Wikipedia page, where this history was taken from.

The Very Fire USS Atlanta

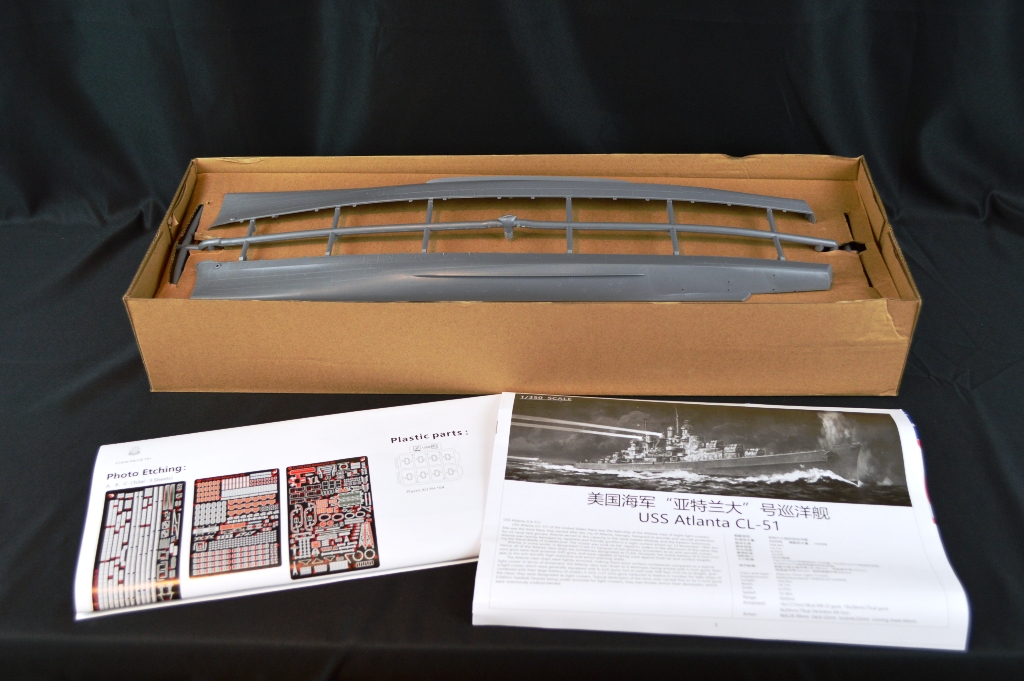

The Very Fire 1/350 USS Atlanta comes is a very sturdy cardboard box.  On the box top is a dramatic painting of Atlanta during the Naval Battle of Guadalcanal.   Upon opening the box, you'll find the two halves of the hull secured into a cardboard insert.  Underneath that is the rest of the kit, with the parts bagged and the deluxe PE and turned brass wrapped in bubble wrap.


SPRUE A - HULL

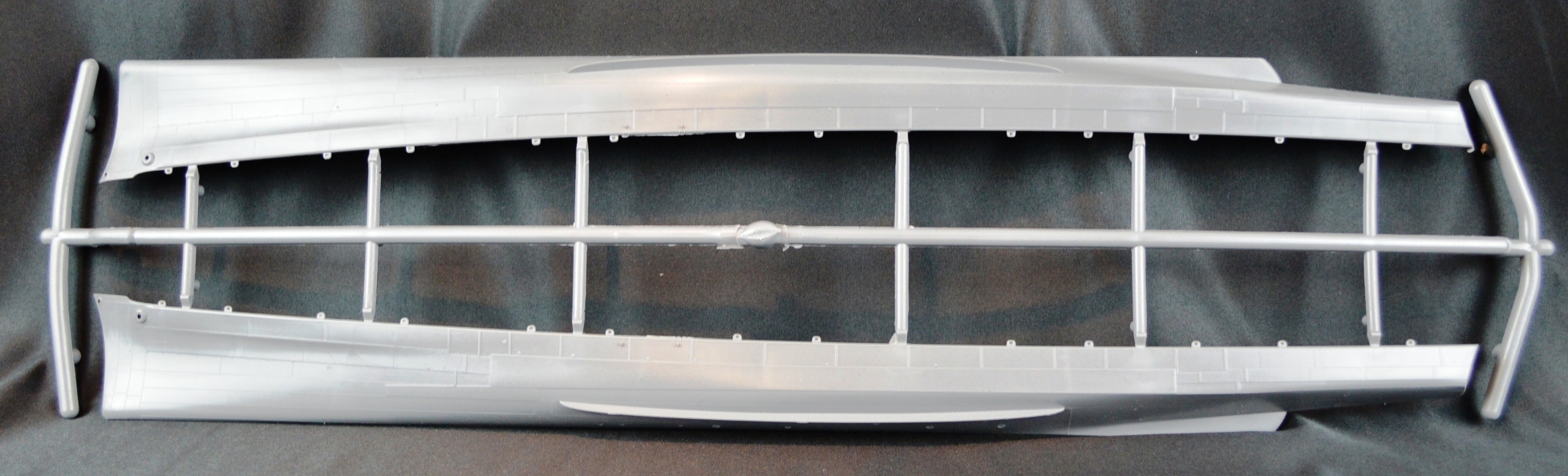

The hull is in two halves - port and starboard/left and right.  It scales out pretty much perfectly in both OA length and beam.  There is an attempt to replicate intakes on the bottom of the hull, and the chocks are molded integrally to the sides of the hulls.  Some of these are not fully opened, you'll have to open them with a drill bit, file or hobby blade.  There's also some flash around the edges of the hull halves.

The hull features prominent plating, as is the current style.  It's not as heavy as the plating found on Merit's Yorktown-class carriers, but it's still pronounced and, in my opinion, just a little overdone, especially the butt straps.  Compared to plans, the hull shape looks good, except, perhaps, for the prominent knuckle at the bow.   To my eye, the knuckle doesn't seem pronounced or deep enough, and may be slightly higher than it should be.  Also, the opening in the bow for the paravane shoe is missing.  This is clearly seen on photos of both Atlanta and Juneau in service.

The inside of the hull has a groove for those wishing to waterline their model.  Curiously, it doesn't go all the way around, but stops - in the same area  - on both sides of the hull.  There are also two sunken holes in the bottom of the hull, to allow for pedestals, for those building full hull, who want to mount their ship on finials.  Other than the waterline groove not going all the way around the hull, these are both nice touches.


SPRUE B - DECK

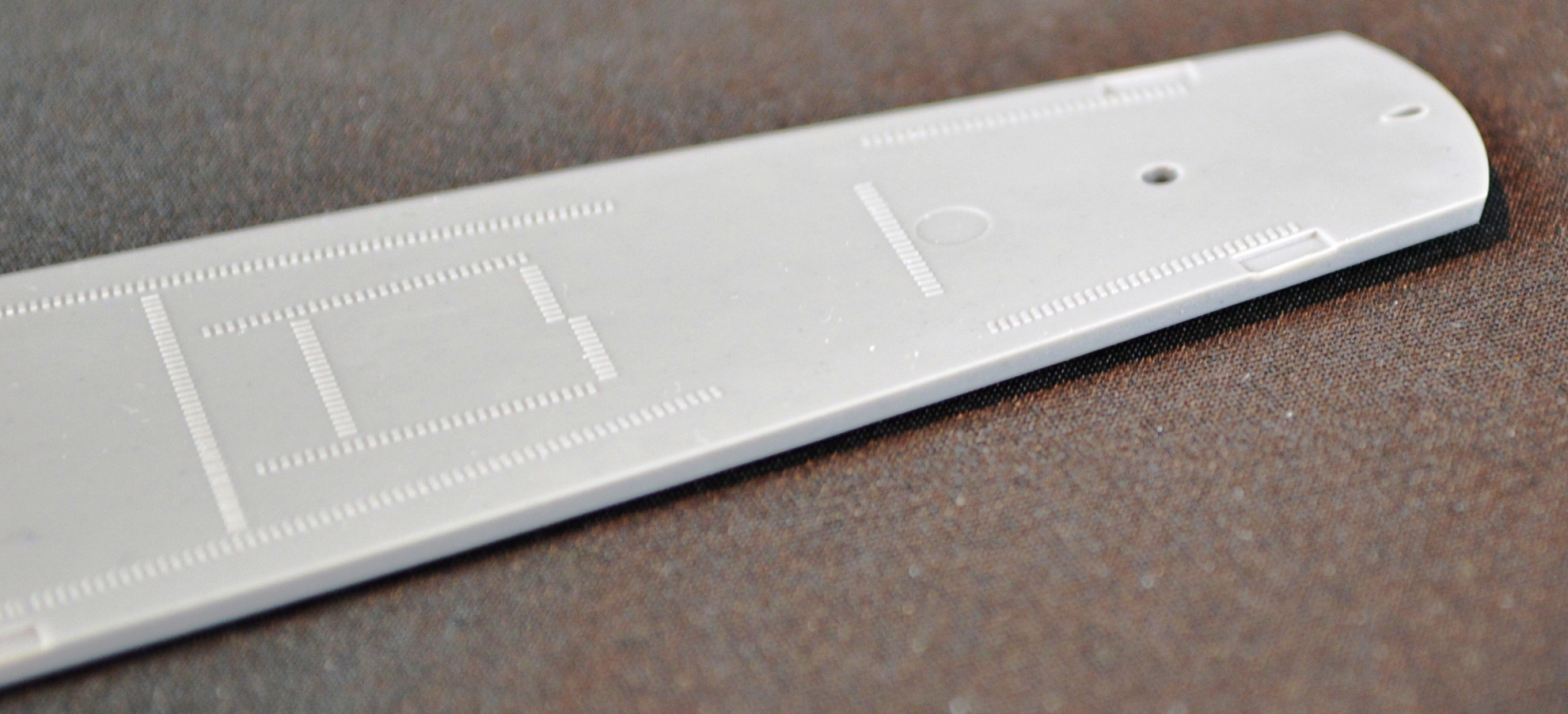

This class of ship was flush deck, so the main deck is one piece.  There are recessed rectangles on the deck for where the bollards go, and raised lines to help correctly line up the deckhouses.

My biggest issue with this part is the molded on non-skid treading.  They don't look right, nor do they match the non-skid treads molded onto the superstructure decks.  The treads on the main deck are much thinner than those found on the superstructure, and look more like a weld bead than non-skid treading.  Your options are to scrape them off, and hope someone does a set of decals for them, or leave them and hope that between the paint and the deck equipment, they won't be that noticeable.

At the aft end of the deck, there are numerous locating holes on the underside that have to be drilled out.  This seems to indicate - which VeryFire confirmed to Brandon Lowe of FreeTime Hobbies - that other variants of the class are forthcoming.  Unfortunately, the holes create corresponding bumps on the topside of the deck.  Once they are opened and there is deck equipment in place, this might not show, but I'm not sure if each and every hole will be have to be drilled open. Again, under a coat of paint, it might not matter, and might be a minor point, but it is something I noticed.


SPRUE C

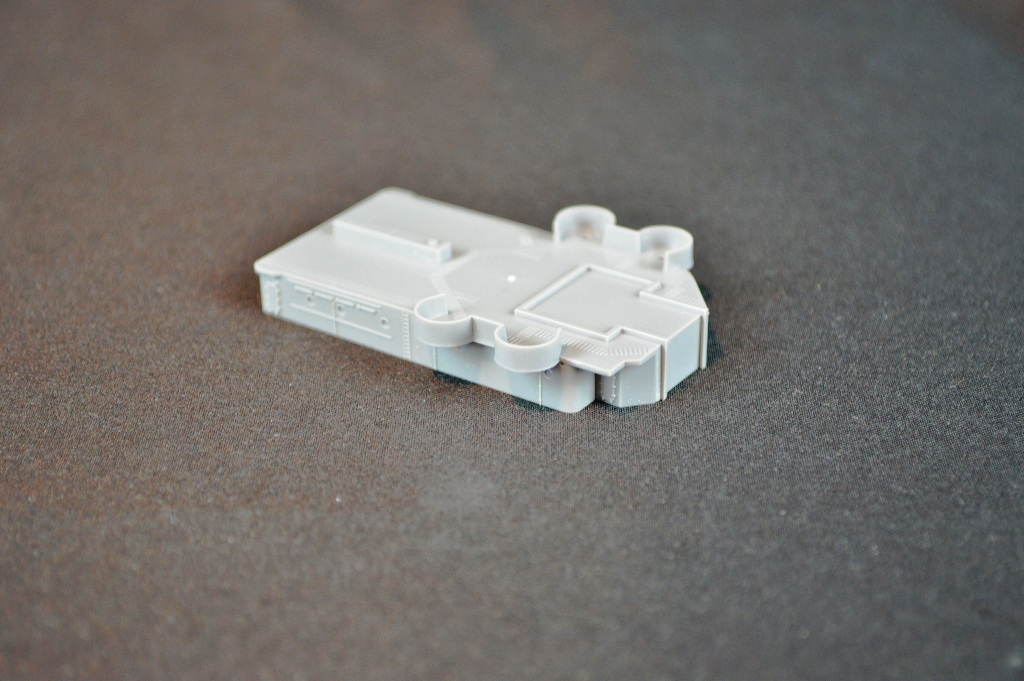

There are four separate pieces that make up "sprue" C:  C1, C2, C3, and C4.  Each of these are part of the superstructure.

C1 - this is the largest of these four part.  This part (as do all the others) feature raised non-skid treading, but here it looks better and is more subtle than the main deck.  There is also nice detail to be found on the bulkheads - fire hoses, cabling, watertight doors.  The splinter shields for the 20mm guns are well formed and not too thick.

C2 - same comments as above, along with some decent injection molded renditions of vertical ladders.

C3 - this is the aft superstructure.  Same comments as before

C4 - this is a small deckhouse for gun mounts 6 and 7.   Same detail as before, along with some other detail that may be stowed gun cleaning rods, according to the Floating Drydock plans.


SPRUE D
This is the largest sprue in the kit, and contains most of the rest of the superstructure, including the halves for the forward superstructure and the funnels.  Also included are the bases for the Mk37 directors and the rudder.  Detail is good, especially on the bulkheads.  You'll find more of the subtle cabling, vertical ladders, watertight doors and very nicely done vents (these are particularly nice).  The decks all have the non-skid treading.  My only beef is that it's not 100% consistently sized - there are a few decks where it's narrow than others.

The bases for the Mk 37 directors are three parts each.  It will be interesting to see if this leaves any sort of seam when assembled.   I do think that the molded on line on the sides of the funnels are overstated.  I'm not even sure what they are supposed to represent, as looking at pictures of Juneau at the New York Navy Yard in March, 1942, I can see nothing like these lines on the real ship.


SPRUE E (X2)
This sprue has anchors, depth charge throwers, vents, part of the prop shafts, booms and the round braces that go inside the hull for support.

SPRUE F (X4)
This is a common sprue with Very Fire's Cleveland-class kits (there are a few sprues common to the CL-55 class in this kit).  The 5in guns - two per sprue - are included here.  Each of these turrets is a multi-part affair.  Overall, detail looks good.  The cranes on these sprues are specific to Cleveland.

SPRUE G (X3)
Here we find the torpedo tubes, Mk 37 directors, ships boats, 1.1 guns and other small parts - such as the smoke generators and some smaller directors.   As before, detail is good, with planking on the decks of the boats. The instructions say there should be two of this sprue in the kit, but my kit had three.  Kudos to Very Fire for putting reasonable facsimiles of the Mk44 directors in the kit.  It's the first time I can recall seeing these in plastic.

SPRUE I
This sprue has davits, yards, masts and a radar and boat crane, along with gun tubs.  There's also the rest of the prop shafts (they are 2 parts for each shaft), struts and the props themselves.

The props are 3 bladed, which is correct for when the ship was first commissioned and undergoing trials, but incorrect for when she was in service.  Atlanta (and Juneau) had their 3-bladed props switched out for 4-bladed versions, due to excessive vibrations.   If you are building the model full hull, and want to depict her at Midway or when she was sunk, you'll have to source new props.


SPRUE J (X5)
This is another sprue that can also be found in the Cleveland-class kits.  It contains both 20mm and 40mm quad guns. The latter was not used on the Atlanta or Juneau, so you can toss them into the spares bin.  Also here are rafts, searchlights, paravanes, acetylene tanks and a small ships boat.  Detail is generally good.

SPRUE PE/PF (X5)
This is a "double sprue", connected to each other.  Again, it's also found in the Cleveland-class kits.  The instructions only call out sprue PE, which has bollards - in two sizes - vents, winches, and bridge equipment.  Sprue PF has a twin 40mm, which won't be used on this model.

SPRUE PI
This is a small sprue that contains 20mm ready ammo boxes

DELUXE EDITION: PART B 01
This is one small sprue that contains the base for the photo-etch crane found in the deluxe photo-etch set.

DELUXE EDITION: SPRUE PH (X4)
Here you will find oval rafts, open without any netting, which is supplied as photo-etch in the deluxe set.

ANCHOR CHAIN
There is a "pre-blacked" anchor chain included.  To the Mk 1 eyeball it looks blackened, but when you zoom in on a photograph, not so much.

PHOTOETCH
There are four photo-etch frets included.  One is from the base kit, the others are from the deluxe version.

Fret M - This is included with the base kit.  It have cable reels, depth charge racks, boat cradles and rigging for the crane

Fret A - This is from the deluxe set.  Here you'll find railings, supports, rigging for booms, and parts for the ships boats.

Fret B - Also from the deluxe set.  Here is the corresponding netting for the rafts on sprue PH, Mk 4 radars and supports, watertight doors, vision ports with armored covers, and vertical ladders. There are also porthole details and braces and shields for the 20mm guns.

Fret C - The last fret from the deluxe set.   The boat crane, accommodation ladders (2), inclined ladders, flag bags, supports/bracing, replacement davits (with nice detail), jackstaff, wind baffles and a replacement part for the front of the bridge.



TURNED BRASS PARTS
There are five small bags of turned brass parts.  Included in the set are masts, yards, booms, the post for the crane, flag staff, the "bumper" for the boats that hang from the davits, gun barrels for the 5in and 20mm guns, pedestals for the 20mm guns as well as the base for the SC-1 radar.  The 20mm barrels and pedestals are really nice.

DECK MASKS
There are two sheets of deck masks included with the kit.  Very thin, Tamiya like yellow paper.  They cover all the decks, along with separate cut outs for the non-skid treads.

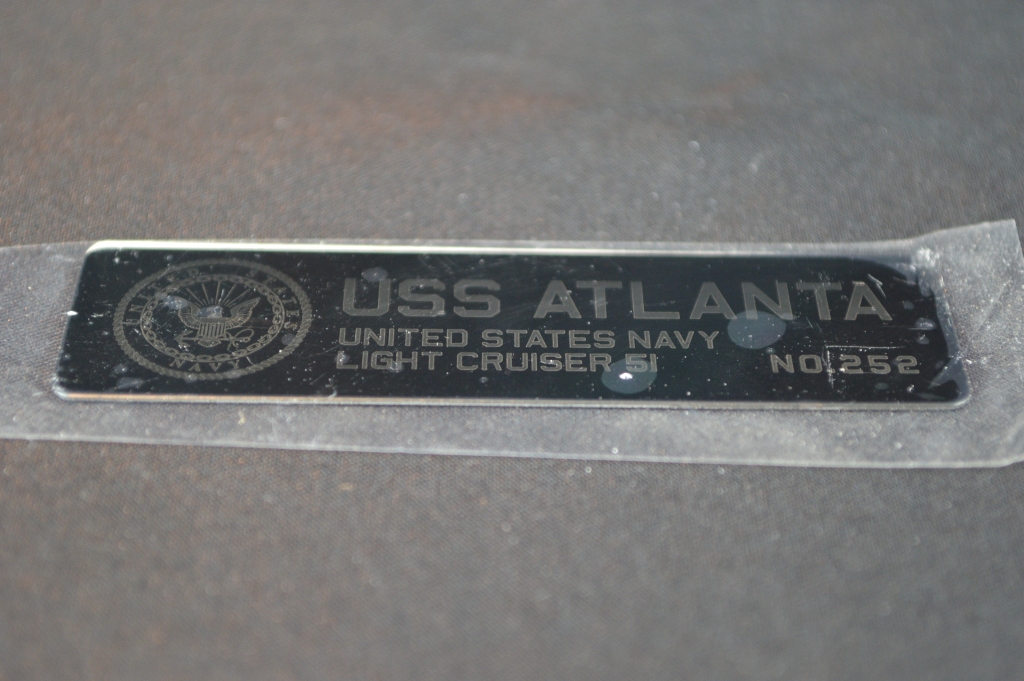

NAME PLATE
As a nice touch, there is a small name plate included with the deluxe version.


DECAL
There is one small decal sheet included  It has the US flag and USN jack (2 of each), hull numbers, draught marks and ships names for the first four ships in the class.

INSTRUCTIONS
The instructions are in booklet form, and cover 12 pages, with a parts manifest and exploded view drawings covering the build sequence.

The painting and marking instructions are on a separate sheet of paper.  Frankly, they are rubbish, with the wrong color callouts for the 1942 camouflage and the wrong pattern.  Throw this out upon opening the kit, unless you plan on building her as commissioned in standard gray (and making the appropriate changes).
DELUXE UPGRADE PARTS INSTRUCTIONS
There is a separate set of instruction for the deluxe upgrade parts.  The instructions are 8 pages on 4 large sheets of glossy paper.  There is a mix of drawings and photographs.  If you are building the deluxe version, best to lay this and the kit instructions out side by side and make note of what kit parts you need to leave of, remove or change.

TIME FRAME/ACCURACY
This isn't something I normally do, but considering the interest in this kit - and the questions I've already gotten e-mailed to me - I thought I would take stab at looking at what's in the box, and then try to figure out what time frame it best represents.  First and foremost, I'm not an expert on this class.  However, comparing the contents to photos and plans, as well as the Floating Drydock volume on Juneau, the Warship Perspective volume on the Atlanta-class, and Friedman's US Cruisers, this appears to be a good representation of the Atlanta and Juneau

Other than the knuckle on the hull (maybe) not being deep enough, the kit certainly looks like an Atlanta.  It's also better, in my opinion, than the resin 1/350 versions that have come before it, neither of which seems to be readily available at the moment (and yes, I've seen both of those models.  Owned and sold the BlueWater Navy version, and got a close up of the other manufacturers kit at an IPMS show some years back.  While that kit was quite nice, and a big improvement over the BWN kit, this kit from VF is even better.  Again, my opinion).

As Atlanta and Juneau - both built in the great state of New Jersey - were nearly identical, you should be able to build either ship from this kit.  San Diego and San Juan - built at a different yards than the first pair - had slightly revised bridges.  If you are looking to build one of these, you can either wait for the next Very Fire release (supposedly either San Diego and San Juan), or pick up the 3D printed replacement Kraken Hobbies is working on, if you can't wait for the next release.

Here's something Rick Davis (who I'd like to thank for graciously sharing photos, drawings and document he had scanned at the US National Archives NARA II location in College Park, MD with me) put together to outline the differences between Atlanta and Juneau


Looking at the kit and looking at plans and photos, it does seem that the complement of boats included in the kit, and which you are instructed to add to the model, are applicable for her trials only.  Later, both Atlanta and Juneau lost most of their boats.   Since there are no good photos of them in the last weeks of their service, it's hard to know if the boats were eliminated altogether.  Some sources claim that they were, but no one knows for sure.  Also, the large flag staffs at the stern were replaced on both ships in early 1942.  There are photos of this area on Juneau, from her refit in the New York Navy Yard in March 1942.  I don't know if Atlanta got the same revision, but it's likely she did, since the work was done at the same yard.

The kit has eight (8) 20mm guns.  Some sources say she added more 20mm before her demise, but I can't find any confirmation of that.  Again, hard to know for sure, and the last good photo of her, taken about 2-3 weeks before the battle, are from an angle which doesn't reveal any addition 20mm, or is too grainy to tell.  Based on what I see in photos, I'd say the kit - with a few revisions - is accurate enough for most modelers to build either a Midway or Guadalcanal version.  It's not like anyone can prove you wrong, and the wreck is in such deplorable condition that nothing can be discerned from that.

Here are some photos from the National Archives of Atlanta from May, June, August and October 1942, for you to draw your own conclusions.  Thanks again to Rick Davis for the photos.


CONCLUSIONS
An injection molded 1/350 Atlanta-class light cruiser has been at the top of most ship modelers wish lists for a long, long time.  We were teased by Dragon announcing - then canceling - their version a decade ago.  After VeryFire announced theirs, and showed some renderings of the kit, rumors swirled that they had gone under and the kit was canceled, causing some consternation in parts of the ship modeling community.  Thankfully both the kit and VeryFire have been resurrected, with future variants of the class being planned.

I do have some criticism of the kit, particularly the overstated non-skid treading on the main deck and hull plating, the (possible) shape of the knuckle, some flash, and the mix of features from different fits.  On the other hand, there is some really nice detail, especially that molded onto the bulkheads and the vents.  Compared to plans, the shapes look accurate, and the turned brass parts and photo-etch frets included in the deluxe version are really well done.  At the end of the day, it's a kit many have been clamoring for, and I think most modelers will be happy with what is in the box.  Plus, with some minor changes, you can build her sister Juneau as well.  All we need is some enterprising company to come out with camouflage masks for both ships.  Recommended.

This is Very Fire Model's kit number VF350, the 1/350 USS Atlanta.  The model currently sells for $199.99, and can be purchased from FreeTime Hobbies - who I'd like to thank for this review sample.

This is an in-box review of the kit contents only.  Your mileage may vary, once you get going on yours.
