| HISTORY
The USS New Jersey (BB-62) was one of the four Iowa-class battleships
launched by the US during the last few years of WWII. These were
the most powerful battleships built by the US and the New Jersey was chosen
by Bull Halsey to be his flagship. She was brought back into service
in 1968 to provide fire support in Vietnam and was extensively modernized
in 1982 at the beginning of Reagan’s explosive 600-ship Navy program.
She then served in the Middle East through the mid-Eighties.
For a fantastic read on the storied history and current status of the
“Big J” visit the Battleship New Jersey
Historical Museum Society.
The USS New Jersey is currently docked in Camden, New Jersey and is
undergoing refurbishment by volunteers to prepare the ship as a floating
museum. The expected opening is planned for September 2001. |
 |
|
|
|
| CONSTRUCTION:
As usual, with a large ship project what I like to do is break
down construction into smaller sub-assemblies. Here is the basic
order of construction with building notes: |
Click thumbnail
images to enlarge |
|
|
|
| DECKS- These are split into 3 sections.
The first is a nicely upswept bow section ending just under Turret #2.
The second is the main deck which has an additional deck molded above it
along with many details molded in. The last section is the stern
deck which begins just under the aft Tomahawk launchers. Construction
of the bow and stern decks consists of adding various winches, chocks,
bits, and mushroom vents. GMM photo-etched hatches and Stokes litters
for battle casualties were added as well. |
 |
|
|
|
| TURRETS- The three 16-inch gun turrets were
assembled straight from the box with the only modification being to sand
off the side and front ladders and replacing them with the delicate but
realistic PE ladders. I also spent a fair amount of time sanding
each gun barrel to smooth out the mold lines. The 5-inch secondary
armament was built straight OOB with no additions. |
 |
|
| STACKS- these assembled nicely with a bit
of sanding needed. I also used PE railings around the top ring and
on the small observation platforms. |
 |
|
|
|
| MAIN DECK CONSTRUCTION- The majority of building
focuses on the main deck area, bridge structure, and missile decks.
This is a slow process of painting and adding to the deck. I try
to build up as much as I can and head downstairs for a paint session.
Then when dry- I add the bits to the deck. Assembly was hassle free
in all areas. The CIWS (Close-In Weapon Systems), Tomahawk launchers,
etc. fall together easily. I keep a sharp eye on the GMM Photoetch
instruction sheet to alert me to the many areas where I can replace the
kit parts with brass. The GMM set is spectacular. I replaced
the Gun director supports with brass, life raft back plates, and added
many different railing styles to enhance the realism of the model. |
 |

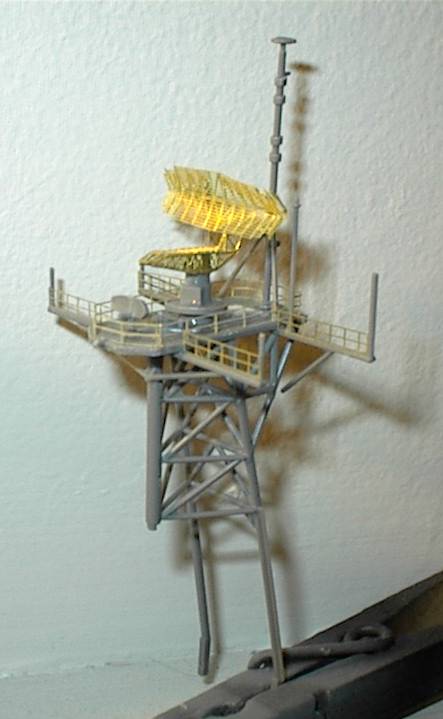

| MASTS- There is a lot of brass to be added on these assemblies
and they really add significantly to the look of the kit. The radar
is so finely detailed and the railings around the platforms fit perfectly-
it looks infinitely better than the plastic parts. |
 |
 |
| HULL- Following my normal lunacy, I charged
up the Dremel and went to work cutting the bottom of the hull off.
There is a clearly marked waterline boot engraved on the hull and I follow
along smack in the middle of the boot. Care must be taken here to
save your fingers and to hold the tool steady as it is cutting. It
has a tendency to jump out of the groove your are cutting and will mar
the hull above the waterline. After the cursing is done- you will
need to spend some time sanding out these errors. I added the gorgeous
PE helicopter safety netting around the helo pad, the kit anchors, and
brass helo refueling stations with hose reel in the aft portion of the
deck. |
|
|
|
| PAINTING
Once I had the major subassemblies to the paint stage- I proceeded to
the paint “basement”. Primary color used for the US Navy Haze Grey
was Tamiya Sky Grey which is a close match. |
|
|
|
| TURRETS: Airbrushed Sky Grey overall.
Hand-painted the blast bags flat black and the barrel sleeves gunmetal.
I also used a black pointy marker for the barrel tips to simulate the muzzle
opening. I thought about drilling them out but I was not confident
I could pull that off with these thin barrels. |
|
| HULL, SUPERSTRUCTURE: Airbrushed all Sky Grey.
Steel decks were painted using Tamiya Medium Blue. |
|
|
| MASTS: Sky Grey lower portions and Krylon
Flat Black from a spray can for the entire mast above the top of the stacks. |
 |
|
|
|
| DECKS: Tamiya Deck Tan used for the teak deck,
Testor’s Gunship Grey for the non-skid areas, and Medium Blue just forward
of the helo deck. |
 |
|
| CONSTRUCTION CONTINUES:
After the hull was cut down and sanded, the 3 decks were added easily
to the now quite flexible upper hull. A bit of filler was needed
because there was a 1/16 inch gap between the main deck and the aft deck.
The turrets were added along with there retainer allowing them to turn.
5-inch turrets were added to the main deck as well as the main superstructure
subassemblies. I had a bit of a problem attaching the main mast requiring
me to massage and bend outward the legs to get a proper fit around the
stack.
Prior to the addition of the brass railings, I moved on to extensive
weathering. For the teak decks, I concocted a chalk pastel dust mixture
of yellows, browns, and earth colors. Using an old stiff brush, I
rubbed this dust into all the teak sections. This gives the monotone
tan color depth and realism by almost fooling the eye- teak is various
shades of color and I think this is an OK method to get that look. |
 |
I used black pastel dust to smudge up the helo non-skid deck.
This was done over the white landing stripe decals to simulate tire, oil,
and boot marks/ stains. I use a maroon/ ochre/ rusty colored mixture
of dust to simulate rust stains along the hull. I am still learning
to use washes appropriately and tried a dark grey/ black wash over various
areas to bring out detail and simulate wear. The tops of the Tomahawk
launchers received this treatment as well as the other missile launchers.
|
 |
Hull decals and other warning stripe decals were added. I used
black stretched sprue for some simple rigging. The model was floated
using my usual Acrylic Gel Medium sea with watercolors. Two coats
of Future make the water shine nicely. I am still thinking about
adding crew figures but my eyes hurt just thinking about that task!
A final spray of dullcote completed the model- at least until I feel like
adding other stuff like a Seahawk helo and a crew! |
|
 |
|
|
|
| CONCLUSION:
The Tamiya 1/350 battleship kits can be had for around $40 online
if you look around a bit. The GMM set costs $36.00 but is worth every
penny. This was a great build and the kit caused no headaches.
It sure looks nice alongside my WWII Missouri. If you want to see
an incredible display by Tamiya 2000 Master Modeler Kelly Quirk of the
USS
New Jersey along with the USS Enterprise- poke around this site and
check it out- it is stunning! |
|
|
|
