Battleship Scharnhorst 1/100 plan sets by Rob McCune |
 |
|
| As many of you Rob McCune recently completed some
3D CAD drawings of the Scharnhorst in her 1943 configuration. These
drawings will be used by Dragon Models to produce a 1/350 scale model of
the ship. Having spent a great deal of time creating these drawings, Rob
decided to help fill the void for large scale drawings. There are some
drawings currently out there, but they are not as accurate and do not have
the benefit of the latest research. This new set drawn in 1/100 with details
in 1/50 are about the nicest set of plans now on the market.
The set will be sold as a basic and advanced set both for $35.00 ea.
|
| SHEET 1 |
|

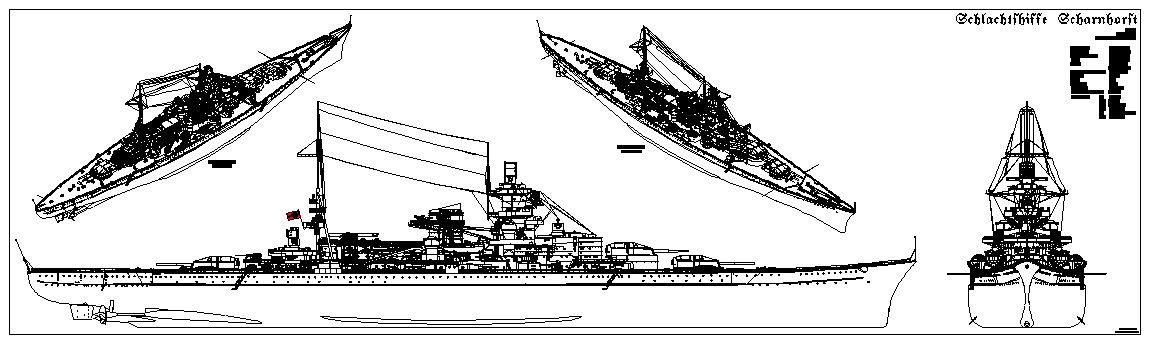

| This sheet has the traditional elevation views of the starboard and
bow elevations. Two auxilary views in 1/200 scale showing the starboard

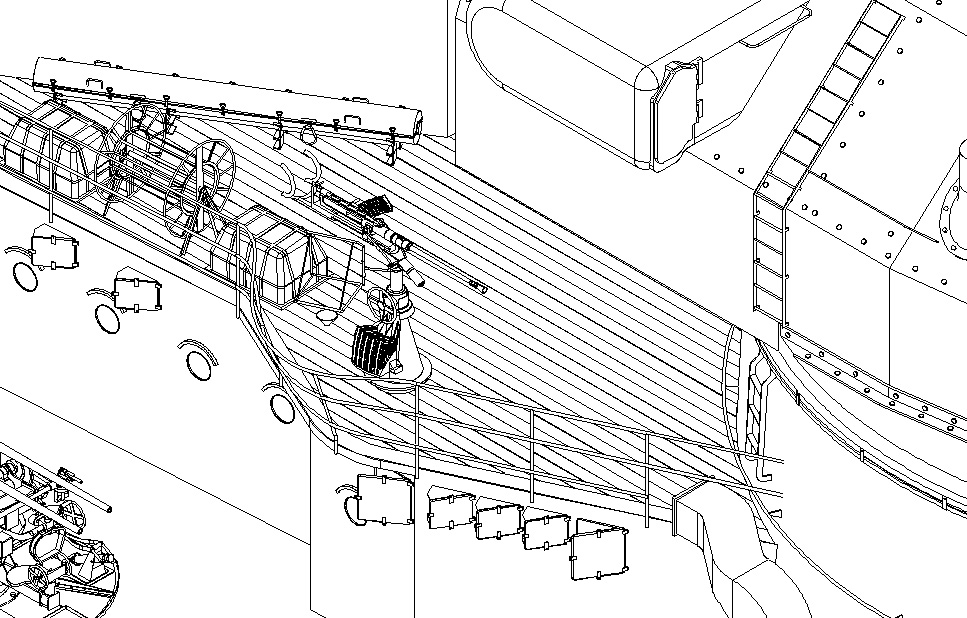

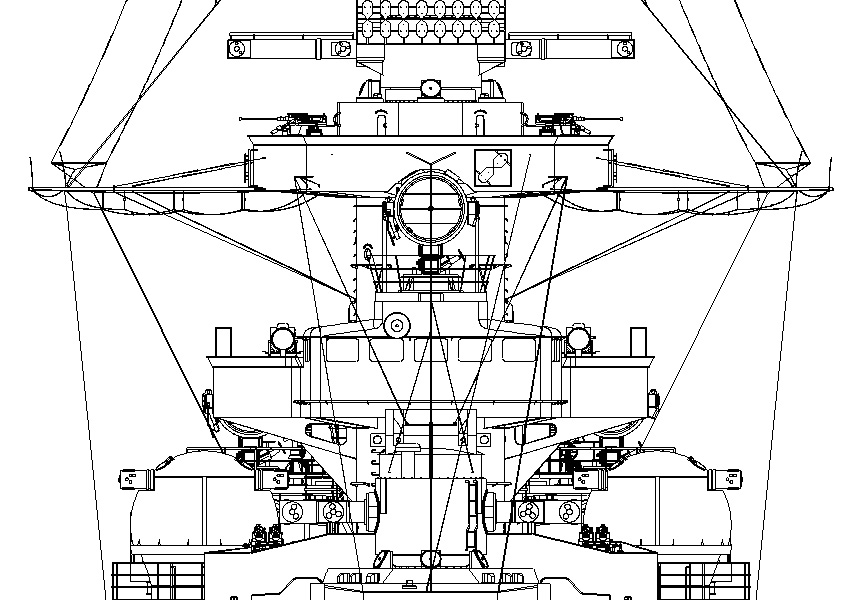

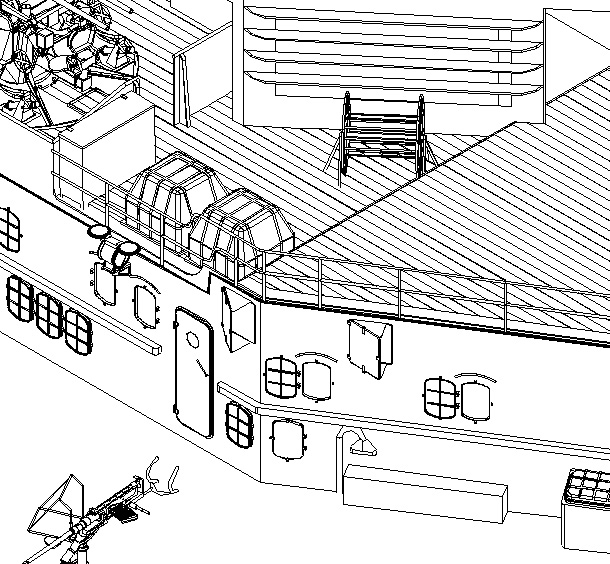

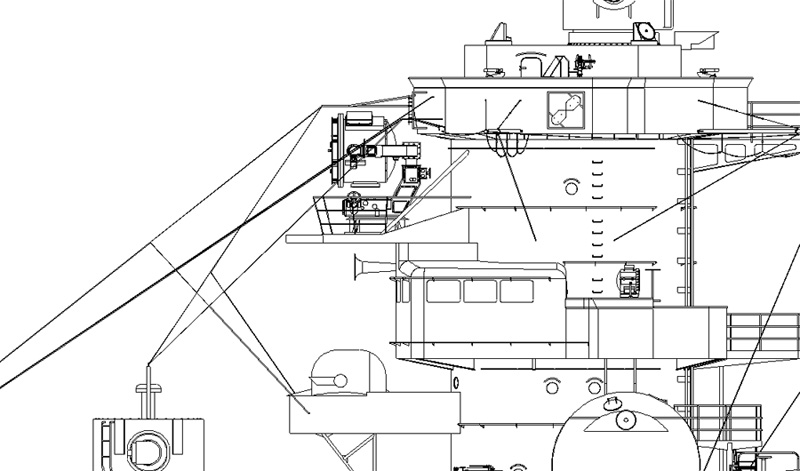

side of the ship at an angle. These are very detailed as you can see by
the closeups below. |
 |
|
|
| SHEET 2 |
|
| The second sheet has the port side and stern elevation and the other
two auxiliary 1/200 scale views of the port side. The ship is shown fully
rigged in the drawings so this will be a help if you decide to add this
to your model. |
 |
|
|
| SHEET 3 |
|

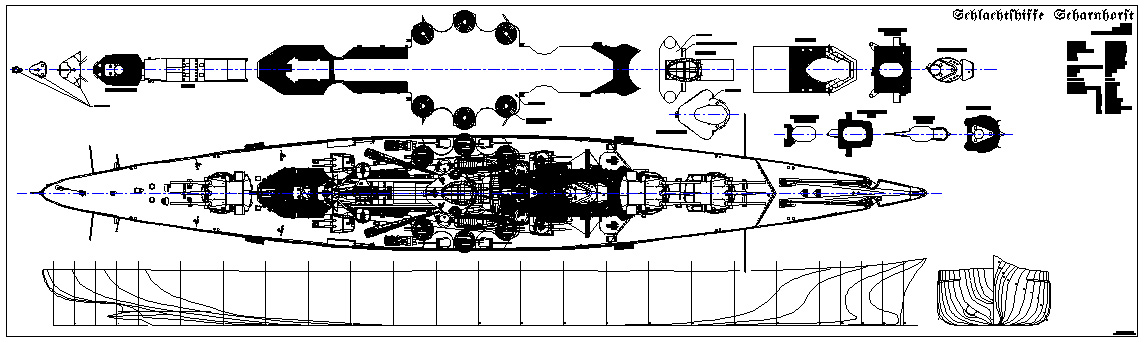

| Hull lines, plan view, and deck levels are included on this sheet.
These are very well drawn and are the deck levels help make it clear where
the weapons and fittings go. |
 |
|
|
| Advanced Set included the following extra three sheets.
The second "advanced" set is also three sheets and has more detailed views
of each component of the superstructure. The final sheet is in 1:50
scale and shows close up details of all the weapons and accessories, such
as the rangefinders, cranes, anchors, etc. |

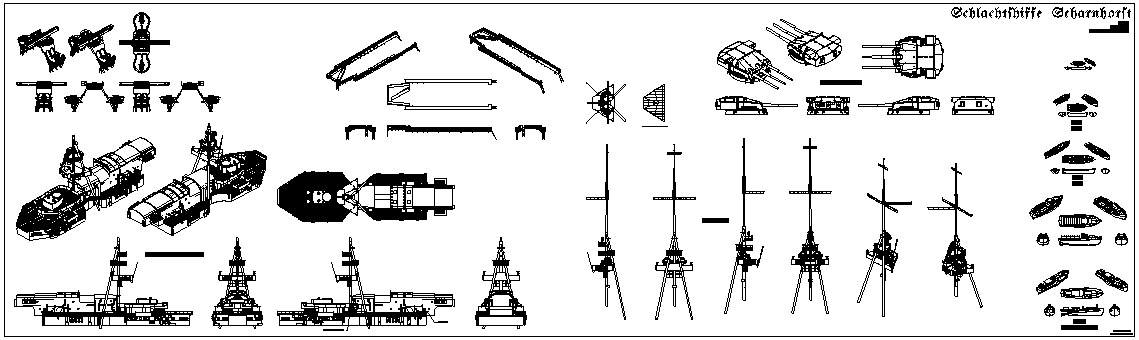

| SHEET 4 |
|

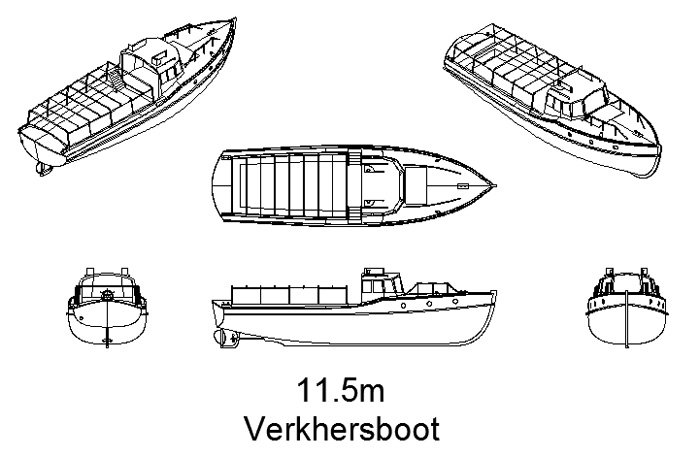

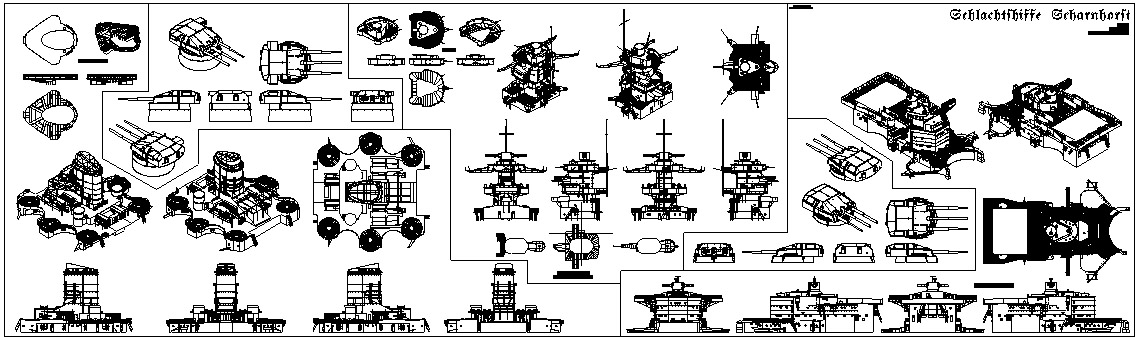

| This sheet includes mulible views of the aft main gun turret, aft superstructure,
life boats, and the main mast from a variety of angles. Having these views
without other parts overlapping really helps define what is in each area
of the ship. |
 |
|
|

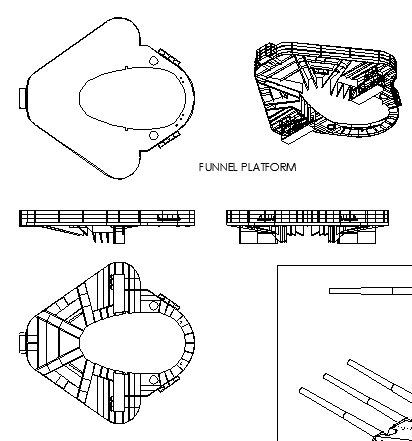

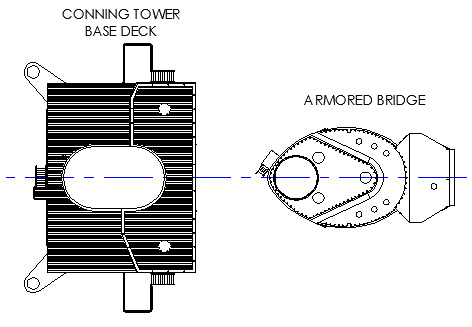

| SHEET 5 |
|

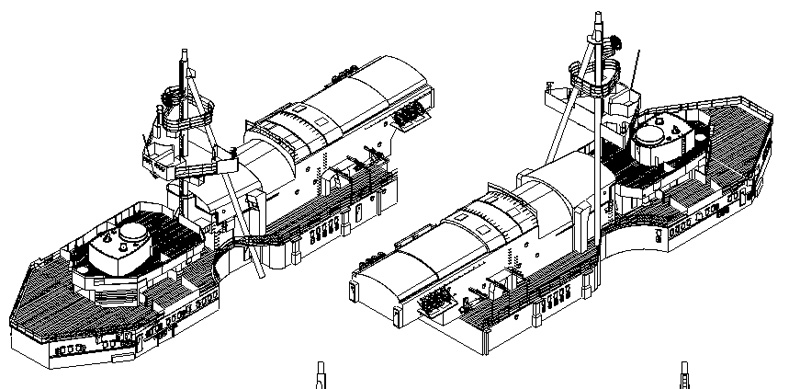

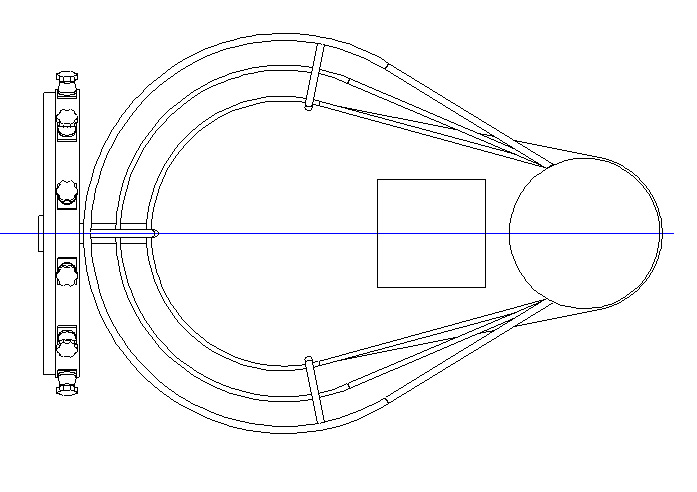

| The forward superstructure, two forward main gun turrets, and varius
platforms are shown on this sheet. The platforms even include underside
views. |
 |
|
|

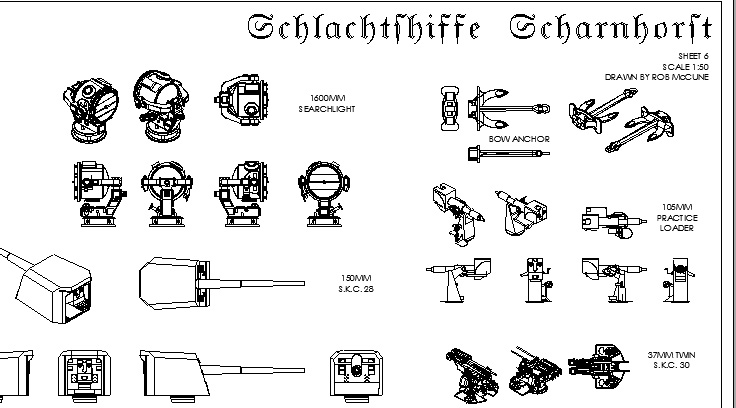

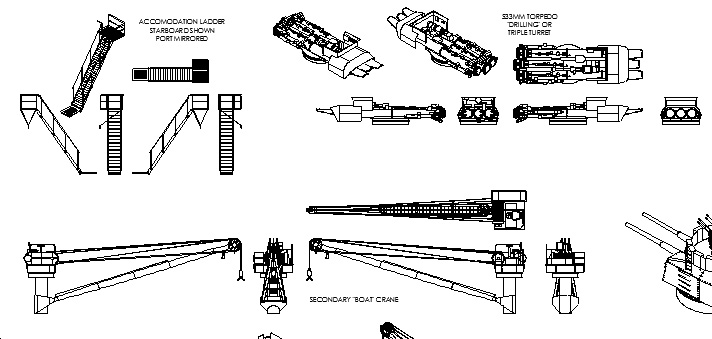

| SHEET 6 |
|

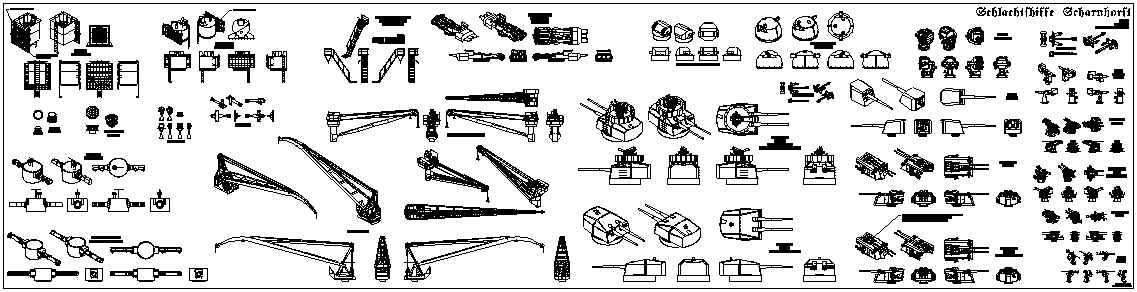

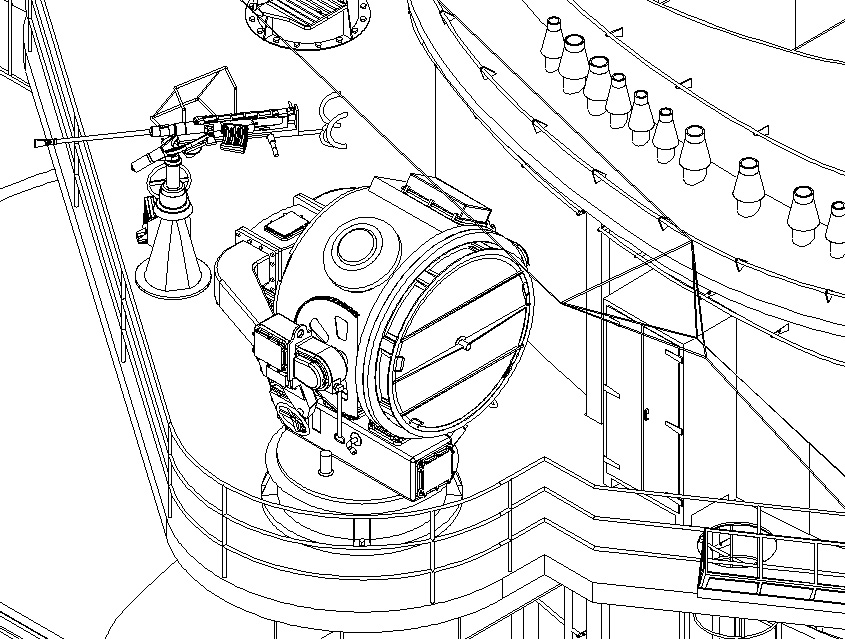

| The last sheet has the medium guns mounts, cranes, directors, and radar
assemblies again from all angles clearly showing all the fine details. |
 |
|
|
|
|
All drawings are 10 feet long by 3 feet tall, with the exception of
the final sheet, which is just under 12 feet long. Each set costs
$35 US and $13 for shipping and packaging anywhere in the continental US.
International shipping will be at cost. Buy both sets and shipping
is still $13. Heck buy five or six, and it will probably be the same.
All drawings will be shipped parcel post in a 36" shipping tube, which
is included in the cost. Please don't ask me to fold them, I am not
any good at it, and I'll charge the same price for shipping anyway
(in other words just don't ask :) ). Satisfaction is guaranteed.
If you are interested, please send me an e-mail at rtwpsom2@hotmail.com.
|
