Here are some photo's of The
Floating Drydocks 1/8" = 1' plans for the Destroyer USS Cushing a Mahan
Class DD of WW2 vintage. These plans are a little more detailed then the

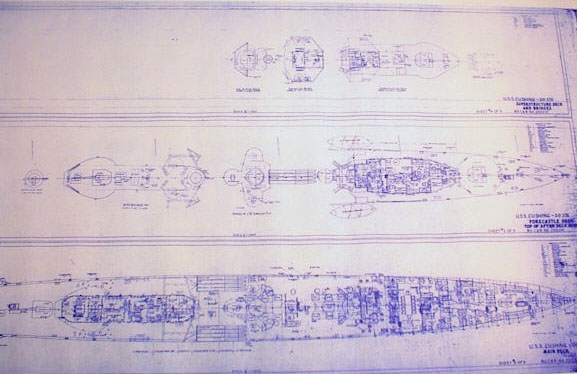

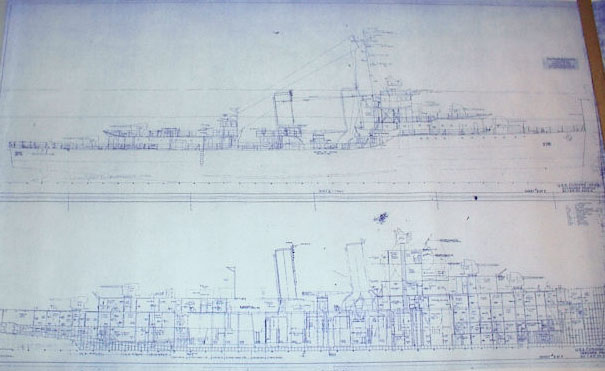

USS Helena plans we reviewed previously. These plans include interior views
on all deck levels in both the plan and elevation. Click on the thumbnails
for some sample images. the images below don't do justice to the quality
of these prints and are just intended to show what is included in this
set. The plans are listed in the current Floating DryDock catalog as set
# G-DD376.
